Filament Rack by Tauron

Tauron

3D Printer>3D Printer Accessories

Print Profile(3)

All

X1 Carbon

P1S

P1P

X1E

For 0.5 inch EMT (as seen in pictures)

Designer

23.9 h

2 plates

5.0(7)

26.4mm Hole - Slightly over 1 inch.

Designer

23.7 h

2 plates

5.0(1)

Thinner (30% less material)

15.3 h

2 plates

5.0(1)

Boost

248

406

400

Released

Description

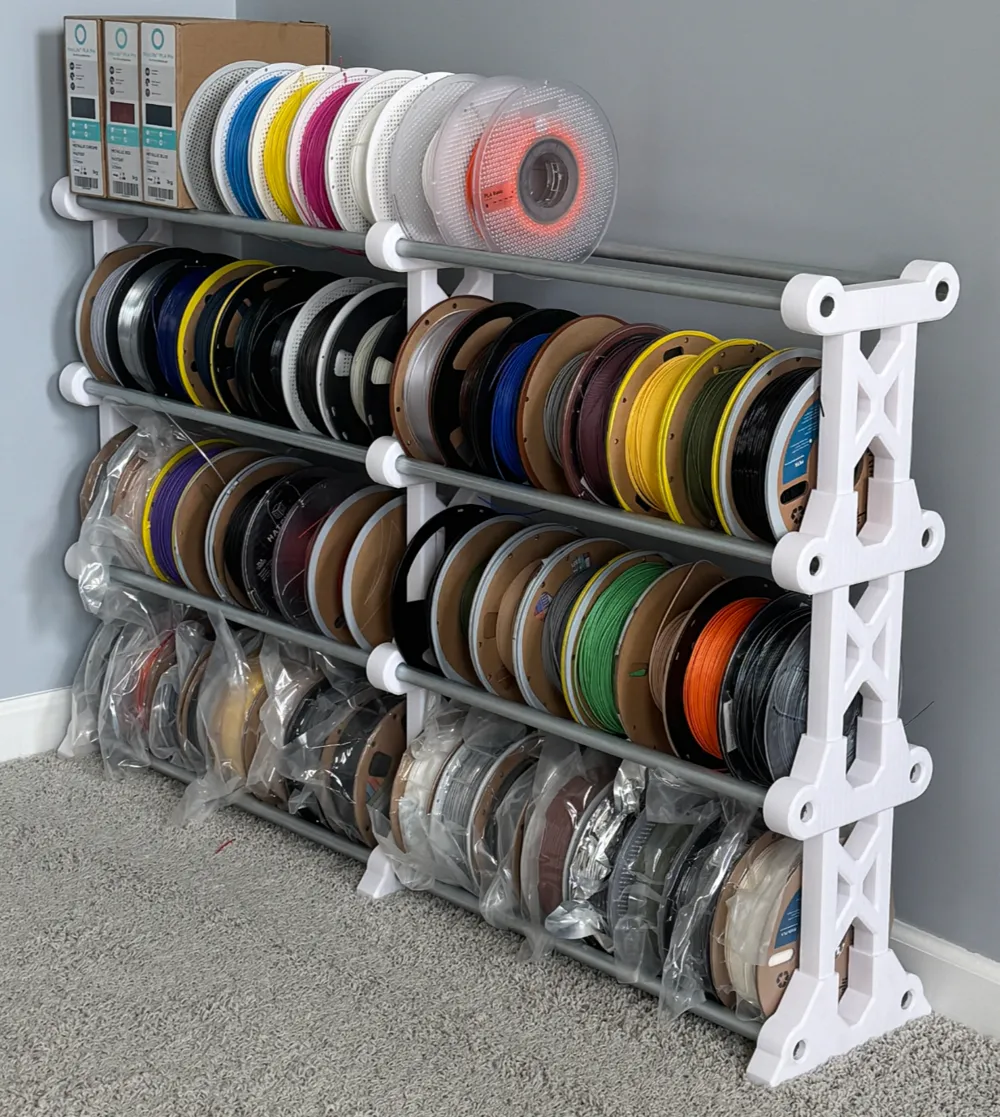

This is slightly over engineered modular Filament Rack made out of 3-4 parts. It uses ½ inch EMT conduit (about $5 each @ Home Depot)

I used EMT conduit in mine because it's strong and doesn't bend easily. Prior to the pictures you see I had the spools sitting on only 2 sets of each part and EMT conduit survived with very little bending for over a week until I printed another set to give myself a little peace of mind; that was 16 spools of filament with very little bending. If using ½ inch EMT I wouldn't go past 10 spools for safety; also at 16 spools one side was supporting close to 50 pounds of weight so that seemed a bit much.

You can go as many levels as you want; in pictures you see 3 levels and if you want more just print “Middle Point” and “Riser” parts per level.

I'm including STEP files for 0.5inch EMT version so you can make the holes bigger for whatever you want to put in it or just leave a comment below with whatever diameter pipe/stick you want to put and I'll resize it for you.

Edit1: Added 2 additional versions; one with 26.4mm holes (Slightly over 1 inch) and one with 34mm holes (slightly over 1.3inch). I would print “MIDDLE POINT” and “TOP” parts stronger with those as they become weaker with larger holes; do more walls / higher infil.

Edit2: Added 21.32mm holes Version.

Comment & Rating (19)

@flynn

Boosted

Print Profile

For 0.5 inch EMT (as seen in pictures)

I scaled it down to 33.33% and worked out great for my toy display model,, thanks

The designer has replied

@Tauron

Haha that thing is awesome, sorry I was going to give you the scale needed after work but I see you worked it out.

@apt3d

I was gonna say, the maker is talking about 50 lbs. and then I see your pic and I'm like wait, is this for real spools or for mini ones. Looks cool and cute.

@JamesDumitru

Boosted

Print Profile

For 0.5 inch EMT (as seen in pictures)

Made exactly and no issues for my X1C

@Lins

Boosted

I really like it. I made some printable dowels that I want to upload as a remix to this file. Your 3-level design was perfect for my setup, thanks for your work!

@flynn

Boosted

hi I want to make a mini version of this for my display, my mini reels are 67mm diameter, how much do yo suggest I should resize it down ,, thanks

@rachelareitz

Would it be possible to make a 0.8" version? That's the size of the closet rods I am intending to use. Thank you

The designer has replied

@Tauron

Added 21.32mm version (0.84 inch) I added 1mm to your 0.8 inch request because if the rods are even slightly bigger you'll have very hard time getting them in; this should solve that.

@uttruong

Hello, Thanks for this print profile. It's great. Can you also make it with 1.3inch? Thanks and regards

The designer has replied

@Tauron

Added, make sure to print "Middle Point" and "Top" parts slightly stronger as bigger hole made those parts a little weaker.
