Description
Boost Me (for free)
I enjoy designing every day items and sharing them with the community here. If you like my designs, please consider leaving a review and a Boost. Your support is greatly appreciated!

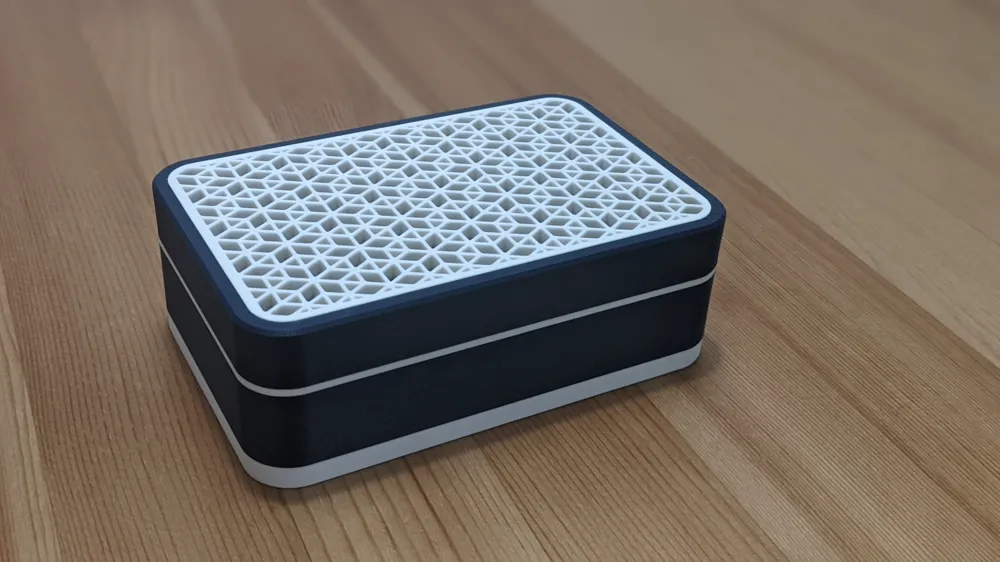

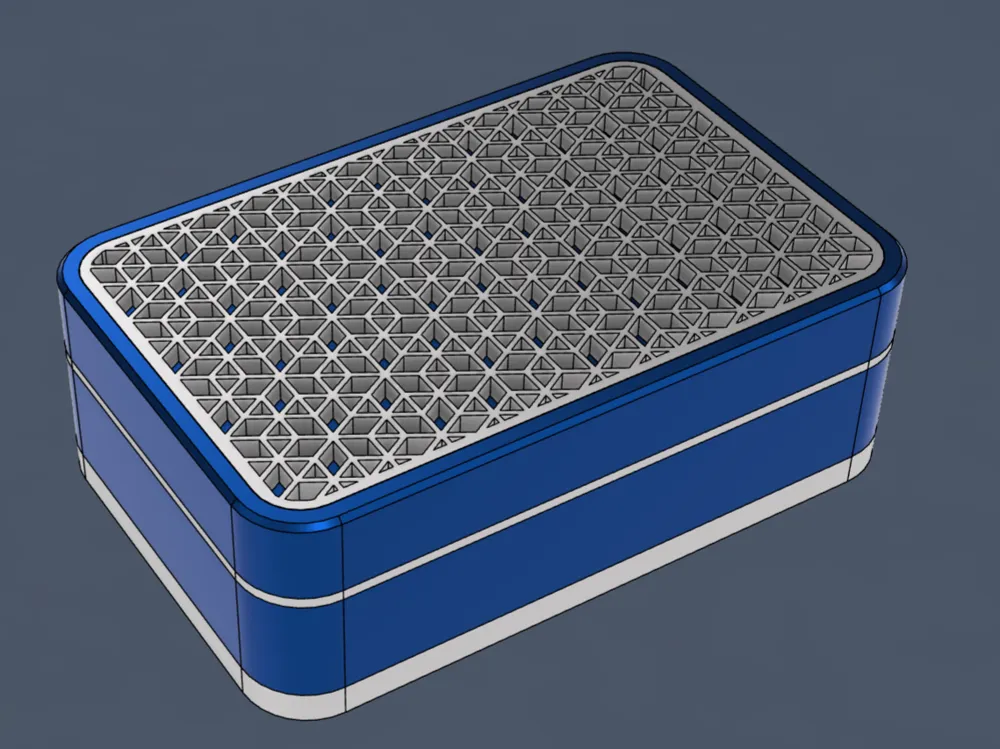

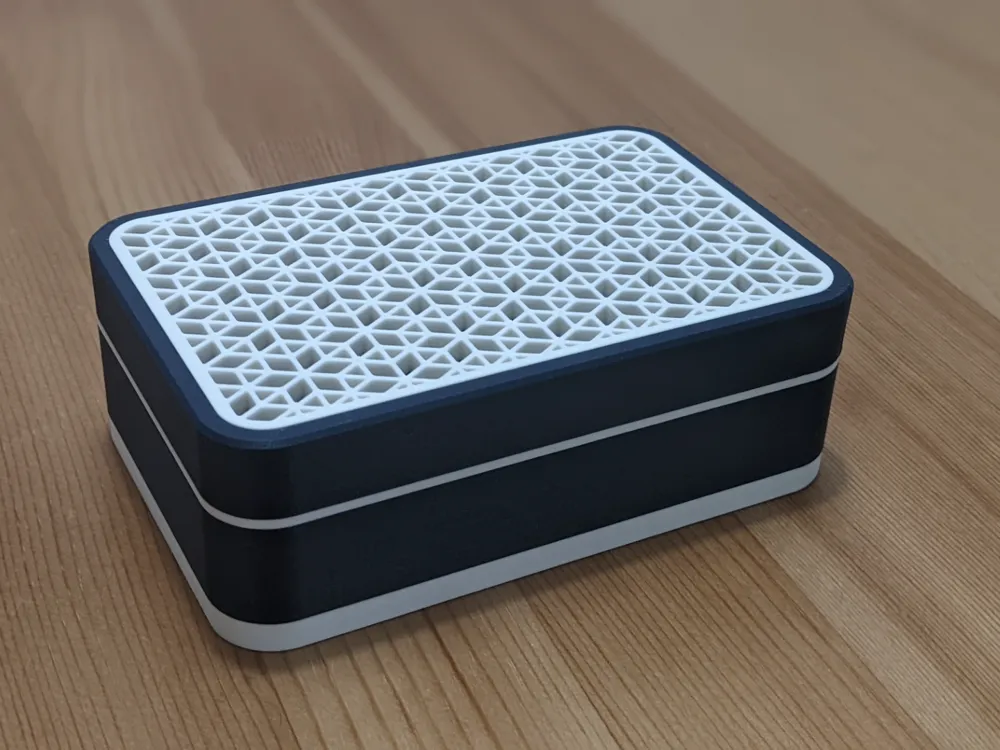

This is a small storage box with a lid that features a beautiful Kumiko pattern. All parts can easily be printed without supports.

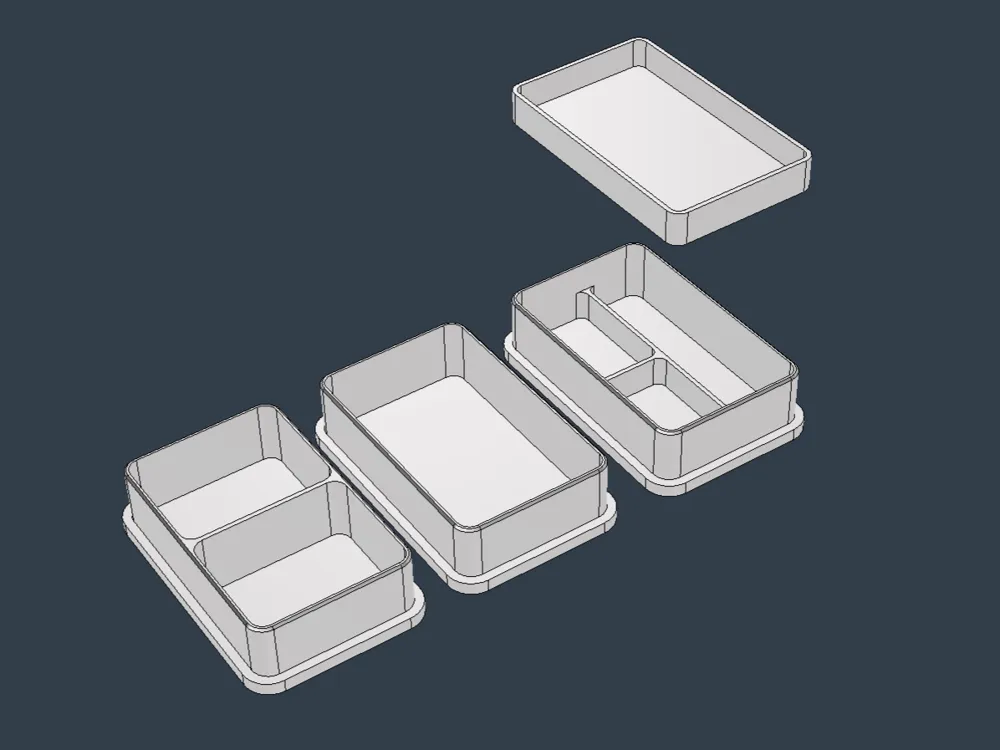

I've included four different options to divide the box:

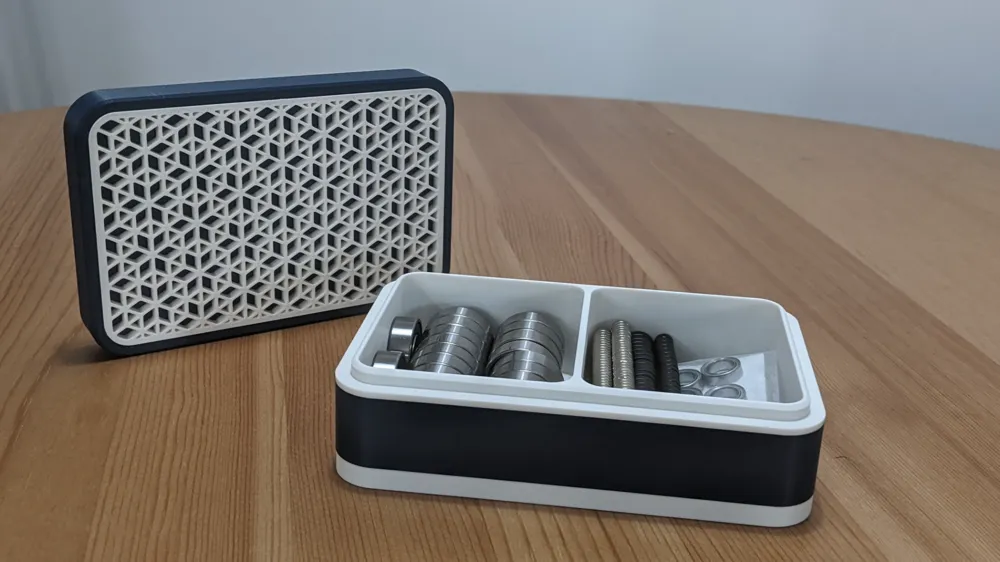

- Option A (pictured) divides the internal section in 2
- Option B - No division
- Option C - Two levels, bottom is divided in three sections and top is not divided
- Option D - Divided in 3 sections (same as option C but single level)
External Dimensions:
- Width: 126.10mm
- Depth: 82.10mm
- Height: 43mm
Internal Dimensions (without division, option B):
- Width: 114mm
- Depth: 70mm
- Height: 35mm
Additional information:
- A1 Mini compatible
- Glue is not required, all parts were designed with very tight tolerances and snap together.
- All parts are printed, no hardware.

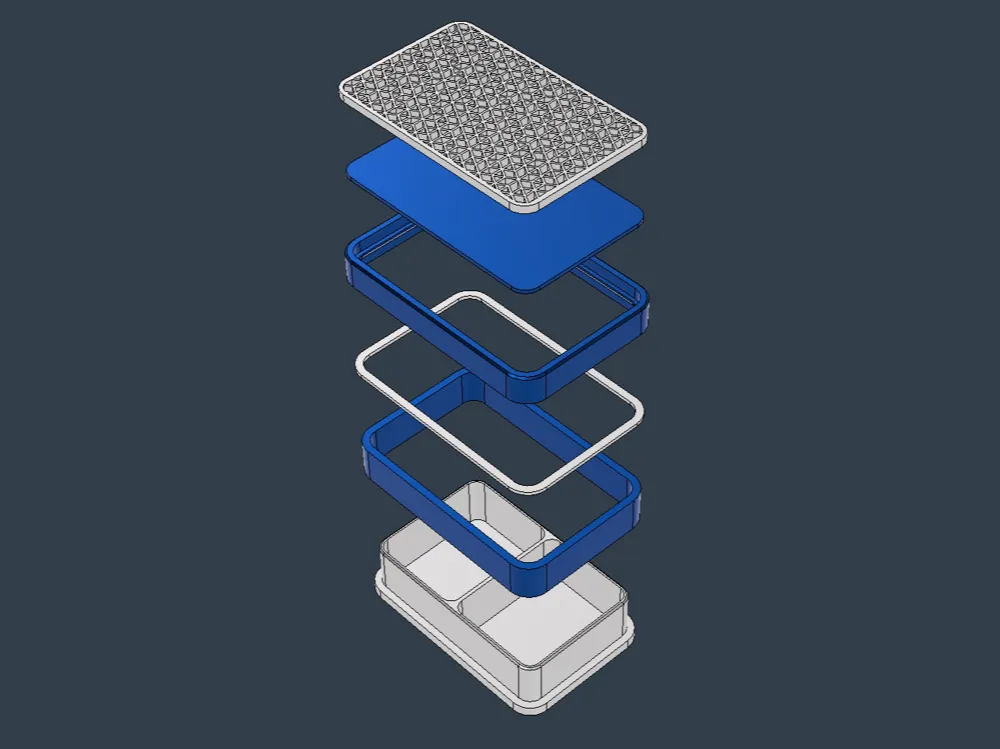

- See exploded view in photos for the installation sequence.
- The “ring” part is optional to give an extra line in the middle of the box. It can be omitted without changing anything else.
*Warning: Given the tight tolerances between parts, I am not sure that scaling this model will give good results. Parts may be too loose or too tight.
