Description

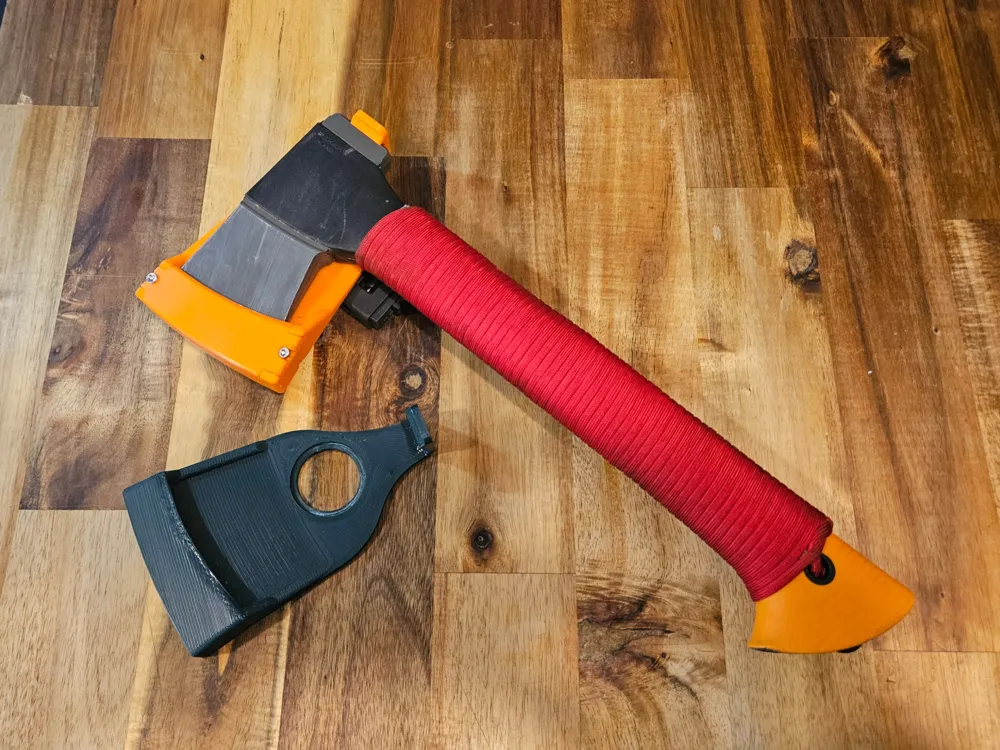

Wearable sheath for the Fiskars X7 hatchet.

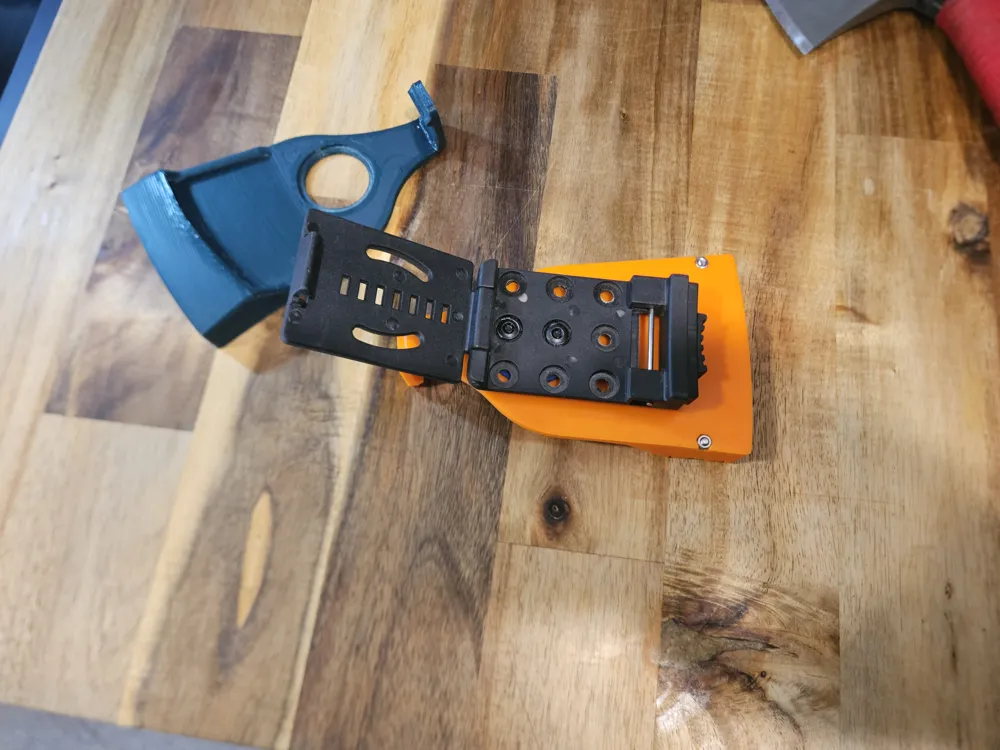

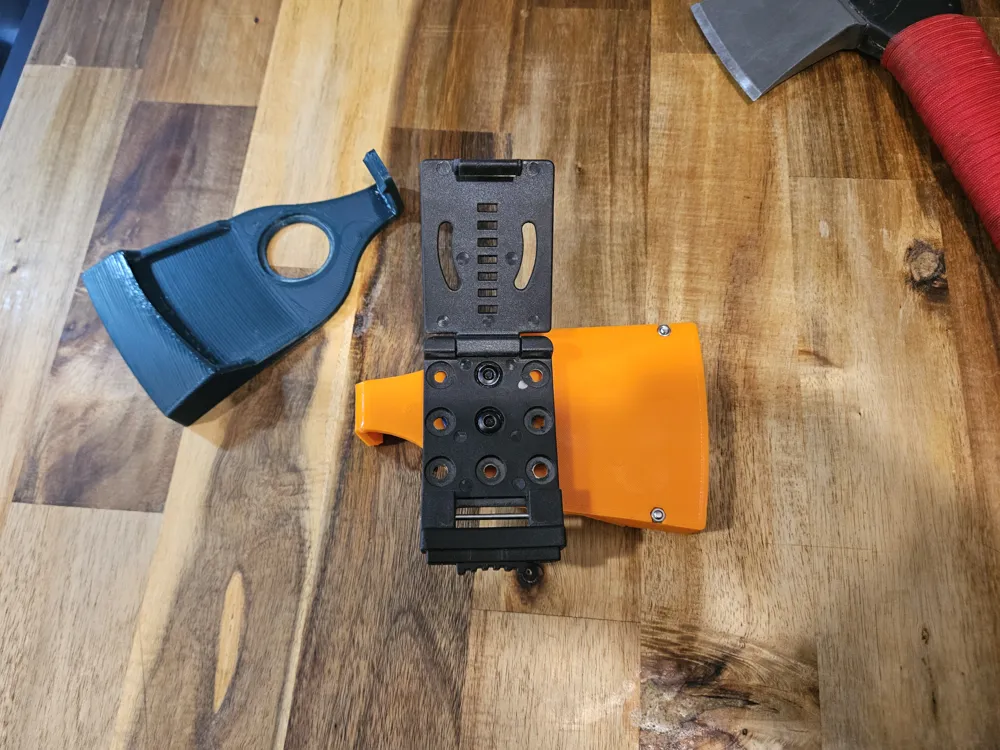

Can be mounted to Tek-Lok style belt clips.
Mounts facing forward on the left, mirror parts for right.

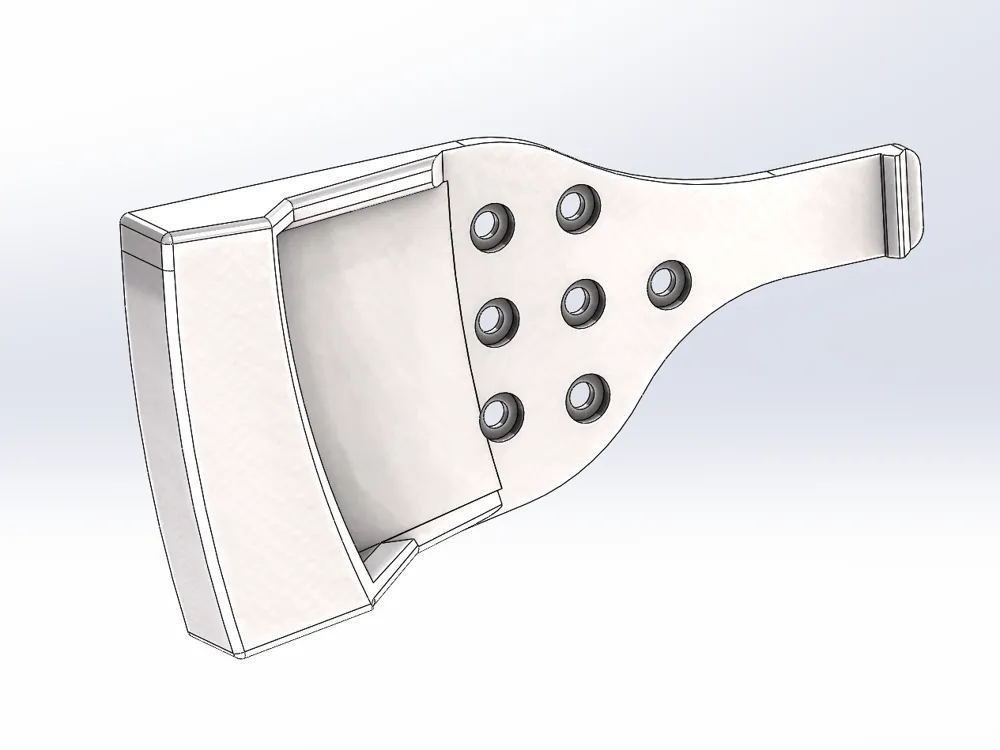

Two mounting styles: fixed or pivot.

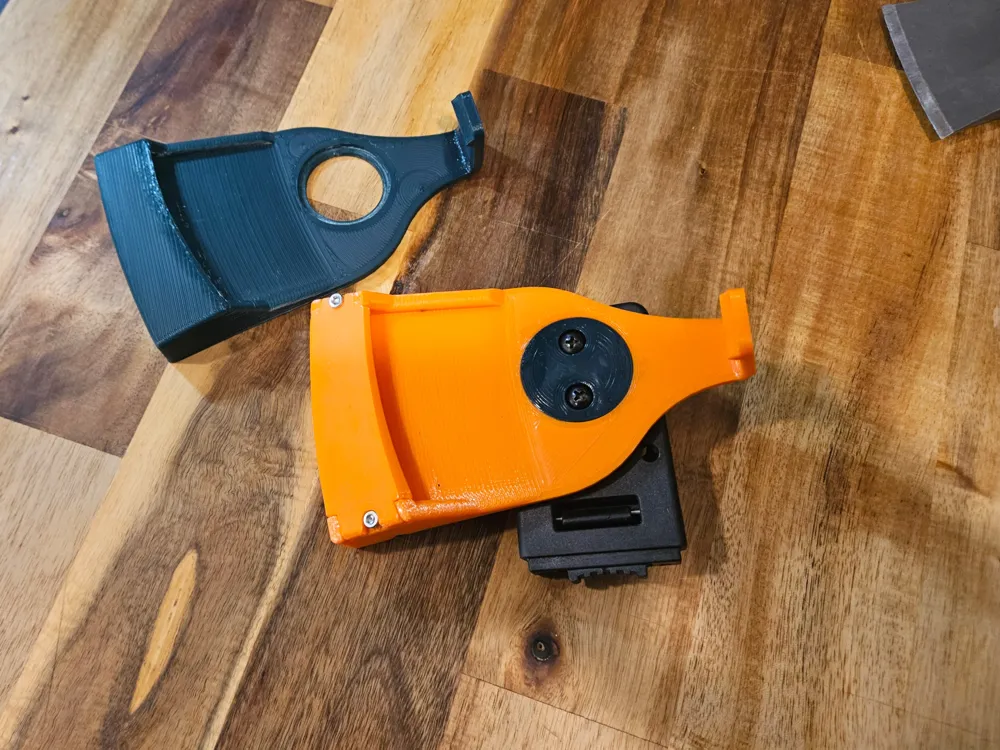

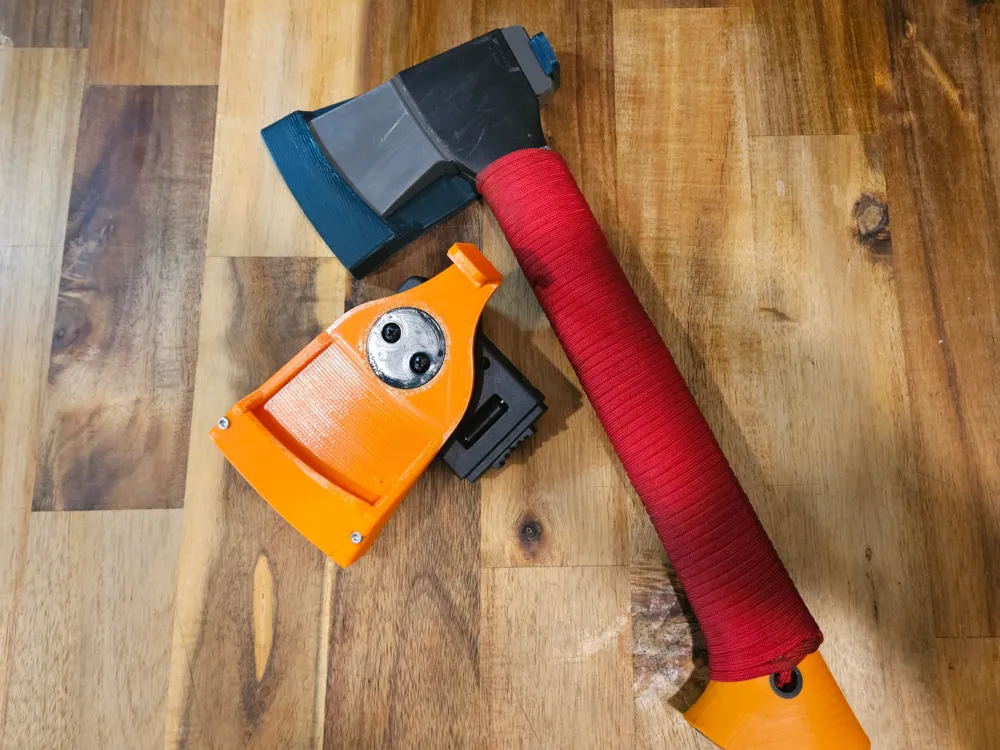

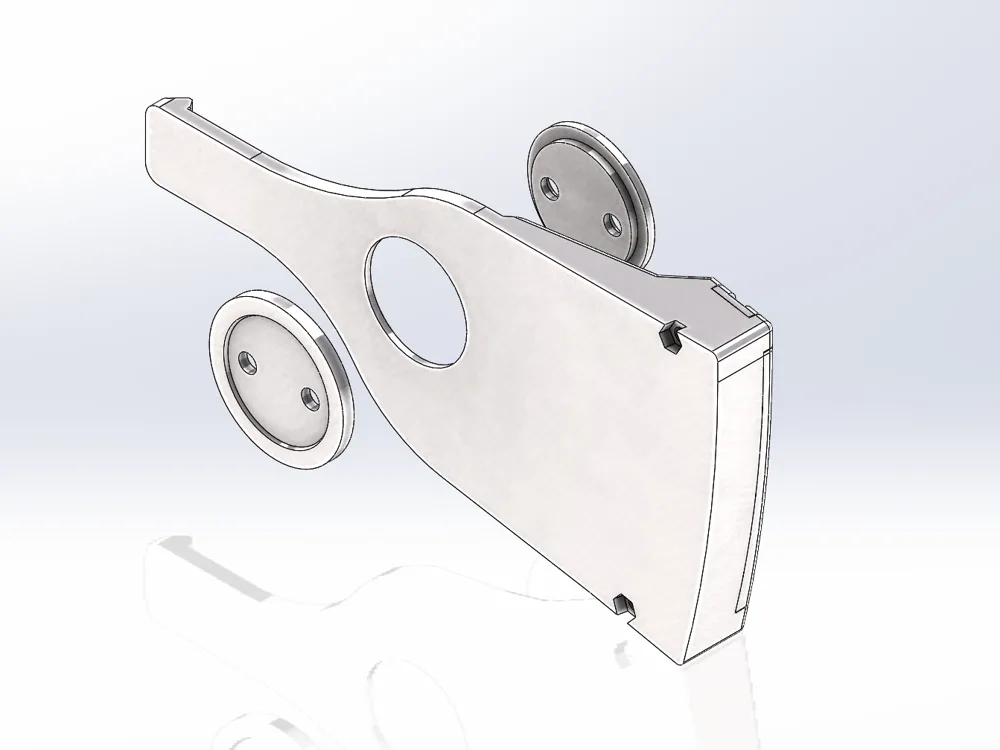

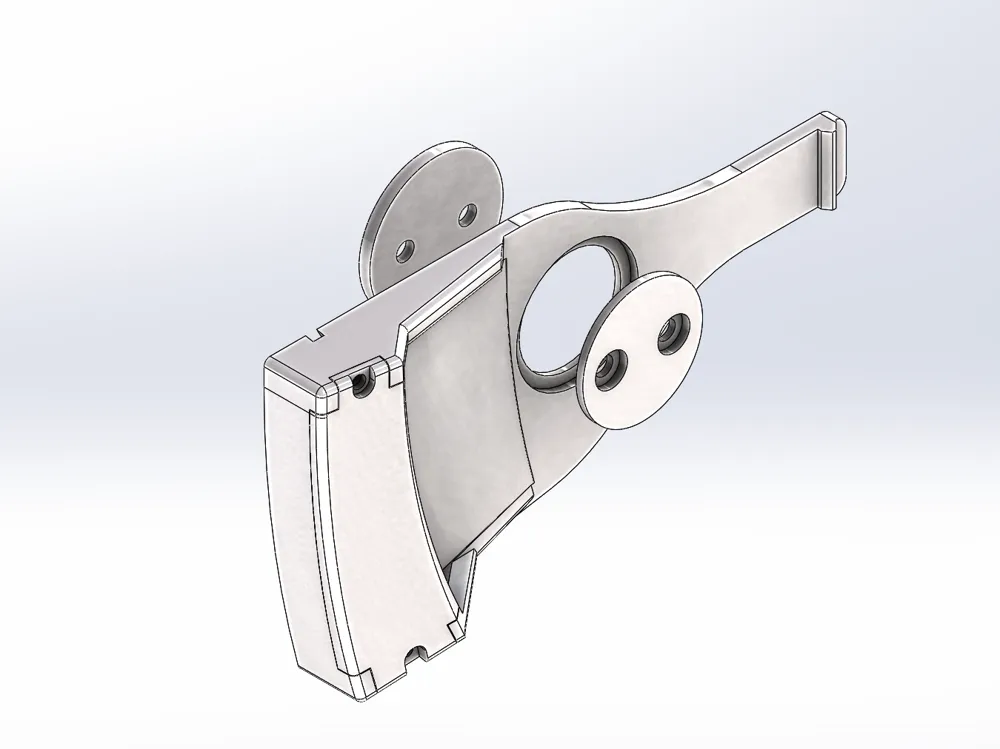

Pivot can spin around on the belt clip, fixed cannot.
Two print styles: 1 or 2 piece.
2 piece uses 2x M3x18mm bolts + nuts, minimal support needed.
Locking tab must be heat formed:
Insert the X7 into the sheath.
Use a lighter or heat gun to heat the locking tab just behind the X7.
Bend the tab up until it contacts the back of the X7, allow to cool.
I like the remove the X7 and reheat the bend so that I can bend it in a tiny bit further for a tighter fit.
Update 11/17/2025:
V2, has holes to reduce weight & material.
