Thermal Imager Screen Protector

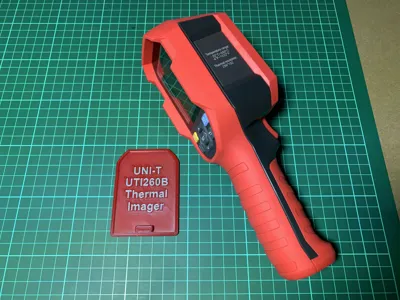

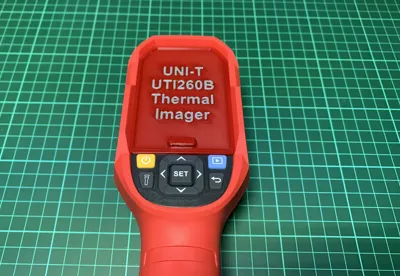

My UNI-T UNI260B thermal imager camera has a 2.8 inch display screen. Despite the surrounding rubber protection, the screen is vulnerable to being knocked. I designed a simple screen protector that presses against the screen, held in-place by friction and will provide some protection.

To note, if the thermal camera is rolling around in a tool bag, it's possible for it to fall off. Apart from rolling around in a bag, it's performed well, staying in-place.

There's a lanyard hole on the screen protector handle. This lanyard can be attached to the imager handle to retain the screen protector whilst it is in use.

My print is made in eSUN PLA+ Red and Gray filaments, with 0.2mm layer height and 15% infill on a Bambu Lab X1 Carbon printer. Print supports are not required. An AMS is needed for colour support.

I hope that you can find this print useful, too.

Remember to leave me some feedback or even a tip to keep me enthused to make more of these drawings.
