So! here we are again..

After a lot of time, some war and downtime here I am again thinking how to make my workspace a little bit more organized.
The Filament Swatch Display by @Brad - FTBT 3D I thought to myself how can I mount this wonderful piece of art on my Ikea Skadis pegboard..

After some design and a lot of testing I came out with this 2 part Dock/Shelf or whatever you wanna call it.
As it described this is a mount for the Filament Swatch Display.

The printing is very simple with a little support on the mount itself.

For this small printing project you'll need a few things:
1. X2 M4 10-14mm Screws
2. X2 M4 inserts
3. Soldering iron
4. Some patience haha

The assembly is very simple:

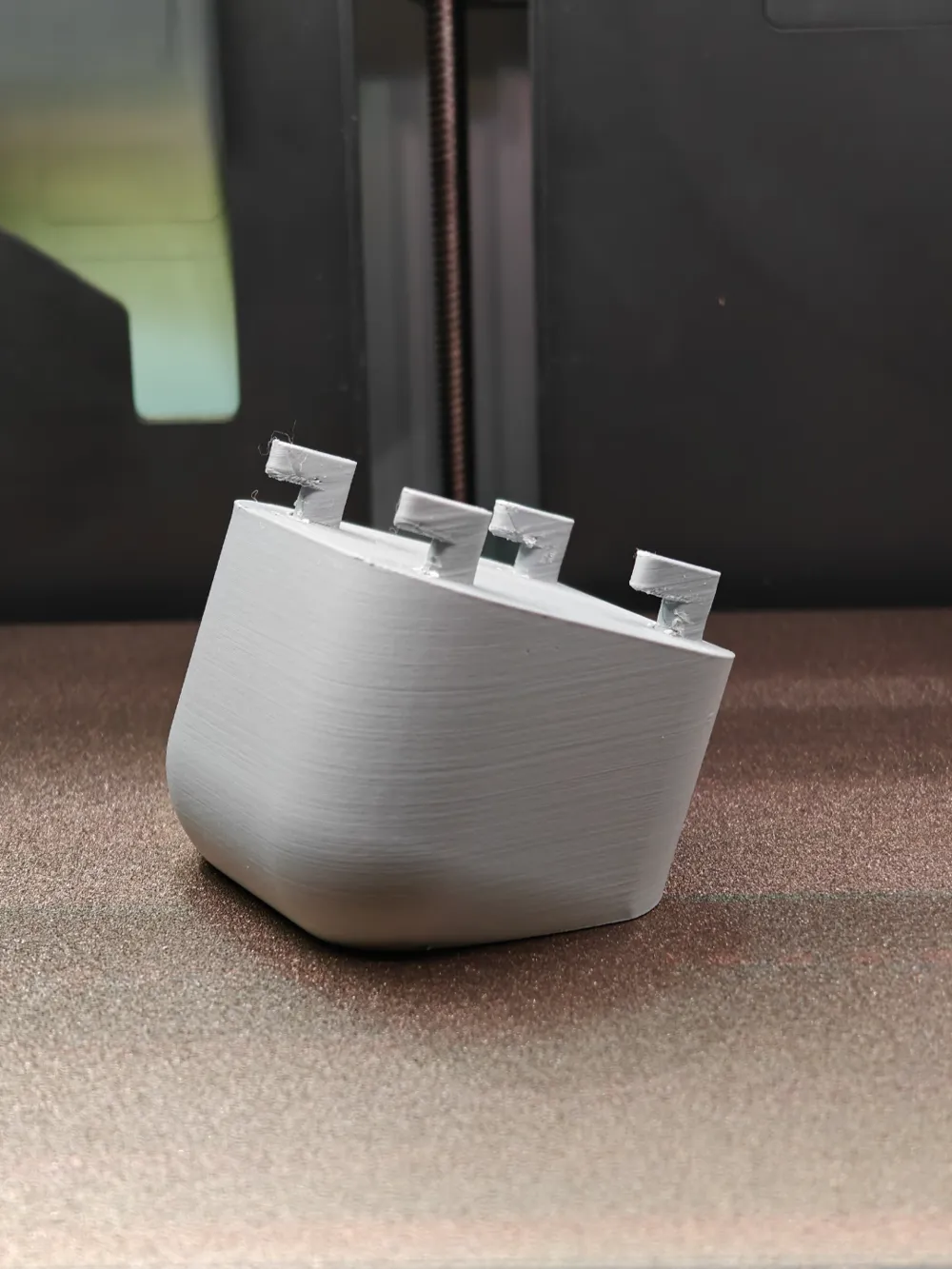

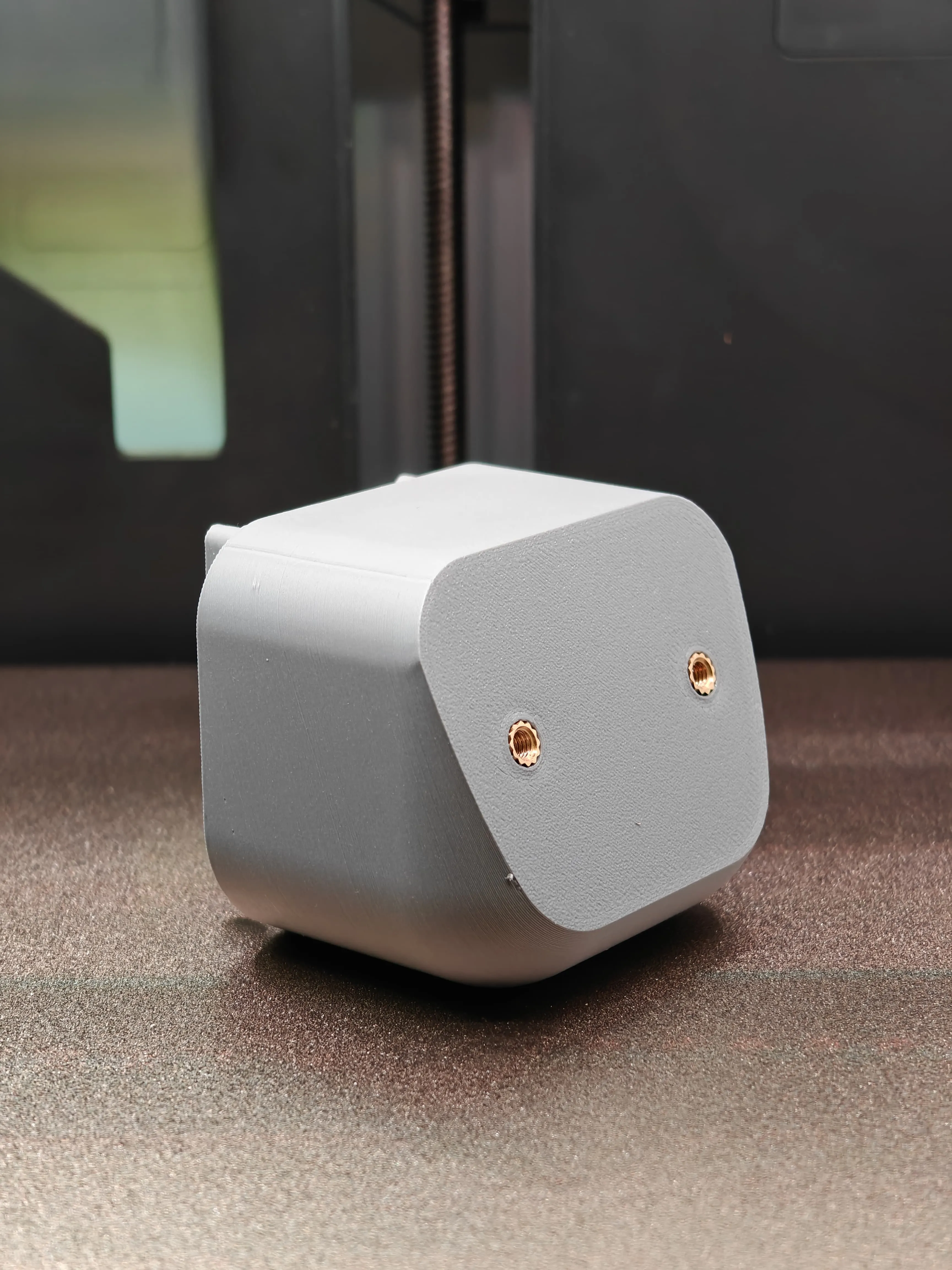

1. Insert the inserts with the soldring iron to the dedicated holes in the Skadis mount (Like in the photo)

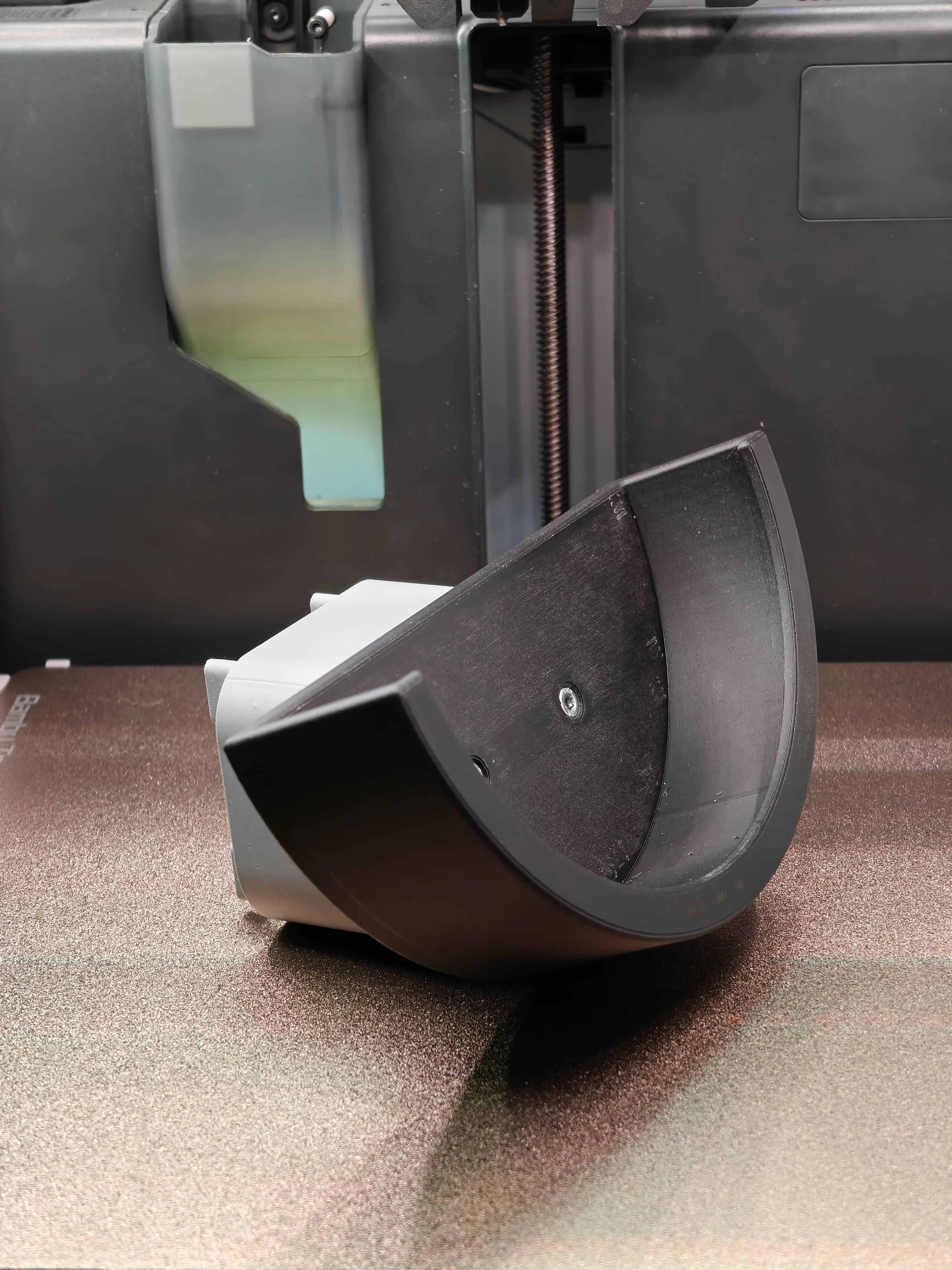

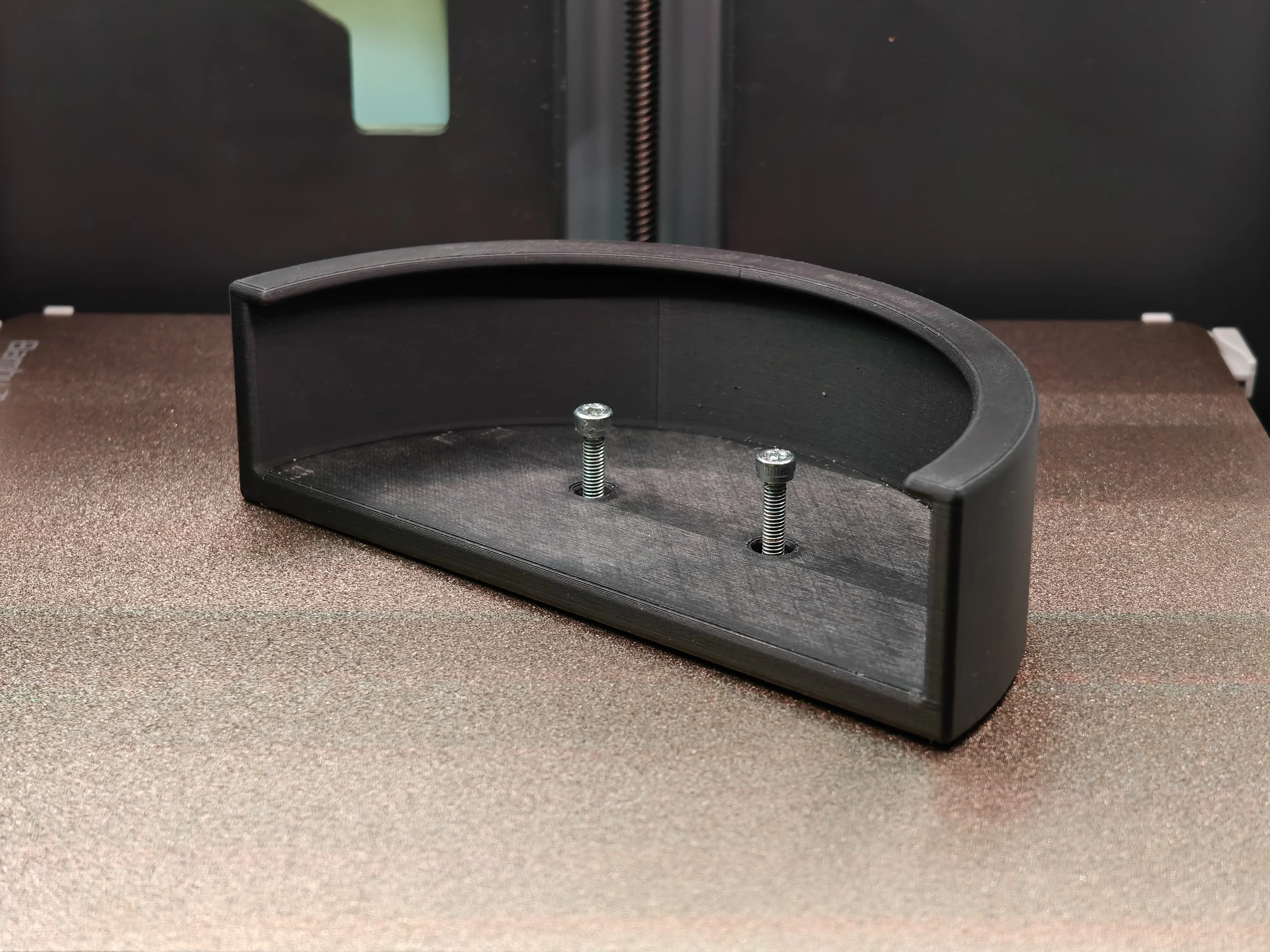

2. Thread the 2 M4 screws through the Dock holes and tight them with a the allen key to the mount (Like in the photos)

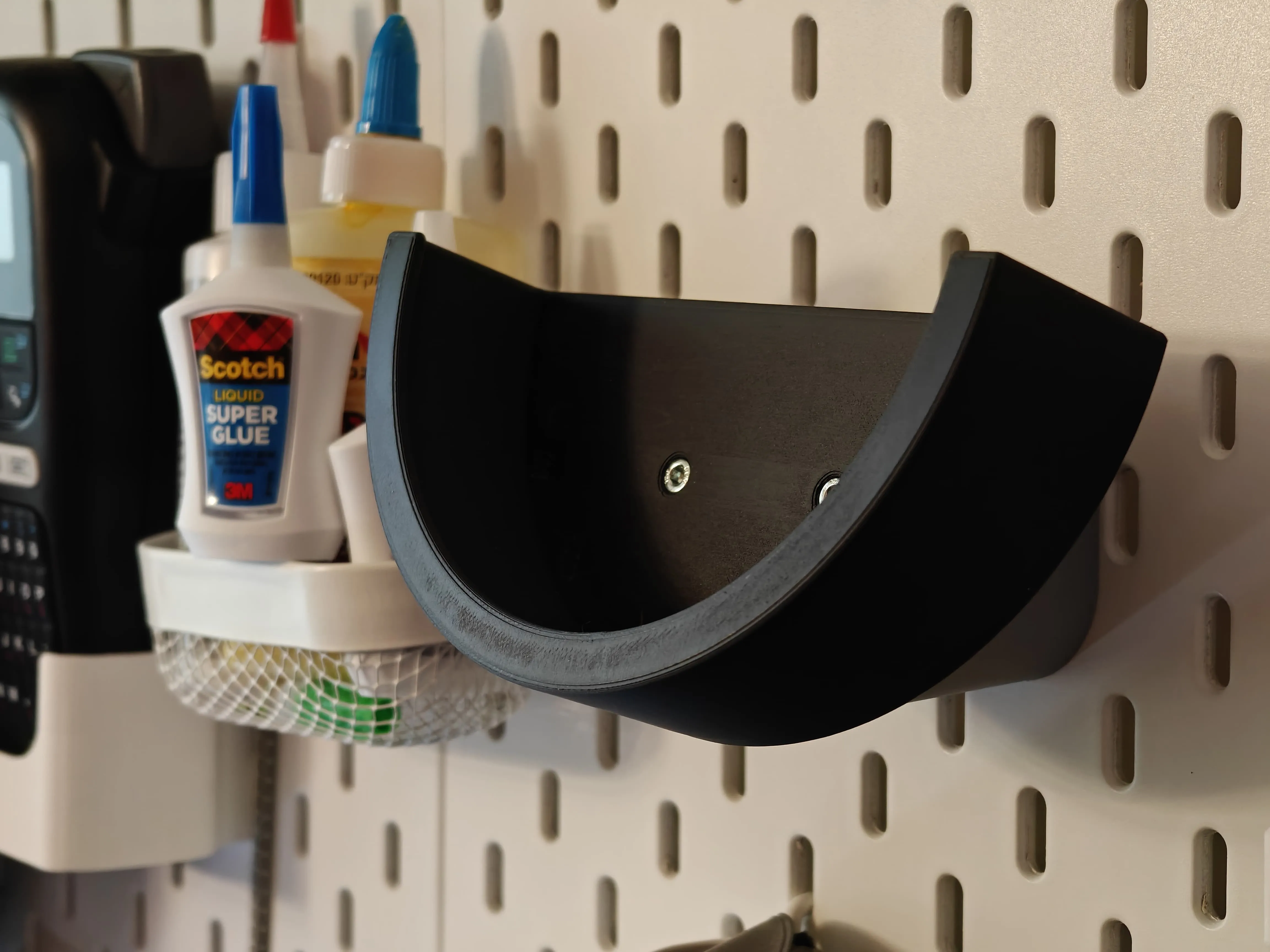

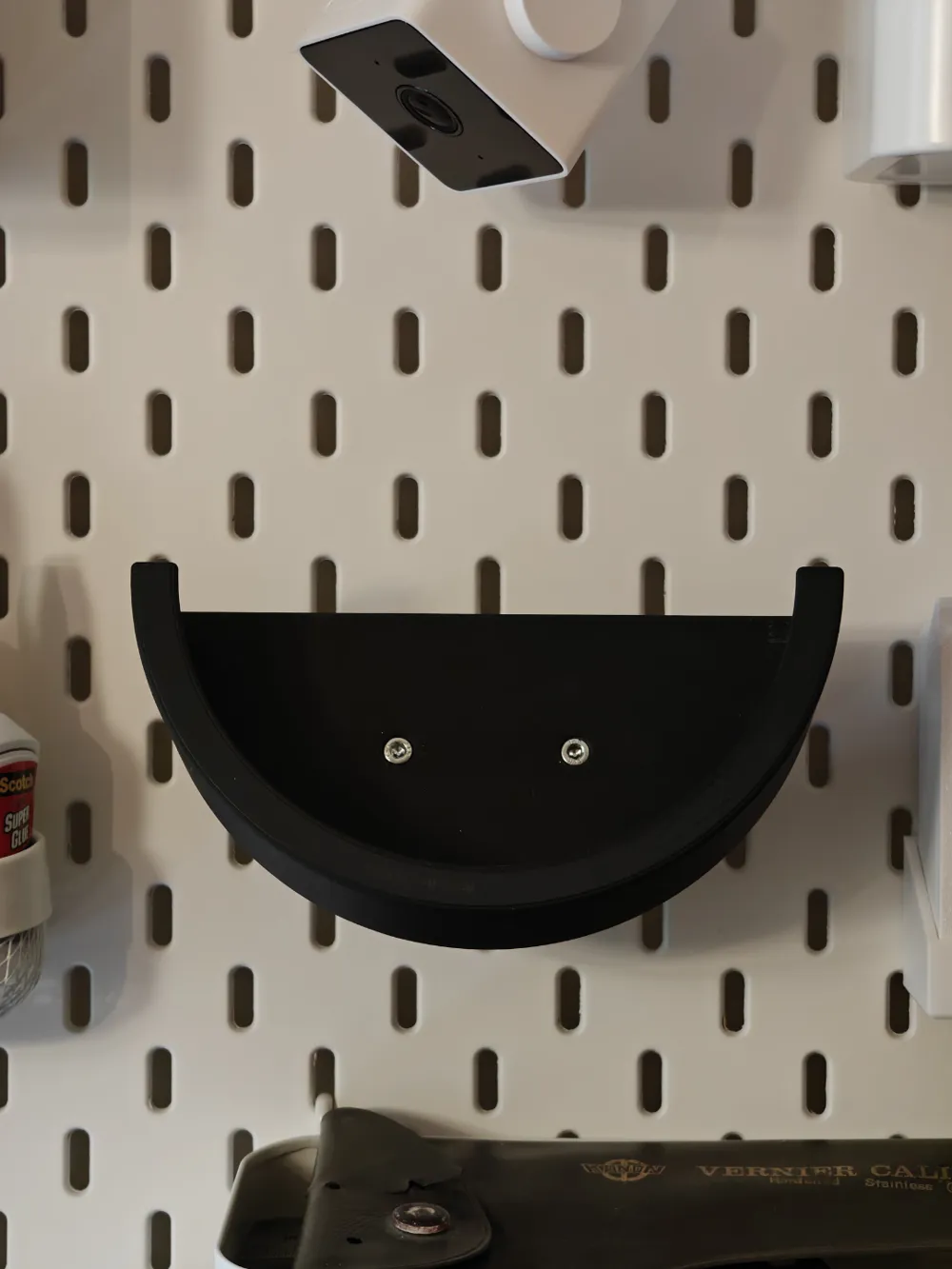

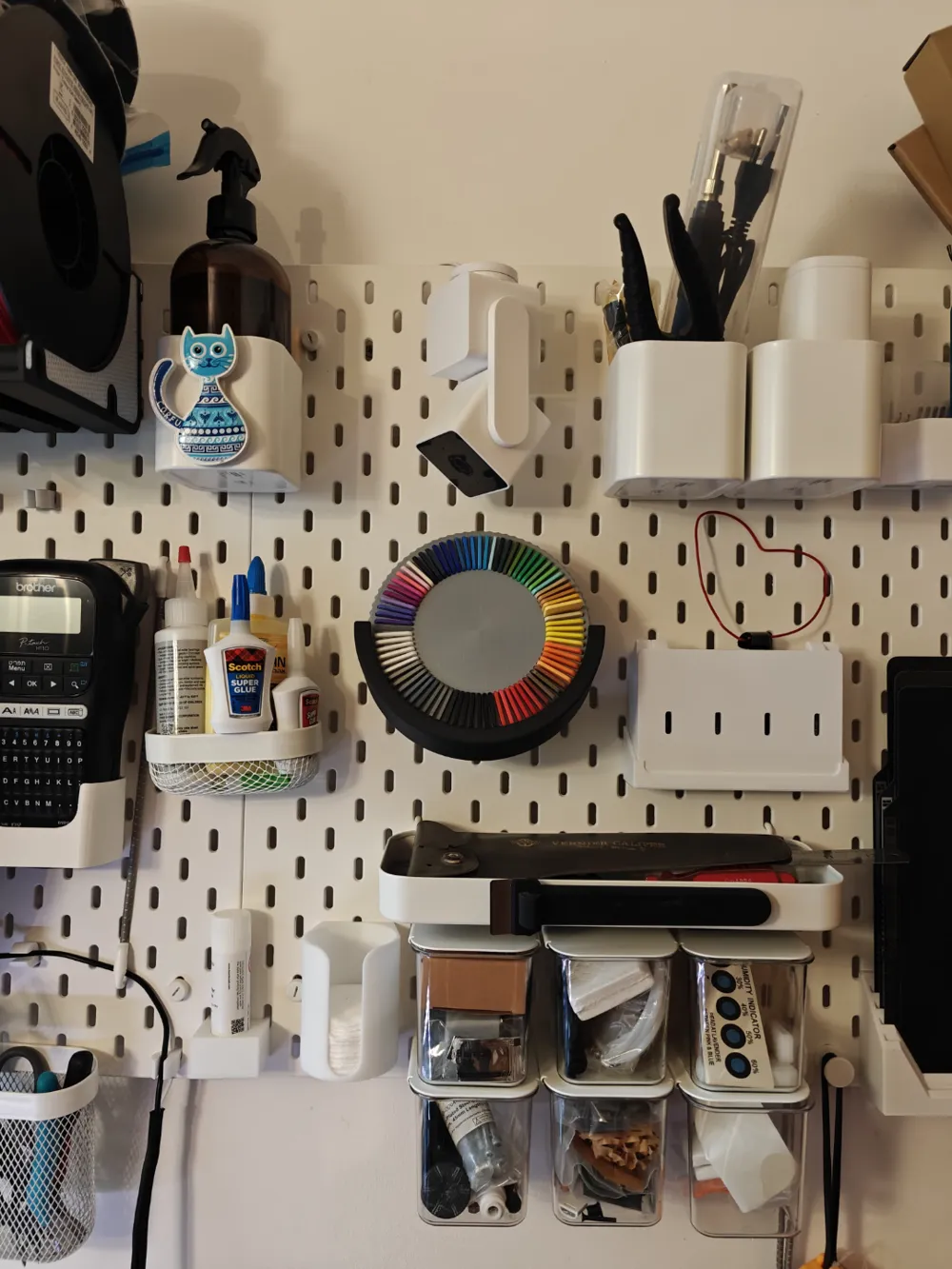

3. Mount this Dock to the Skadis pegboard and enjoy the free space on your desk! (Like in the photo)

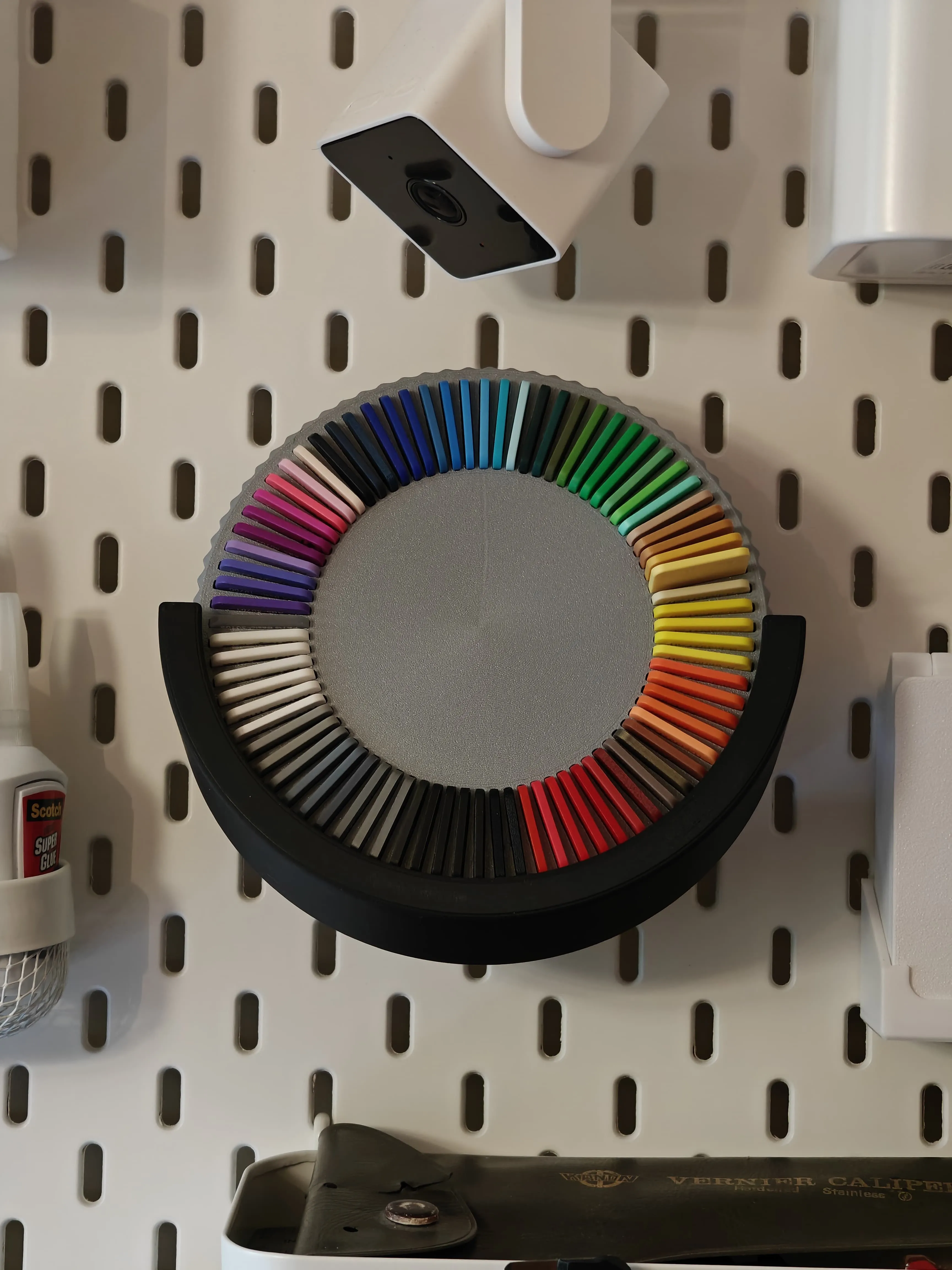

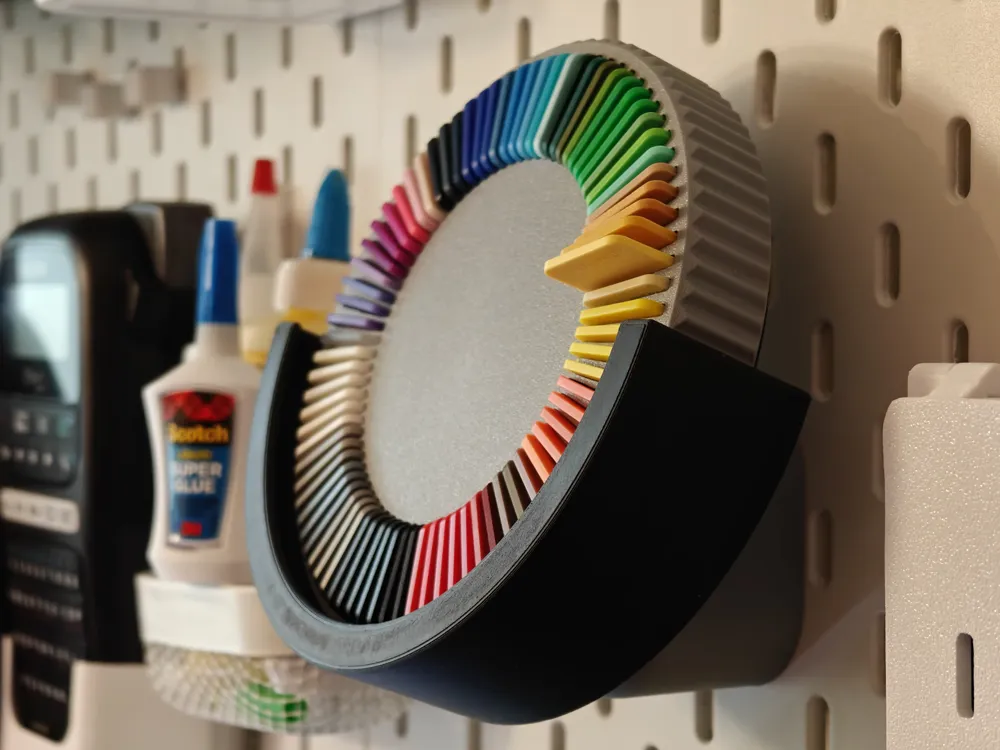

4. That's it! You have an awesome mount for your Filament Swatch Display (Like in the photo)

BTW,

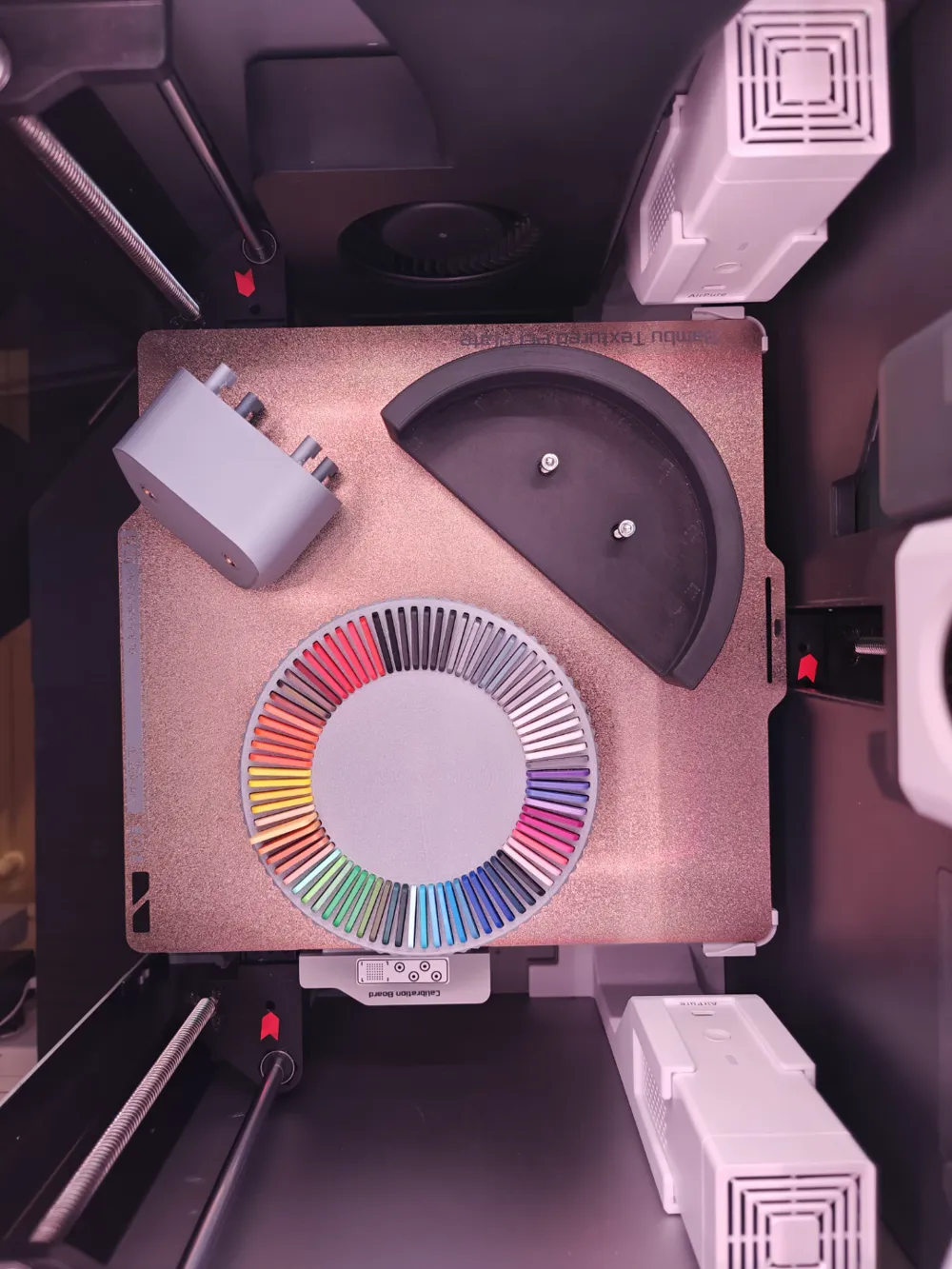

I printed the Filament Swatch Display and this dock with Bambu Lab Black Charcoal PLA and Bambu Lab Matte Grey filament.
