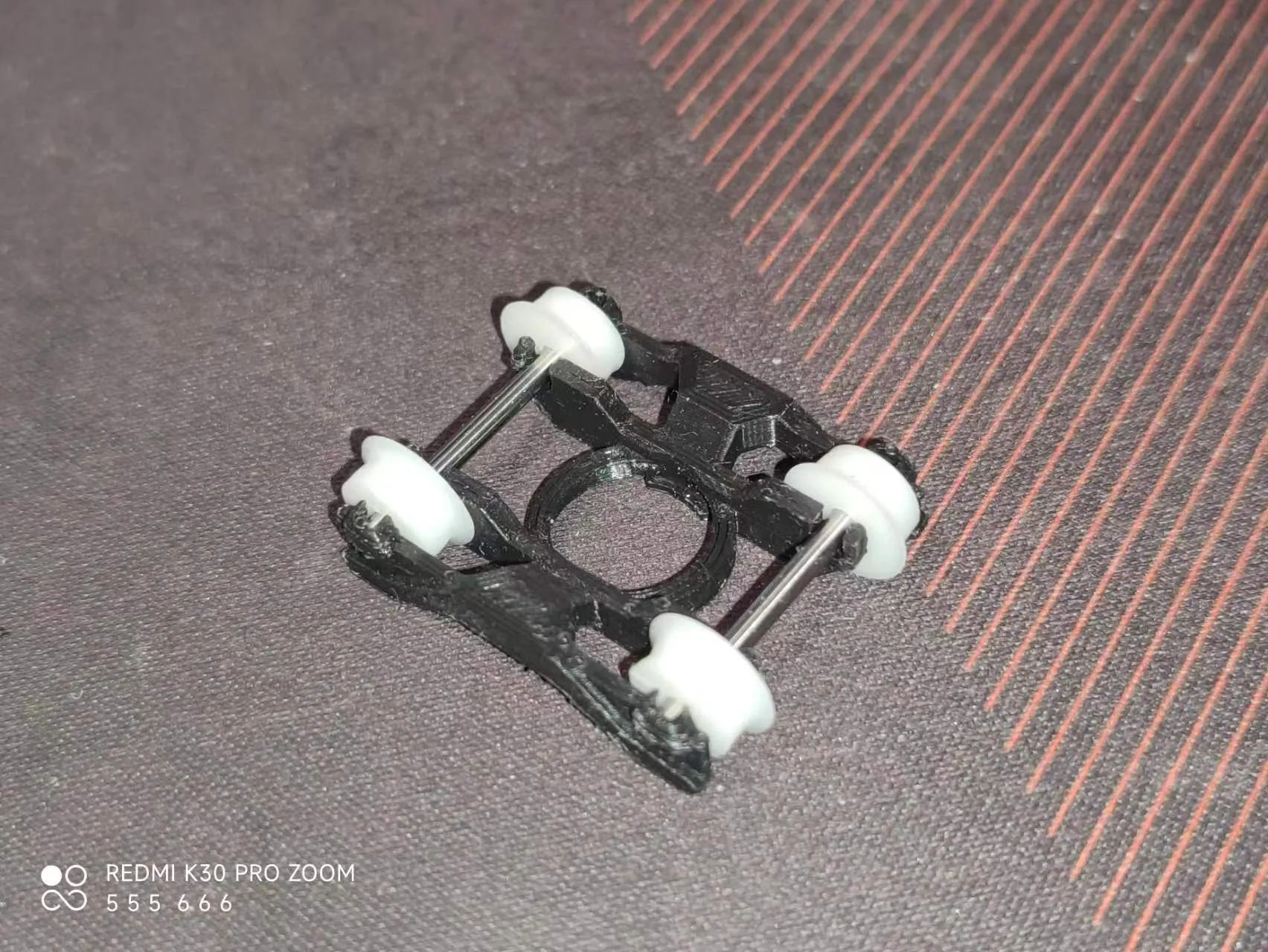

This is the bogie I designed for a 25T locomotive. I will gradually release all parts of the entire YW25T body as I update it, aiming for a low-cost 3D printed railway model.

This model can be printed with both 0.4mm or 0.2mm nozzles, but it will have better quality and maybe higher strength with 0.2mm nozzle.

This part can work on both 0.2mm or 0.4mm nozzle , but it will work better on 0.2mm nozzle.

Support is needed in the following locations:

need supports in below places

The entire HOopenrailway series project requires a 24mm long and 2mm diameter axle.

The entire HOopenrailway series requires a 24mm long and 2mm diameter axle.

It can be paired with HO scale tracks, which can also be 3D printed  → https://makerworld.com/zh/models/51695

Can be paired with HO scale tracks, which can also be 3D printed  ↑

The body is expected to be released around July (unless there are any surprises: I mean, by then, I should be able to buy A1C or P1SC to test the multi-color printing... Of course, the monochrome version with separate parts is also in the works).

Assemble Guide 组装说明

Might need some tuning (by hand) to make it work better
