Description

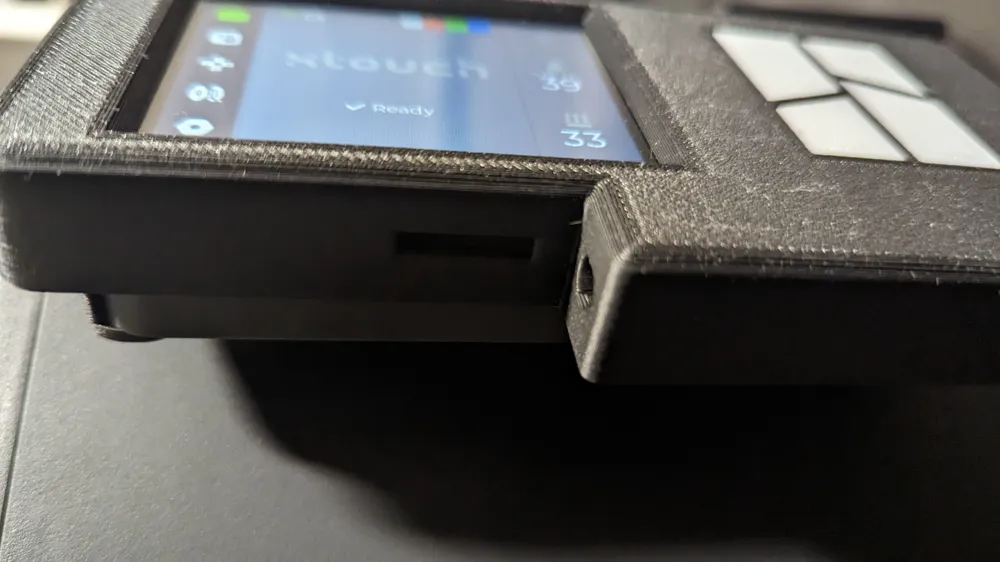

My remix xtouch enclosure for Bambu Lab P1P &P1S includes an optimized micro SD Card slot and pen holder.

A simple enclosure for the xtouch P1P/S interface by xperiments: https://github.com/xperiments-in/xtouch

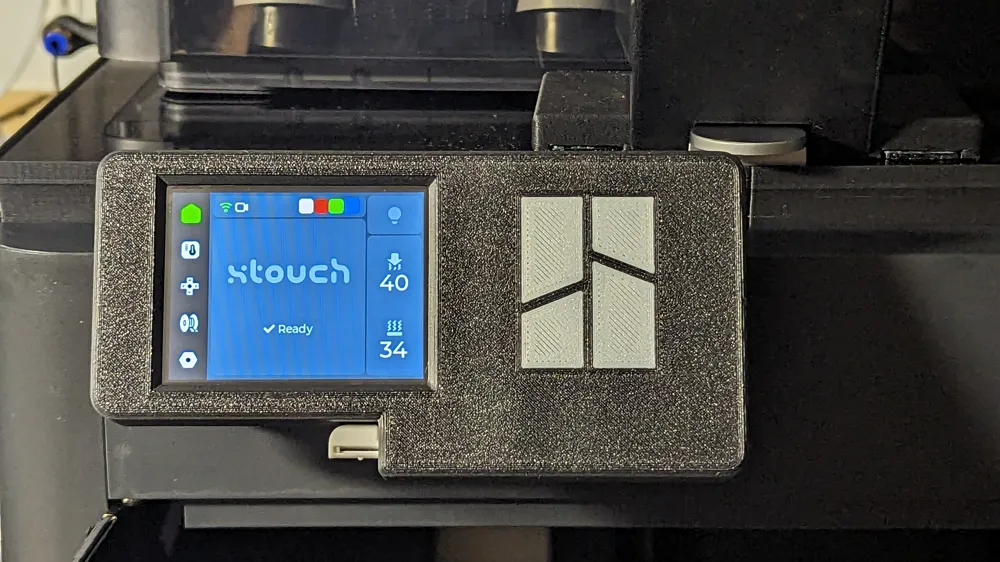

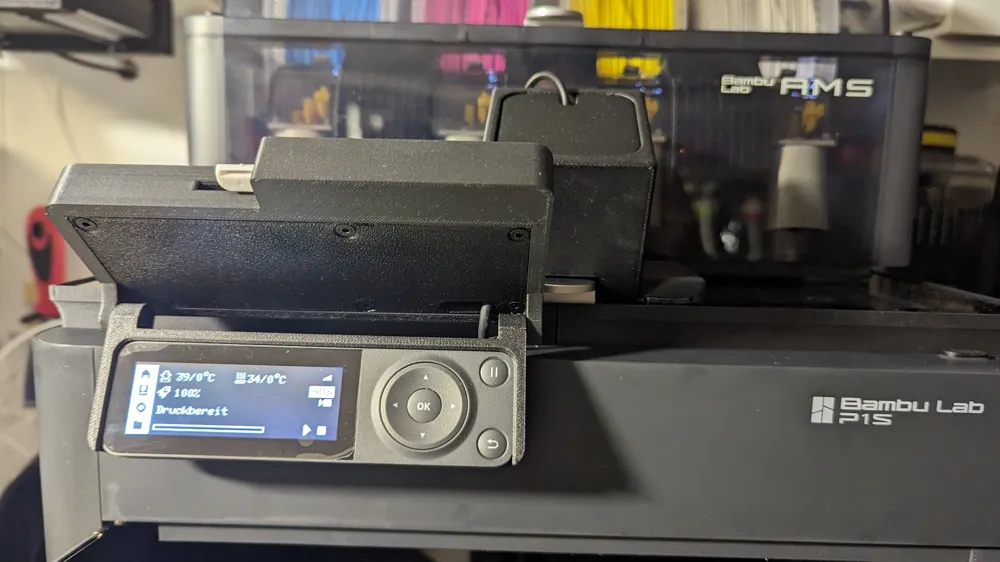

This version houses the ESP32 touch screen in a way that replaces the standard printer controls, but swivels up out of the way to reveal them when needed. You get the appearance of a single touch screen, without losing access to the original control panel.

Hardware:

The required ESP32 touch screen is linked on the xtouch GitHub readme.

A USB-A to USB-B micro cable approxmately 200mm in length is ideal.

6 x M3 x 12mm countersunk bolts for attaching the rear to the front pieces.

2 x M3 x 12mm bolts for attaching the enclosure to the adaptor.

1x 2.8-inch ESP32-2432S028R board (ESP32-2432S028R or ESP32-2432S028R)

1x micro sd Card

Further informations:

https://github.com/xperiments-in/xtouch

Easy LED Riser fits for P1P and P1S and supports cable management for xtouch display and LED mounting:

https://makerworld.com/de/models/45124#profileId-46838
