PLA - Body + Nosecone



<p><strong>Updated</strong>: Added extra brim for better adhesion.</p><p>&nbsp;</p><p>PLA that is optimized with brim and support.</p>

PLA optimized - 0.2mm layer, 2 walls, 100% infill

ABS - Body + Nosecone


<p>ABS that is optimized with support and brim.</p>

ABS optimized - 0.2mm layer, 2 walls, 100% infill

101 - PAHT-CF - Body

98 - PLA - Nosecose



<p>PAHT-CF version that has been correctly scaled for shrinkage. The profile contains optimized support for both parts. The second plate in PLA is recommended because removing support from PAHT is very difficult.&nbsp;</p><ul><li>Body - PAHT-CF @ 101 %</li><li>Nosecone - PLA @ 98 %</li></ul>

PAHT-CF optimized - w/ 0.6mm nozzle

NeroLed








<p>I made the body slightly longer (~5mm) to fit a small streamer and some wadding.<br>I printed it <strong>by object</strong> (not by layer) — that gave me better results.</p><p>&nbsp;</p><h3>Streamer assembly</h3><ul><li>Cut about 2 feet of the silver ribbon.</li><li>Glue it to the end of a toothpick. I tried a few different glues — epoxy was the only one that actually held.</li><li>Tip: use painter’s tape to hold the ribbon in place while the glue sets (see the photo with the blue tape). I also used tape to keep the toothpick steady while it cured.</li><li>Trim the toothpick down to ~10mm total length (including the glued section).</li></ul><h3>Connecting it to the rocket</h3><ul><li>Tie the Kevlar cord to both parts of the rocket. I needed tweezers for this, but there’s probably a smarter way.</li><li>Tie the streamer to the middle of the cord — use the loose end, not the end glued to the toothpick.</li><li>Tie the cord once more around the streamer so it doesn’t slide around.</li><li>Roll up the streamer and gently tuck it into the cone.</li><li>Add wadding to the rocket body (I used two small discs — see below).</li><li>Close it up.</li></ul><h3>Wadding</h3><p>I cut small discs from a fire-resistant sheet I found on Amazon.</p><p>&nbsp;</p><p>For the wadding I cut small discs of a fire-resistant material I found on amazon (see below).</p><p>&nbsp;</p><h3>Materials I used</h3><ul><li><a target="_blank" rel="noopener noreferrer ugc" href="https://a.co/d/0aGpYcEQ">https://a.co/d/0aGpYcEQ</a> - Wadding</li><li><a target="_blank" rel="noopener noreferrer ugc" href="https://a.co/d/0hivEdN6">https://a.co/d/0hivEdN6</a> - Kevlar Braided String Utility Cord</li><li><a target="_blank" rel="noopener noreferrer ugc" href="https://a.co/d/04ezxHpf">https://a.co/d/04ezxHpf</a> - Silver Curling Ribbon</li></ul>

Longer body for streamer (read description for instructions)

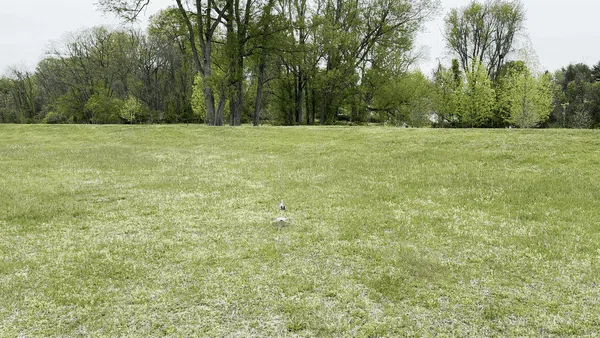

<p>A new and improved rocket inspired by the Estes Swift model rocket. At only 10 g, this featherweight reaches 800+ feet with ease. Designed and optimized for easy printing, this little giant is perfect for quick prints and repeated flights. No parachute needed!</p><p>&nbsp;</p><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000438361/design/2024-04-21_aa9b82eb295d9.gif"></figure><p>&nbsp;</p><h3>Build:</h3><p>Use a shock cord or rubber band to loop the body and nosecone together.</p><p>&nbsp;</p><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000438361/design/2024-04-21_3bc4a5a358364.jpg"></figure><p>&nbsp;</p><h3>Recommended Engines:</h3><ul><li><a target="_blank" href="https://estesrockets.com/products/a10-3t-engines/" rel="nofollow noopener">A10-3T</a> (with charge) - tested</li><li><a target="_blank" href="https://estesrockets.com/products/a10-pt-engines?_pos=1&amp;_psq=a10&amp;_ss=e&amp;_v=1.0" rel="nofollow noopener">A10-PT</a> (w/o charge) - tested</li><li>Should work with any (mini) 13 mm engine</li></ul><p>&nbsp;</p><h3>Printing tips:</h3><ul><li>Ignore the empty layers warning in the slicer. It prints perfectly.</li><li>This is a tight fit, so you might need a some sanding</li></ul><p>&nbsp;</p>

Estes Swift - Featherweight Model Rocket
