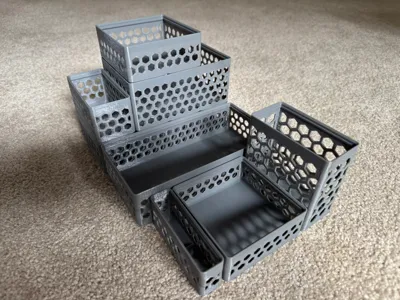

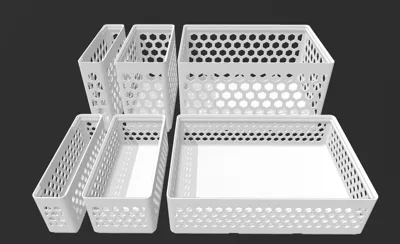

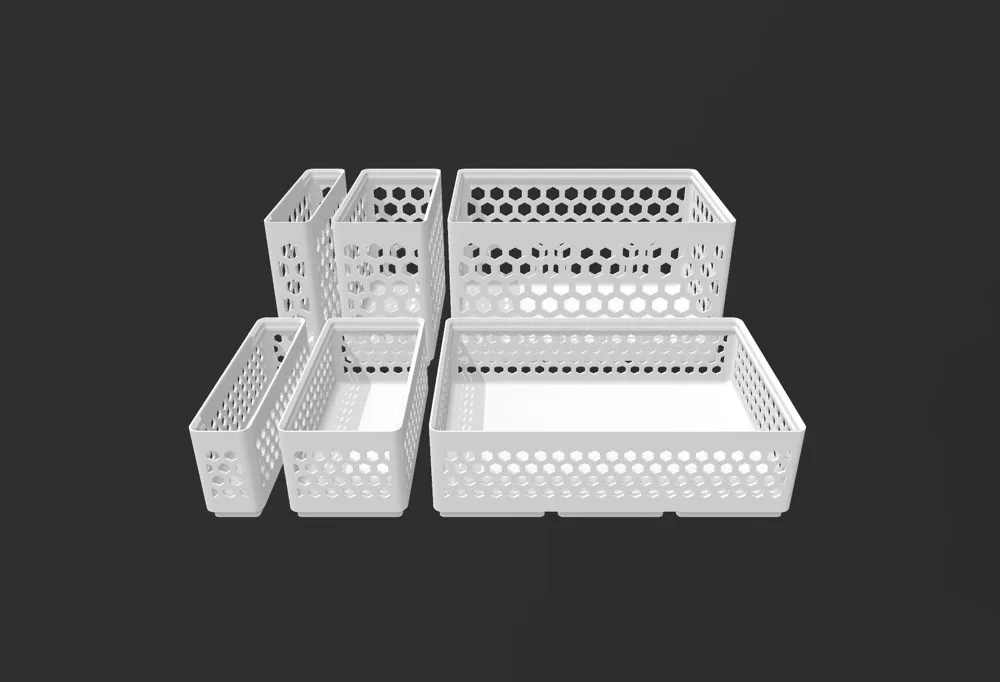

Gridfinity Hex Bins all sizes

Gridfinity Cups with a hex pattern cut out of the walls, all sizes 999 models.

As requested, I have created a lite version of this model, which has a smooth efficient floor. This uses less filament. You can find it here https://makerworld.com/en/models/1047341#profileId-1033482 .

Print Profiles

2025-02-01 The models have been re-generated with the latest verions of gridfinity extended, making some slight improvements. My profiles have been updated with the new models.

The print profiles are grouped by height. A single profile has all 26 models each on a different platter.


Options Widths = [0.5, 1, 2, 3, 4, 5] Depths = [1, 2, 3, 4, 5, 6] Heights = [2, 2.5, 3-37]   The wall grid increase in size as the bin height increases. Height less than 5 holes size 4mm, space 2mm Height less than 12 holes size 7mm, space 3mm Height less than 30 holes size 10mm, space 4mm Height 30 or over holes size 15mm, space 5mm   I really like this model, I find the pattern very satisfying. Generated using the Gridfinity Extended OpenSCAD

Update 2024-02-19

• Optimised smaller heights (2, 2.5,3) to better support the pattern
• Removed duplicates from the sets w2xd3 is the same as w3xd2 as the bin is symmetrical. reducing each height from 47 models to 27 models.
• Increased range of heights. Now have 37 heights.
• Place attachments on corners only, improves print time and uses less filament.
• Wall thickness increased for taller bin. stability and warping issues when printing larger bins.
