Hinged Clamp - Print in Place
IP Report
Print Profile(4)
PLA 0.2mm layer, 5 walls, 10% infill
Designer
2 h
2 plates
PETG-CF 0.16mm layer, 5 walls, 10% infill
Designer
9.8 h
2 plates
0.6mm nozzle, 0.18mm layer, 5 walls, 10% infill
Designer
13.4 h
2 plates
PETG 0.16mm layer, 5 walls, 10% infill
Designer
9.8 h
2 plates
Open in Bambu Studio
Boost
191
547
8
6
454
169
Released
Description

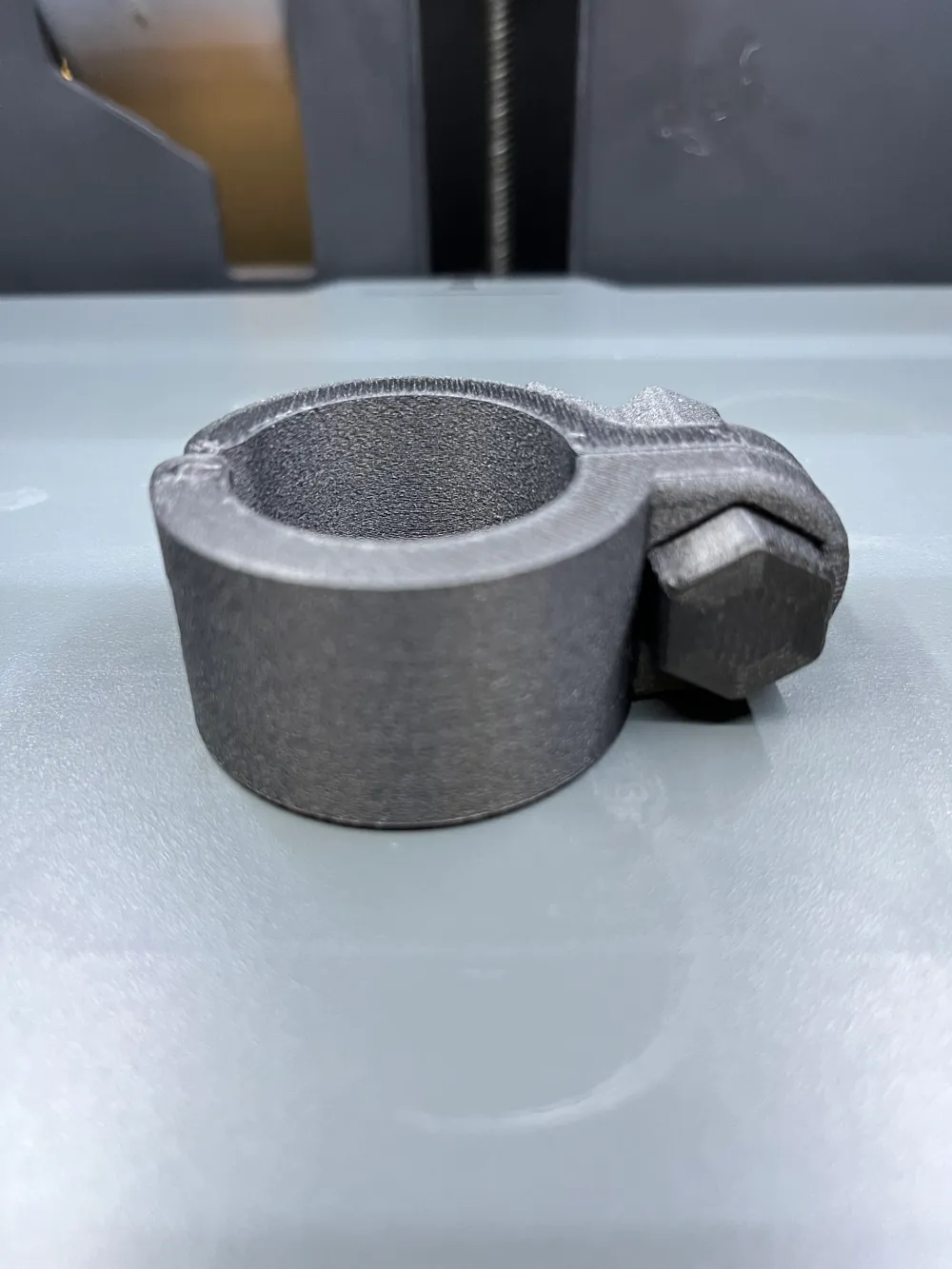

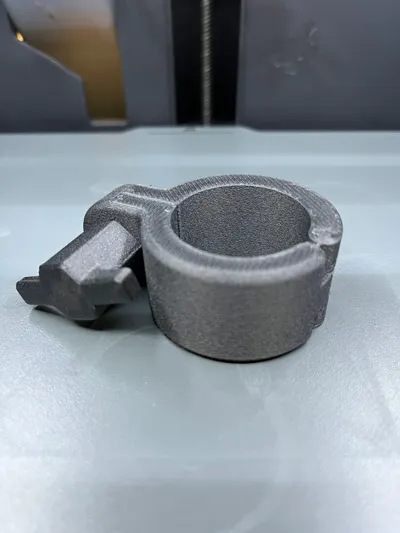

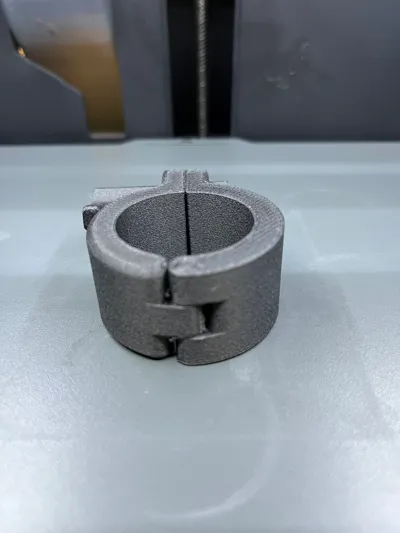

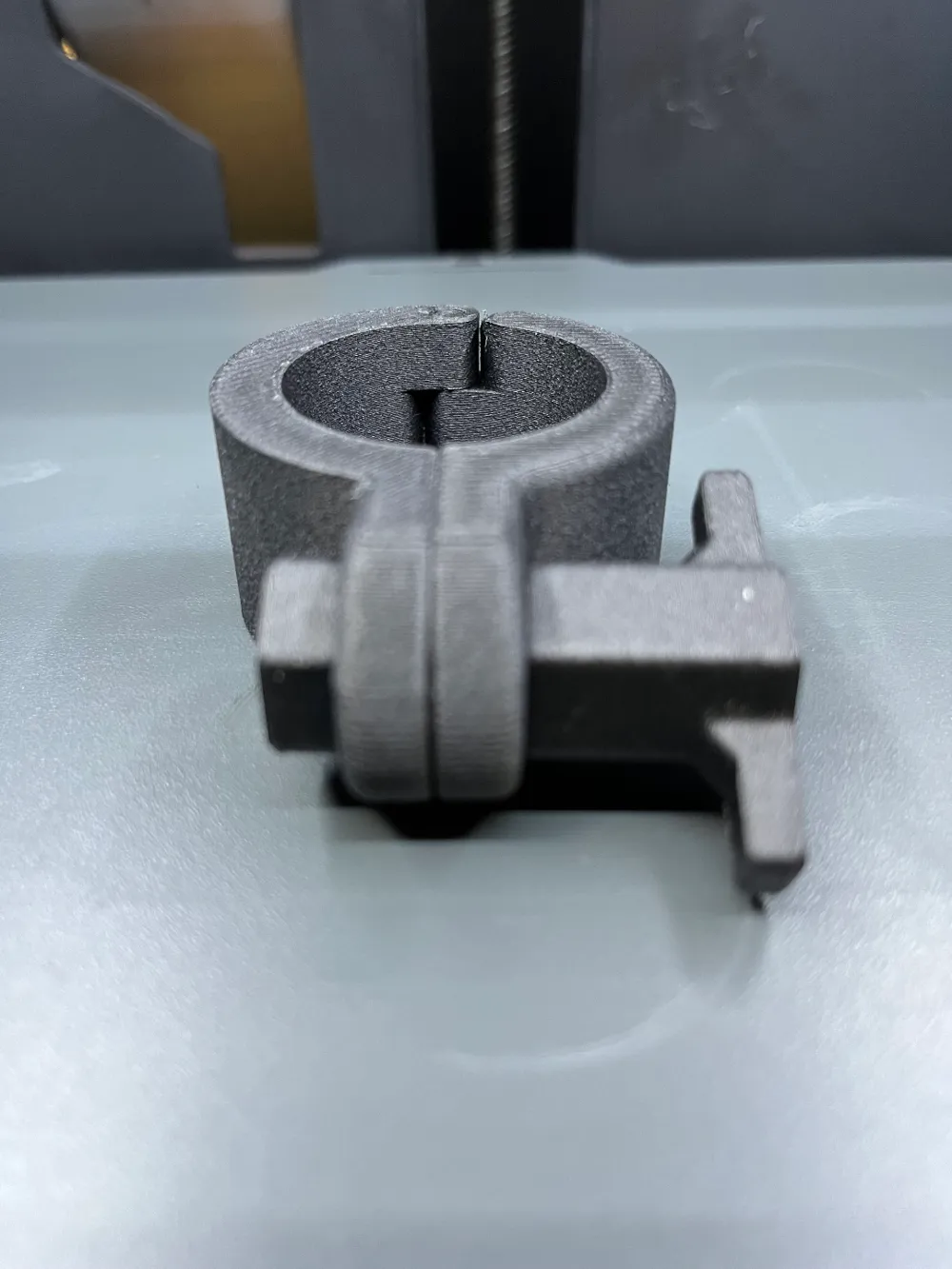

Just a simple print-in-place style hinged clamp with accompanying wing nut and bolt. I designed it using OnShape for a motorcycle application but I'm sure it can have many more uses. This was originally designed to clamp on to 1-¼ highway bars to easily attach removable lower fairings. My main print profile is for PA-CF (specifically Polymaker PA612CF).
