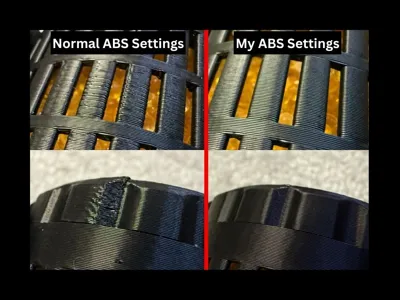

[ABS] 0.2mm, 15% infill, 2 walls

Designer

1.7 h

1 plate

4.7(20)

[A1 Mini] 0.2mm layer, 2 walls, 15% gyroid infill

1.3 h

1 plate

4.9(127)

Click to see more

Open in Bambu Studio

Boost

3169

10615

2886

705

15.2 k

11.5 k

Released

Description

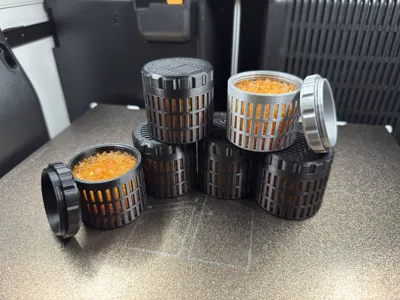

Silica Gel Container: Keep filament dry for top 3D prints. Moisture shield for best results.

Make sure to choose the correct print profile!

Pressure-Fit Version is for Bambu spools only!

Note that different materials have different outcomes. I used Bambu PLA Basic White.

Standard Version min. silica size 1.5mm
Presssure-Fit Version min. silica size 1.65mm

Standard version holds: 50g/1.76oz

Pressure-Fit version holds: 67g/2.36oz

Fill it just below the thread, leaving an air gap. This allows the lid to close properly, provides airflow, and lets the silica gel tumble freely.

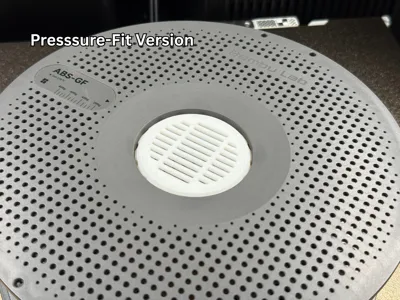

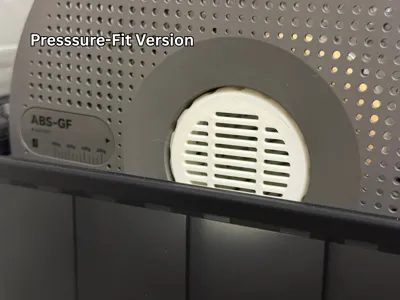

Presssure-Fit Version:

Step 1:

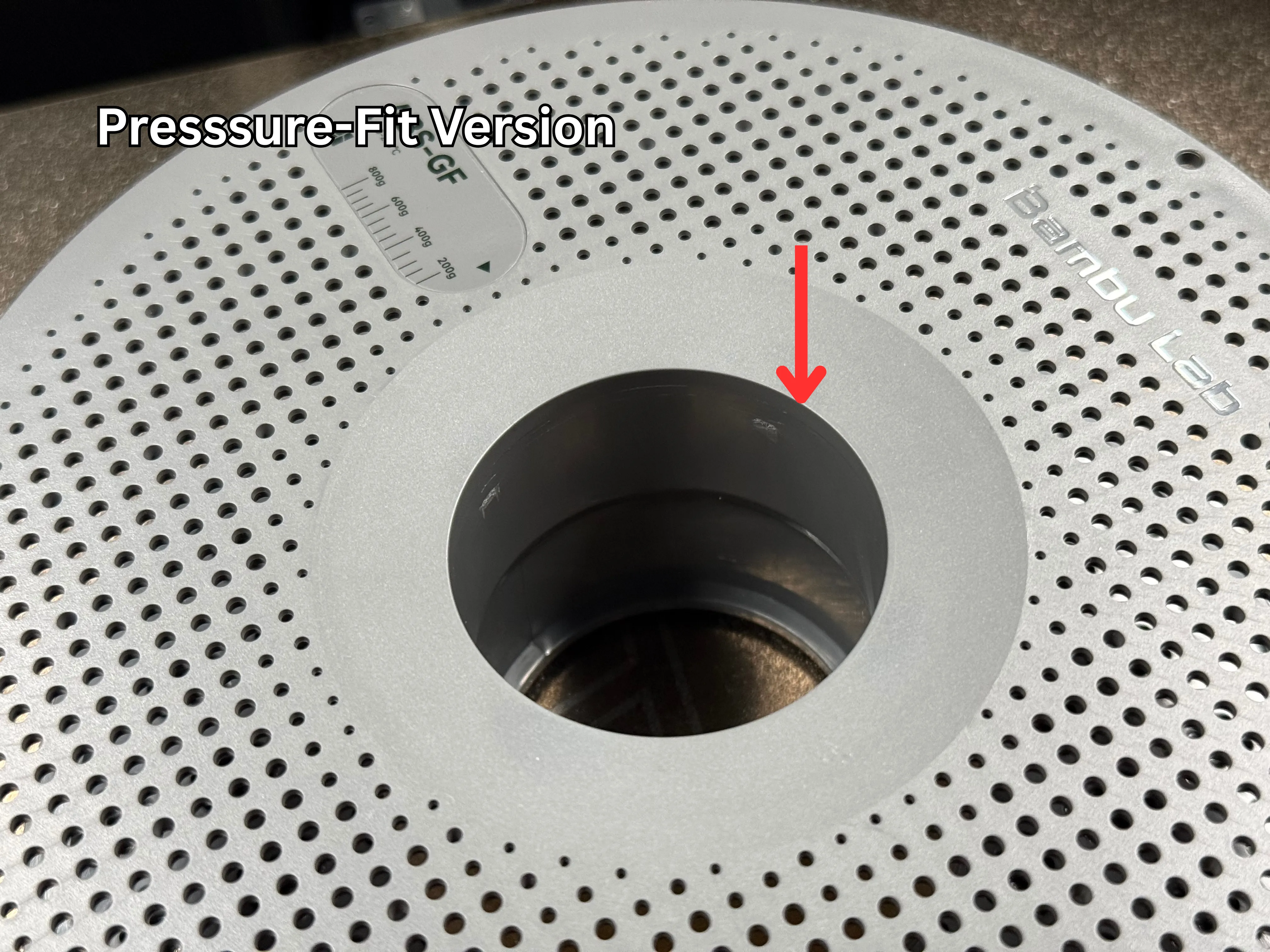

Insert the container from this direction.

If you insert it the wrong way, you may have trouble fitting it properly.

Step 2:

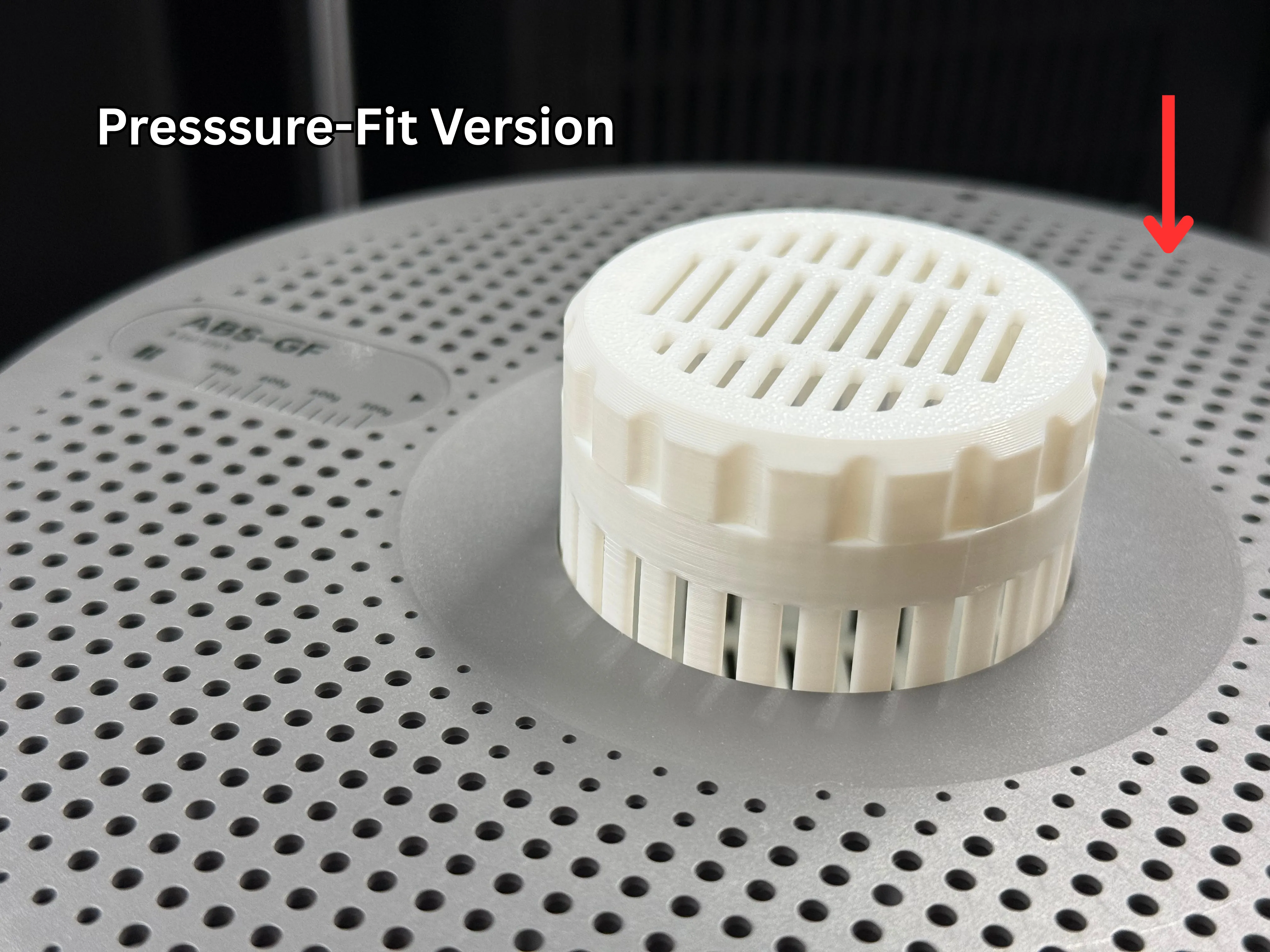

Insert the container bottom-first into the spool and press until it clicks into place.

To remove, push from the opposite side.

Dimensions (Standard):

Wall thickness 1.5mm - slits 1.5mm
Outer dimensions 50mm x 48mm

Dimensions (Pressure-Fit Version):

Wall thickness 1.65mm - slits 1.65mm
Outer dimensions 55mm x 60mm

Boost Me (for free)

If you liked my model, consider giving it a boost to support my work!

I really appreciate all the support! If you run into any issues, feel free to contact me :)
