Drawing Tablet Desk Stand Intended for Huion H610X
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
5 h
2 plates
Open in Bambu Studio
Boost
32
64
5
1
110
24
Released
Description
----
Description

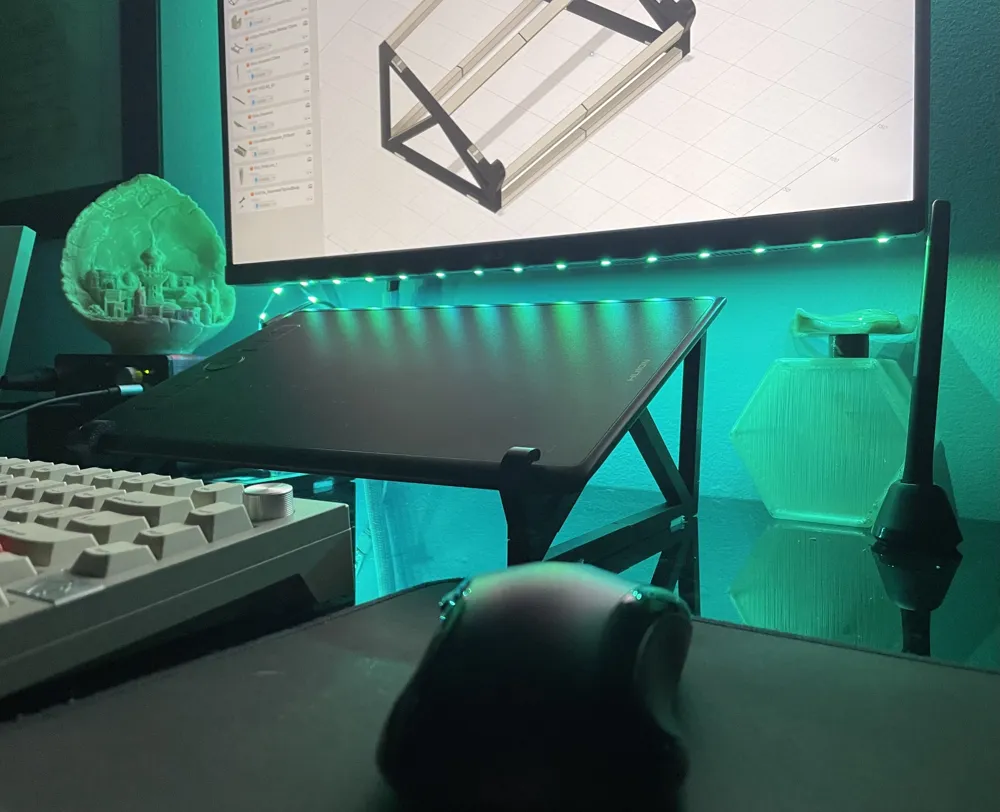

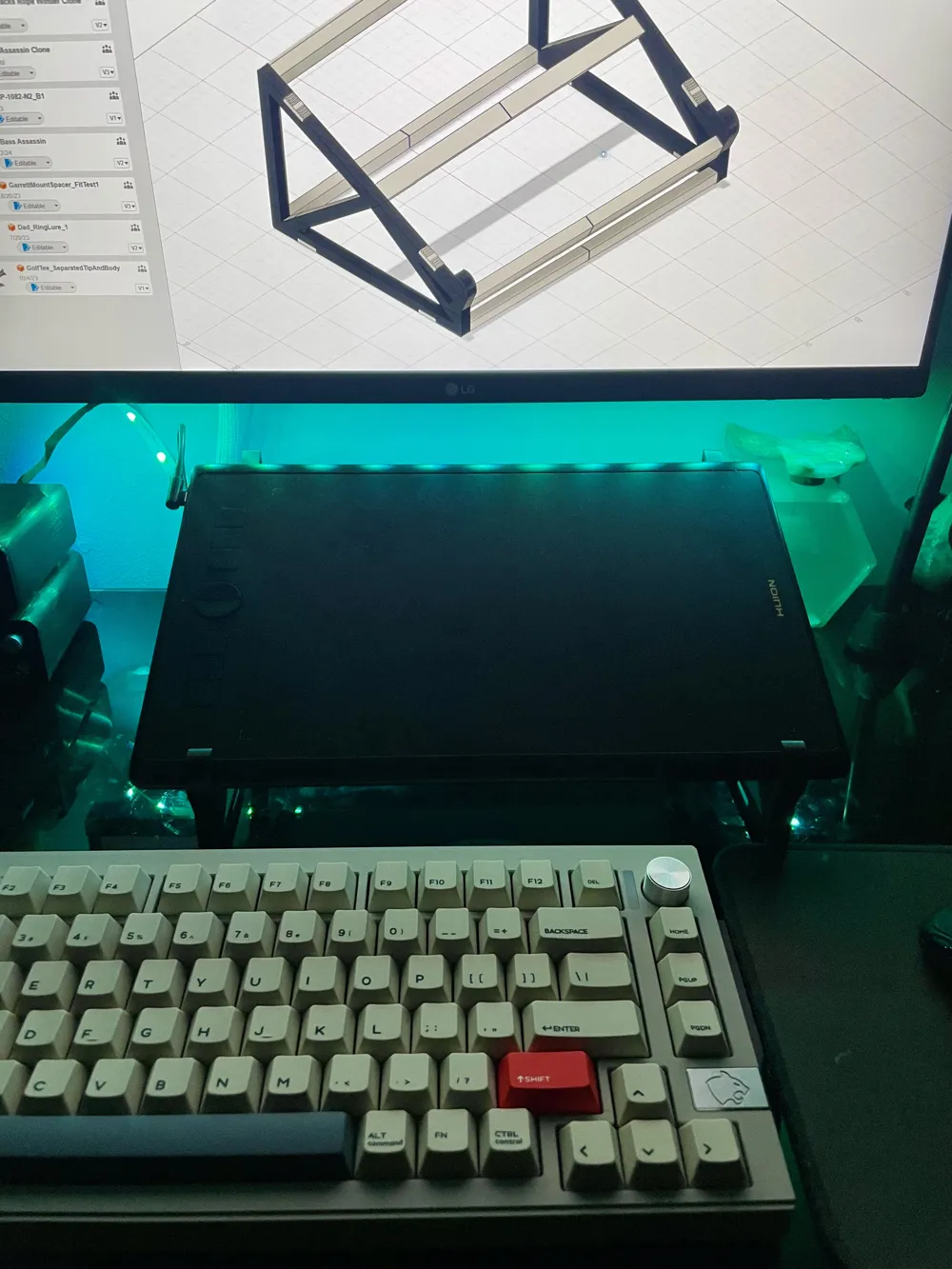

I created this stand because I found reaching over the keyboard to use my drawing tablet quite awkward. Having it towards me and above the keyboard allows me to easily reach the tablet. This is intended for a Huion H610X, but it will obviously work for any tablet that fits on it.
----
Print Settings
- Supports: When printing parts with holes & pegs, I recommend painting on the supports. I don't like supports inside holes as they are tough to get out and unnecessary.
- The Feet: Print in TPU! I used 95A which works great on my glass desk. General TPU tips include using 105% extrusion, 3 top/bottom layers. Keep infill low, 1 to 2 walls/perimeters.
- All OTHER parts I recommend 4 walls/perimeters, 4 top/bottom layers, & 20-25% gyroid infill.
----
Post Processing
Not much to do here. I super glued all pegs, holes, & feet to make sure the stand is as sturdy as possible.
