SMD SMT Connectable Container

Summary

-2025/7/1

Thanks to Bambu Lab's latest update, we now provide f3d models with custom box sizes.
The default internal dimensions of the box are: 21.4*17.65*20.5;
The external dimensions are: 20*27*19;
Since I did not master the variable-based dimensions at the beginning of the model creation, the remedy for custom dimensions is the offset of the dimensions, in mm, with a minimum of 0.1 and a maximum of 200 (which should be enough), and the offset means increasing the length, width and height by this value, and you can calculate according to the required volume.

– 2024/4/15

Since the default printing parameters of Bambulab Studio compensate for the inner diameter of the hole, a version with a smaller tolerance was uploaded and tested by P1sc, and the fit was tight.

--2022/11/13

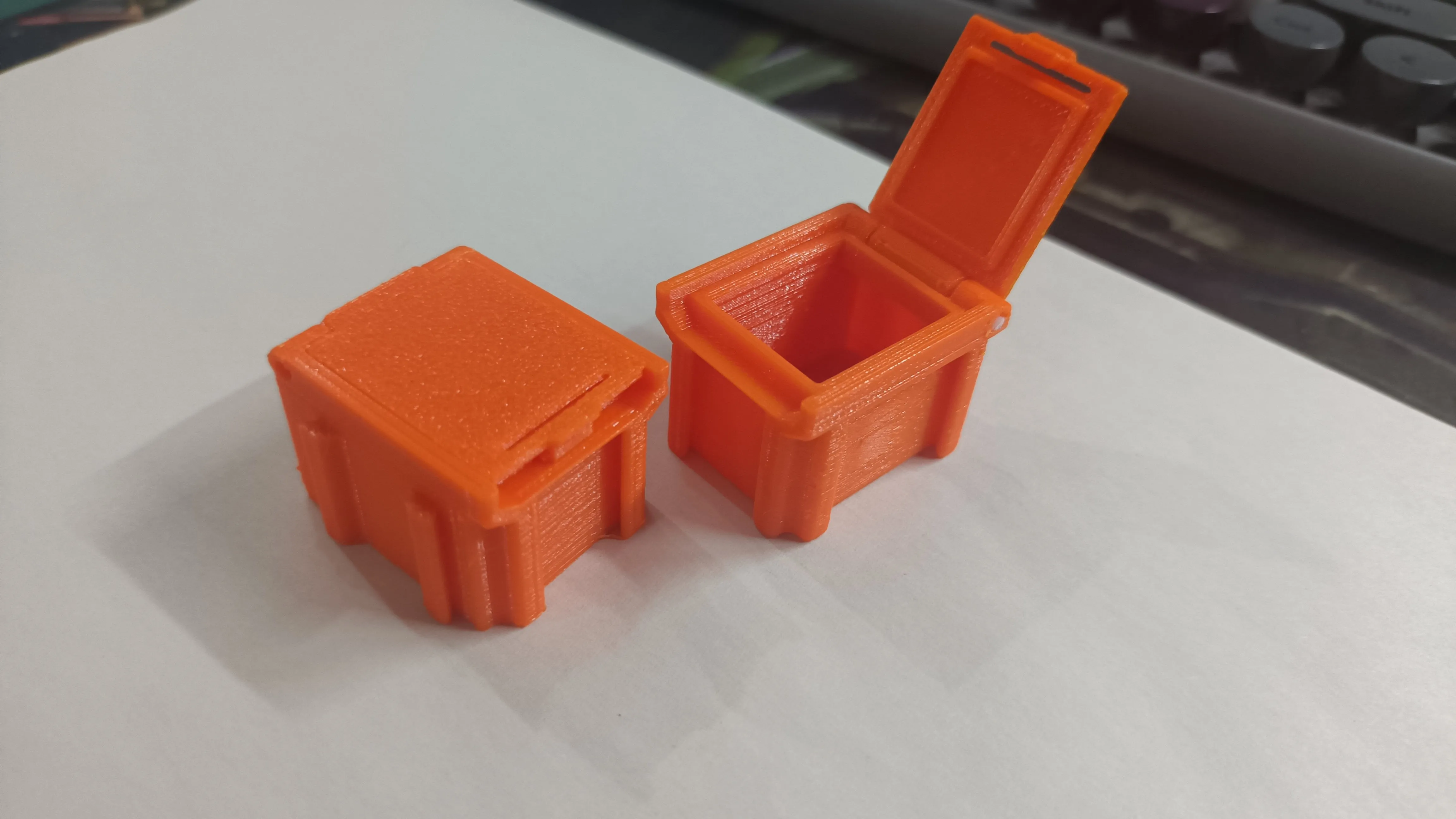

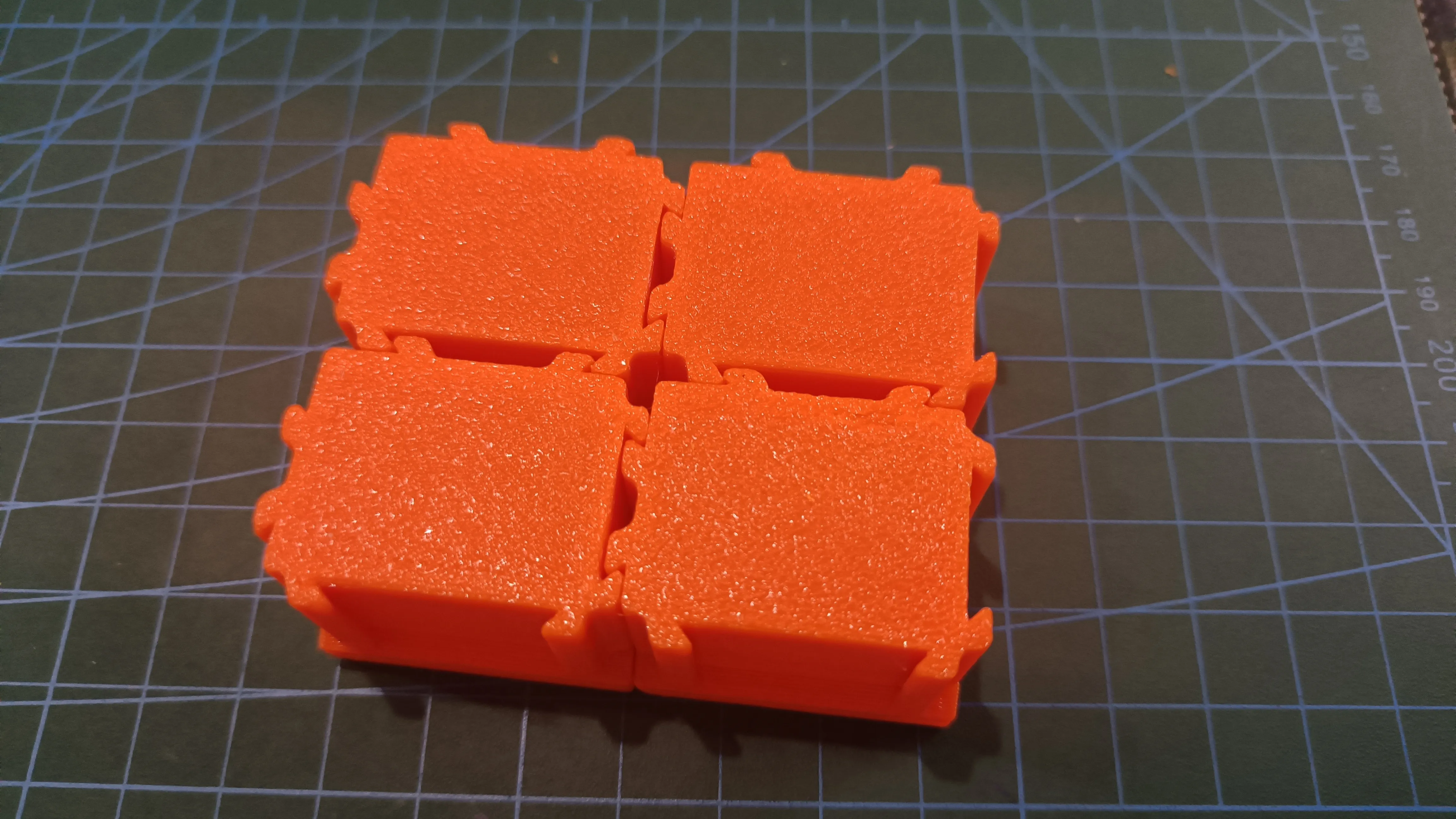

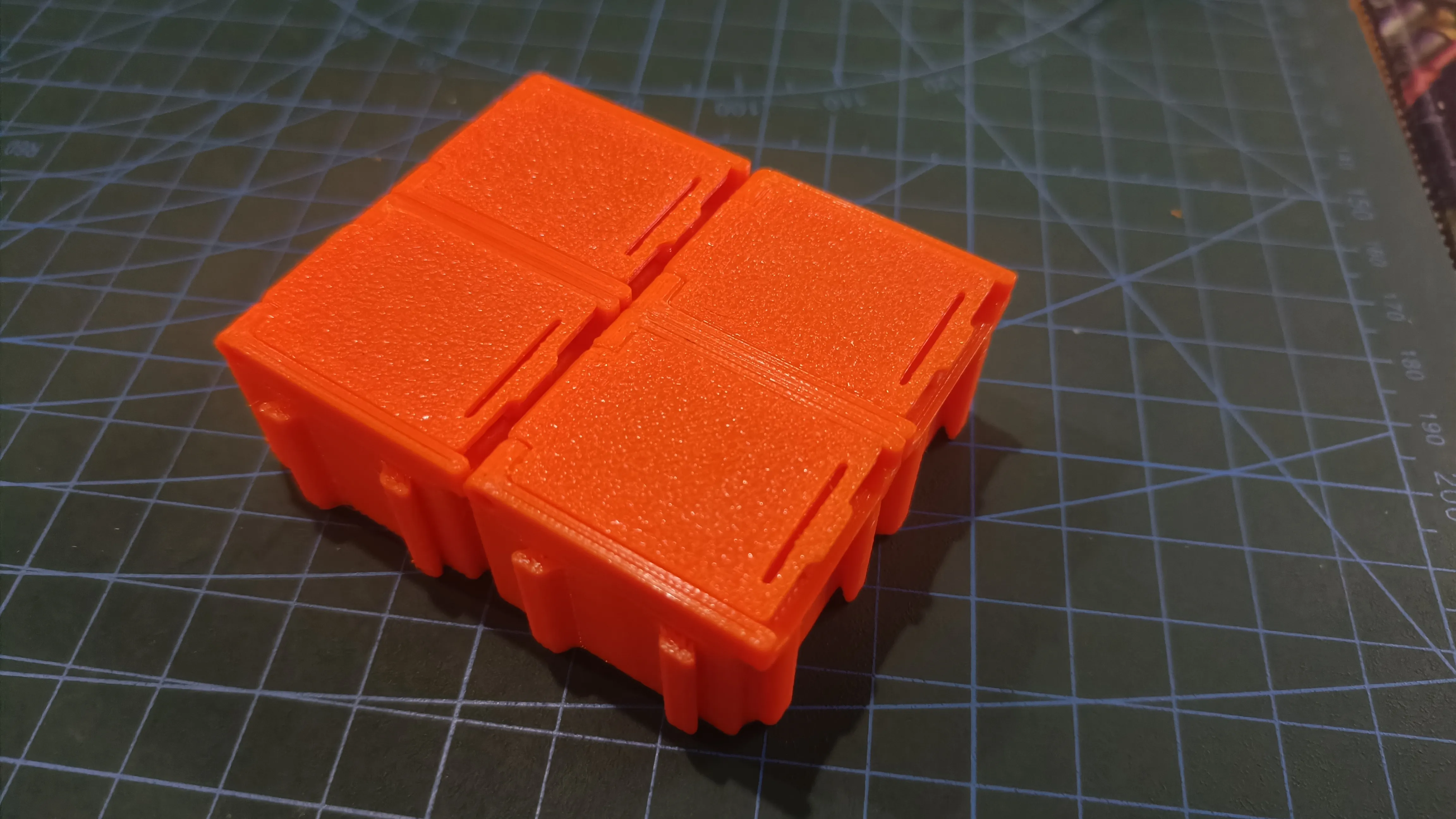

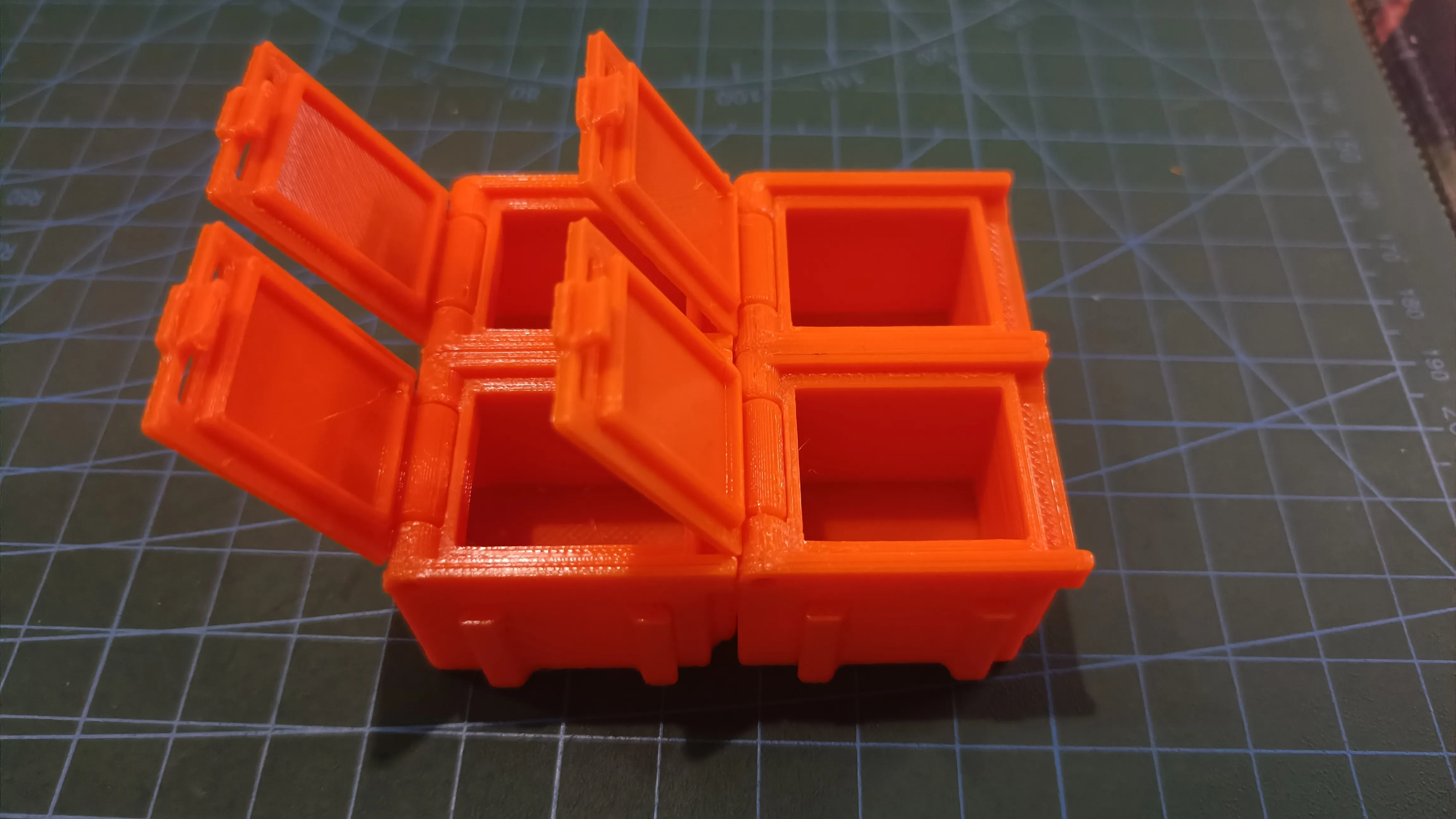

This is an attachable box for SMT/SMD components, the lid of the box has an easy-open snap. It has been chamfered to avoid elephant legs. In theory, it can be assembled after printing, but it still needs to deal with the hinge hole of the cover and the hook of the buckle. The hinge can use 1.75mm filament wire. If the z-direction of the machine is not stable enough, a hammer may be required during assembly

Print Settings

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

30

Filament:

PETG
