Akro-Mils Large Drawer Trays

I recently purchased an Akro-Mills 10124 parts cabinet and immediately printed off some of the replacement dividers, but found I wanted to be able to put smaller pieces in, and at the same time stack them up. While there were plenty of such models for the small drawers, I couldn't find any for the large drawers, so I made my own!

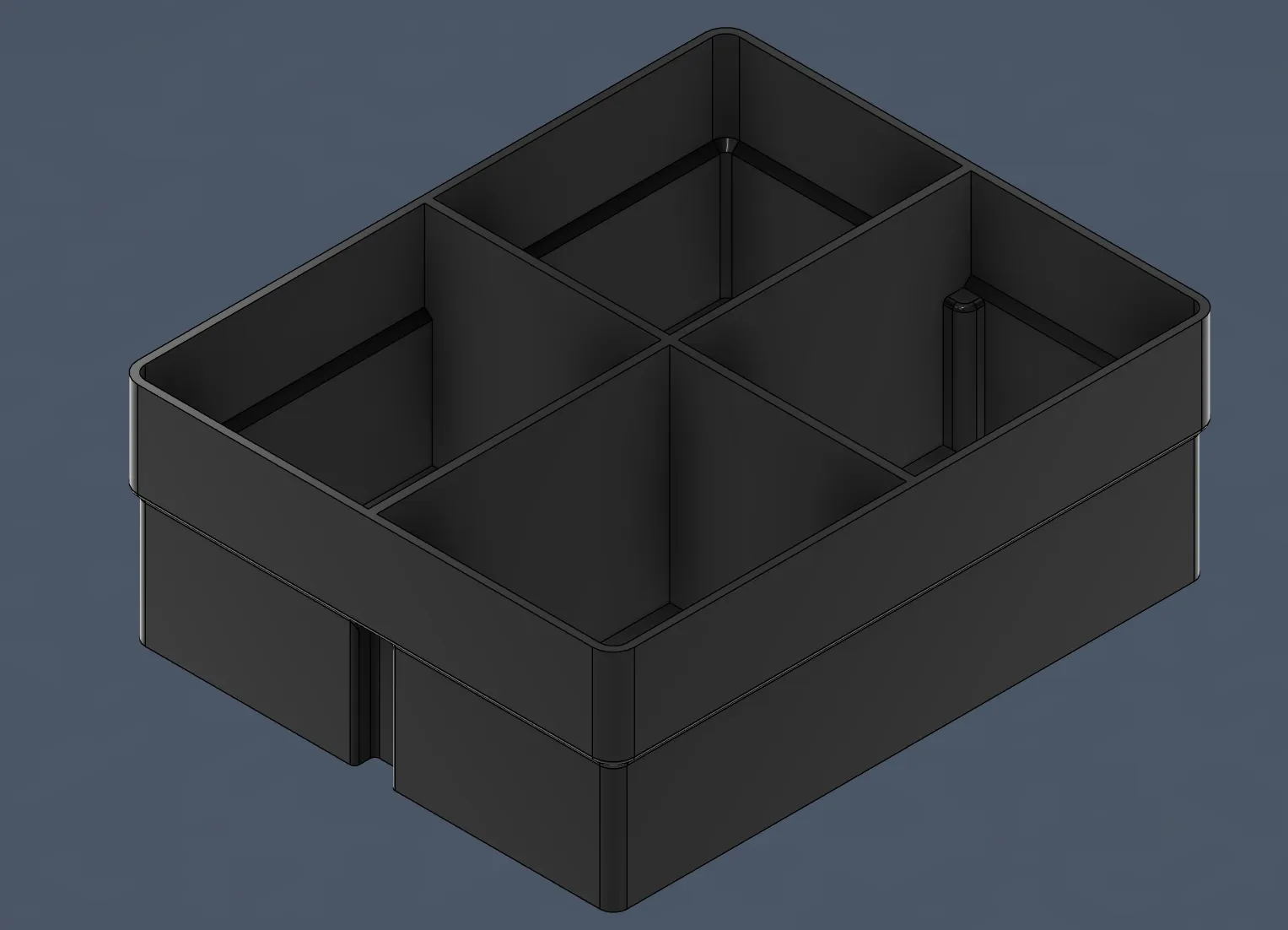

There's a set for the bottom of the drawers with offsets for features in the tray, as well as a slightly larger one that only fits in the top. Each size has an empty tray, one divided length-wise and width-wise, divided in to quarters, and one cut up to hold a bunch of THT resistors.

Each plate has one of each tray as named, although two can easily fit on a plate if you want to double them up.

If there are other sizes that could be useful, please let me know or feel free to make your own with the included Fusion F3D.

UPDATE

Added “Full Quarters” to the CAD files.
