Summary

Hello !

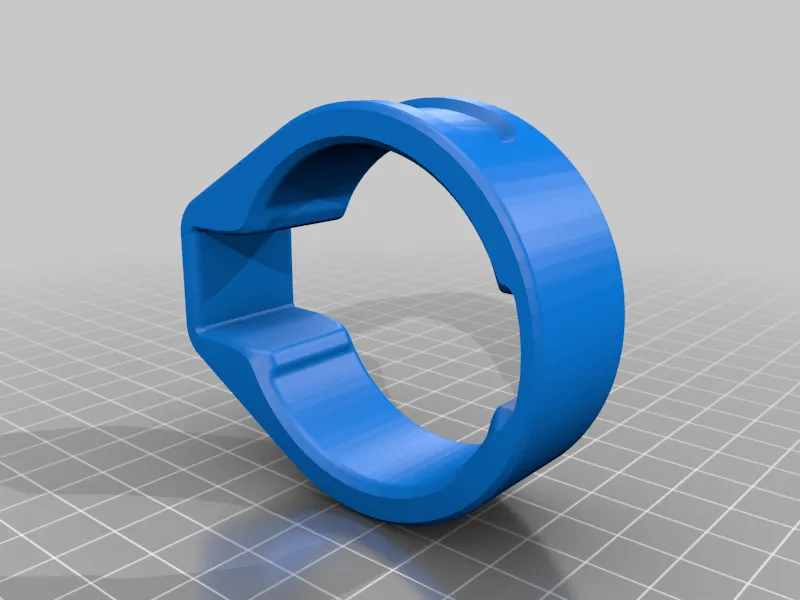

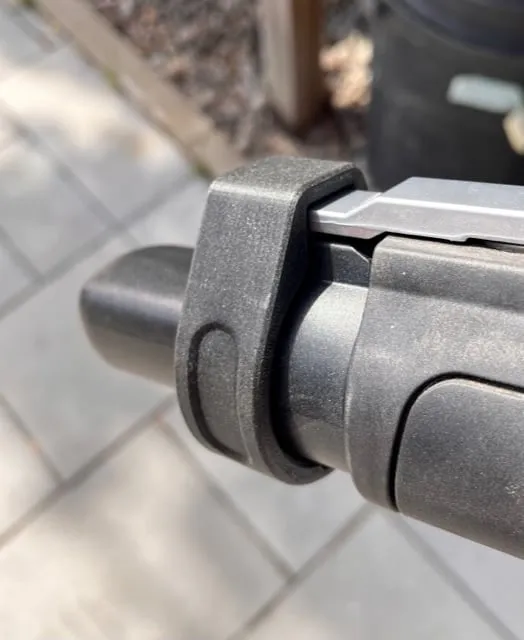

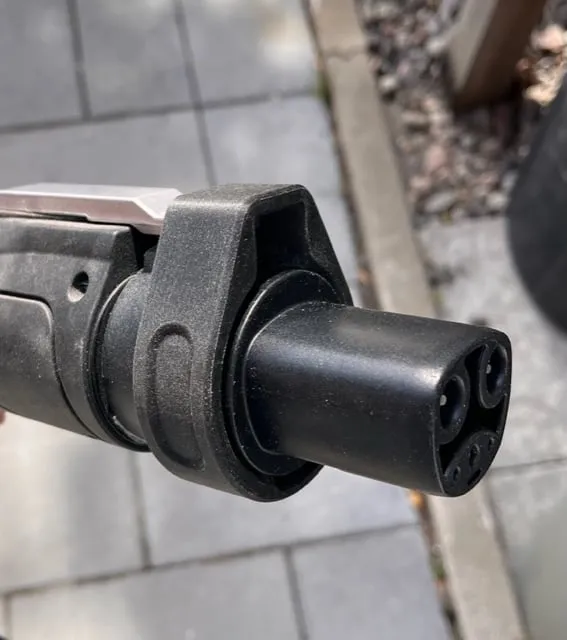

This is my version of the standard SAE J1772 to Tesla adapter lock that prevents people from disconnecting the adaptor from the charge.

Here are a few improvements on other models:

It can be installed both ways.
There is a small press-fit that help keeping the ring attached to the adaptor while you carry it around.
There are two details for the finger. When you press, the round gets oval, which reduce the friction and helps during installation.
It prints with no support

I think it works great, please comments if you see any improvements needed.

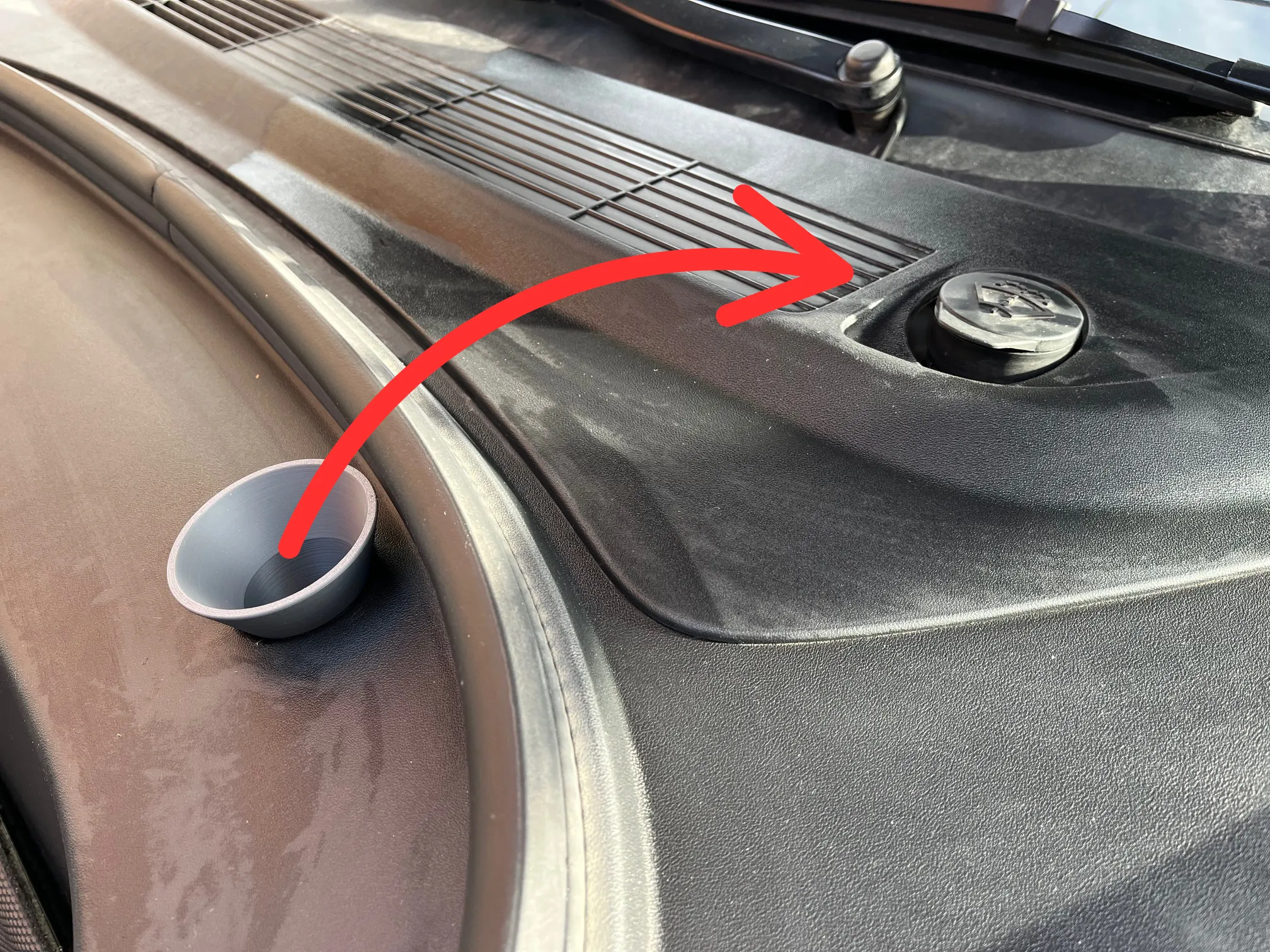

Also, you can have a look at this small funnel for washing fluid. It fits right into the frunk of a model 3 and works great.

https://makerworld.com/en/models/1292921-compact-funnel-for-tesla-model-3-frunk?from=search#profileId-1323475

Cheers
