Brother Printer Rear Paper Guide Stop
Remixed by
IP Report
Print Profile(1)
0.08mm layer, 2 walls, 100% infill
Designer
1.7 h
1 plate
Open in Bambu Studio
Boost
7
14
2
2
41
27
Released
Description
Summary

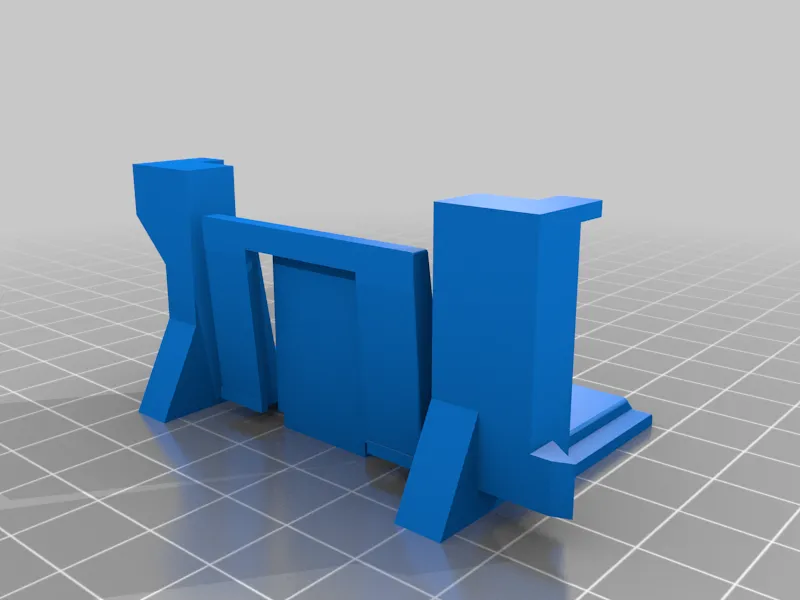

Remixed Shawn_T_hingi's model of a similar part, to fit my Brother HL-3170CDW. Brother part number LY2204001 (in case it looks like it'll fit your printer, use that part number to see what other models it fits). As a change to the original part, I made some of the areas solid and added braces at the rear to help keep the arms from breaking off, since those seem to be a weak spot.

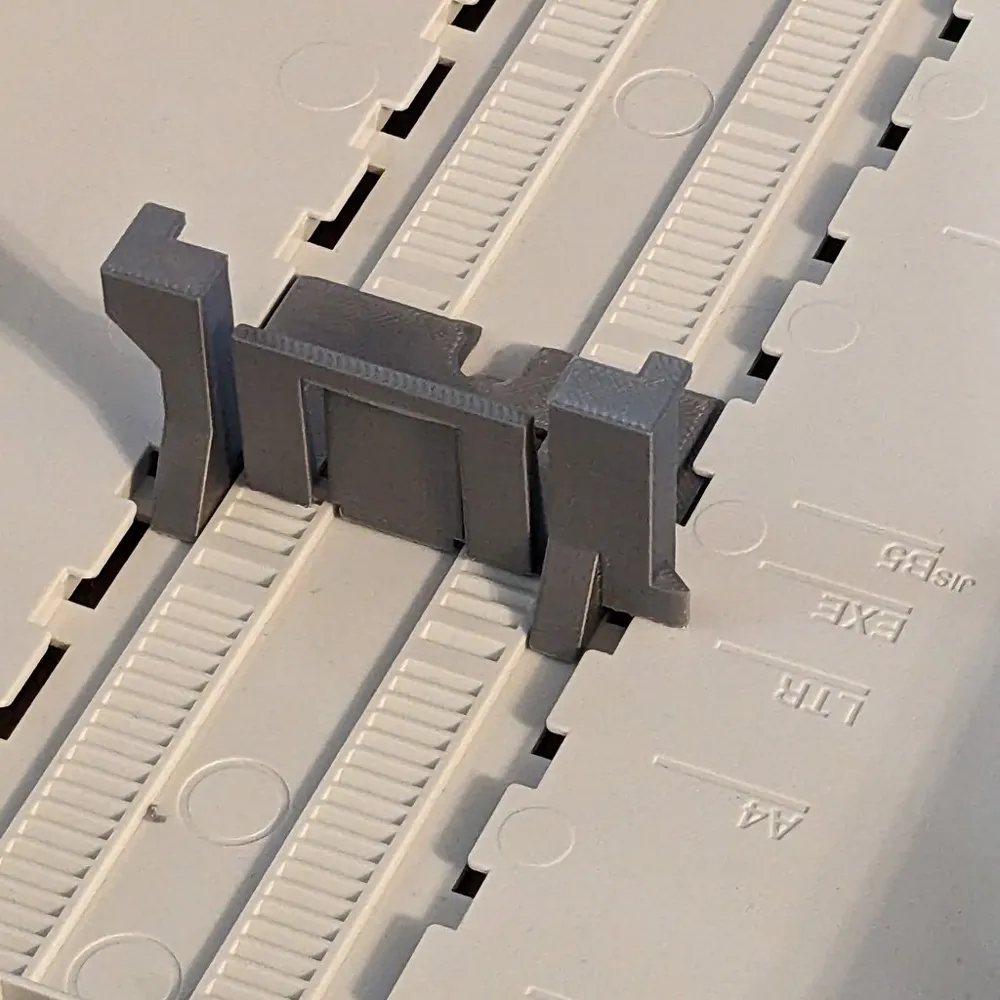

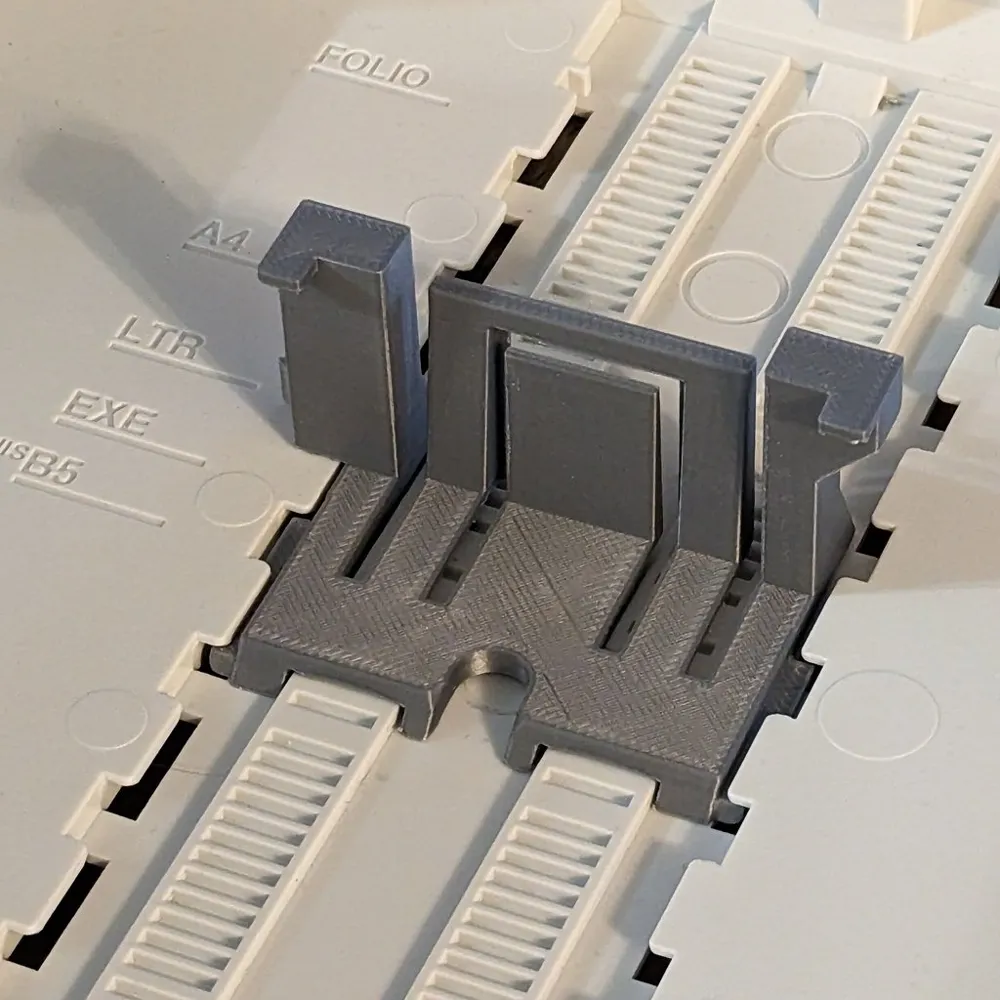

Printed as it sits in the paper tray, with tree supports for the raised sections on the bottom and the small tabs at the top of the arms. Used 100% infill.
If you dig my remix, please post a pic of your finished print. It's fun to see other makes!
