HEPA Carbon Air Filter Bambu Lab X1 P1

Working on such designs takes a lot of time and if you like my work and want to support me - please print my “Designer” printprofiles! It will help me to design more! Thank you in advance!🙏

UPDATE 06.03.2025: The newer X1C/P1S have minimally smaller filter niches (very tight tolerances) - I have now adjusted the size in all print profiles. Now  fits this version the old AND newer X1C/P1S perfectly! 👌😊

It was time to replace my activated carbon filter again and I didn't feel like ordering and waiting again... I found a really nice model/remix for refillable charcoal /activated carbon filter for BambuLab printers at printables (Thanks to Skywarrant! :-) That suited me almost perfectly… But I had to change a few things so that I'm completely satisfied with it! :-)
And I wanted to share the remixed version with you!

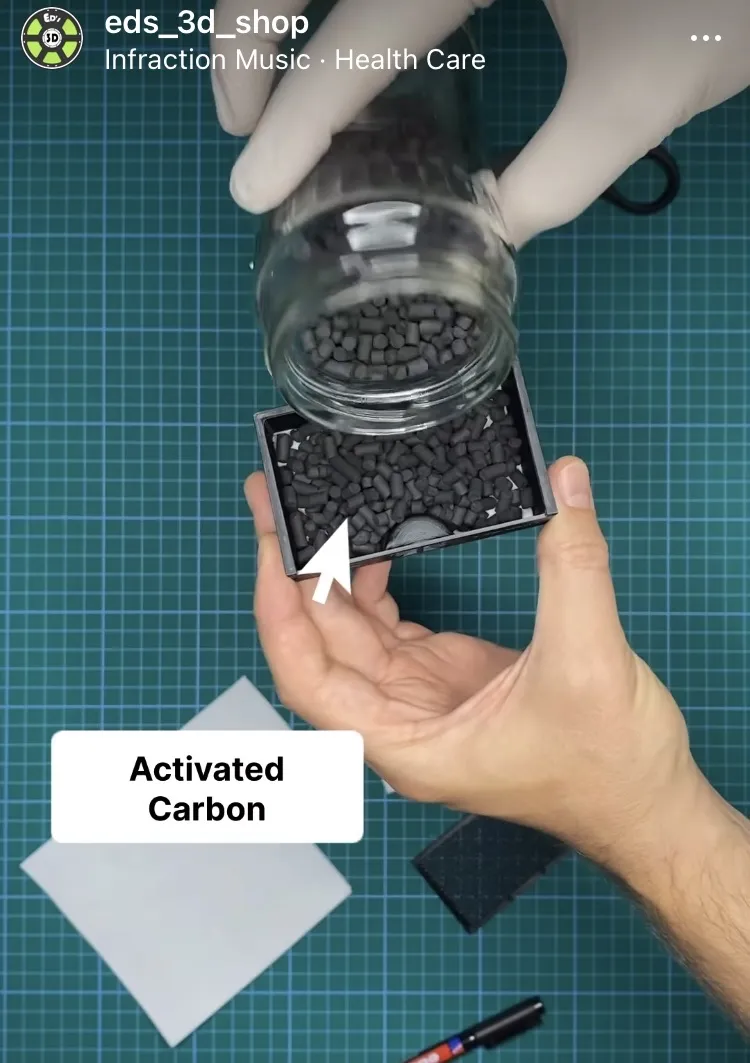

Here in video, I show how to change the filter material (activated carbon and HEPA!) with the help of this cool box!

https://www.instagram.com/p/CyY9BXIr_8r/

My changes:

• The lid has got 2 slits to be able to open it more comfortably - take a look at the pictures!
• The tab on the lid is now more solid, so it can't break now
• scaled down to 98% for better, easy fit.
• main box got carbon logo and lettering ;-)
• extra variant of main box stl with tabs for better adhesion (take this for ABS/ASA! ;-), just cut off these small tabs with the cutter after printing.

Print Instructions:

Quality:

• layer height: 0.2mm

Strength:

• only one wall on top surfaces: off
• only one wall on first layer: off
• wall loops: 5 (only for “Activated_Carbon_Filter_Bottom_with_Tabs.stl”: 9 Walls!)
• top shell layers: 0
• bottom shell layers: 0
• sparce infill density: 30% - 50% (im prefer 50% - see on pictures)
• sparce infill pattern: Triangles
• Infill/wall overlap: 20%
• Infill combination: off

Speed:

• first layer: 10-20mm/s
• first layer infill: 10-20mm/s

Filament: take better ASA/ABS or at least PETG - for better temperature resistance!

Good and safe source for activated carbon (or just search for “Nevermore Carbon”): https://github.com/nevermore3d/Nevermore_Micro

— ! —

Thanks for downloading, rating in advance and please don't forget to like this model! ;-)

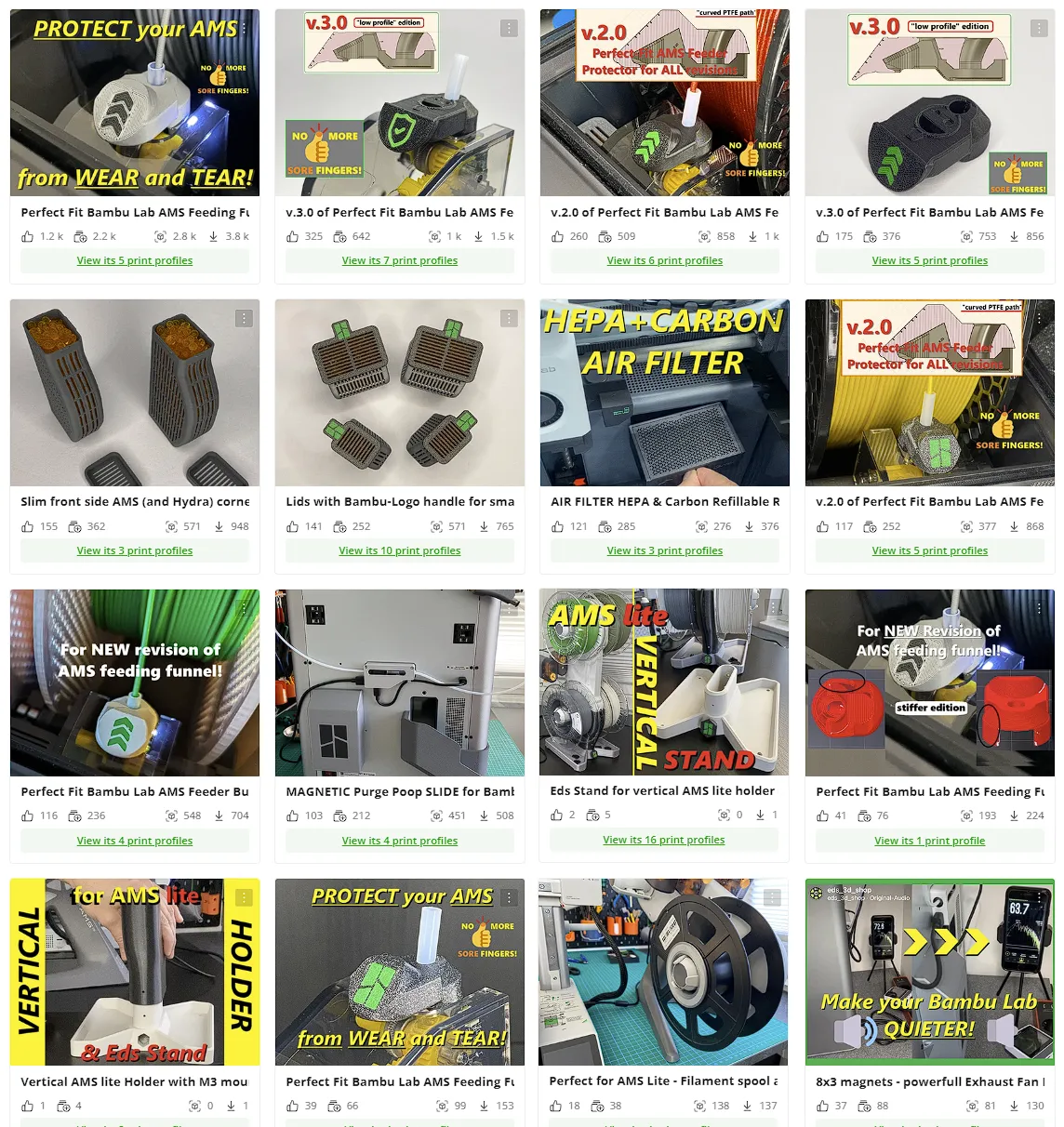

Take a look at my another very helpful designs for X1/P1P/P1S/A1/A1mini:
