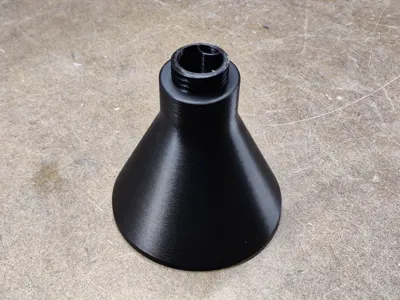

Threaded Oil Funnel Honda with Breather

The Funnel is tested on Honda Civic 2015 and Honda Jazz 2015. Supposed to fit models from Acura, Nissan and some Fords.

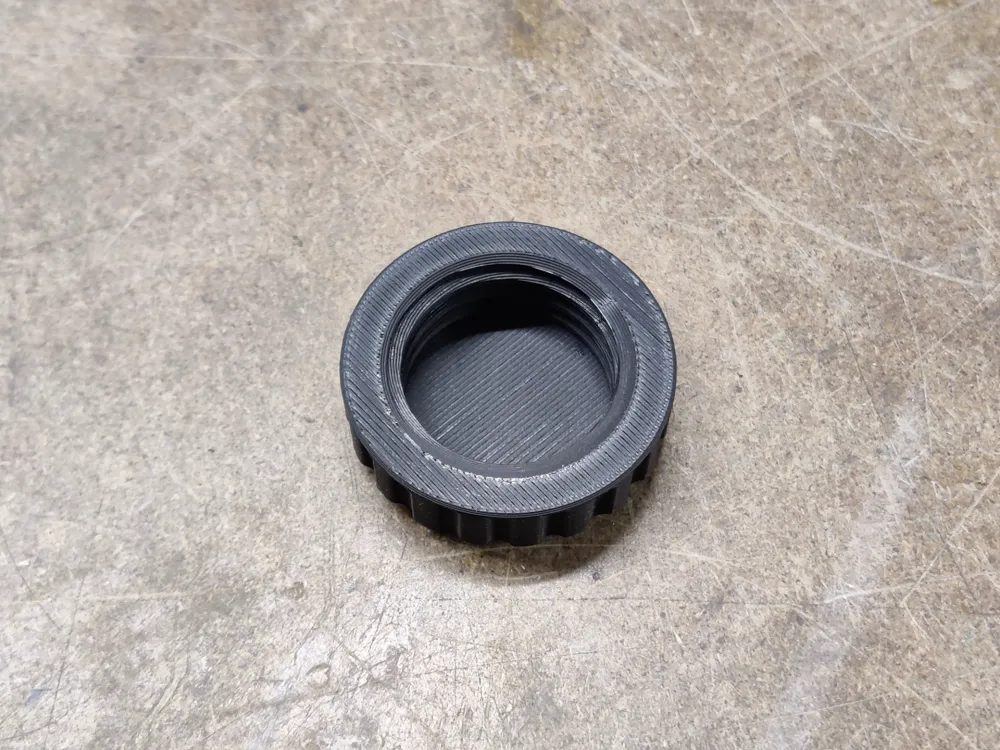

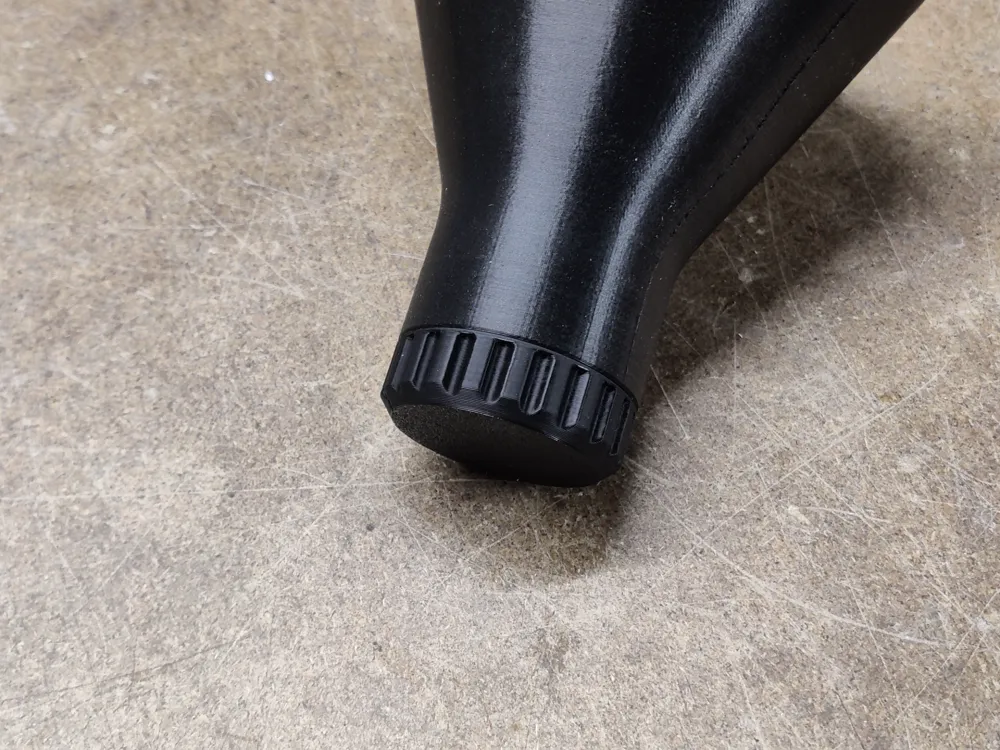

Now with a Cap.

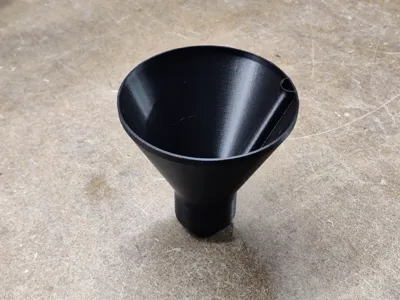

Per request, I have made a 75 mm (~3 inch) extension. The breather pipe fits perfectly, at least on the Bambu printer and with the filament I used. There is a stopper to ensure that the profiles overlap correctly.

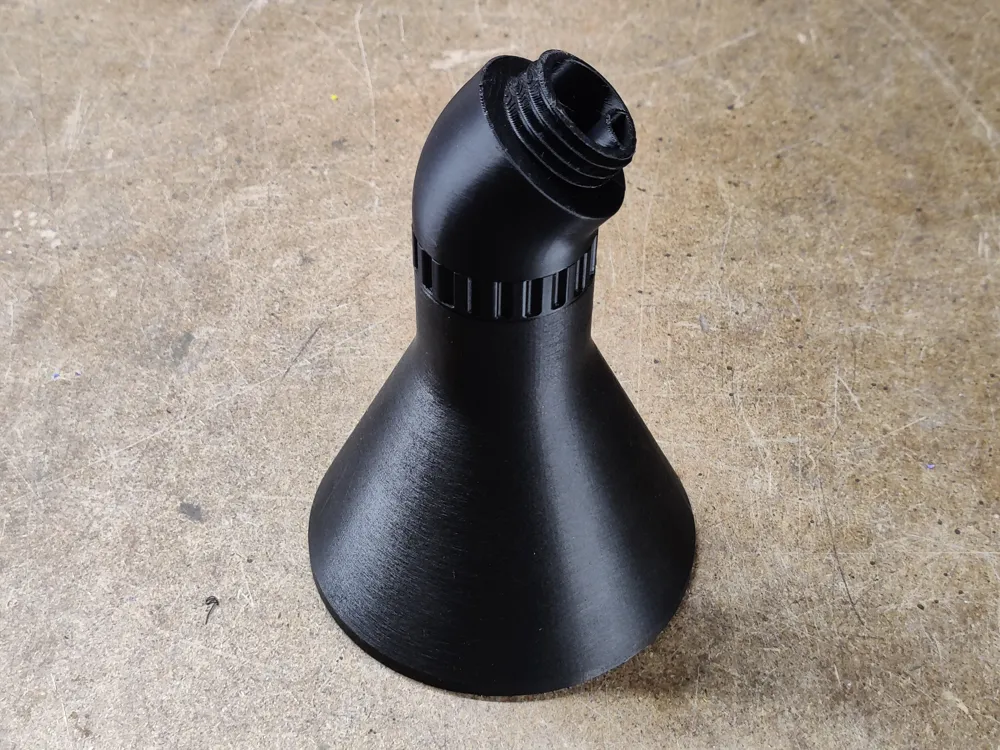

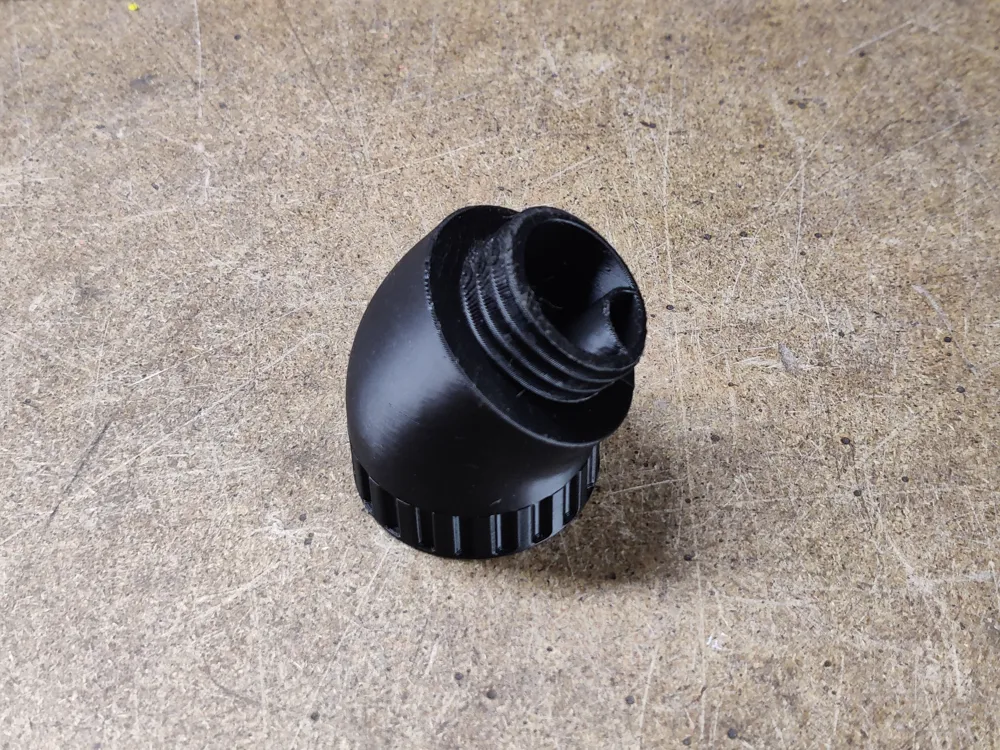

There is also 40 Degrees Angle Adapter, but you must first scheck the aligment with the Thread and Degrees Checker.

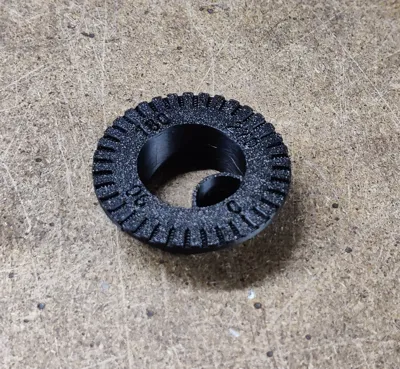

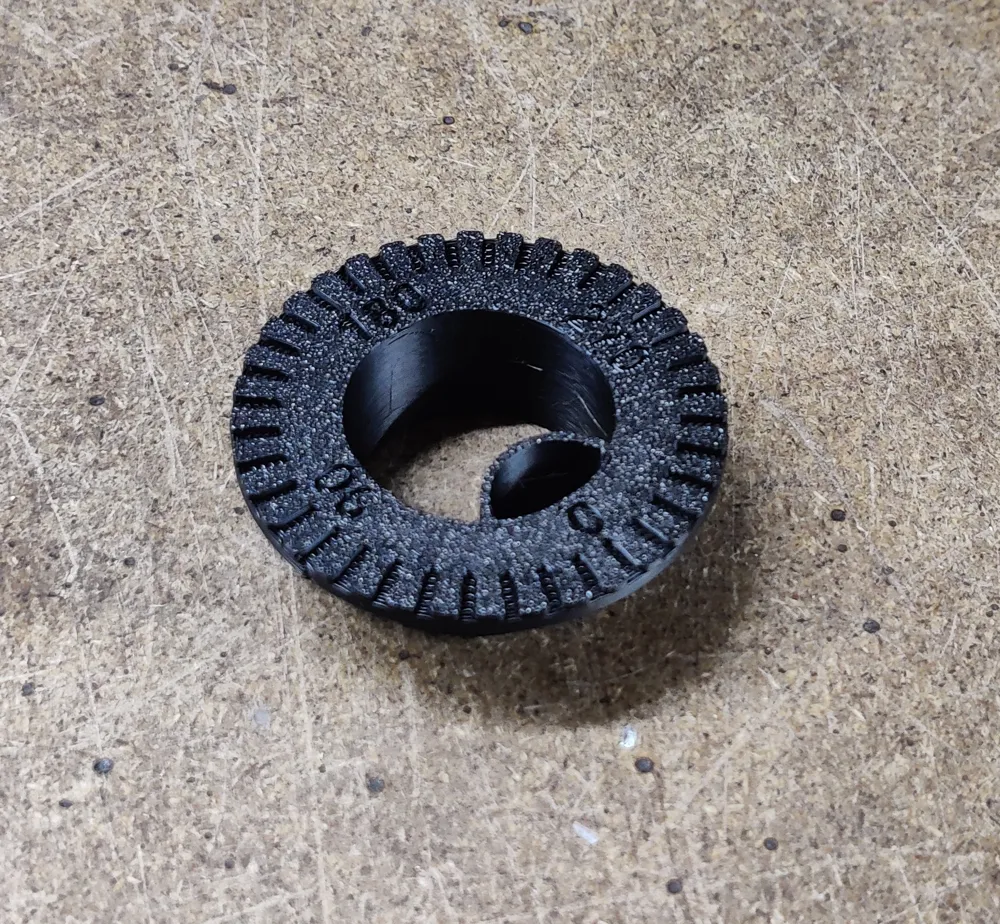

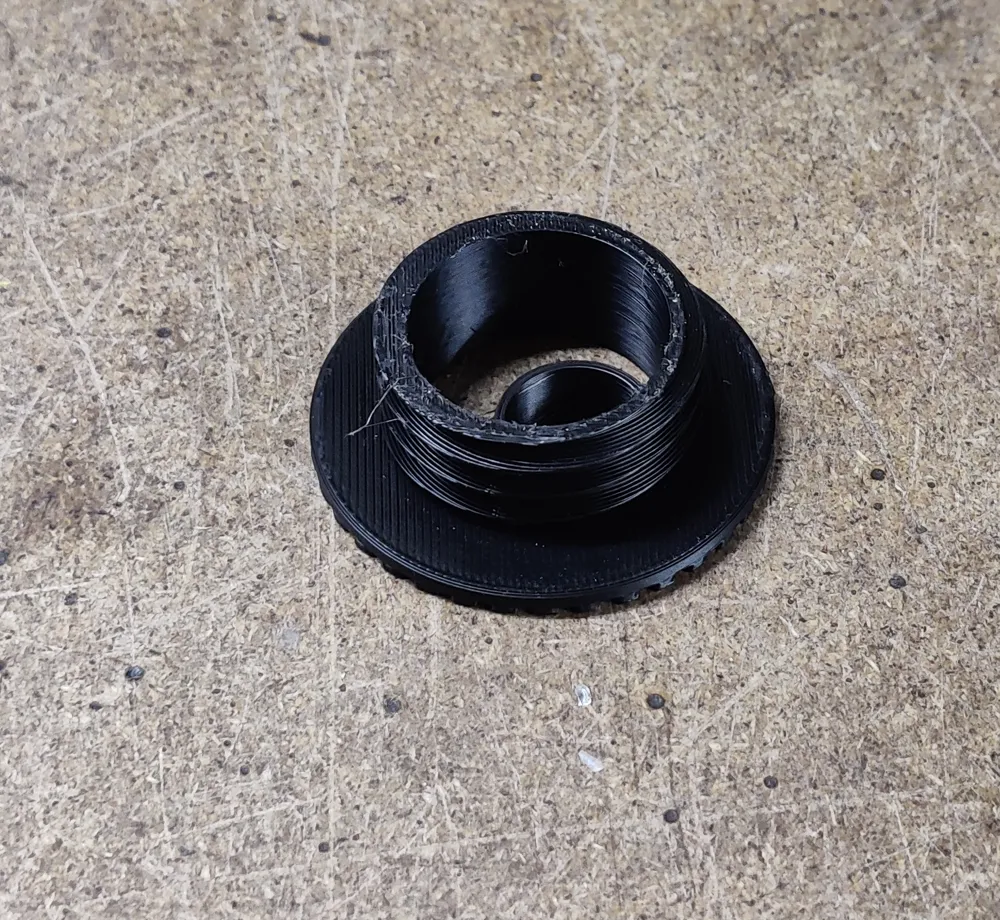

A combined Thread and Degrees Checker profile with the thread only is included, so you can check if the funnel fits your car without printing the entire model, or check if you mist rotate the thread for the 40 Degree adapter and with how much.

EDIT: Now there is a V3 version with one extra wall, for a total of four. I tried the funnel for the first time with Bambu PETG-HF Black (just dried), and the walls were too pliable, causing some crackling noise. With four walls, it is more stable. With PLA, the three-wall version is still strong enough.

Confirmed fit on:

• Honda Jazz GK3 2015
• Honda Jazz 1.5 L15A1 Engine
• Honda Civic 1988
• Honda Civic 2004
• Honda Civic FK3 2015
• Honda Civic FK8 Type R
• Honda Civic Touring 2016 1.5 L
• Honda Civic 2021 1.5L
• Honda Civic Sport 2025
• Honda Civic Si 11th Gen 1.5T FE1
• Honda CR-V 2002-2006 with the K24A1 engine
• Honda CR-V 1997
• Honda CR-V 2009
• Honda CR-V 2017
• Honda CR-V 2018
• Honda CR-V 2021
• Honda CR-Z
• Honda Element 2004 2.4L
• Honda Accord 2015 with the K24 engine
• Honda Accord 2017 2.4L
• Honda Integra with RDX engine
• Honda Integra Type S 2024
• Honda S2000 AP1 / AP2
• Honda S660
• Honda Pilot 2023-2026 with two extentions.
• Mistubishi MR Triton
• Infiniti
• Nissan Skyline R34 with RB25DET engine
• Nissan Skyline RB26
• Nissan Qashqai J10 2.0
• Kia Sedona 2012
• Hyundai Veloster 1.6L Scaled up to 108.33%
