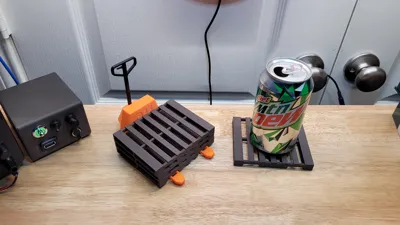

GMA Pallet Coasters and Hand Truck

3DealityDesigns24 had made a pallet and truck coaster set that I really liked, but upon slicing there were some parts I wasn't keen on so I made my own. Spent a little time looking recreating a life-size 48x40 standard GMA pallet in Fusion, then scaled it to roughly 1:11th (technically 3.5:40) scale to make it coaster-sized. I was really happy to discover the pallet at that scale was almost perfectly sized for slicing at 0.2mm height.

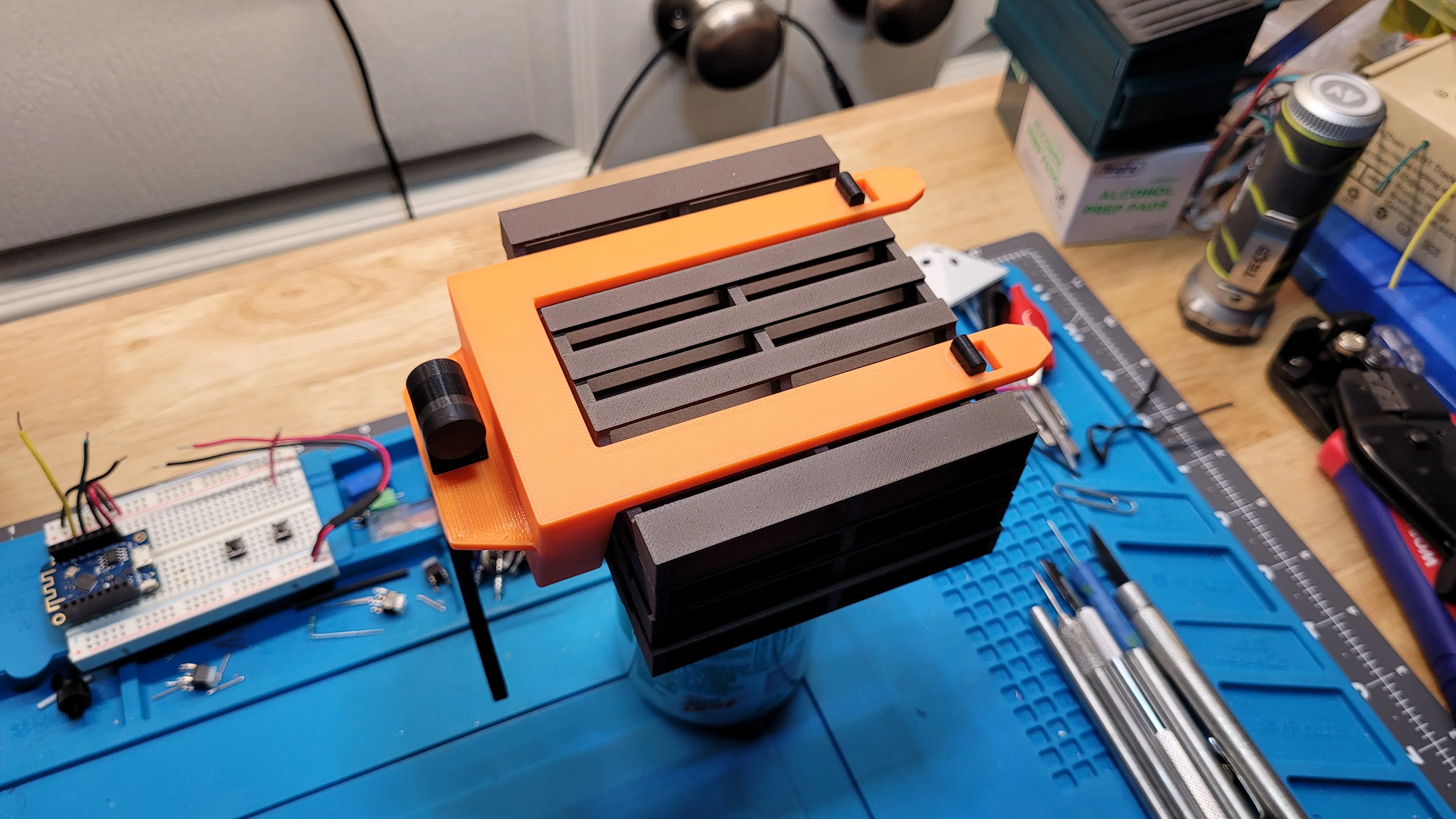

Took a few liberties with the hand truck, but as it's intended to be a decorative piece without moving components I was happy with it.

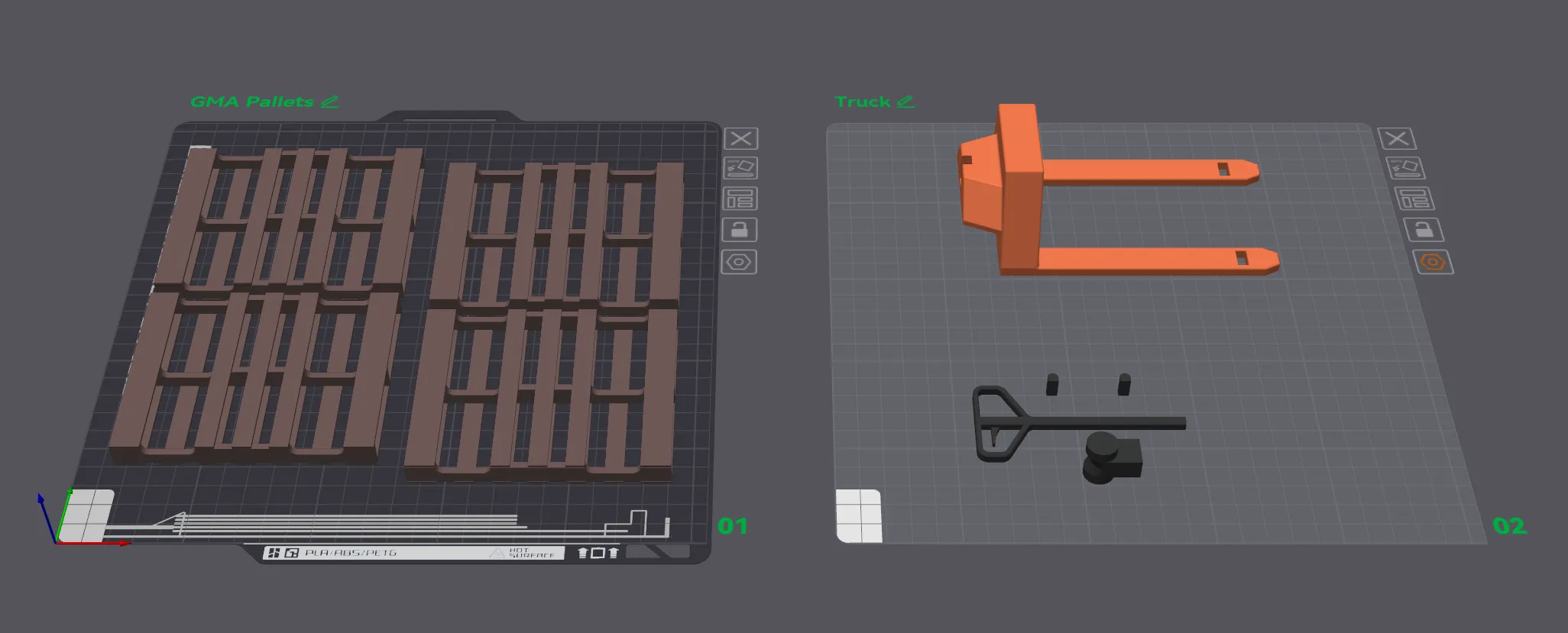

TWO PLATES:

GMA Pallets - four coasters that have some selective supports painted on. Preset for a tPEI plate.

Truck - prints by-object to print the black bits, then the truck body itself. Preset for the Cool Plate (I wanted a smooth finish), but should work fine on a tPEI plate as well.

Supports on the truck pieces should pop off easy enough wedging a hobby knife in-between the model and the interface layer. Glue the black bits on the truck body and you're done!

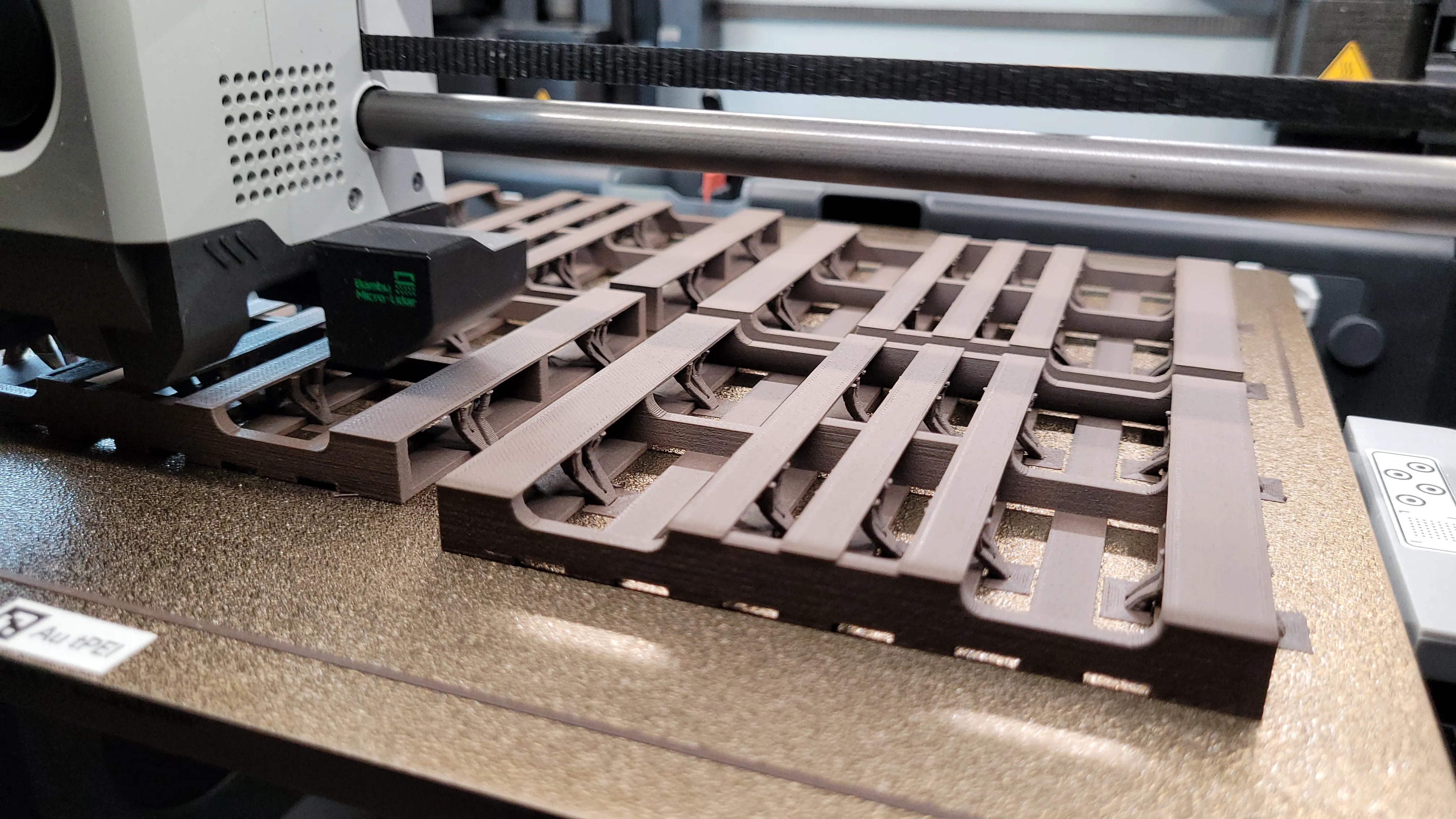

The supports for the pallets are minimal and worked perfectly fine with my really old Hatchbox Wood PLA. I grabbed each one in the middle (between the boards) and gently pulled with a pair of needle-nose pliers. Every one came off easily and cleanly.
