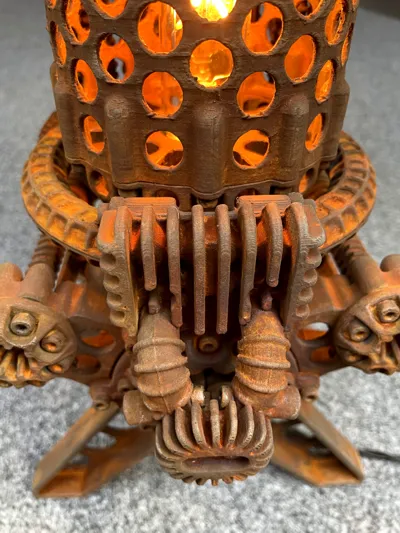

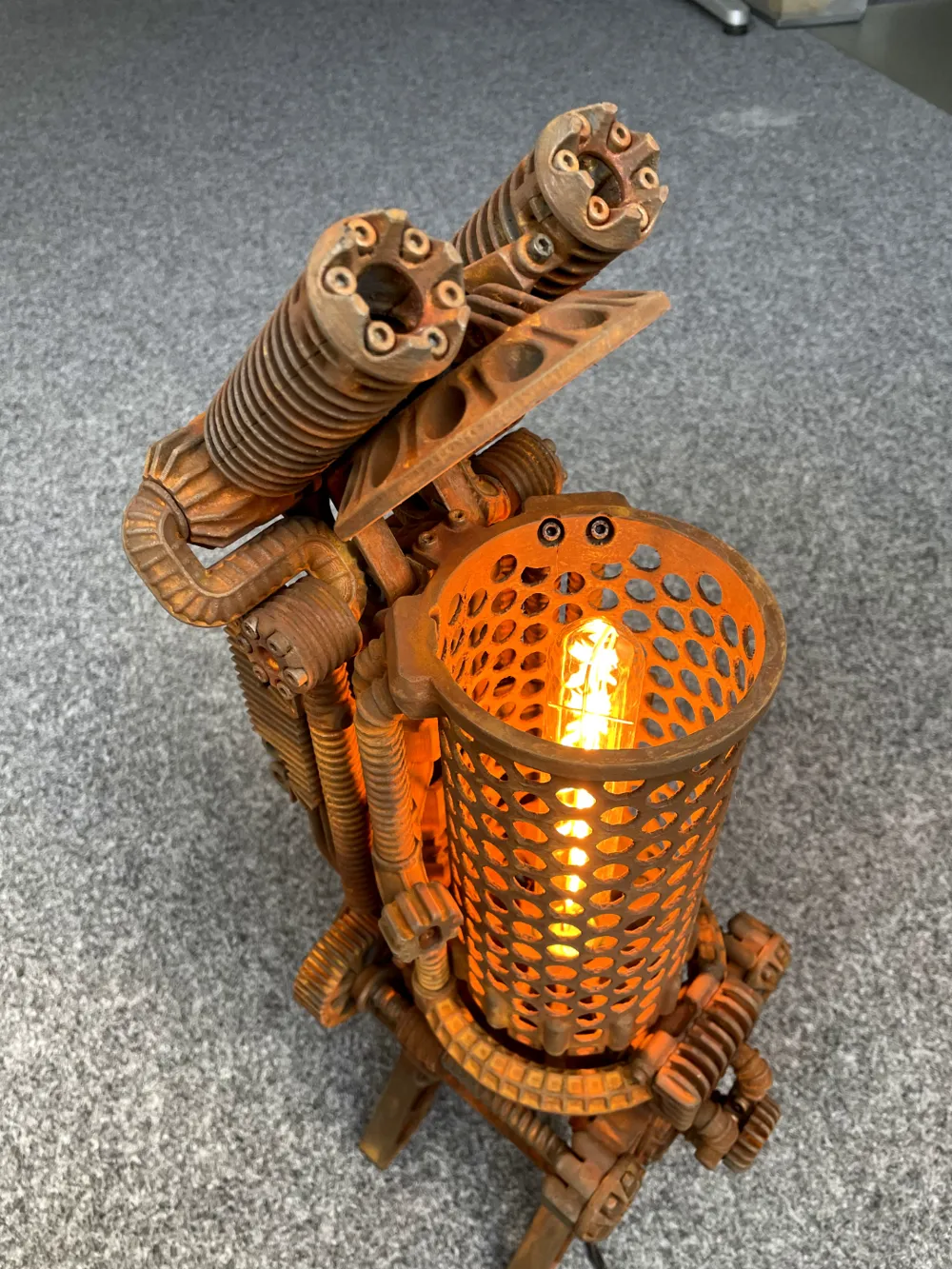

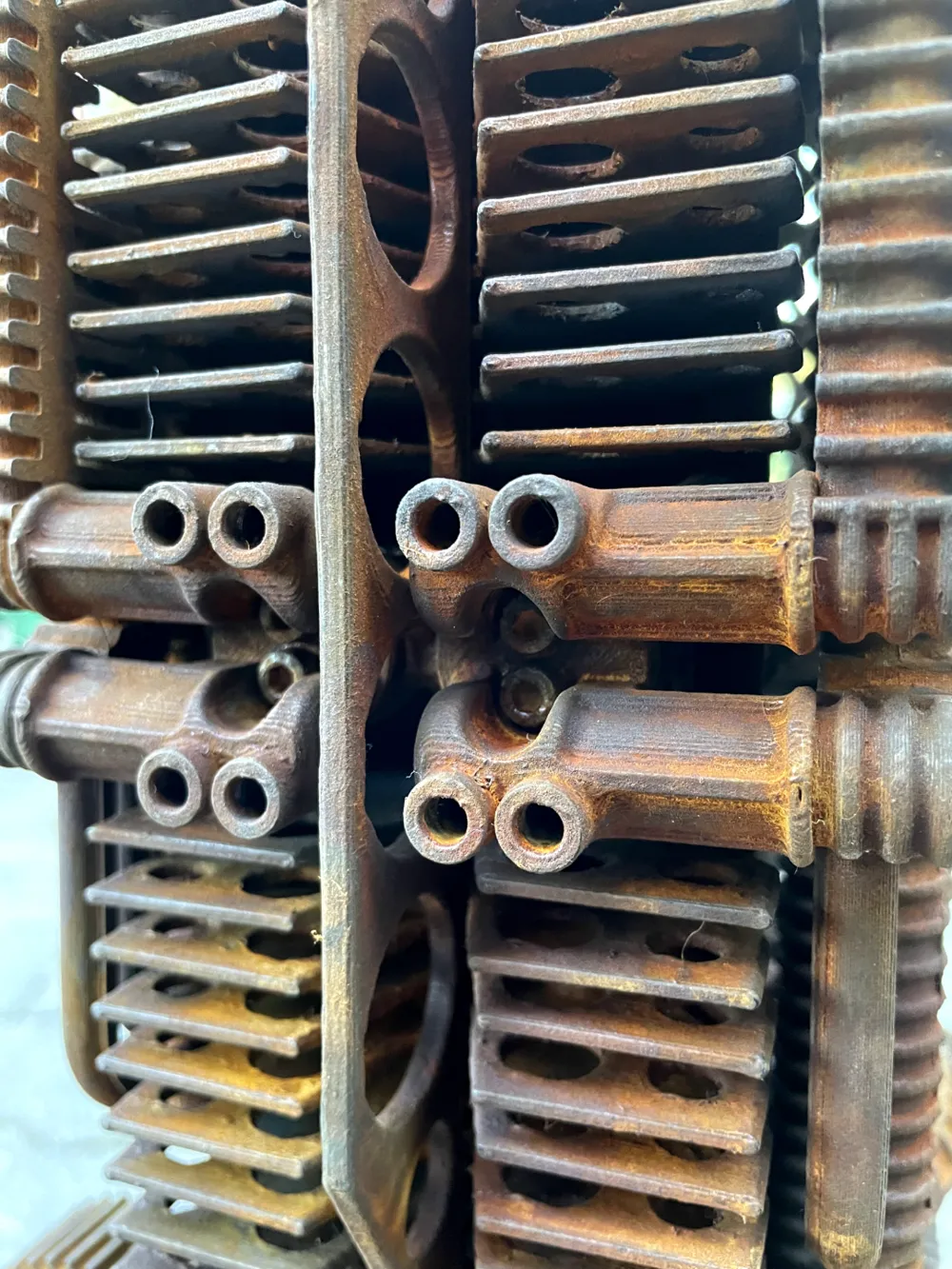

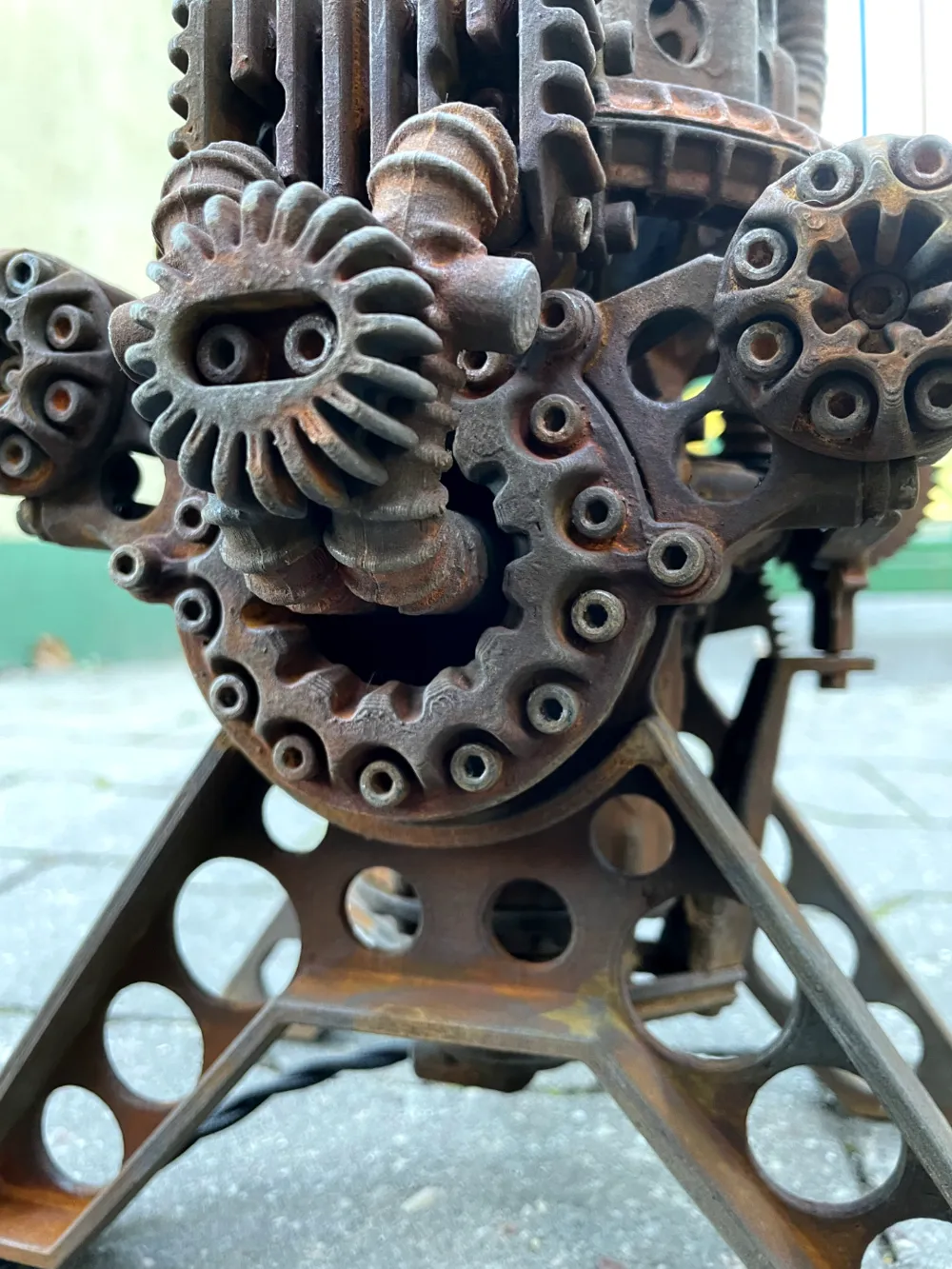

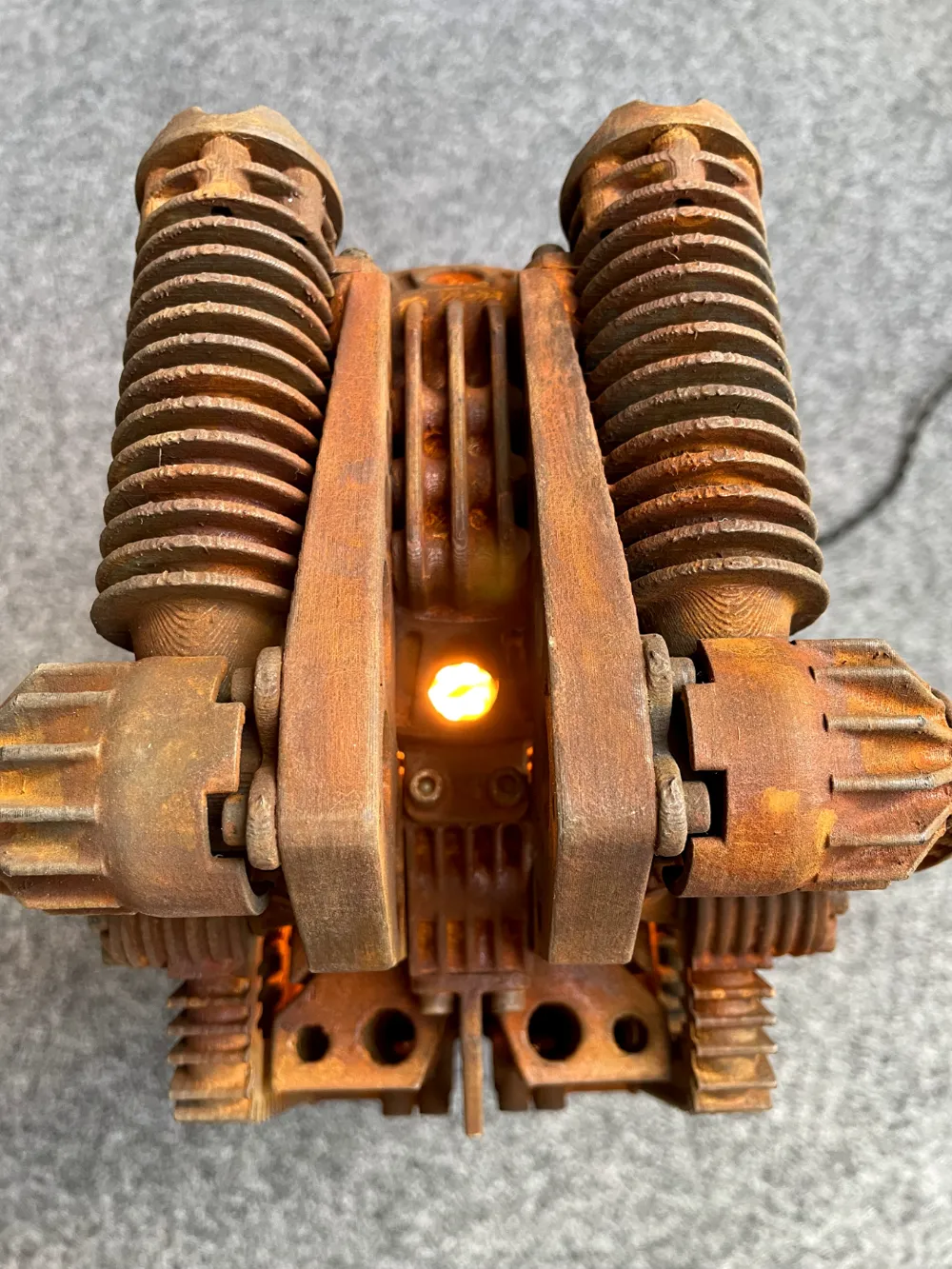

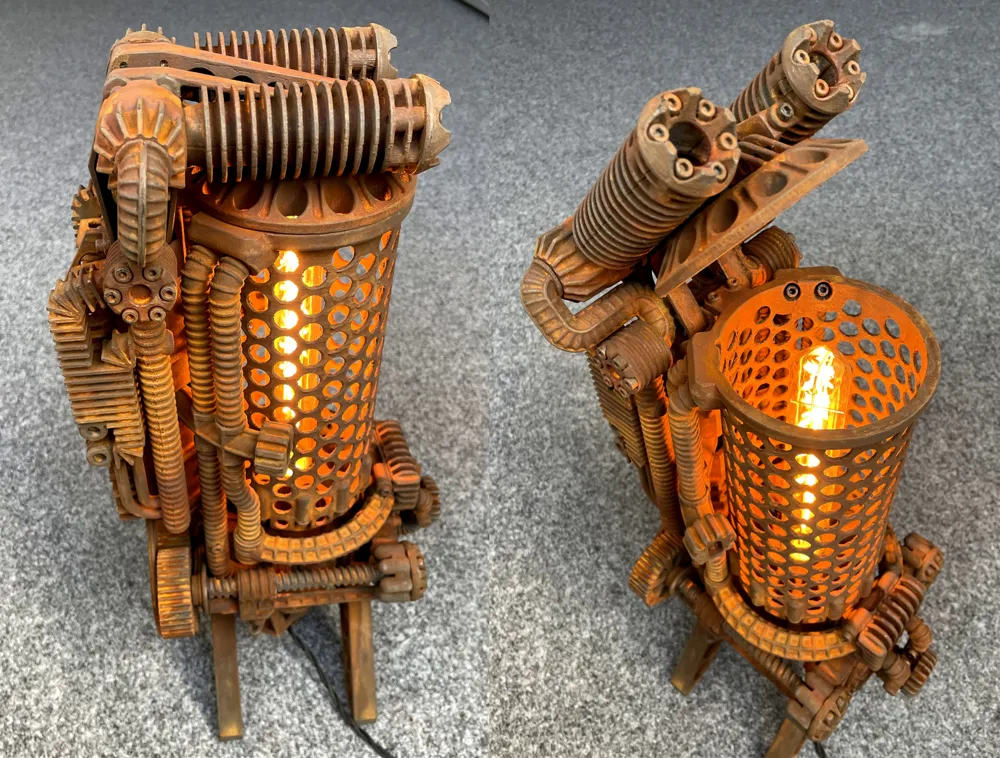

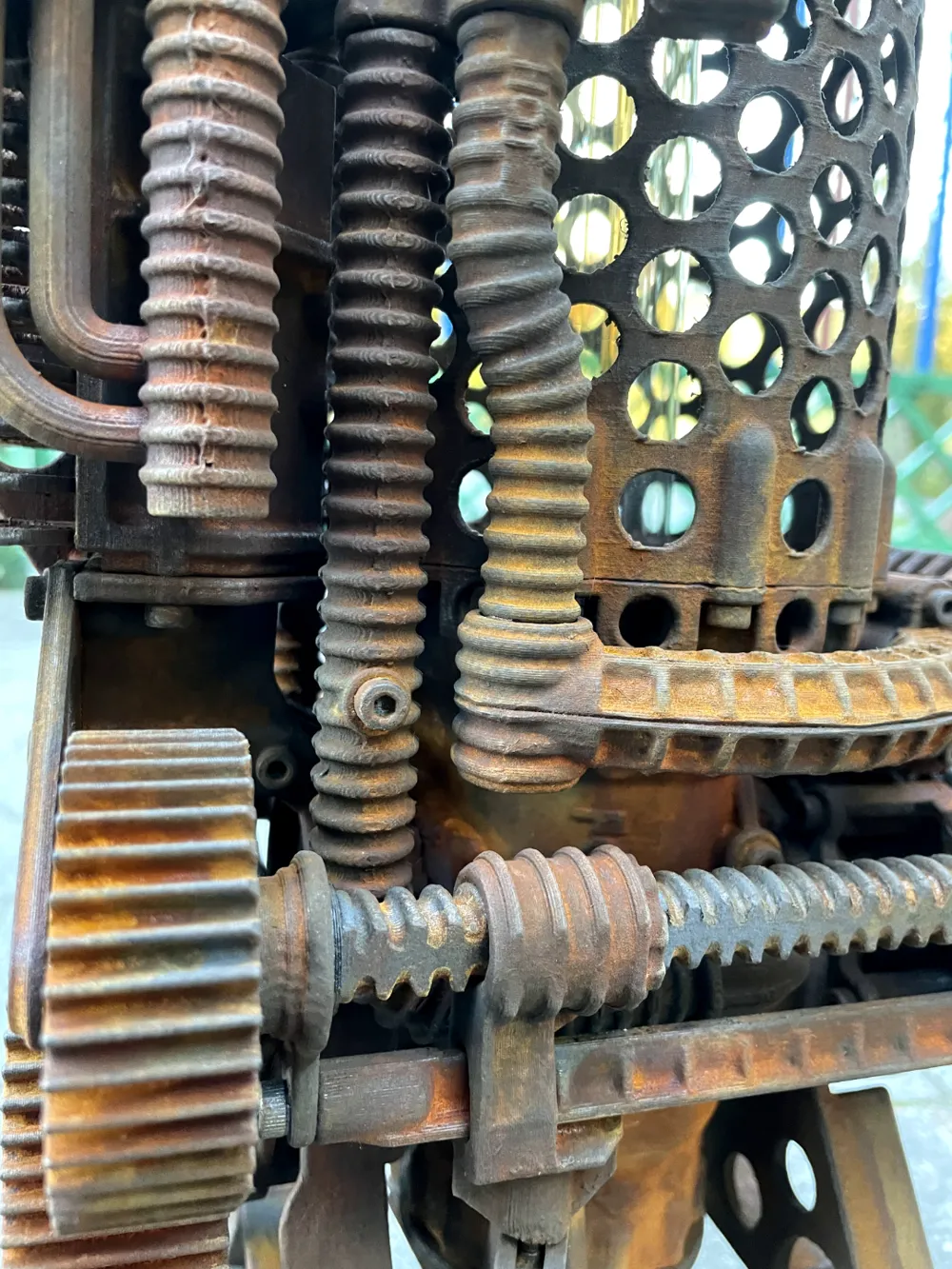

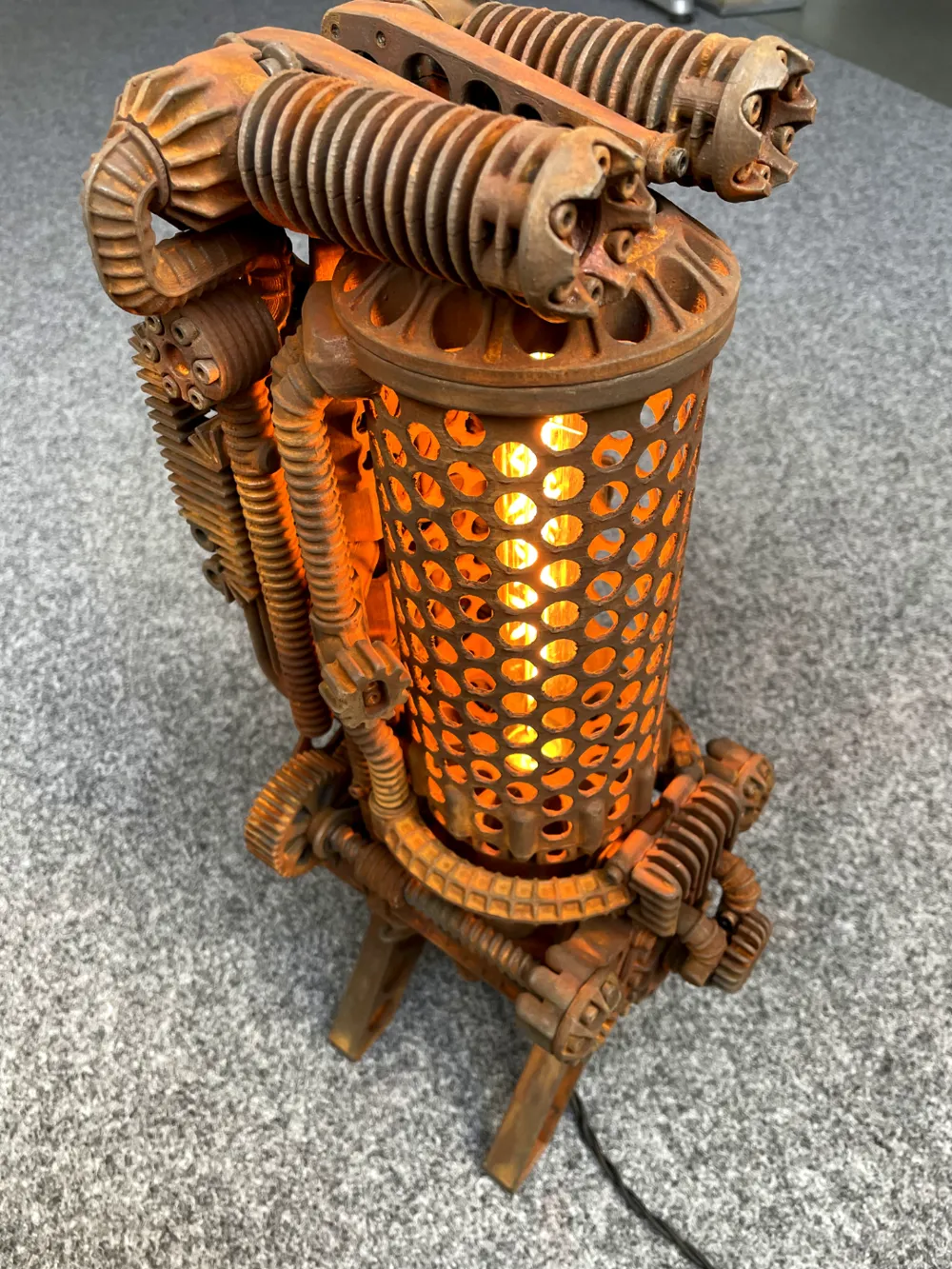

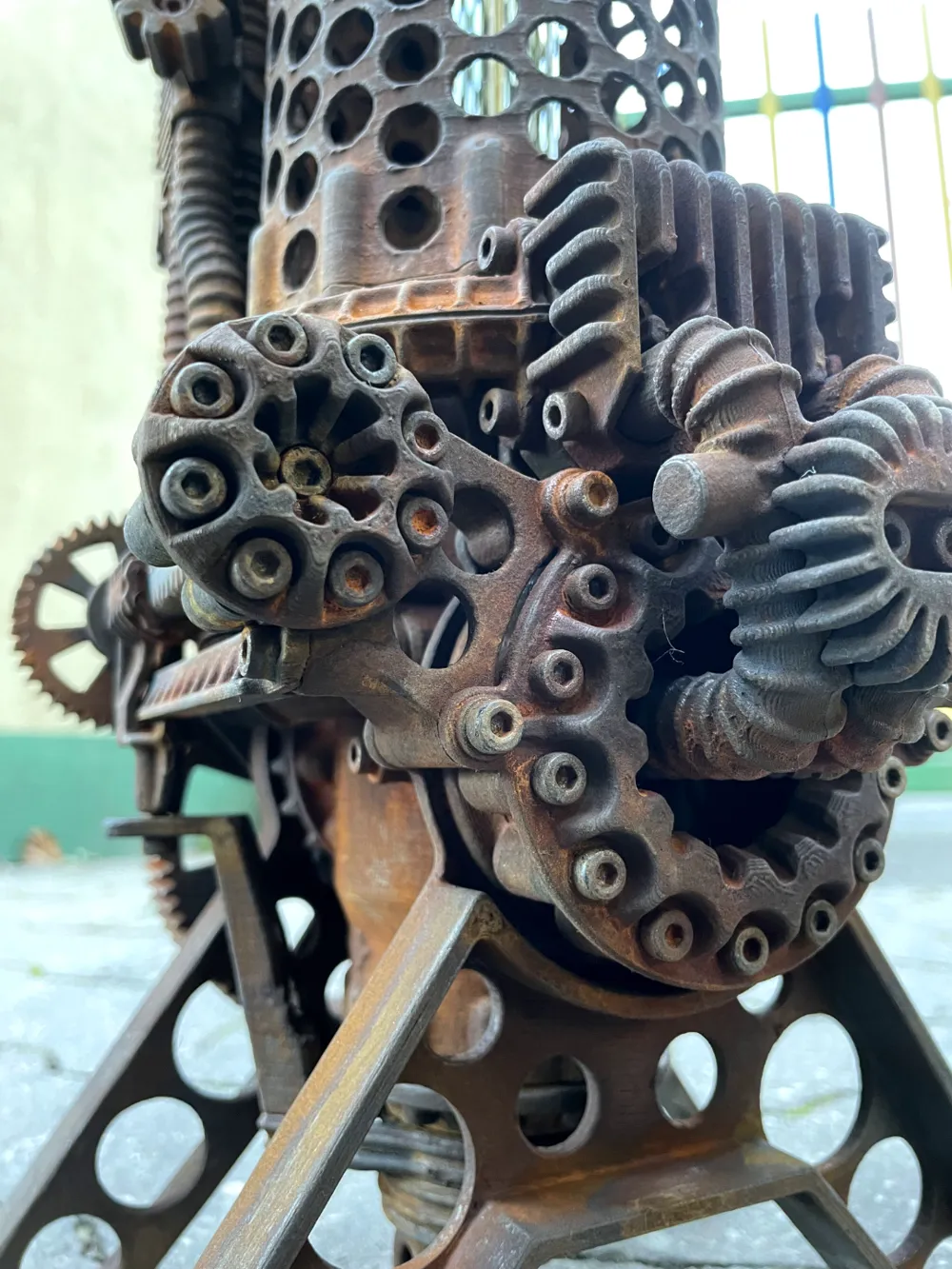

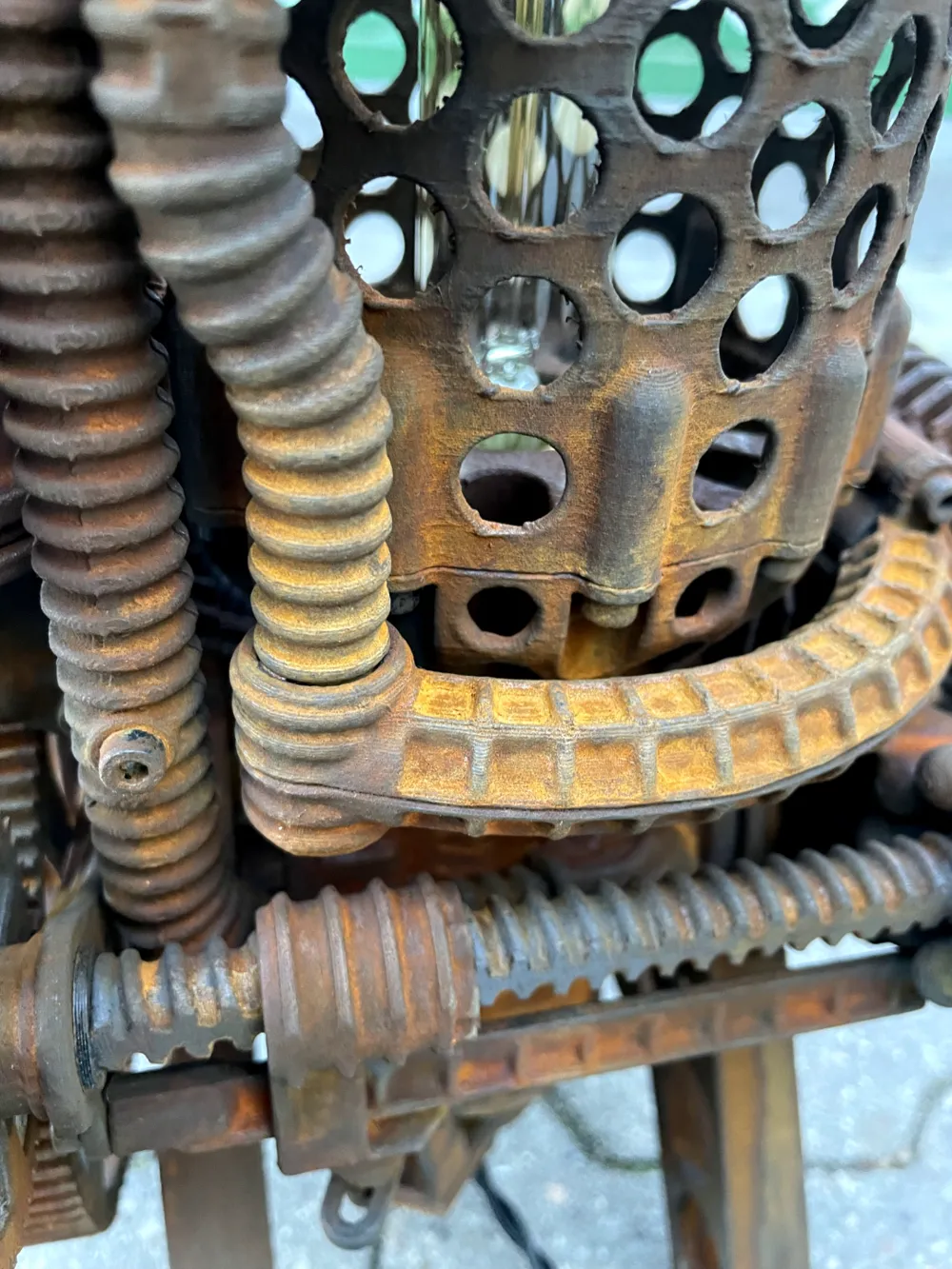

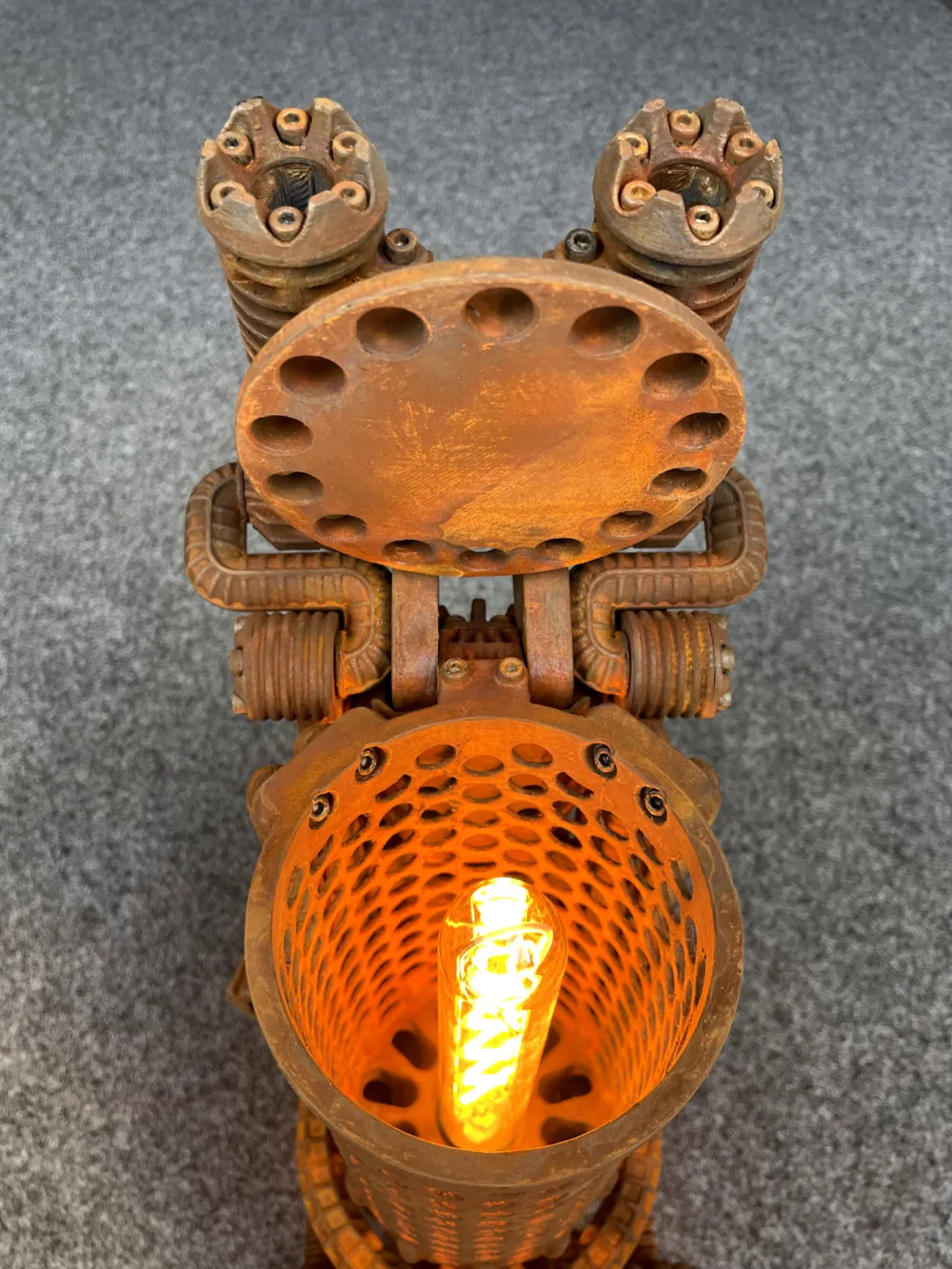

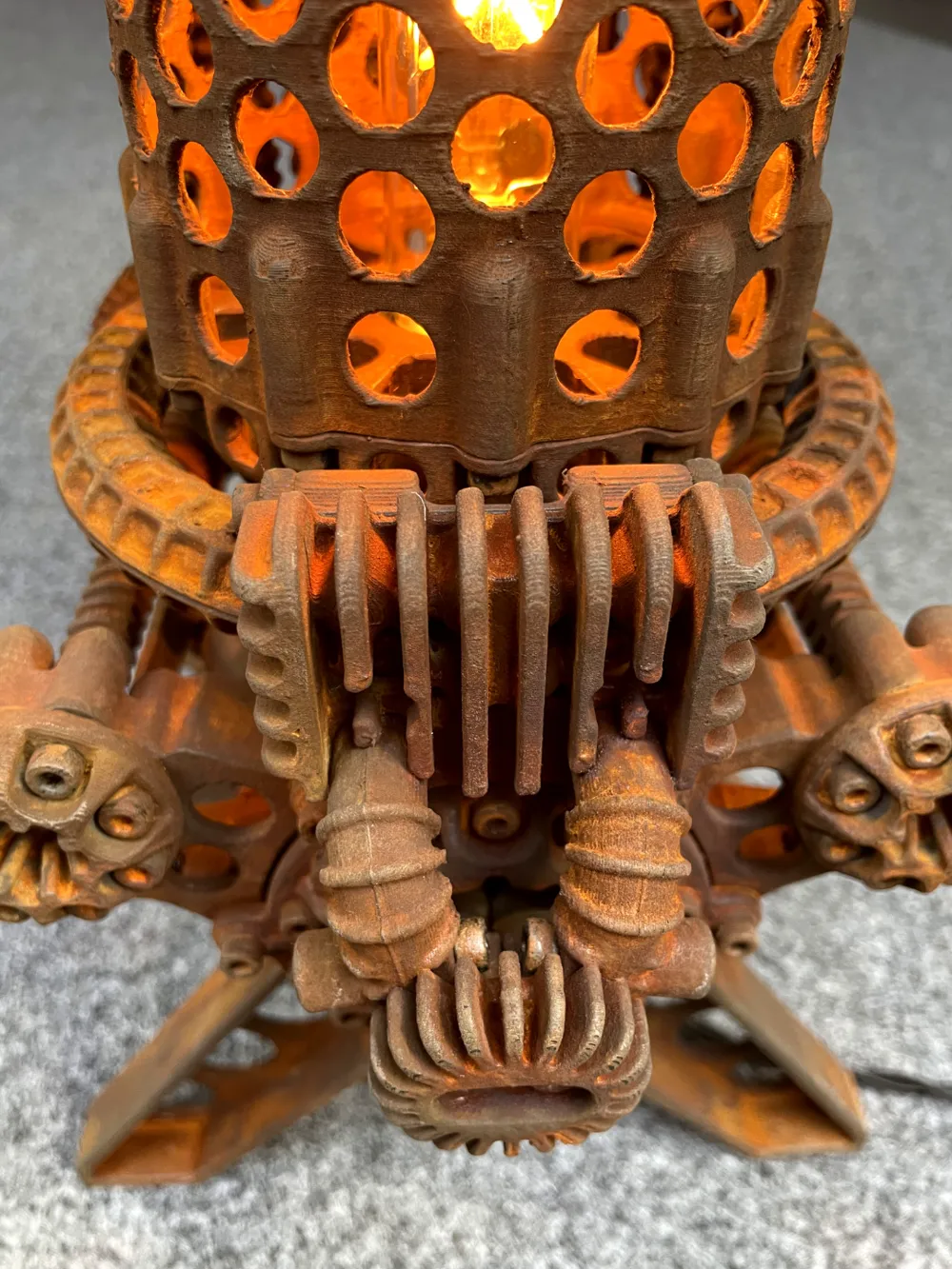

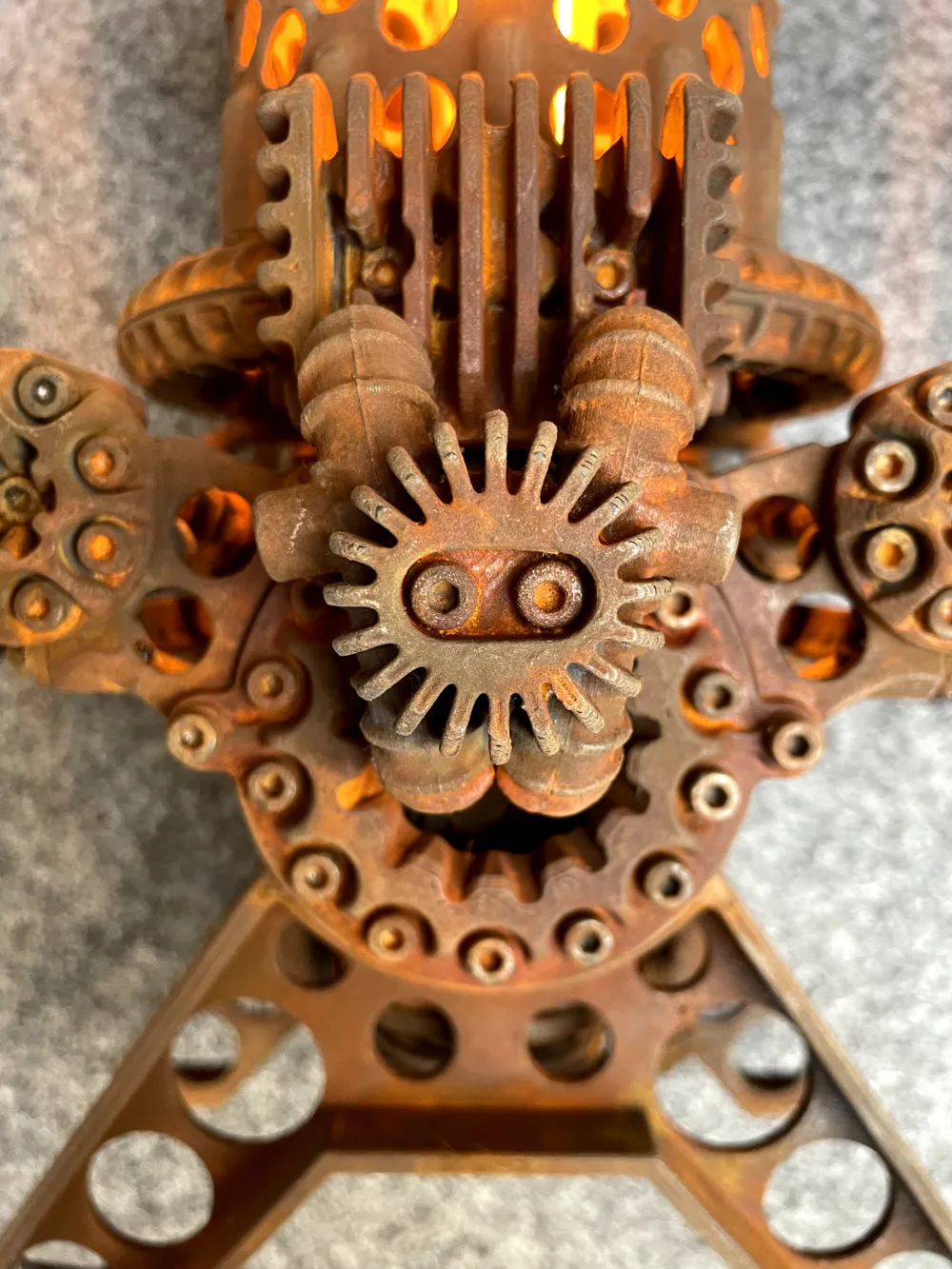

Fully functional desk lamp in Steampunk style.

Check my other designs on MyMiniFactory

Overview:

- Assembled lamp consist 98 pieces of 3D printed parts, 256 screws
- All parts can be printed on 200mm x 200mm x 220mm (z) bed or bigger
- All parts can be printed without support

Design updates:

EDIT 2022.01.04: Part number A39 is now in revision 2. The item was not placed correctly on the printing bed.

EDIT 2021.11.29: Part numbers: A10 is now in revision 2. The item was not placed correctly on the printing bed.

EDIT 2021.11.17: Part numbers: A14, A15, A38 is now in revision 2. Earlier mechanism had a tendency to block and not work properly. After changing a few things, the on-off switch works fine. Here is video showing updated mechanism: instagram.com/p/CWXt12FAPEr

My social media:

If you have questions regarding assembling, suggestions to the project or want to see on what I'm currently working on, please join to Discord channel:
https://discord.gg/QKYsgs6BZG
https://instagram.com/tomaszfortyfour
https://facebook.com/TomaszFortyFour
https://youtube.com/channel/UCNhx2r8dA9hvST4pntiSzfQ

Painting guides:

Iron rust (Modern Masters paint):
https://youtu.be/1xOuB0sGLH0
Bronze patina (Modern Masters paint):
https://youtube.com/watch?v=98WkF9aaf6c
Iron rust (Ecorson Oxidecor Fine and Jeger activator):
https://www.youtube.com/watch?v=NA6MUdbfwLg

Assembling guides:
Youtube: https://www.youtube.com/watch?v=hUhmg1zEbRY

Bill of materials:

Print each STL file once

- 220/110V plug - plug type depends on the country

- R13-112A switch - s.click.aliexpress.com/e/_AX8eMl

- 256 pcs of M4x16 screws (DIN912) - s.click.aliexpress.com/e/_A8p4pJ

- E27, 18.5 cm long Edison bulb LED type 6W max

- s.click.aliexpress.com/e/_AZiN5B

Aliexpress (it is one shop where you can buy all this items):

- E27 Holder for bulb, black - s.click.aliexpress.com/e/_9IV8MN

- Around 4m retro cable - s.click.aliexpress.com/e/_Ab15zF

- B style Cable clamp - s.click.aliexpress.com/e/_DlqF1aL

For personal (non-commercial) use only. This model or parts of it CANNOT be sold, shared or distributed in digital, physical, original or modified form.
