Pc volumes mixer-deej
Print Profile(1)
Bill of Materials
- arduino uno r3 x 1:
- faders 10k 75mmX9mm x 5:
- + and - breadboard part x 1:
- usb 2.0 a-b cable x 1:
Description
Pc volumes mixer, Deej based
An arduino volume mixer for your pc! It uses the community created deej system to mix the pc volumes, i disegned this 3d case for arduino that hosts 5 faders. Also the knobs are 3d printed. Knob variant in the files, knob2.stl
Materials (for this specific mixer):
- arduino uno r3
- x5 faders 10k 75mmX9mm
- + and - breadboard part
- x4 m2x20 screws
- usb 2.0 a-b cable

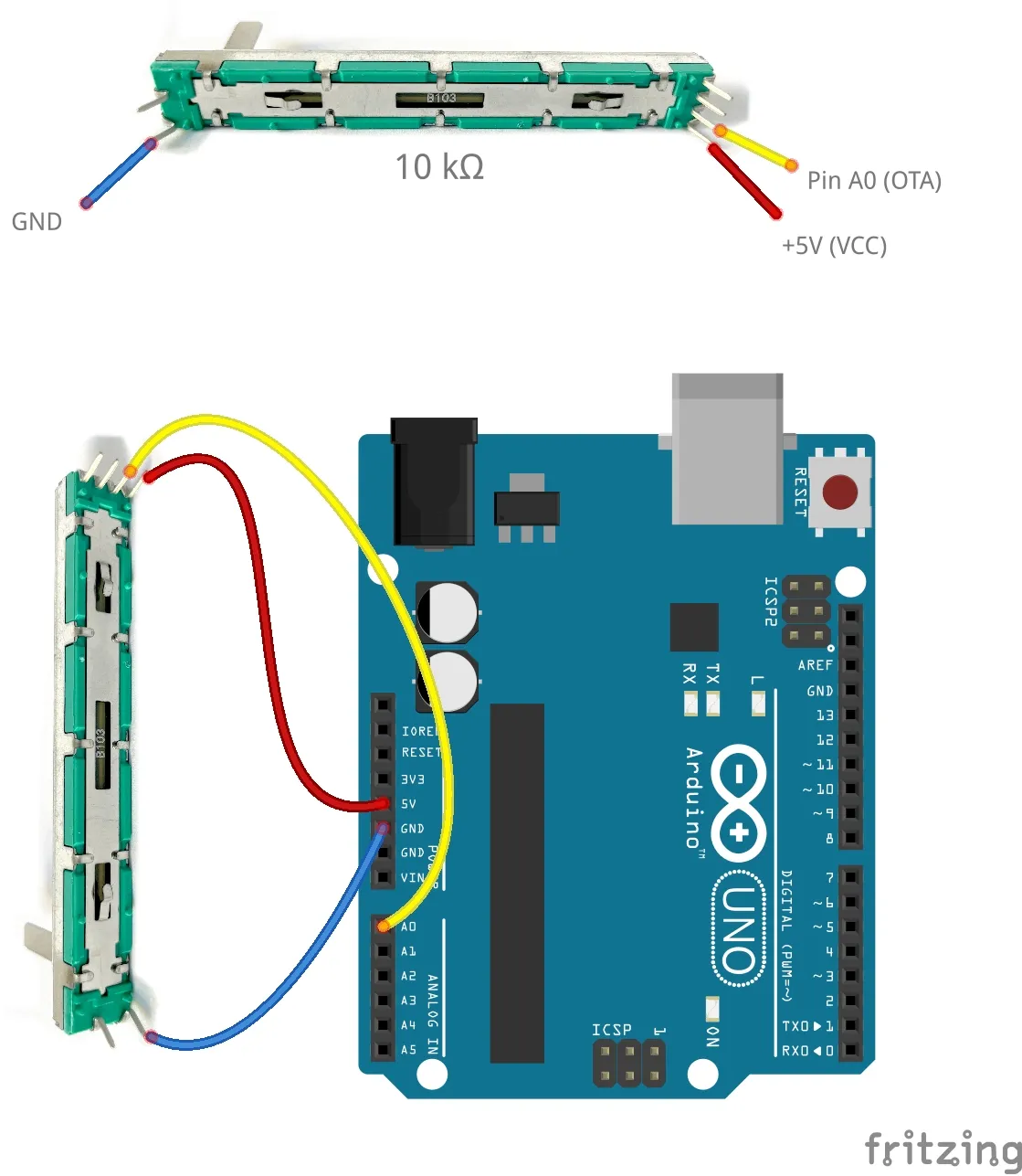

The connections are explained in the deej github but it's very simple. You do the same thing as in this image but for 5 times, that's why I use a breadboard for the + and -, the analog I connect it directly to the fader.
You can put under the mixer an anti slip gel pad.
In windows a lightwight .exe runs to reads the arduino values and changes the volumes, in the config file you can type which faders change which program's volume. This is all better explained in the deej github.
Enjoy!
