Low profile mic arm

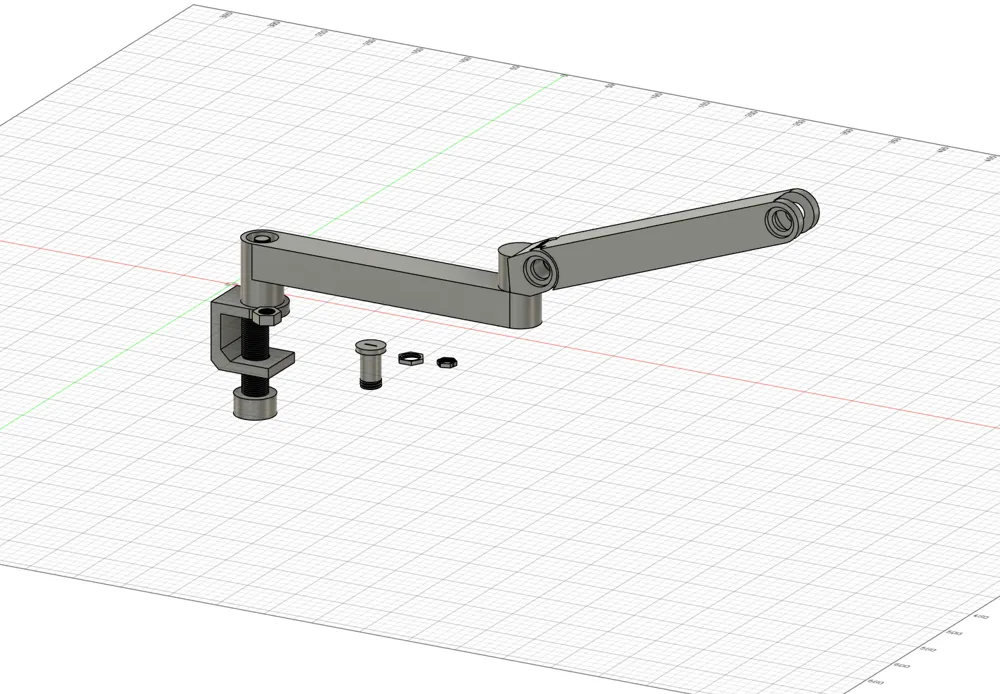

v0 of my low profile mic arm.

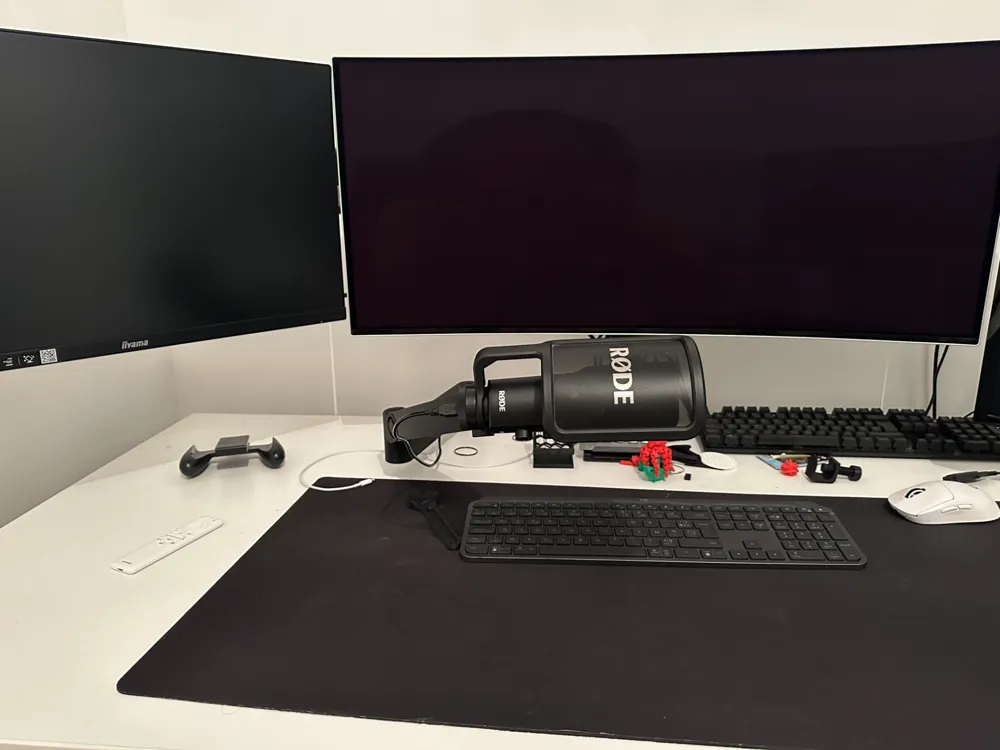

I wanted a low profile arm because I'm having multiple screens and this is the most convenient solution. I also wanted a fully printable solution, no external piece needed.

All axes are working well, you will only need to do an adapter to your mic support.

Inner diameter of the adaptater can be 20.3mm and outer diameter 40mm to reuse the screw and nut. To fit in the arm it neet to be 20mm height. Maybe less height could allow to move the mic easier on the vertical axes. Mine is fixed but I'm ok with that.

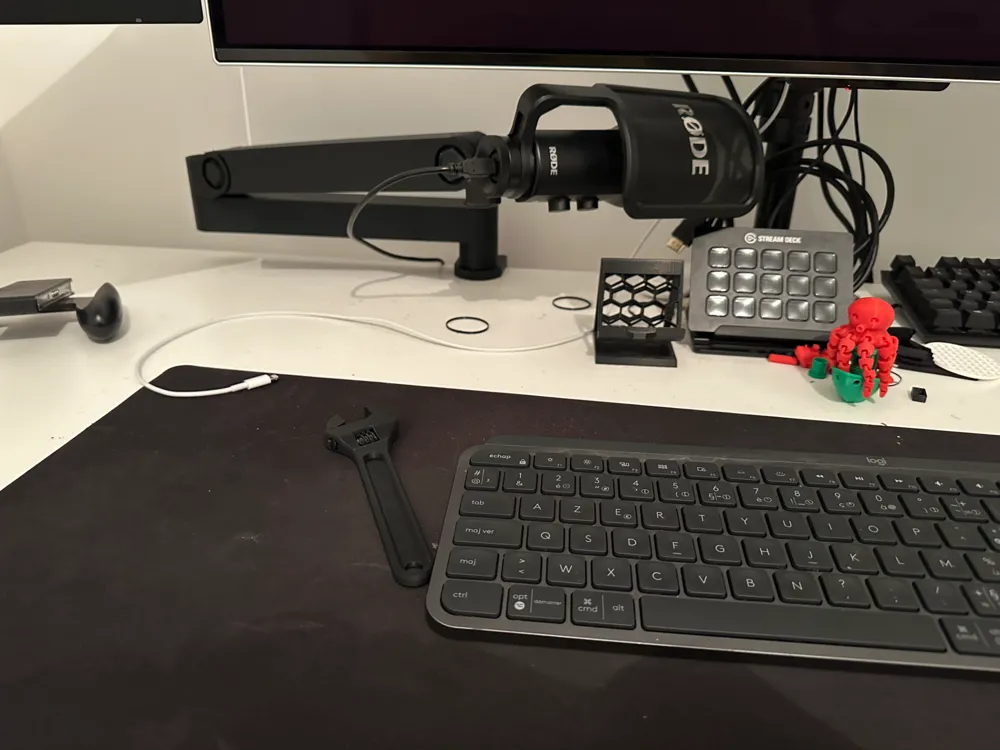

Using it for a month now and it is doing the job great.

Make sure to print the part between the twor arms horinztally to ensure it to not break.

I would like to improve this version to incorpore the cable managment to the arm.

This is my first share, every advice is welcome.

Hope you will enjoy it !

tool to tighten the screw : https://makerworld.com/en/models/378551#profileId-278521

clip to hold the cable to the arm : https://makerworld.com/en/models/378605#profileId-278569

adapter to rode nt usb : https://makerworld.com/en/models/378648#profileId-278635
