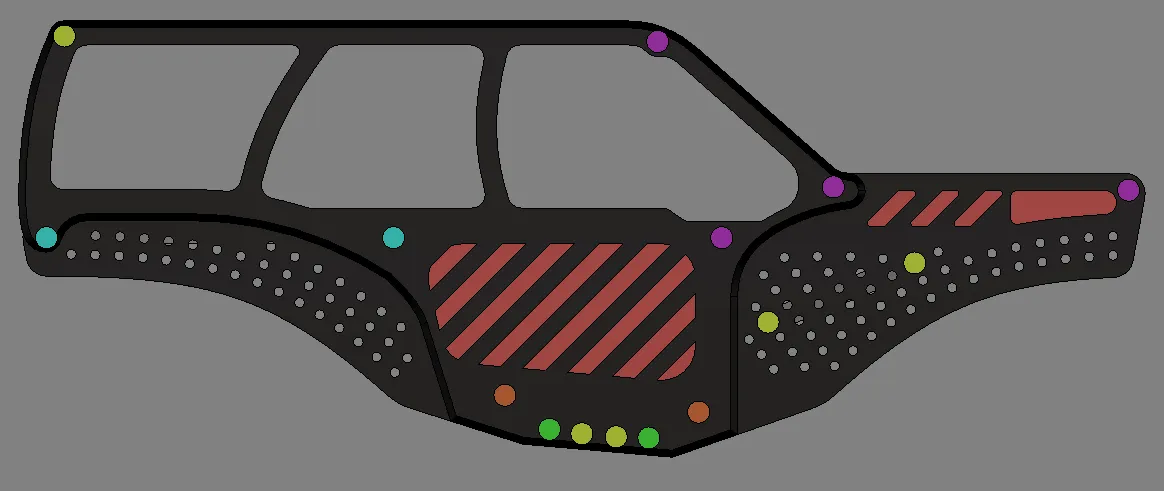

Tremor XL Chassis

This is the XL version of my Tremor chassis. It is a low CG-style chassis / Comp chassis. I recommend using the C10, Jeep Wrangler, Bronco sized links.

The XL version allows for 6mm extra (3mm on each side of the skid plate) for larger motors and 8mm extra in height.


I included the F360 file to make remixing easy.

Please post your makes!!!

WHAT TO PRINT:

• 1x Top
• 1x Hood
• 4x Peg
• 1x Battery Tray
• (Optional) 1x Front Tray
• 1x Skid Plate
• 1x Front, Mid, Back
• 1x Front, Mid, Back (Mirrored)

Screws Needed:

8x 5mm (4 for the pegs / 2 for the hood / 2 for the battery tray)

10x 5mm-8mm (4 for the skid plate / 4 for the optional front tray / 2 for the top)

4x 8mm  (to mount the back end of the battery tray to the chassis)

4x 10mm (to mount the lower links to the skid plate)

4x 12mm (to mount the upper links to the skid plate)

PRINT SETTINGS:

I recommend printing the hood, top, and pins vertically.

The left and right halves of the chassis can be printed on either side with no supports for the recessed holes. I used a trick to print small bridges instead of one flat side.

*If you are interested in selling 3D prints of this model please contact me*
