22mm to 25mm Leadscrew nut adapter
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
1
1
0
0
2
0
Released
Description
This version is outdated, use this drill template : https://www.prusaprinters.org/prints/115469-prusa-22mm-to-25mm-leadscrew-nut-drill-template
The prusa use 25mm leadscrew nut, which is very hard to find for anything other than 8mm lead.

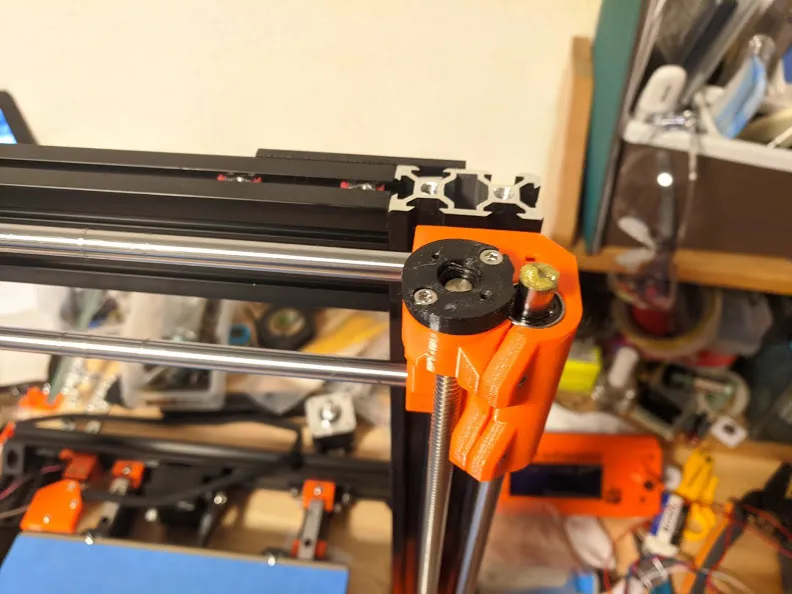

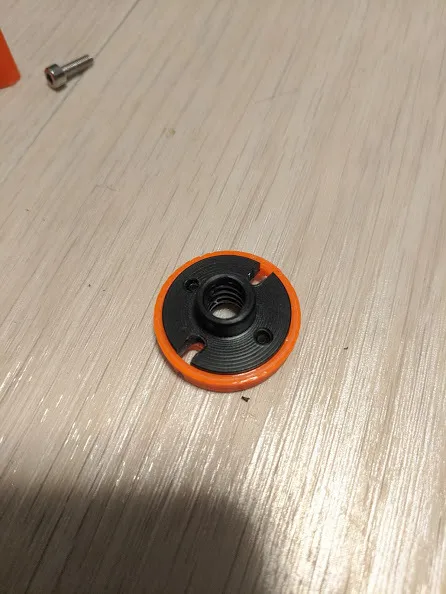

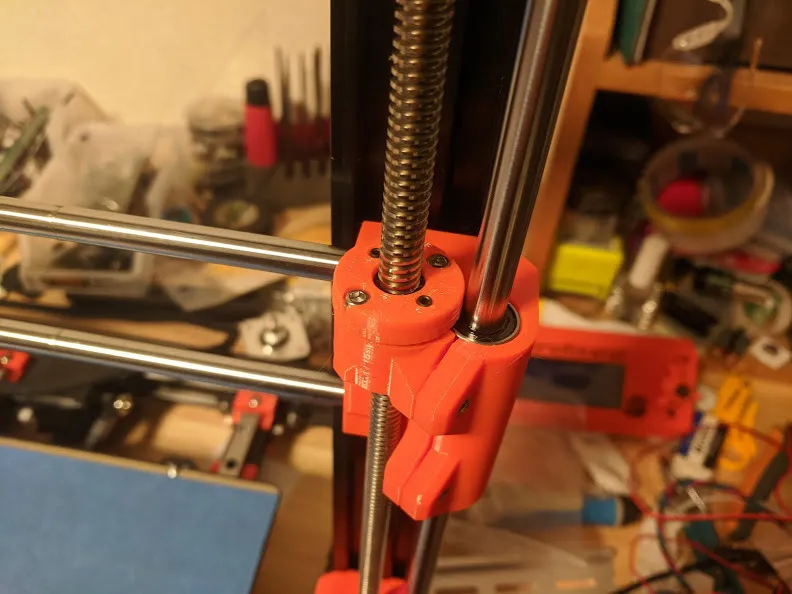

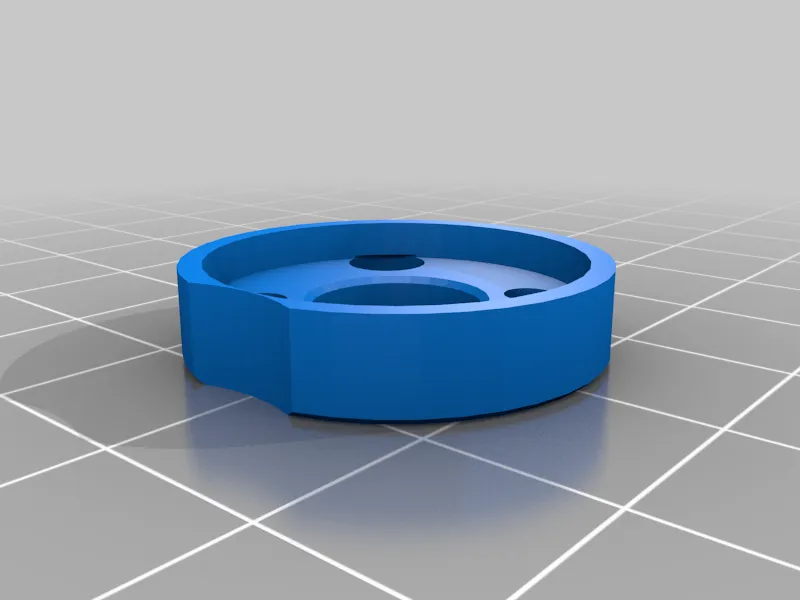

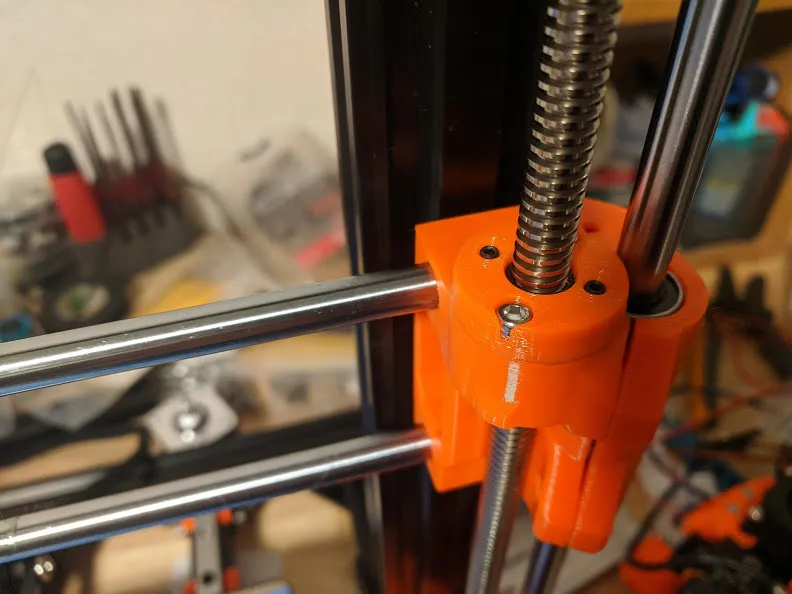

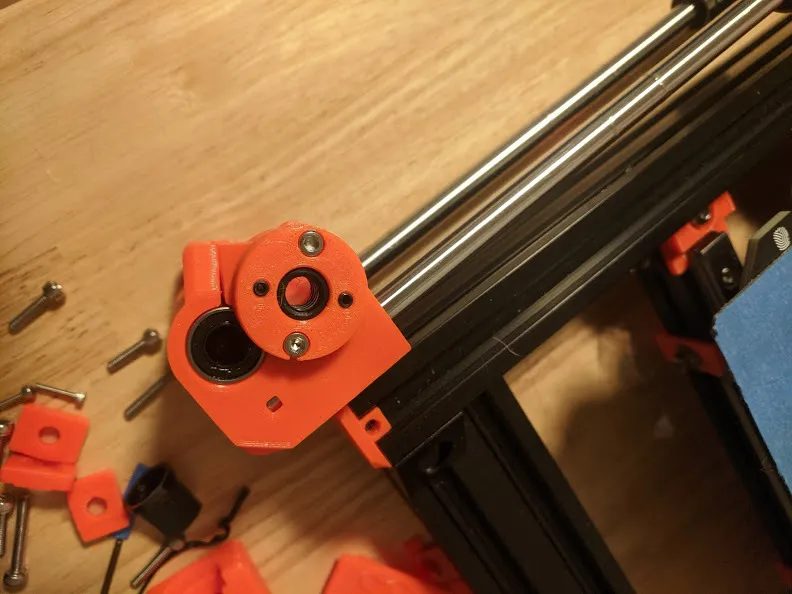

This adapter is use to mount any other standard 22mm leadscrew nut on the Prusa X without losing Z build size.

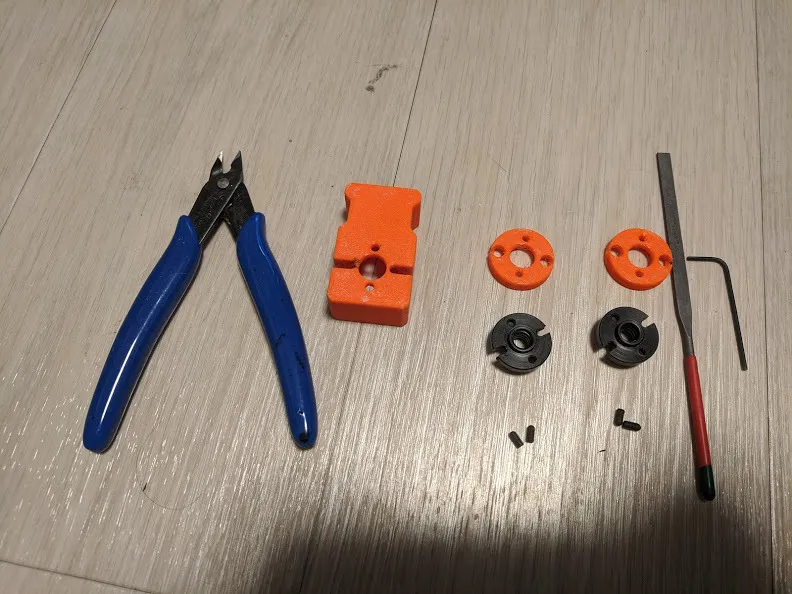

Require parts

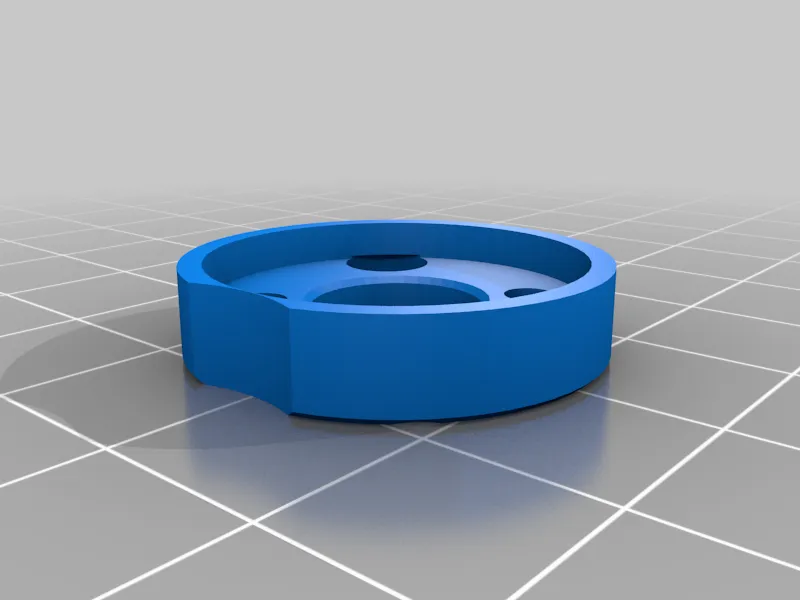

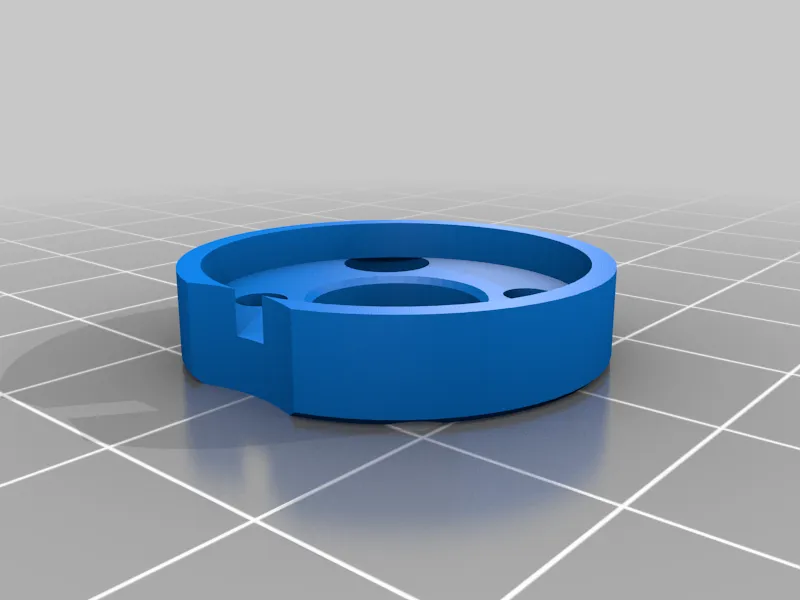

- Printed part x2 (remember to mirror one of the part)
- 4 M3x5 grub screw
- 2 22mm leadscrew nut Prepare

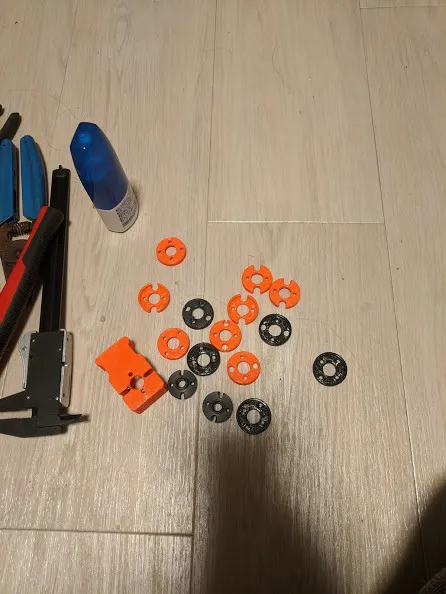

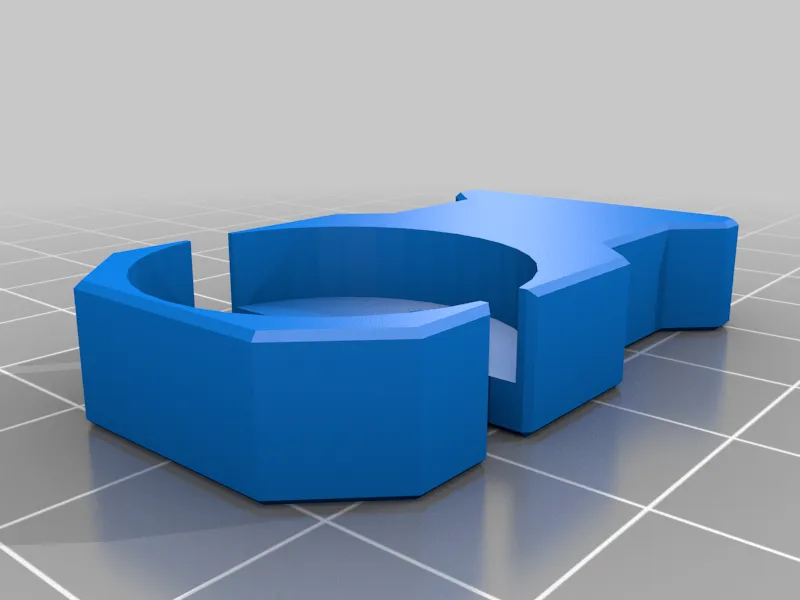

- You will need to trim the nuts to be used this adapter. Use the cutter guide to cut the nut.
Print Settings
Printer Brand:
MK3
Printer:
Prusa i3
Rafts:
Doesn't Matter
Supports:
No
Resolution:
0.2mm
Infill:
30%, 3 or more walls
Filament:
any PETG any
