Description

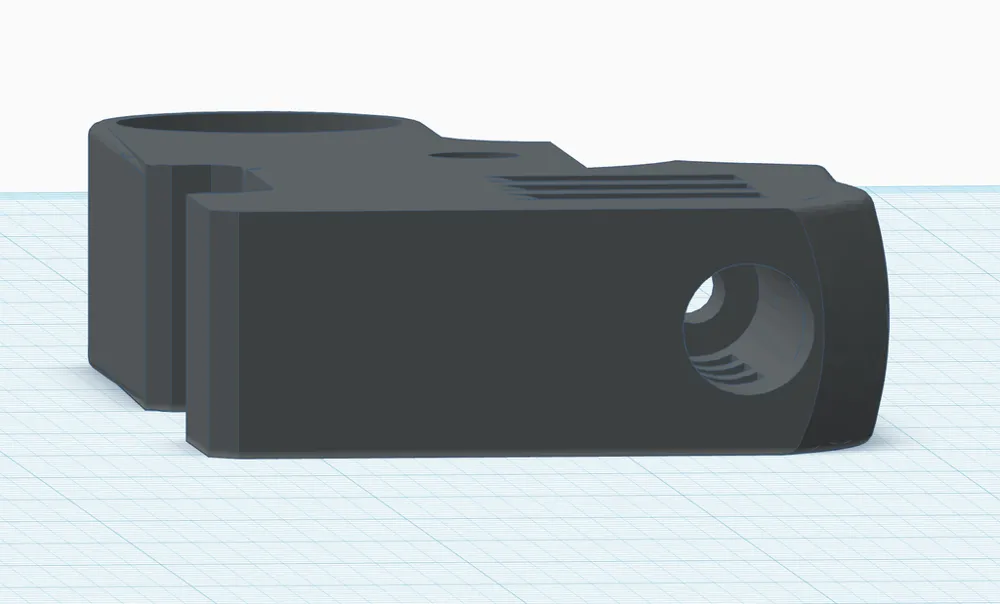

Remix from madsoul666's model.
- Added cutout to allow the arm some clearance.
- Added cutout for ziptie
- Added PTFE tube stopper to prevent the tube go too deep into the bearing.
Use MR95zz bearing for the motor shaft and a grooved bearing FZ0463 to guide filament.
To mount the FZ0463, use 8mm m3 grub screw and printed adapter.Print Settings
Printer:
FlyingBear Ghost 4S
Supports:
No
0.2
Infill:
25%
Filament:
Inland PLA RED
Notes:
I used red fillament because I don`t have black filament at this moment. Will paint it in black color, not a big deal)))
