Ikea STUGVIK TISKEN attachment (exact size)
Print Profile(2)
Description

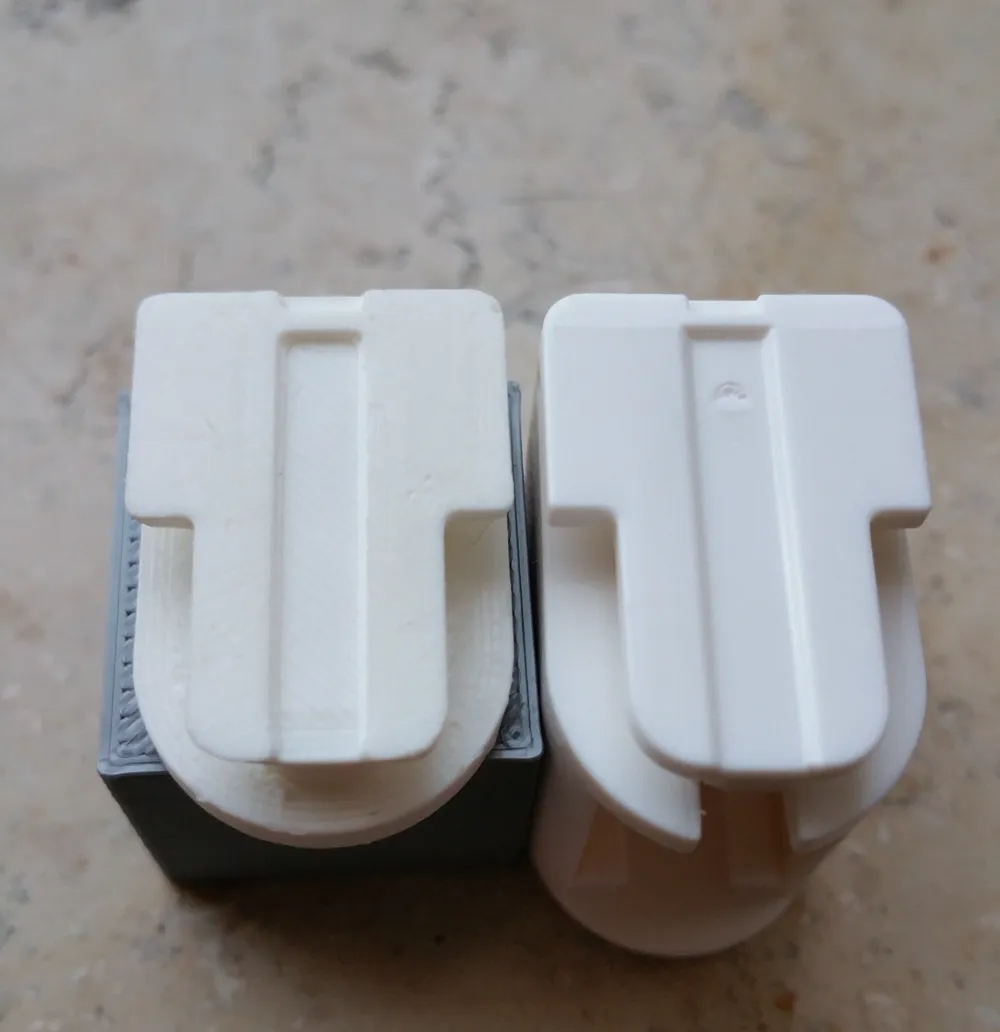

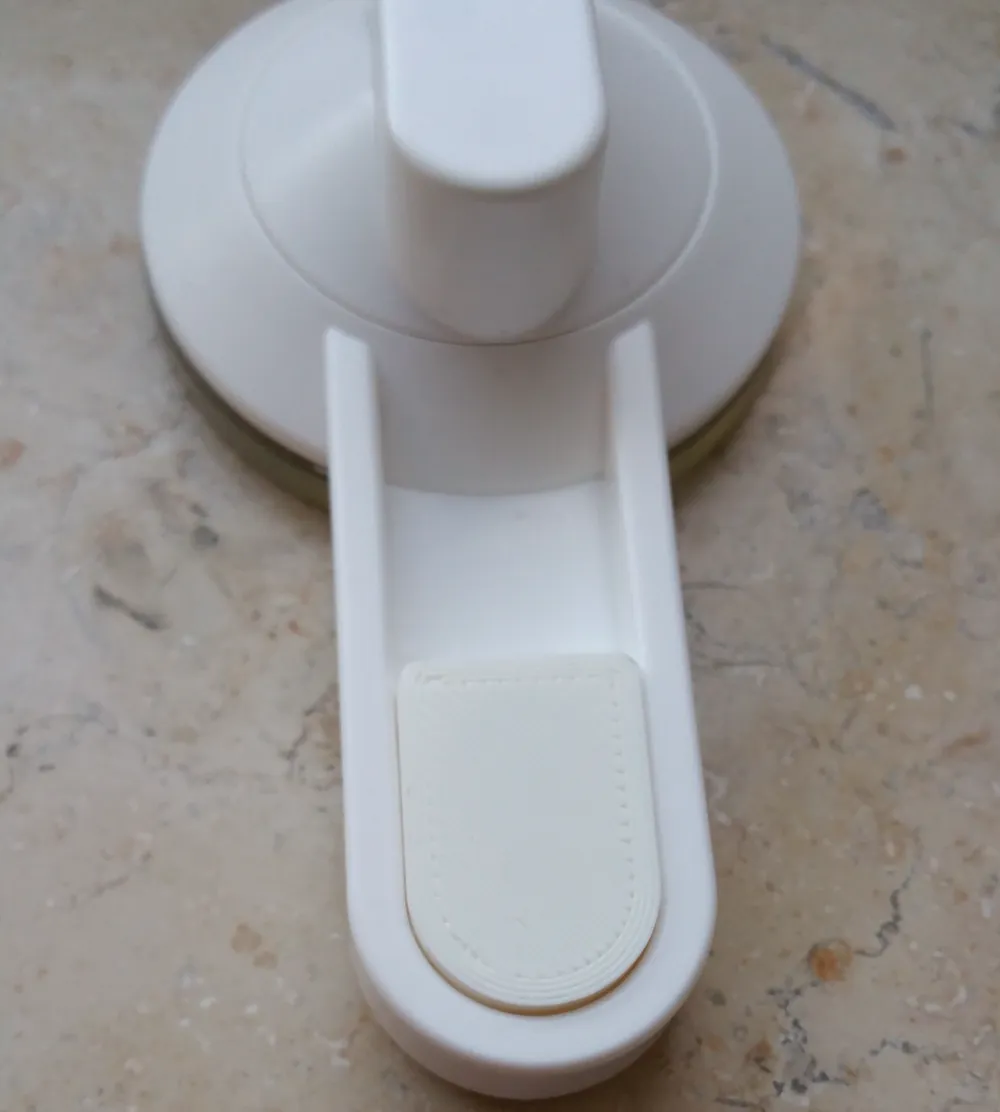

This is an model of the Ikea STUGVIK / TISKEN attachment. I´ve tried some of the already created models, but none of them do the job for me, so I decide to create a model, who represent the dimensions from the original as close as possible.
EDIT: There is now IKEA_STUGVIK_TISKEN_Slim_New version, thanks to the Info from @pandabrain:
There seem to be 2 different version of Tisken (Article nr. 703.812.75).
The old version was packaged in a plastic tray. This is what this model was designed for.
The new version comes in a white cardboard packaging. It's the same product except this printed attachment is now a bit loose and barely snaps in, if at all. Extruding the marked face in the picture by 0.3mm helped and gave it a satisfying snap again.
(Not sure if 0.3mm is the best value, didn't try any others)
If someone can confirm the fit, it will be much appreciated.
The STEP and Fusion 360 files are also here.
