I couldn't find any good stem splints near me so decided to design my own.


This modular stem splint will fit your plants from seedlings to harvest.
Use these splints to plane your plant (super cropping) without hurting or damaging the stem. This will reduce the stress of the plant instead of other methods used in the community.

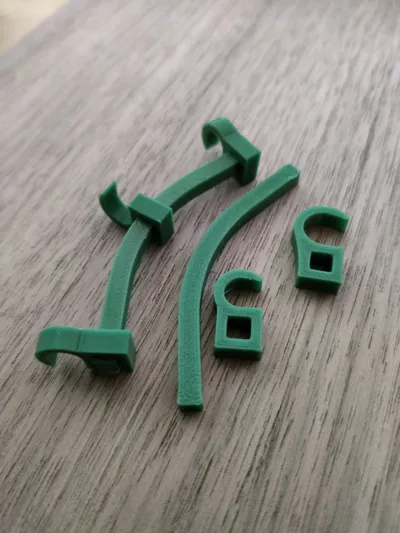

What is in the file:

  • 70 deg Splint
  • 90 deg Splint
  • 4mm hook
  • 6mm hook
  • 8mm hook

How to assemble:
Use 1 splint and attach 3 hooks on it with middle hook facing toward the angle.
Repeat.

Alternatives:
If you want to use this on BIG or small seedings, scale down the print to the size that fits your needs.
Do a test print to check if the tolerances are good enough.

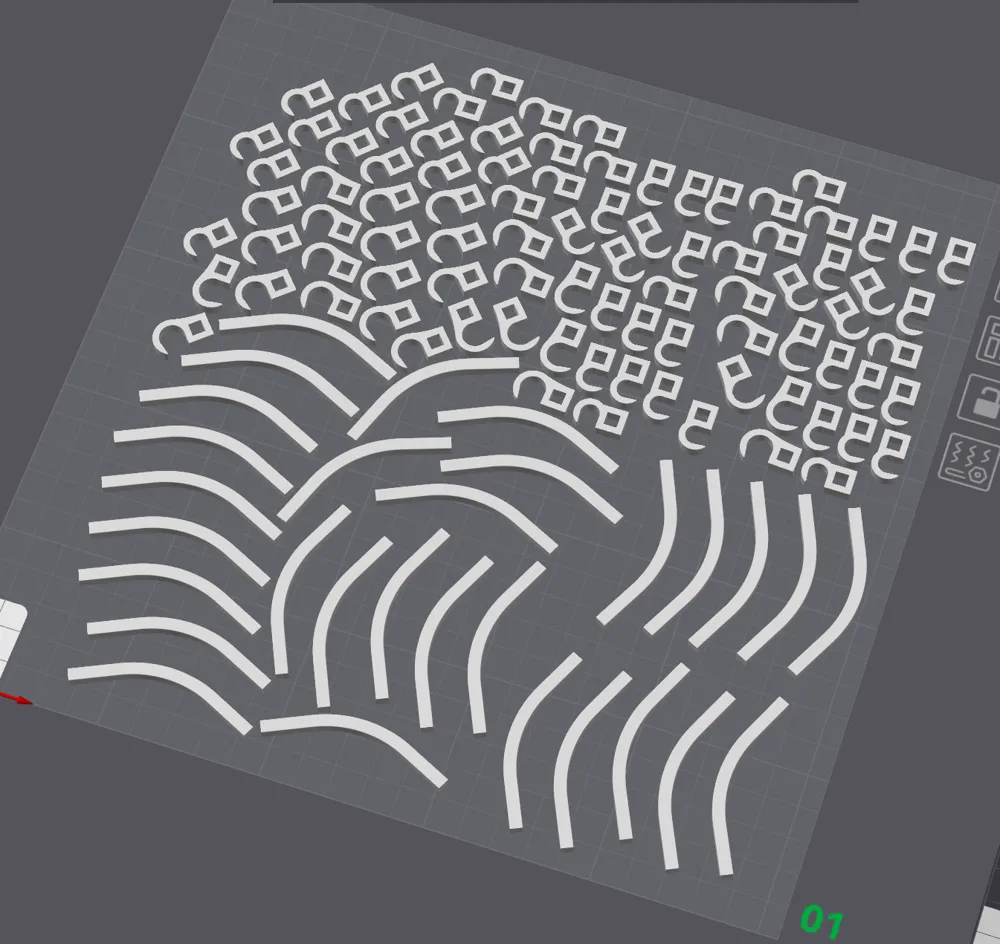

3D printing settings:

Printer: Bambulab p1p
Filament: Pla
Layer height: 0.2 mm
Infill: 10-15%
No support
No brim (unless you have issues with bed adhesion)


Me and my brother spend time on this for our own enjoyment and just want to share our work with the community.

If you like any of our models we would appreciate a comment or upvote on the model you like.
Also, always feel free to contact us if you have any suggestions for new or current models.
