Anycubic Vyper Filament Spool Holder with Bearings

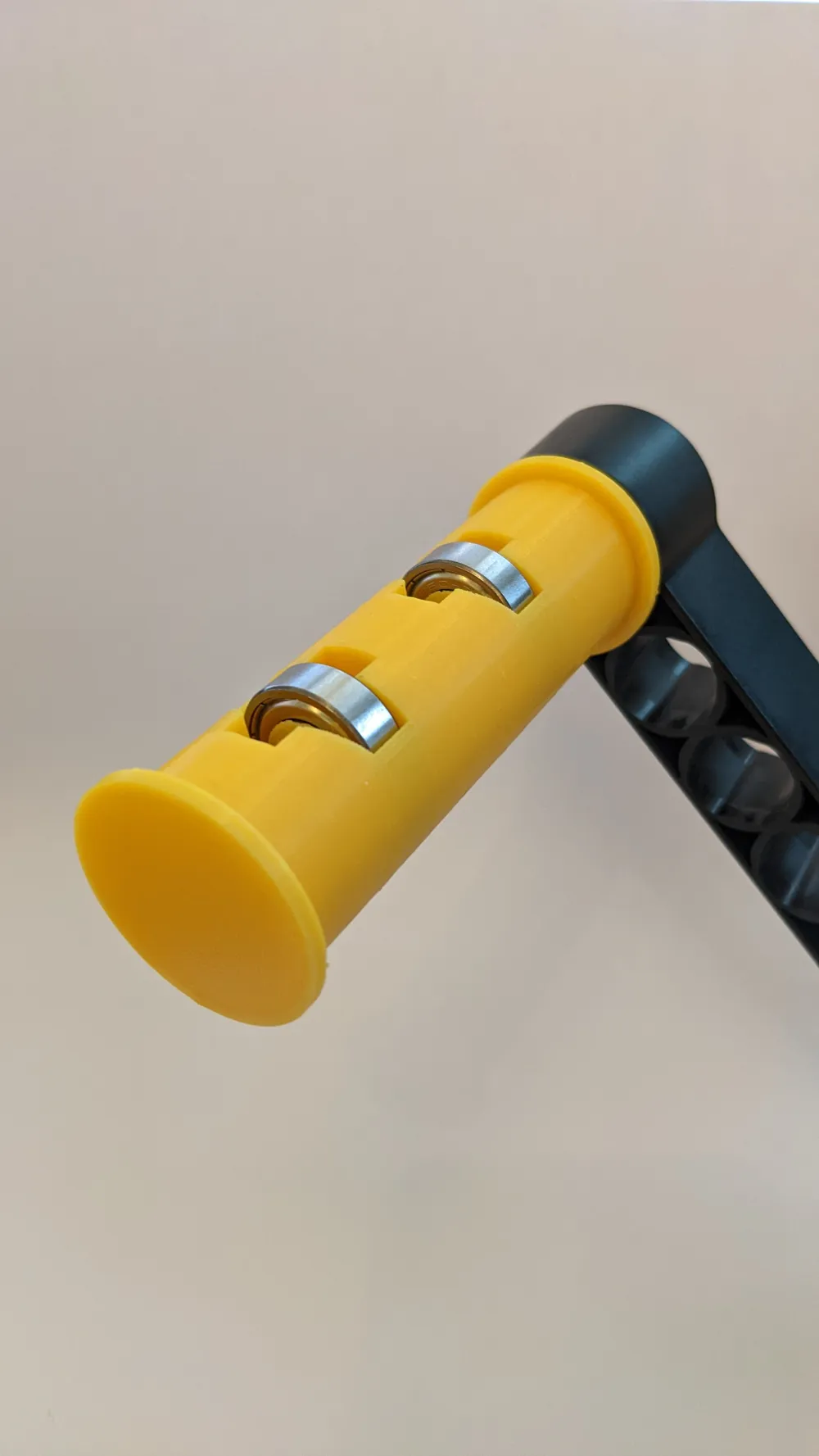

This is an improved filament spool holder for the Anycubic Vyper or Creality CR-6 SE.
It fits and locks with the original spool arm provided by Anycubic or Creality.

Parts required

2x 608ZZ bearing
1x Spool Holder v21 (0.2mm layer height)
2x Axle Bottom v1 (0.15mm layer height)
2x Axle Top v3 (0.15mm layer height)

Assembly

Snap together 1x Axle Bottom and 1x Axle Top and slide on the bearing. Repeat for the second axle. Snap the axles in to the slots on the spoolholder and make sure they lock at the bottom. Finally mount the spoolholder into the original spool arm to complete the assembly.

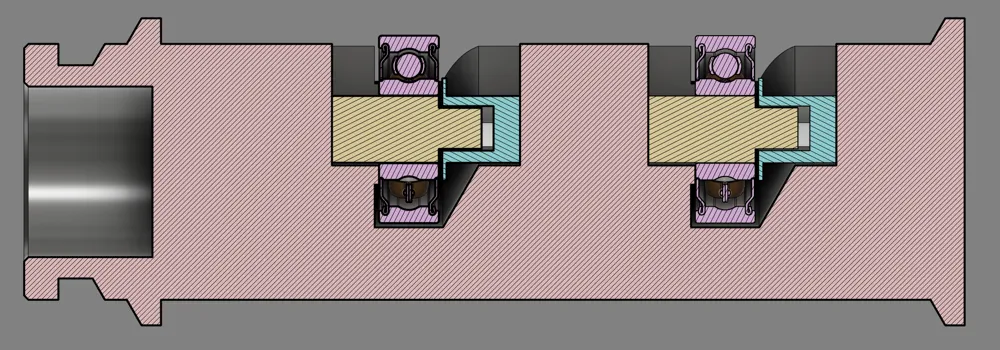

Check the sectional view image for more info.
