Print in place BALL bearings
IP Report
Print Profile(6)
fixed. all bearings on 18 plates
5.3 h
18 plates
608 default, 0.2mm layer, 2 walls, 15% infill
13 min
1 plate
Fixed - Smooth - 0.2mm layer, 2 walls, 15% infill
14 min
1 plate
Fixed - 0.2mm layer, 2 walls, 15% infill, hole line on shell
14 min
1 plate
Click to see more
Open in Bambu Studio
Boost
8650
24251
1891
465
31.4 k
19.2 k
Released
Description

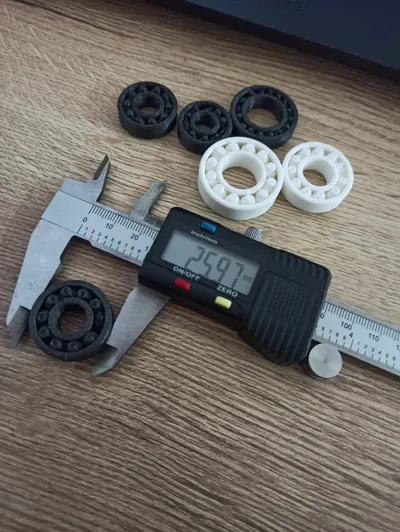

Printable ball bearings
Quick tips for successful print:
- Use 3Dlac, glue stick, or Magigoo for better adhesion.
..or simply clean the bed with isopropyl
- Reduce flow rate to .95
- If you are experiencing difficulty with bearing rotation, don't worry it should loosen up and become much smoother over time, or add some lube.
- For best results, ensure the bed is not too close to the nozzle!

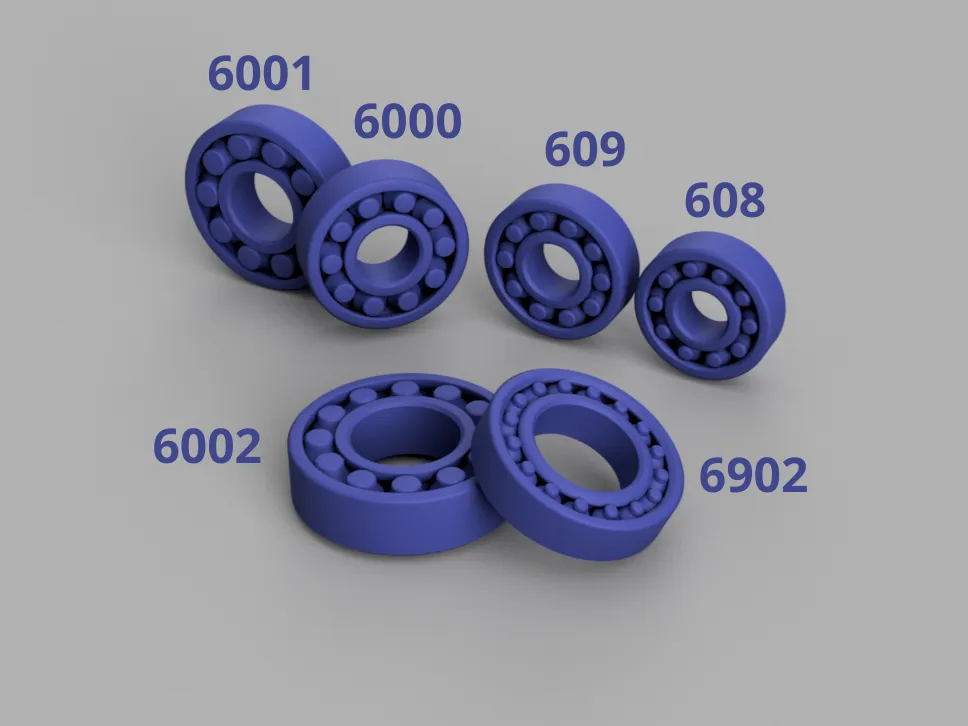

These dimensions:
8 x 22 x 7 mm - 608
9 x 24 x 7 mm - 609
15 x 28 x 7 mm - 6902
10 x 26 x 8 mm - 6000
12 x 28 x 8 mm - 6001
15 x 32 x 9 mm- 6002
On the other hand, it is a good toy for a cat, what do you think?
License
This user content is licensed under a
Creative Commons Attribution
