Awesome Filament Spool Rewinder - Upgraded

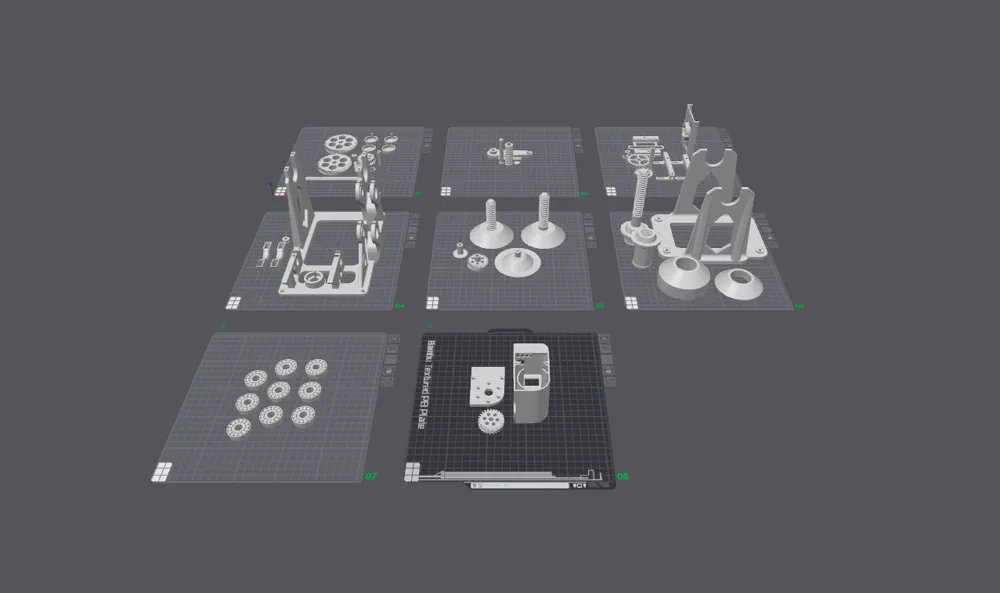

Print Profile(1)
Bill of Materials
- M3 threaded melt Inserts x 13:
- Screw M5x30 x 2:
- Bearing 6200RS2, 30x9x10 x 4:
Description
Boost Me (for free)
Like what you see? consider boosting!
Description
Patch Notes
- Updated gear geometry for improved meshing
- Fixed issue with feed guide not moving correctly
Improved reliability of side to side movement
Action required
- Reprint both gears to apply the fix
Note from the Original desinger:
lots of Users hate me for that very Bad design, i am so SORRY for my really Bad design.
-i am a beginner in CAD and really a NOOB, sorry for that
→ I upload the CAD - Step File , feel free to make it better.
→hopefully there are some Professionals who can make a better design out of my bad one.
-->i like my design and it works great for me and i already respool hundreds of filament rolls
I love this awesome project from
Miklos Kiszely, thx a lot for this design)
But in my opinion needs to be improve.
So I improve a lot things and found a lot improvements wich are already great I upgraded these also and bring it togethter into my improved Spool rewinder.
The Awesome Filament Spool Winder
its possible to use it manualy one or elecric driven
both design are avail in this post.
Main Changes are:
- Mainbody with 3 additional bearings , so it is a lot more stable and reliable
-one additional bearing at the Main Body to guide the middle gear better.
-one additional bearing at the Main Body to guide the axle much better.
-one additional bearing at the filament carriage sled worn gear assembly
-guides with slides at filament carriage sled to guide
vit better and avoid a lift up
-Spindle with Bearings, to avoid exessive wear and smoother work
-i uploaded 2 Spindles one normal one for Bambu spools and a shorter for Sunlu and similar…
-additional threaded Inserts on the top to fit the cover for the filament spool axle
-the holes in the base of the main Body to fix it on a Table or some other thing..
-the heavy axis 45mm with steel insert - put into the axle a 4mm hex wrench and cut it.. if used manuell
-Filament Guide with M3 threaded Inserts and longer slides
-the Spool center adapter to use every spool with inner diameter from 40 to 75mm for the spool holder
-some M3 threaded melted inserts are added for a better usage.
The Bearings for the Spindle are 6200RS2,
I ordered these from amazon
but you can also use the Printed ones which i added it works also good if your printer is good calibrated.
As Pinions and axles i used the great improved axles from Damian(thx for these)
and i upgraded the Motordrive unit from Bird2Barin(thx for these nixe design) to fit it better to my upgreated Mainbody.

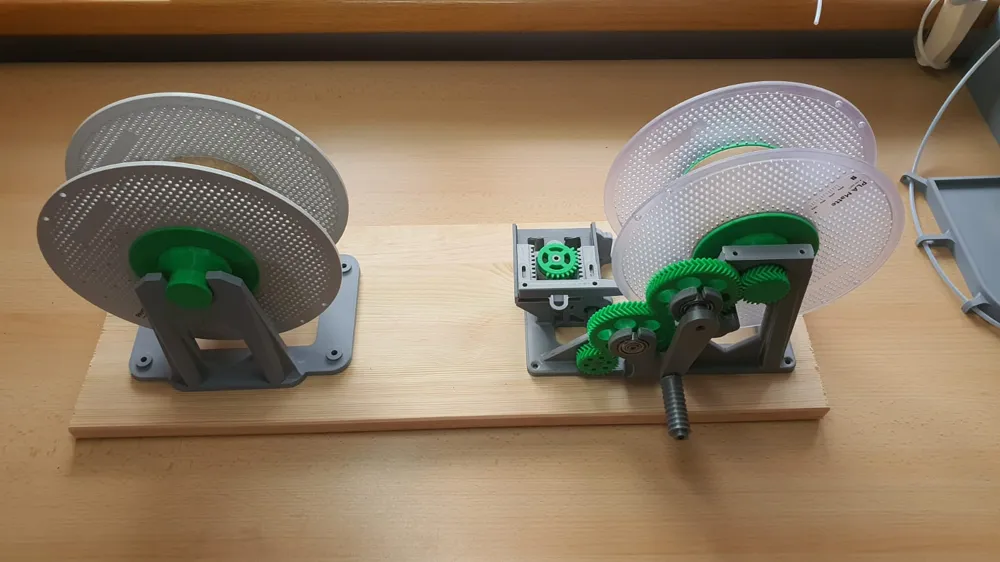

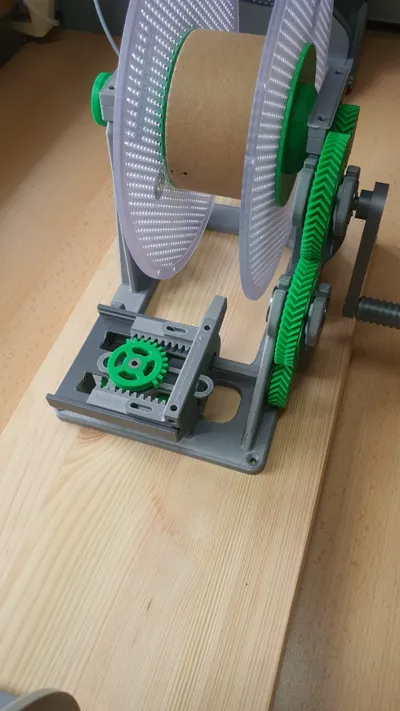

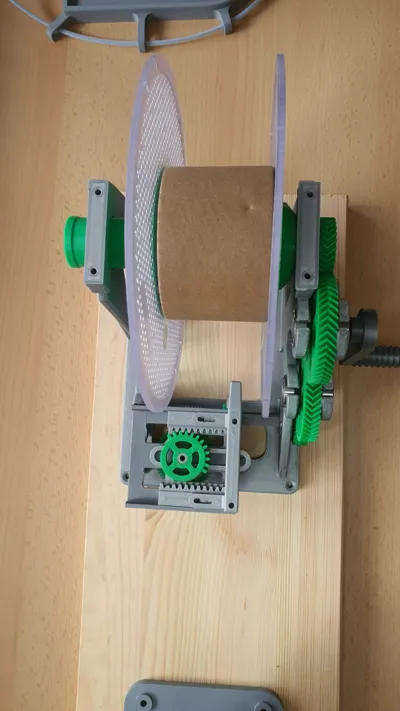

To Bring it together I screw The Main Body the Unwinder Body and Motorunit on a Wooden Board 22cm x 50cm x 1,9cm
→all Parts are printed with 5 walls / 25% Gyroid or Cubic infill.
→only the Axles and Spindle are printed in 8 walls and 40% Gyroid or Cubic infill.
Partlist:
for the Body :
1x Awesome Spool Winder_.stl (Modified by Me)
1 x axle cover driveside.stl (Modified by Me)
1x axle cover other side.stl (Modified by Me)
4x M3 Screw Knob (original Design)
4x M3x6 Hexhead Screw
8x Bearing 608RS2
4x M3 threaded melt Inserts
For the Drivetrain:
1x Bearing Cap.stl (Modified by Me)
1x 25teeth gear (original Design)
2x 50teeth gear (original Design)
2x Hexa Axle 32mm (Modified by Me)
1x Hexa Axle 128mm (Modified by Me)
5x 3mm Spacer (Design from Damian)
5x M3 threaded melt Inserts
4x Lock Ring (Design from Damian)
5x M3x6 Flat Head
Spindle:
1x Bearing Spindle Part1.stl (Modified by Me)
1x Bearing Spindle Part2.stl (Modified by Me)
1x Bearing 6200RS2, 30x9x10 or print a bearing →Printable Bearing (30x9x10)
1x Screw M5x30
Spindlenut:
1x Bearing Spindle Part3.stl (Modified by Me)
1x Bearing Spindle Part4.stl (Modified by Me)
1x Bearing 6200RS2, 30x9x10 or print a bearing →Printable Bearing (30x9x10)
1x Screw M5x30
for the Unwinder :
1x Unwinder Spool Holder (original Design)
1x Unwinder Spool Spindle (original Design)
1x Unwinder Spool Nut (original Design)
1x Spoolwinder adapter +20.stl (own Design)
1x Spoolwinder adapter.stl (own Design)
for the Sled
1x Gear linear for filament carriage.stl (Modified by Me)
1x filament_guide_sled.stl (Modified by Me)
1x filament_guide_carriage+slides&Bearing.stl (Modified by Me)
1x Filament Guide V2(Modified by Me)
(put a 12cm PTFE tube in the Guide)
1x Worn Gear (original Design)
1x Slider Gear (original Design)
1x Hexa Axle 47mm (Design from Damian)
2x 2mm Spacer (Design from Damian)
1x 4,1mm Spacer (Design from Damian)
4x M3 Screw Knob (original Design)
1x Lock Ring (Design from Damian)
1x Bearing 608RS2
4x M3 threaded Inserts
for Manual Spoolwinder
1x Manual Axis 45mm for steel insert.stl (press into the axle a 4mm hex wrench and cut it.. and a melt a M3 threaded Inserts in the other side.
1x Rotary handle- twist grip - Handle -(original Design)
1x Rotary handle - twist grip - knob - (original Design)
1x Rotary handle - twist grip - cap - (original Design)
1x Rotary handle - twist grip - axle - (original Design)
1x Small Screw
for the Motordrive
1x Awesome Spool Winder Motor Housing.stl (Modified by Me)
1x Awesome Spool Winder Motor Plate.s
tl (Design from Bird2Barin)
1x Motor Gear (Design from Bird2Barin)
Used Electric Parts:
1x Speed controller: QWORK 1203BB 6V 12V 24V 3A 80W DC Motor Drehzahlregler (PWM) Einstellbare Reversible Motortreiber Schalter : Amazon.de: Gewerbe, Industrie & Wissenschaft
1x Power supply with 12V 5A
Netzteil 12V 3A Ladegerät Transformator 3
1x Socked
DC-Hohlbuchse 5,5x2,1 mm, mit 30cm Kabel, 2er-Set : Amazon.de: Gewerbe, Industrie & Wissenschaft
Or
Cleqee DC 5,5 mm x 2,1 mm, Gleichstrom-Stecker und Buchse, zum Öffnen des Endkabel, blanke Drähte, 100CM 22AWG, für Kameraüberwachung, LED-Streifen, DVR, Kab
elreparatur (2er-Pack) https://amzn.eu/d/4Mwv0Ln
6x M3x12

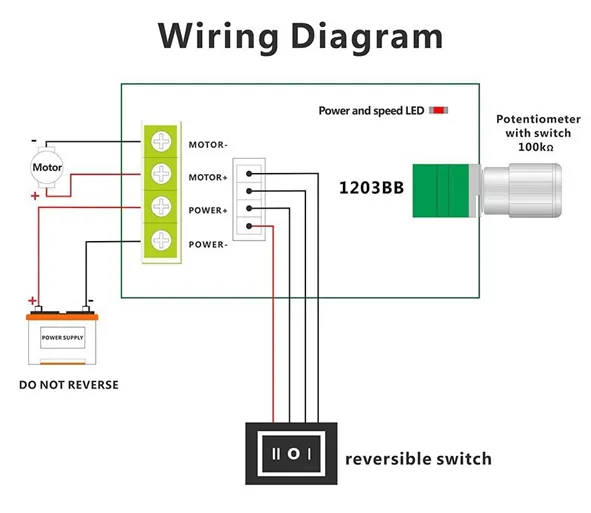

Motor wire diagram:

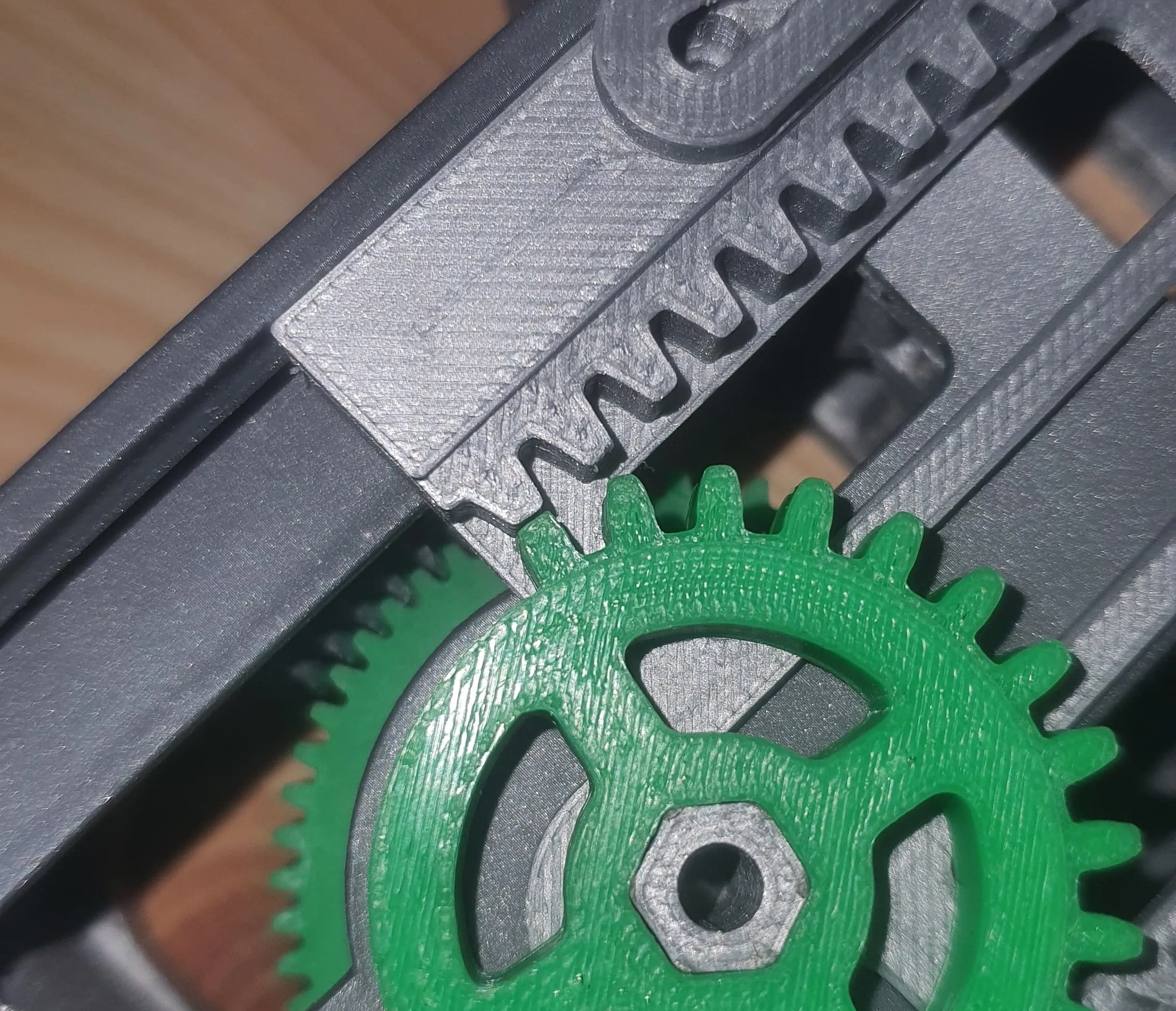

you have to cut out this teeth if your sled gets stuck:
