O Gauge Tubular Track Vehicle Grade Crossing

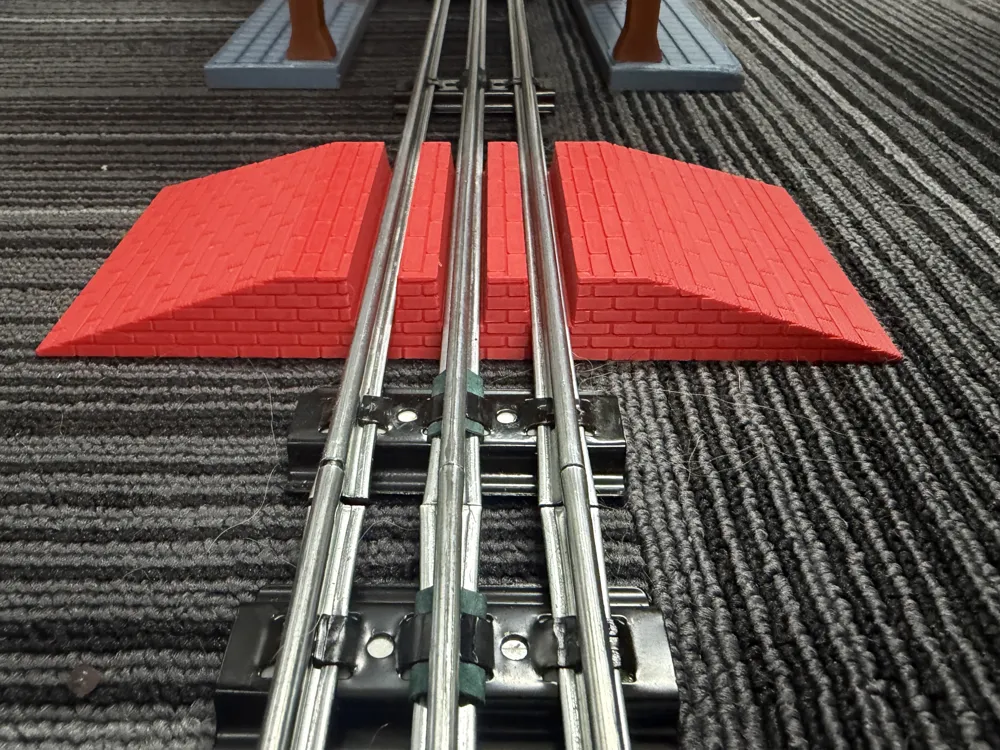

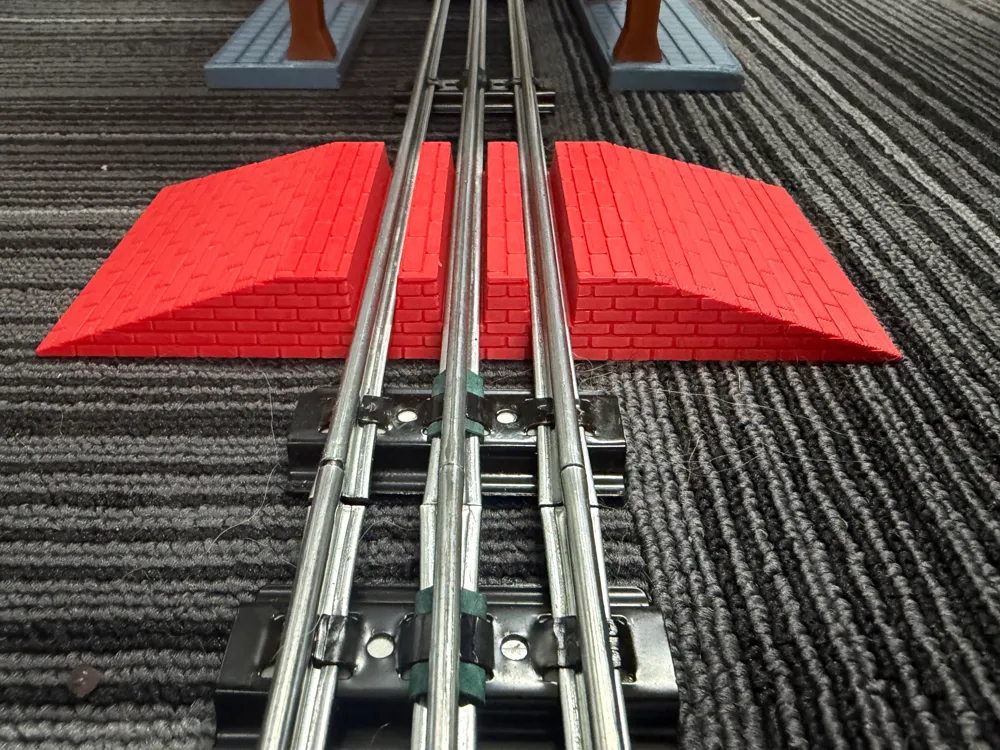

This vehicle grade crossing is designed for traditional three-rail tubular O gauge track. It slips under the rails and creates a road surface that sits just below the railhead, with tapered approaches on both sides.

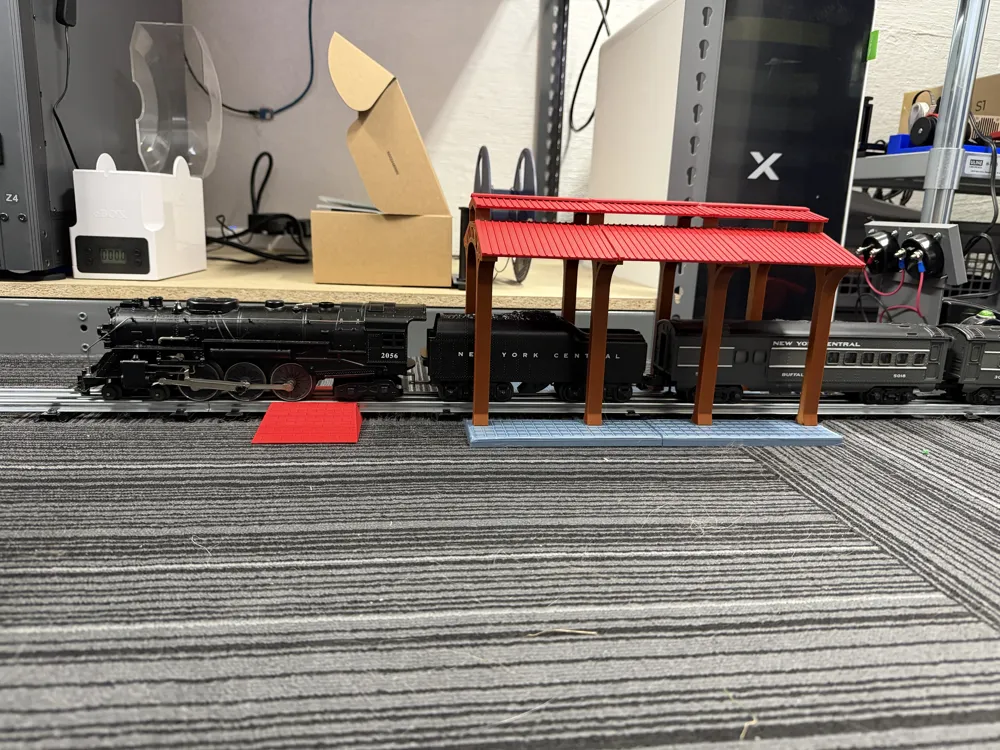

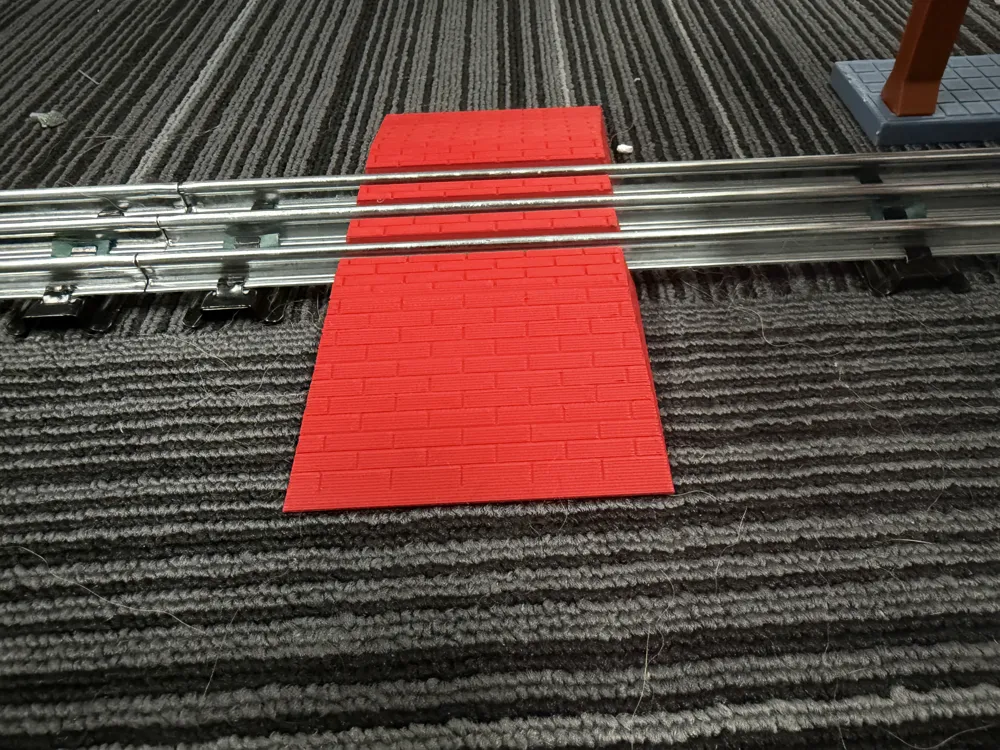

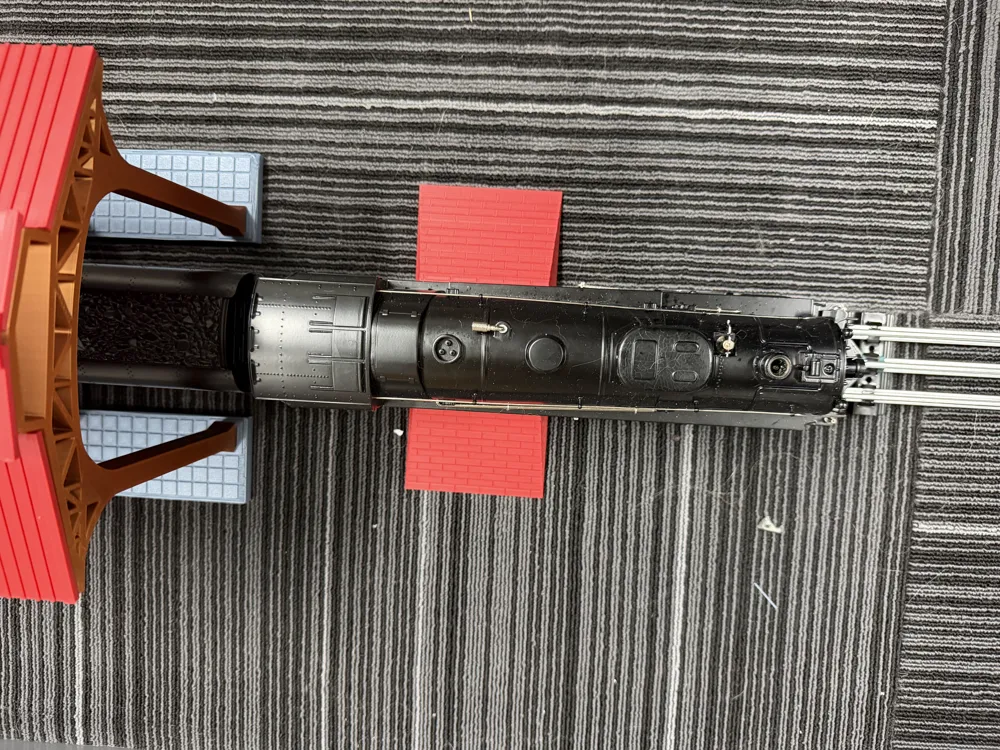

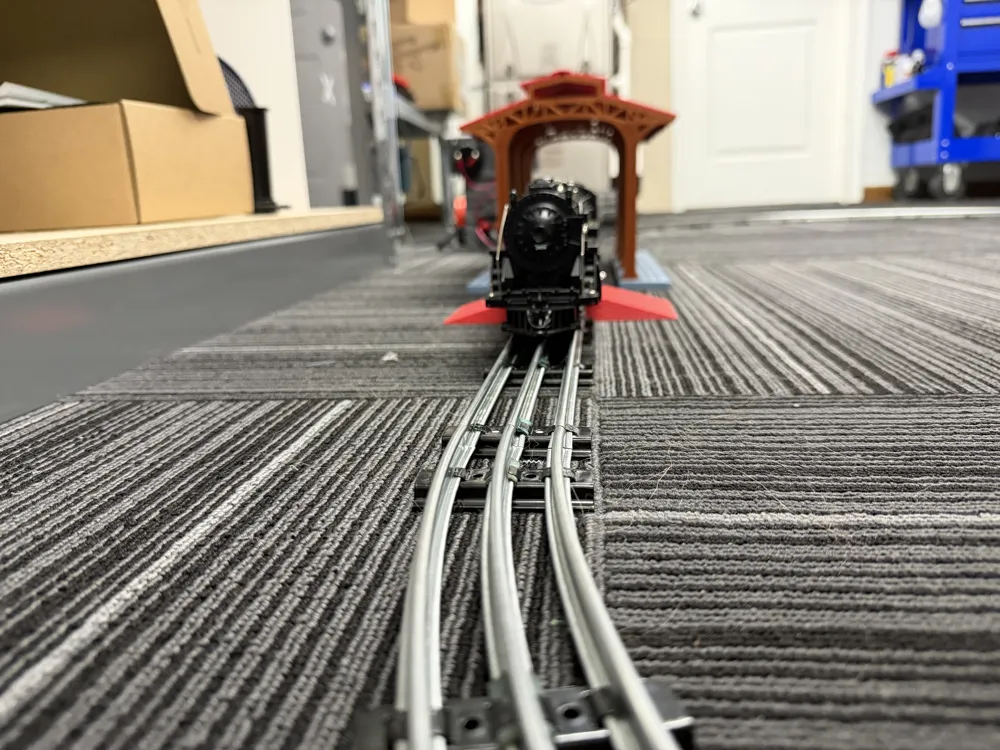

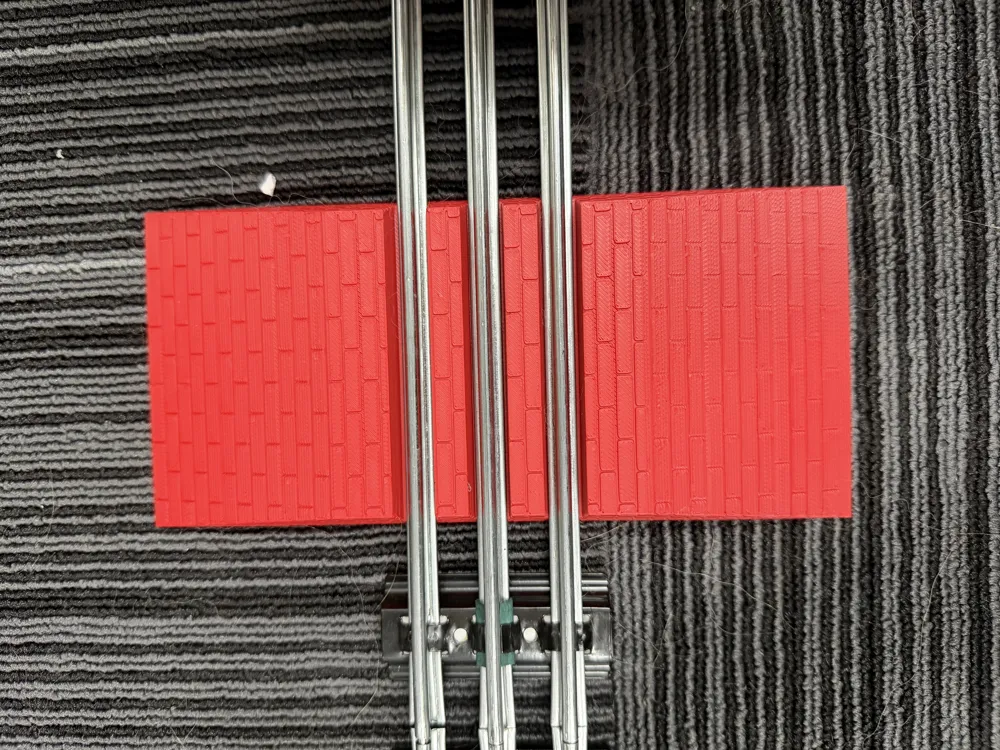

The original single-track version was physically printed and tested on tubular O track. The crossing fits the rails properly, sits flat, and trains pass over it without any issues.

Customizable options

The included OpenSCAD Customizer lets you choose:

• Single-track or double-track layout
• Road widths from 3.25" to 6.75", plus a custom-width option
• Adjustable double-track center-to-center spacing
• Smooth, brick-paved, or wood-plank roadway surfaces
• Brick-textured or plain side walls
• Complete crossing, double-track halves, or rail-fit coupon outputs
• Adjustable rail-channel width and road height
• Adjustable dovetail clearance for split double-track versions

The default model is the physically tested configuration:

• Single track
• 3.25" roadway width
• Brick roadway surface
• 16.5 mm road height
• 8.4 mm rail-channel width

Double-track version

Double-track crossings are generated as two printable halves with full-height vertical dovetails. The space between the tracks remains a continuous flat roadway rather than dropping back down into additional ramps.

Track spacing varies between layouts, so the double-track version is intended to be generated through the Customizer using your own center-to-center measurement.

The default 0.15 mm dovetail clearance was physically fit-tested. A small dovetail coupon is included so you can verify the fit on your printer before committing to the full parts.

Fit-test coupons

Two small test models are included:

• Rail-channel coupon — verifies the rail spacing and channel fit
• Dovetail coupon — verifies the joint clearance for split double-track models

Printing these first is strongly recommended when using different track, filament, layer heights, or printer calibration.

Compatibility notes

The tested dimensions are based on full-height traditional tubular O gauge track. O-27 uses similar rail spacing but is lower, so its height has not been physically verified. The Customizer includes road-height and rail-fit adjustments for users who want to adapt the model to other tubular track variations.

A full and unrestricted OpenSCAD development file is also included for anyone who wants access to the advanced geometry settings.
