200-liter bung drum (1:14.5)

200-l Bung Drum 1:14.5

Description

This detailed 200-l bung drum expands my 1:14.5 Logistics Series and was designed to fit Bruder vehicles and many other RC construction, agricultural, and logistics models.

The model is based on a classic 200-l steel bung drum with its characteristic reinforcement rings and large and small bungs. This makes it ideal for workshops, construction sites, warehouses, industrial facilities, or agricultural dioramas.

Like many of my models, this barrel was designed to be assembled without glue. The three-part construction ensures easy assembly and a clean look without visible glue seams.

Dimensions

• Height: approx. 61.4 mm
• Maximum diameter: approx. 40.3 mm

Features

• Scale 1:14.5
• Detailed 200-l bung drum
• Faithful replica of a steel bung drum
• Characteristic reinforcement rings
• Large and small bungs
• Three-part construction
• Print without support material
• Designed for assembly without glue
• Compatible with my other logistics models

Print Profiles

Three print profiles are included in the download:

• Both bungs closed (Standard)
• Large bung open, small bung closed
• Both large and small bungs open

This allows everyone to choose the variant that best suits their desired application or diorama.

For variants with an open large bung, a matching bung lid is also included. This allows the barrel to be combined with my barrel pump, for example.

Assembly

The barrel consists of three individual parts:

• Barrel body
• Bottom
• Lid

For assembly, the bottom and lid are slightly angled and then pressed evenly into the barrel body with the thumbs until they are fully engaged.

All plug connections have been designed so that the model can generally be assembled without glue.

Since each filament and printer has slightly different tolerances, the fit may vary. This means that the parts may fit a little tighter or a little looser depending on the material.

If the fit on your print is a bit too loose, one to two small drops of superglue are sufficient to secure the connection permanently. However, the model was deliberately developed for assembly without glue.

The model was tested exclusively with PLA.

Compatible Models

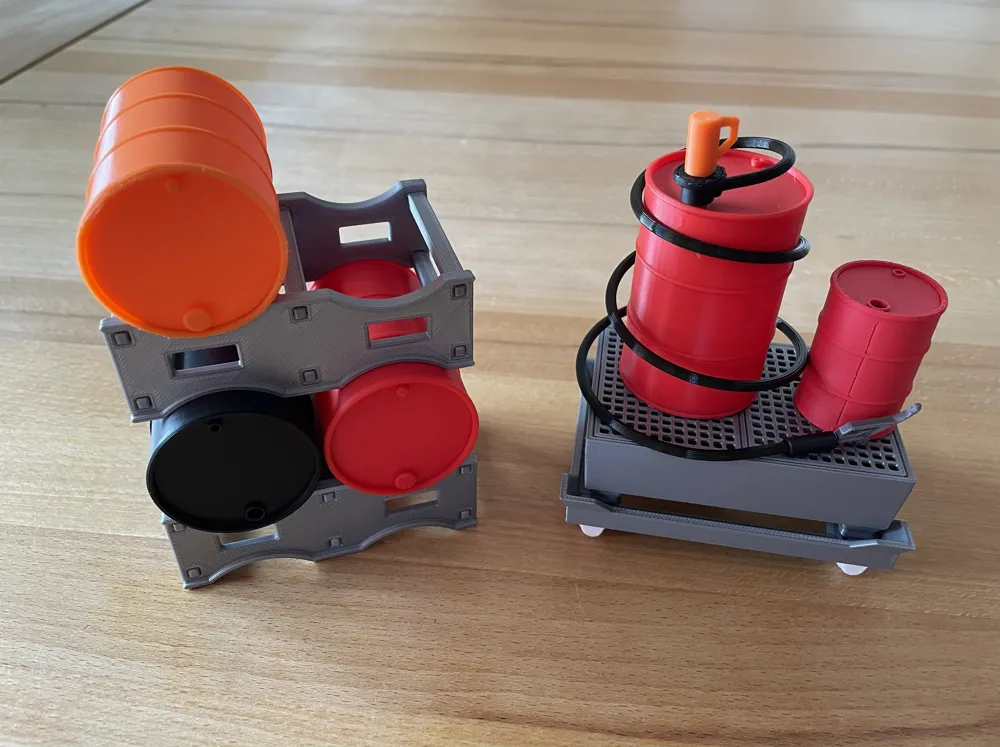

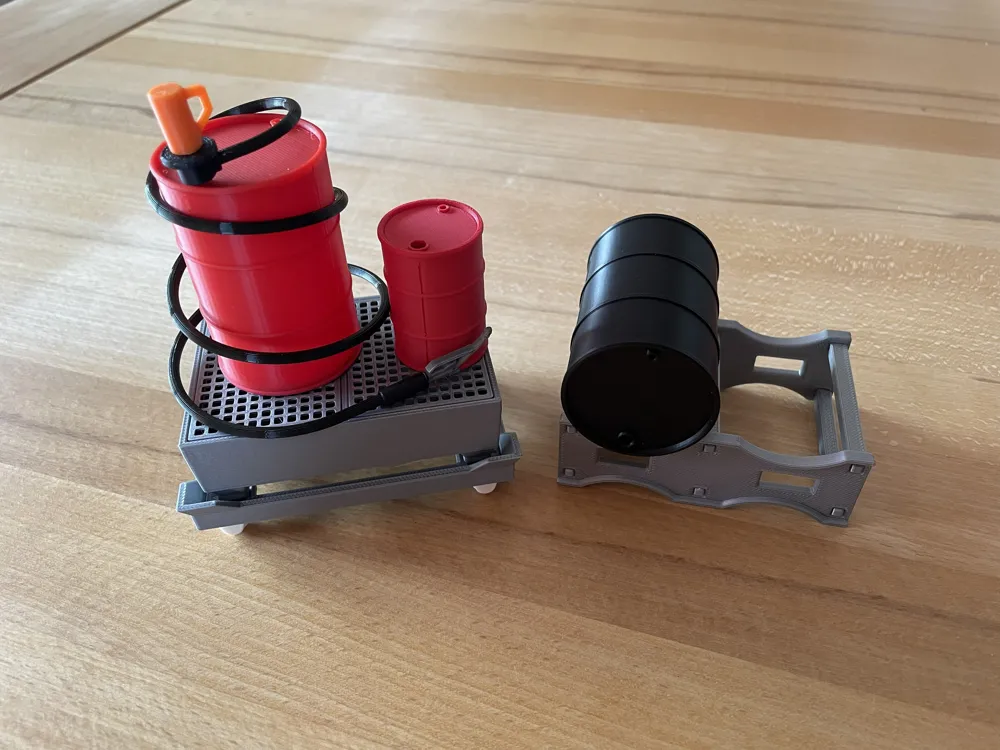

The 200-l bung drum is compatible with the following models, among others:

• 🛢️ Barrel pump (Link)
• 🧵 Barrel hose (Link)
• ⛽ Fuel nozzle (Link)
• 🛢️ Barrel pallet (Link)
• 🛢️ Oil drip pan (Link)
• 🛢️ 60-l bung drum (Link)
• 🛒 Pallet truck (Link)
• 📦 Euro pallet (Link)

All models are coordinated and can be combined as desired.

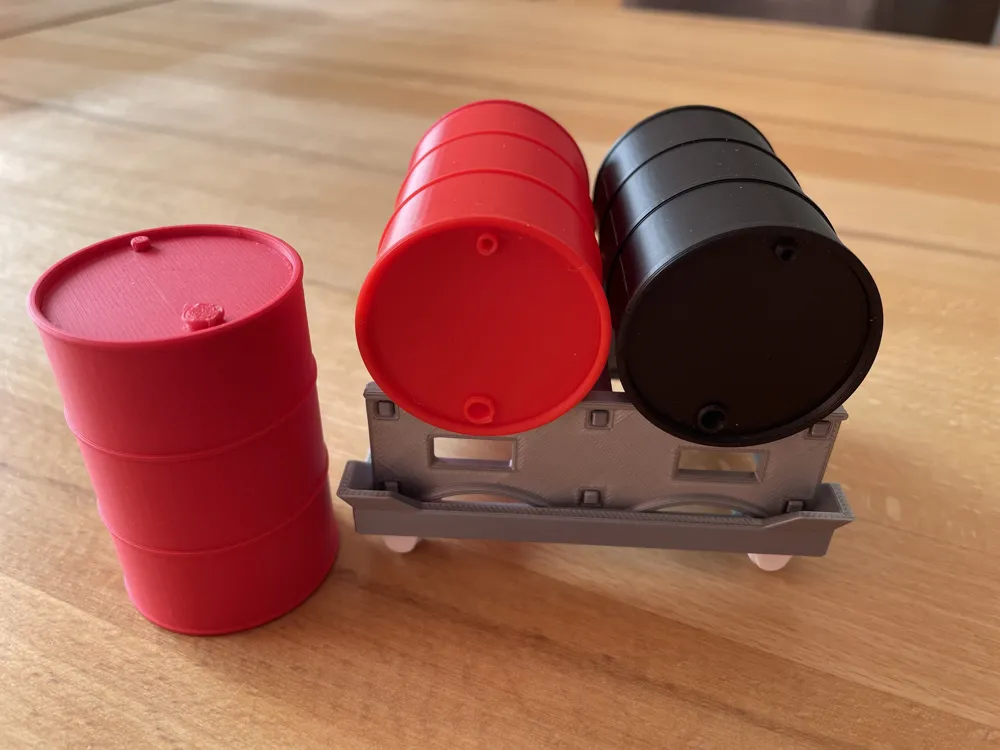

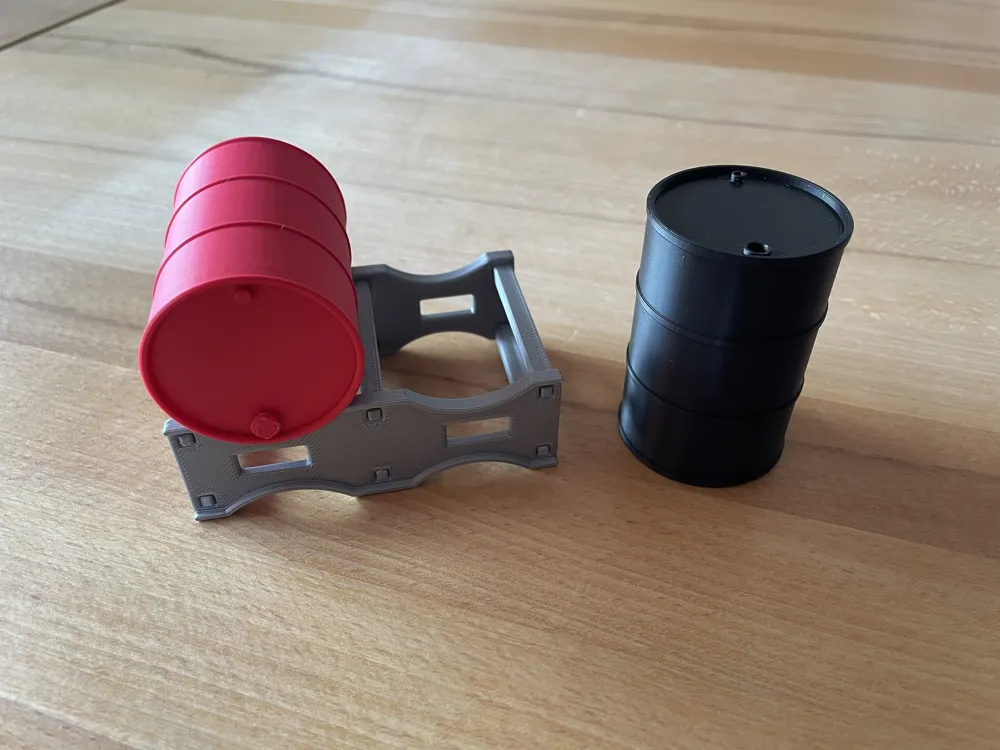

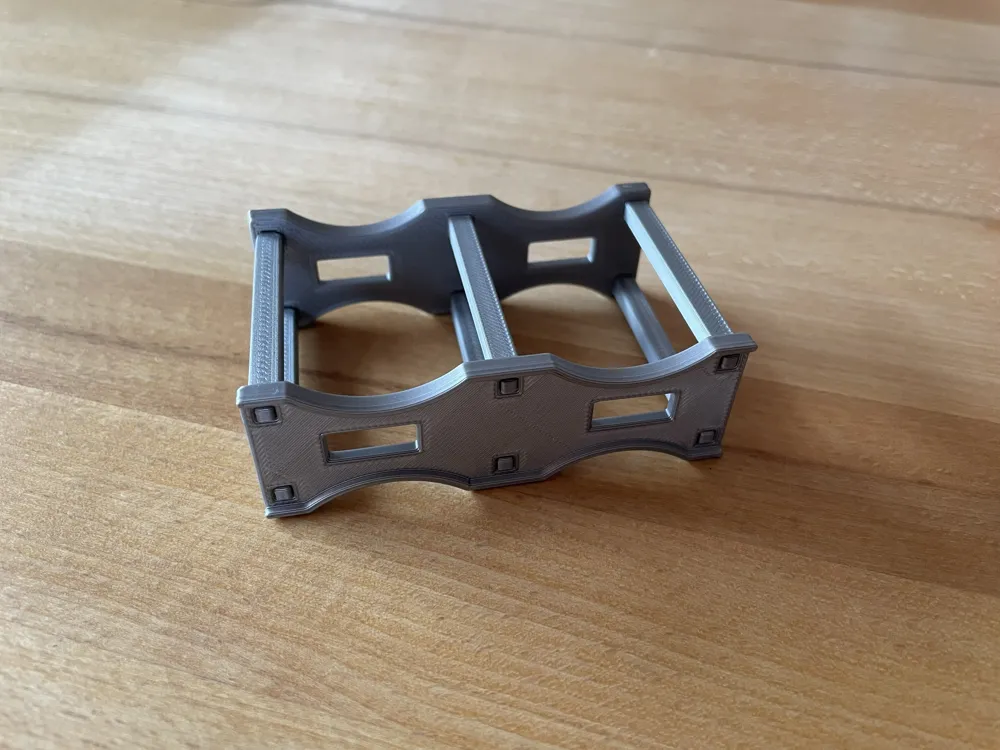

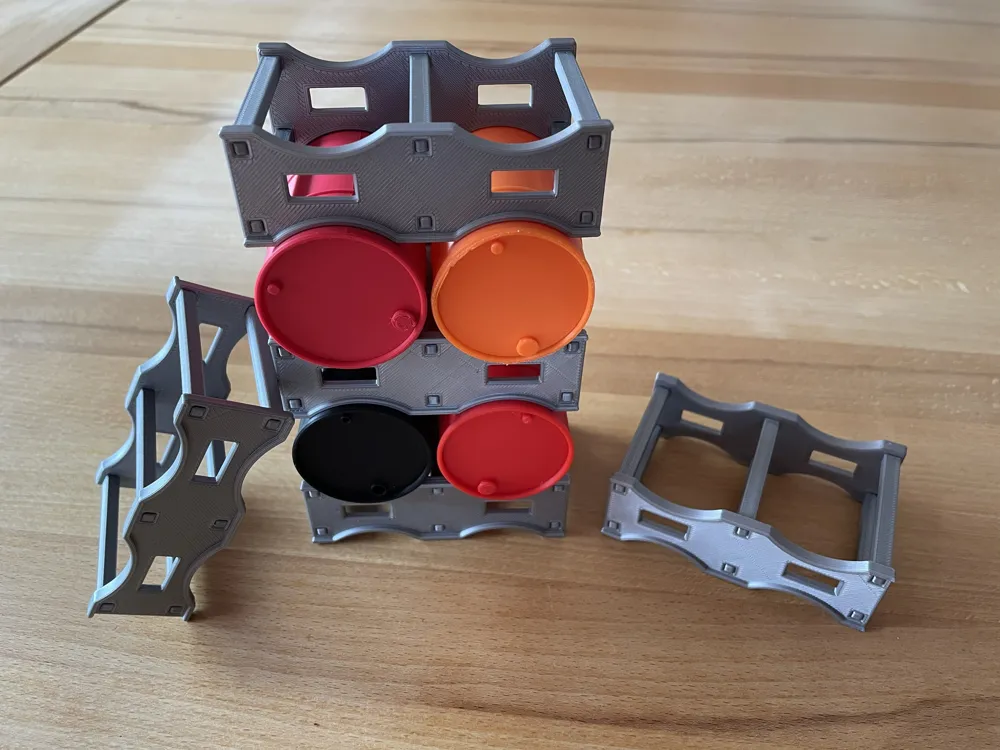

The barrel pallet, specially developed for this barrel, offers space for one or two 200-l bung drums and perfectly complements the model.

Part of my 1:14.5 Logistics Series

This model is part of my 1:14.5 Logistics Series. The goal of this series is to gradually develop a realistic and compatible logistics and workshop system for Bruder and RC models.

Further matching models are already available. The series will be expanded with new models as opportunities arise.

⭐ If you like the model, I would appreciate a Like 👍, a Follow ⭐, or a Boost 🚀. This supports me in developing further models in scale 1:14.5.

Thank you for downloading my model! I wish you much joy in printing, assembling, and using it later. I always welcome photos of your finished print, as well as feedback and suggestions for improvement.

Happy printing! 😊
