Stark Varg EX Headlight Tilt-Down Bracket
This aftermarket DIY bracket is designed for the 2025–2026 Stark Varg EX and tilts the headlight downward by a few degrees.
Some riders have found that the factory headlight beam points too high and can blind oncoming traffic, even with the rear adjustment screw turned fully downward. This bracket changes the mounting angle to help aim the beam lower.

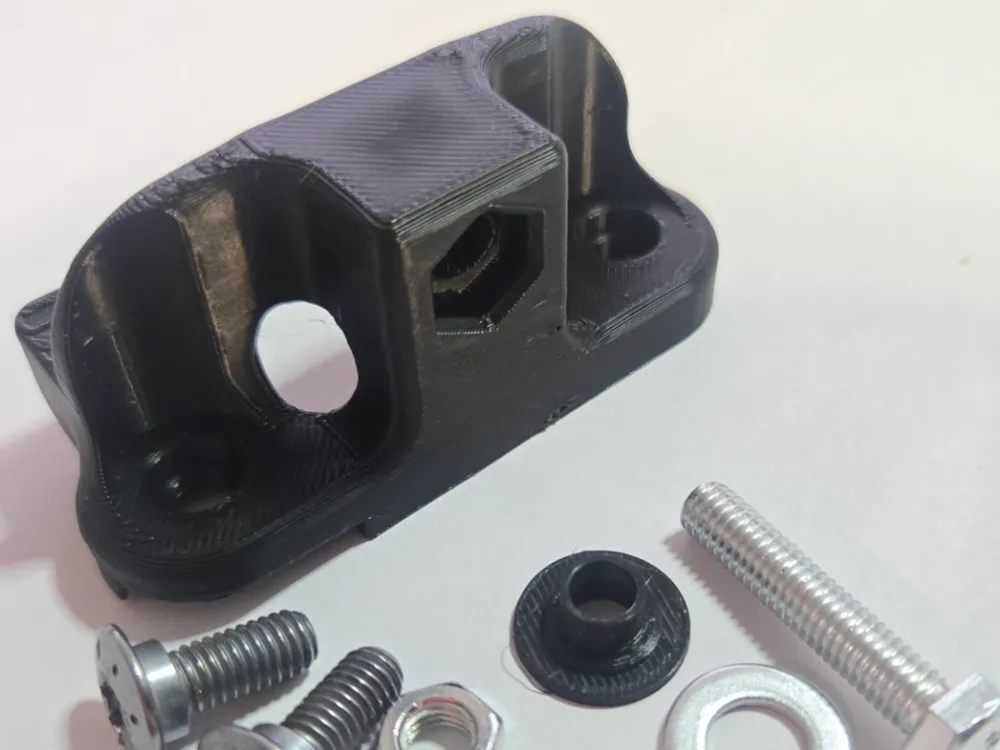

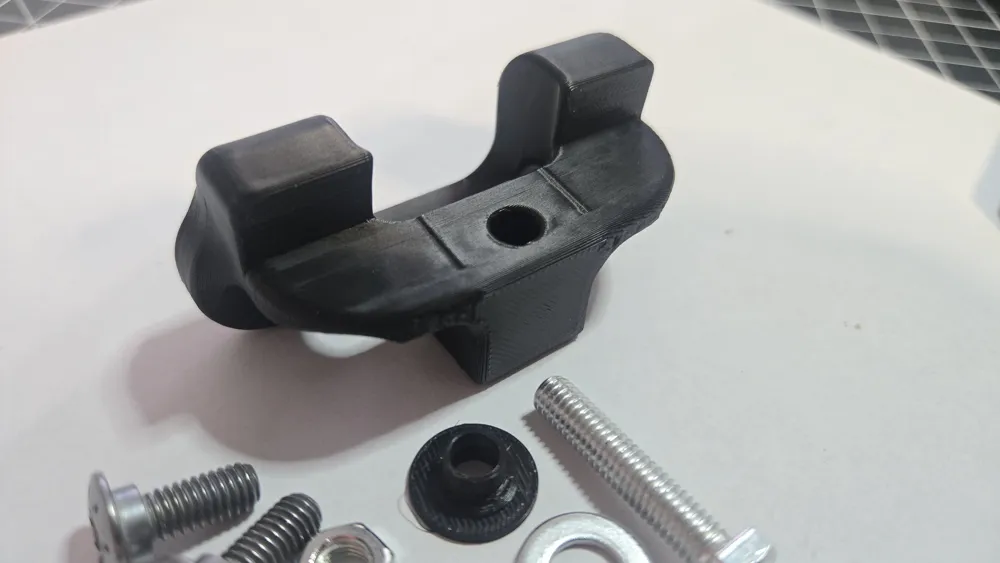

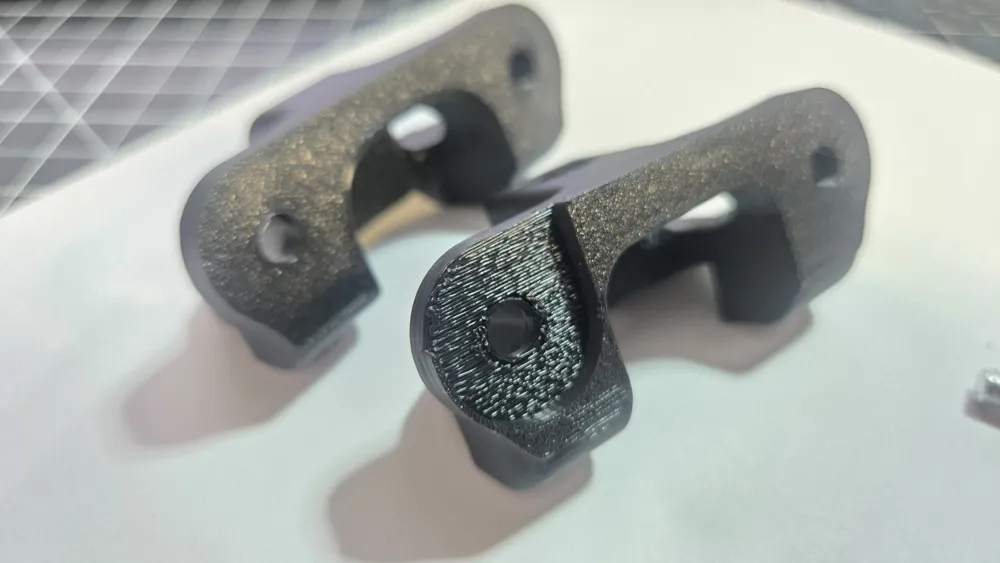

Two versions are included:
- With slot — designed to retain the OEM plastic bracket that holds the wiring.
- Without slot — simplified version without support for the OEM wire-holding bracket.

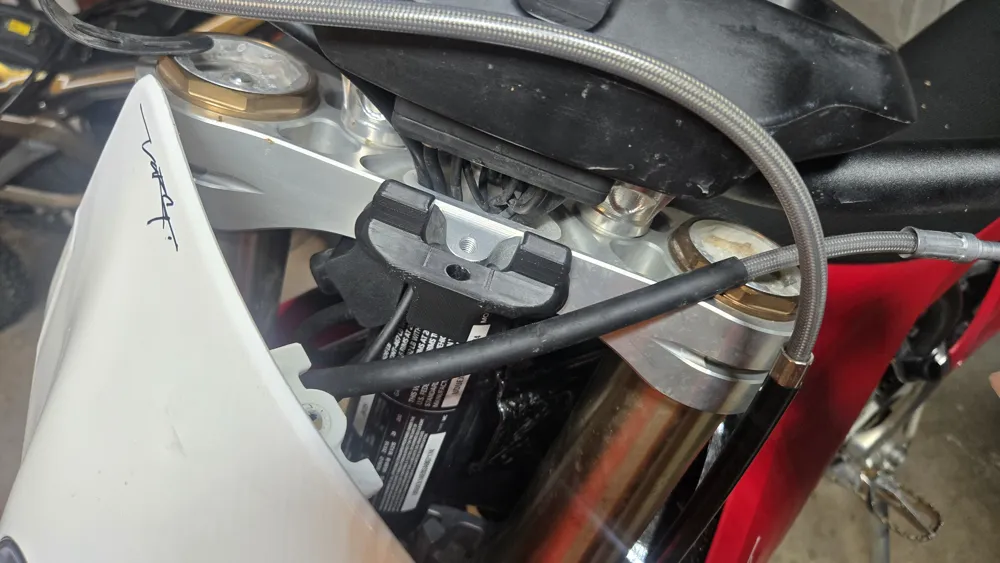

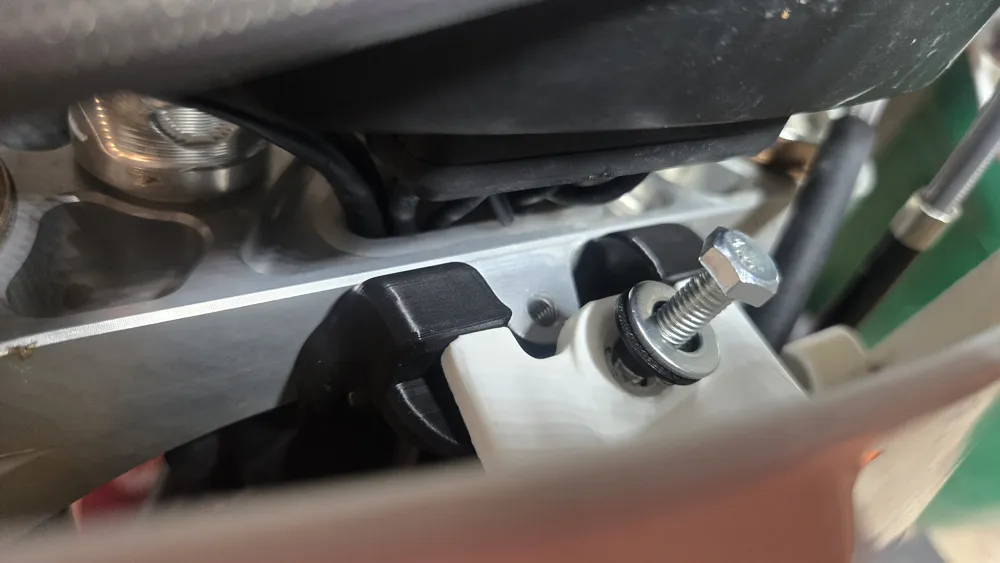

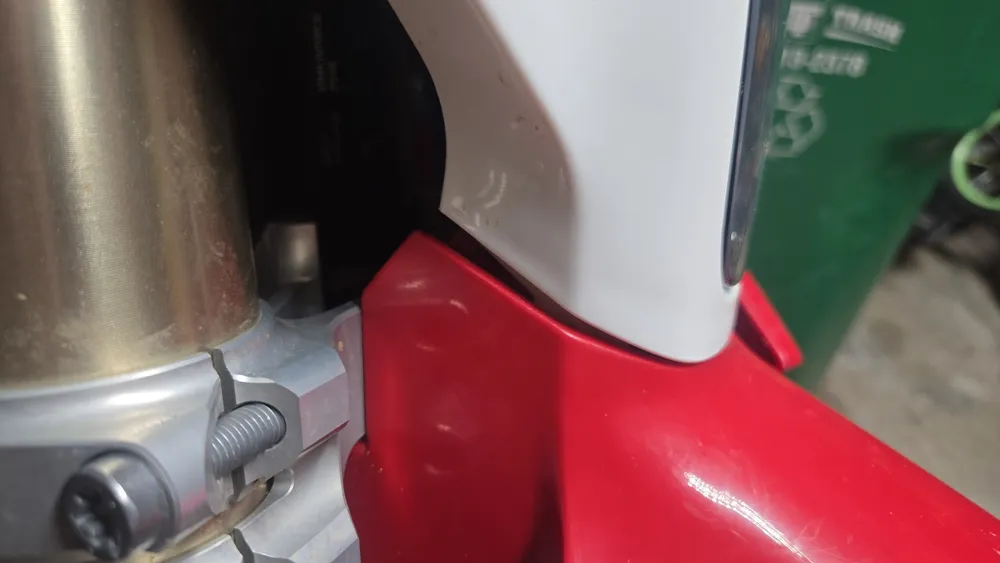

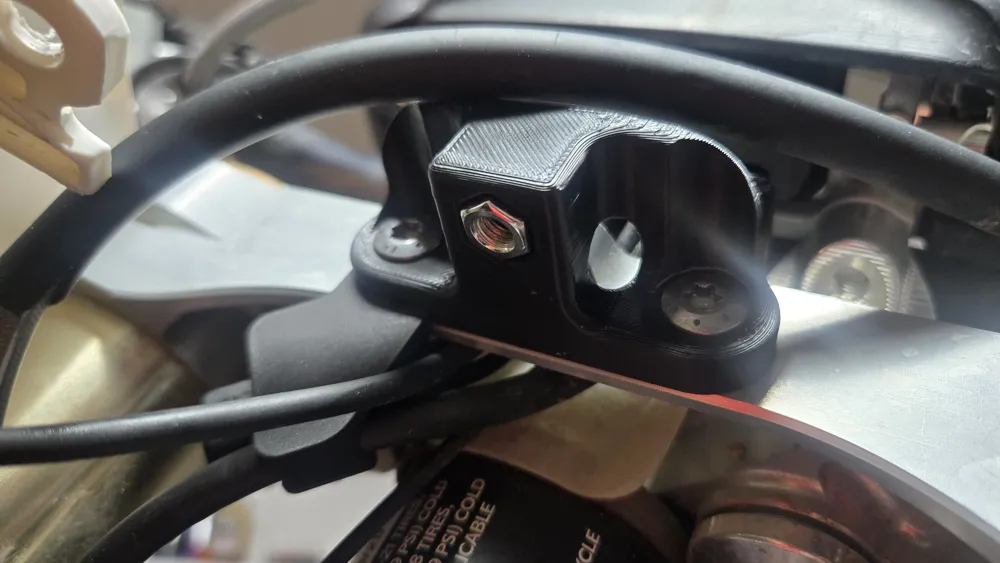

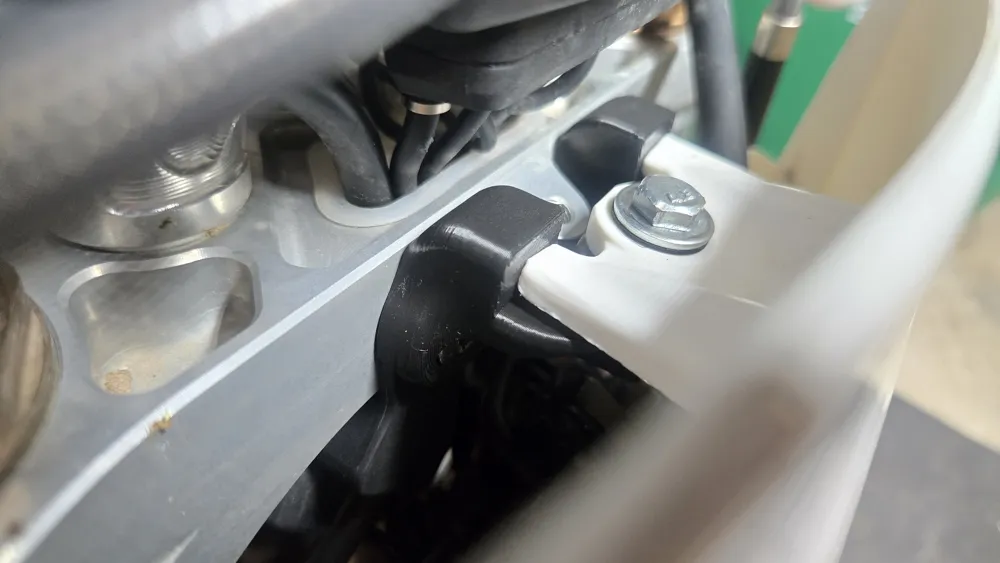

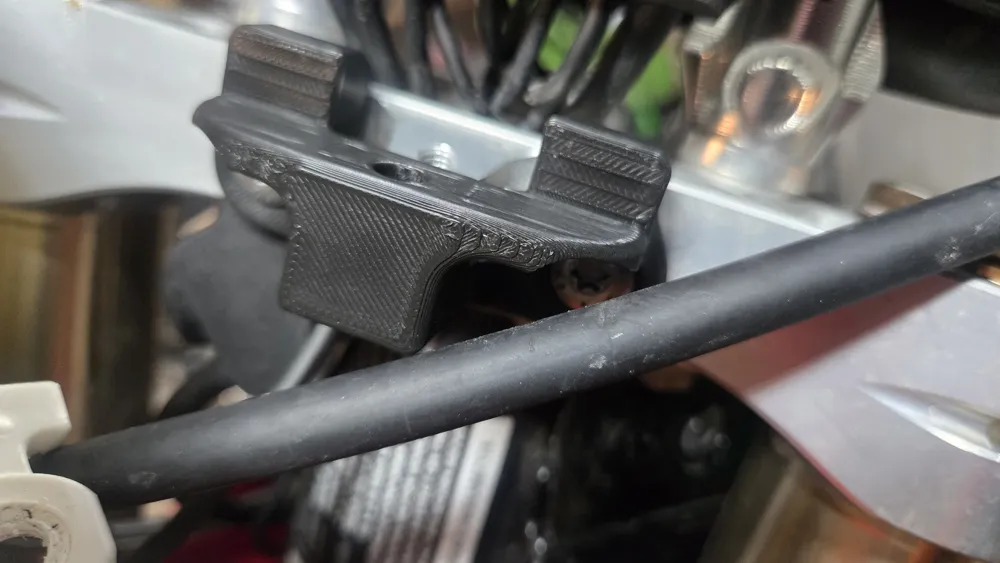

Refer to the photos to compare both versions and see the installation details.

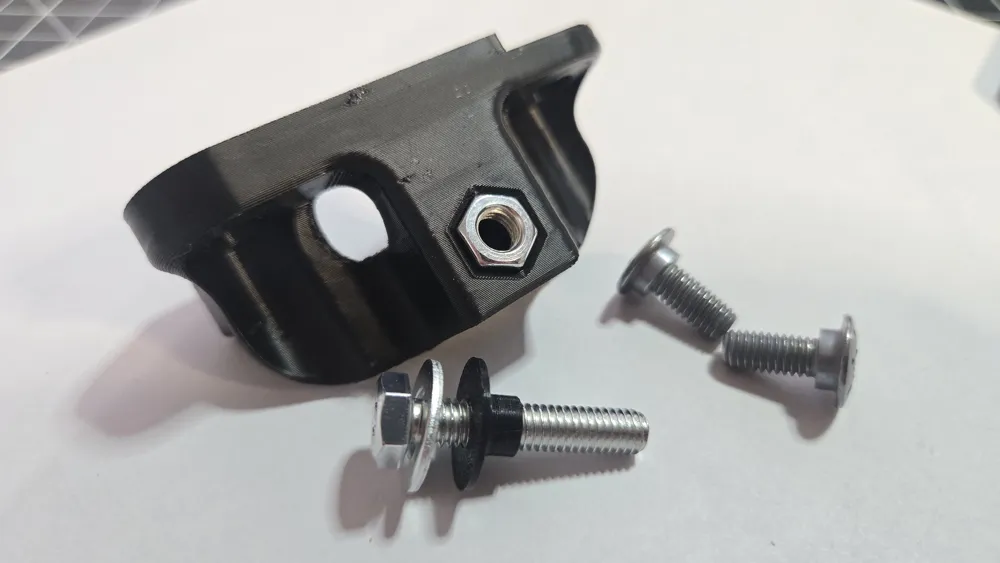

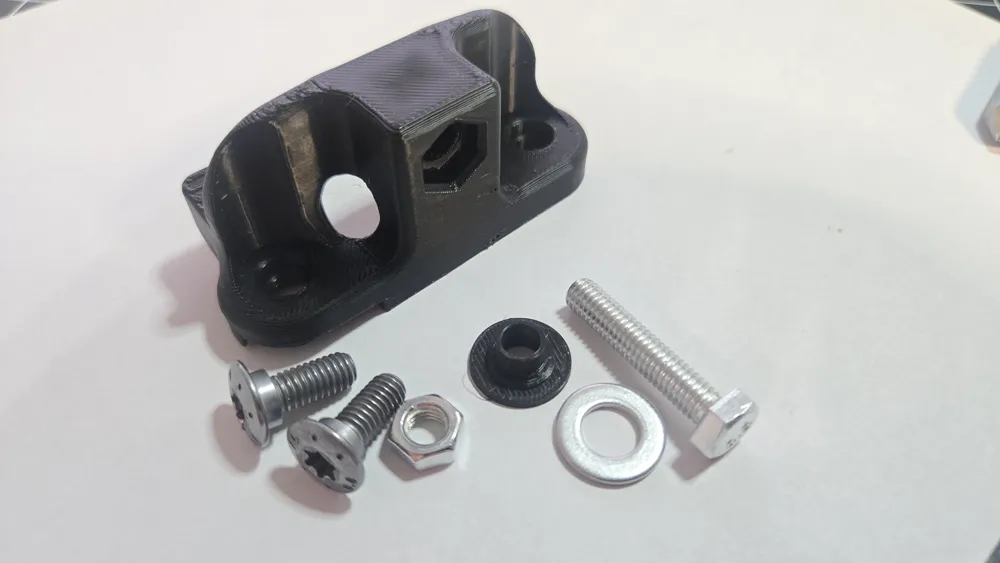

Additional Hardware Required
- 1× M6 bolt
- 1× M6 nut
- 1× metal washer
Disclaimer
This is an unofficial DIY solution. Install and use it at your own risk. It is not tested, approved, or endorsed by Stark Future and is not affiliated with Stark Future in any way. Check local regulations.
I printed with regular PLA, will see how it holds, but feels sturdy.
