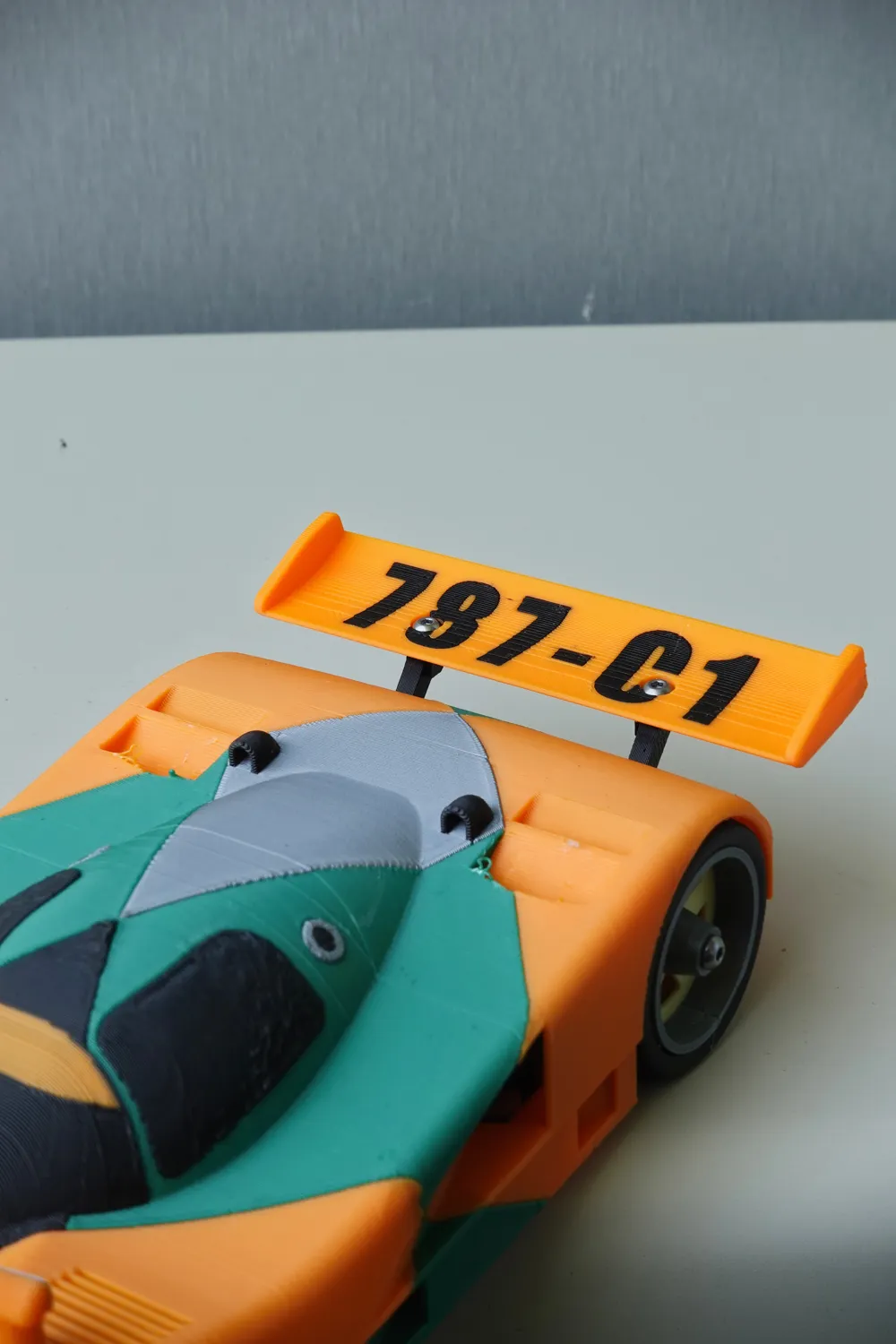

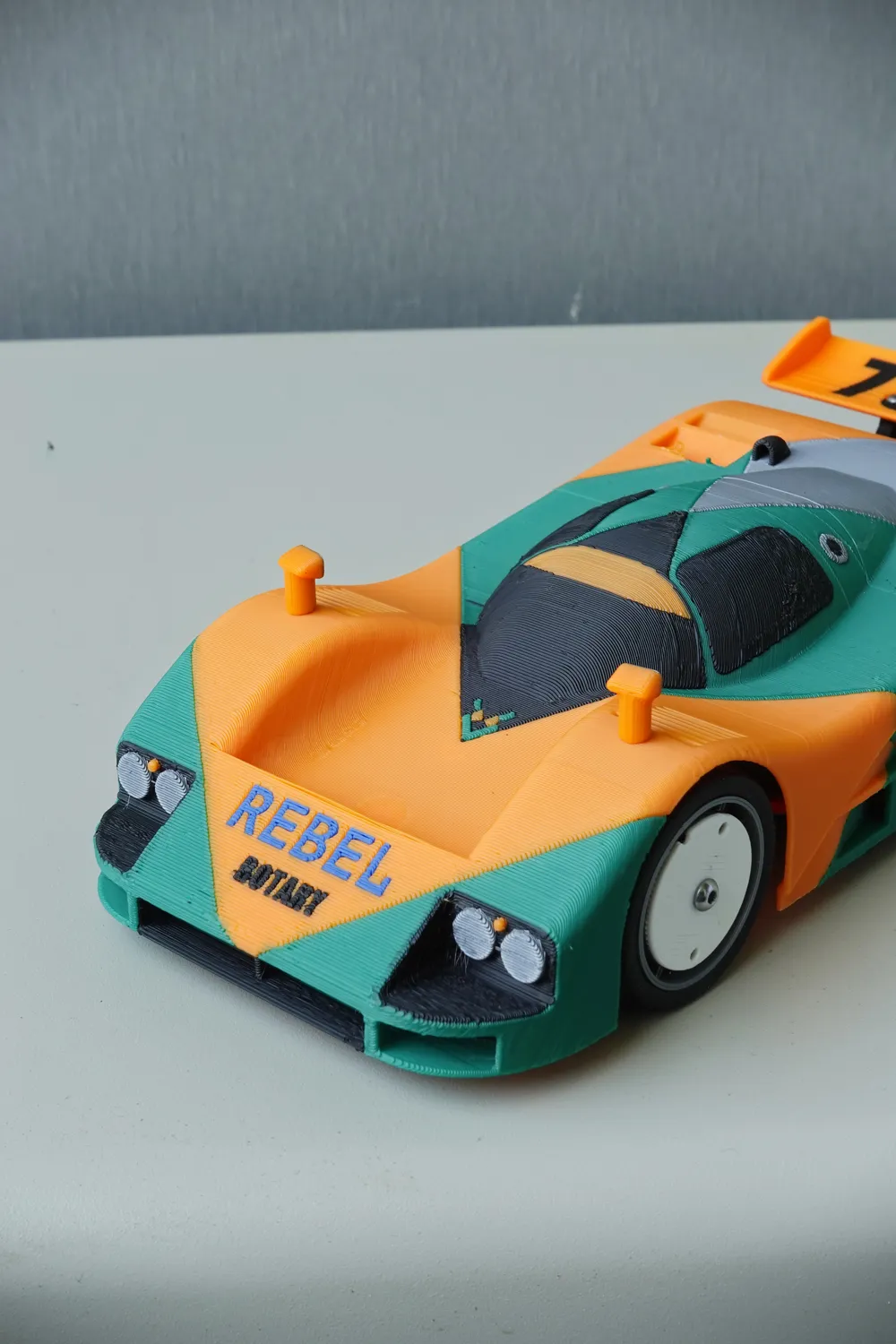

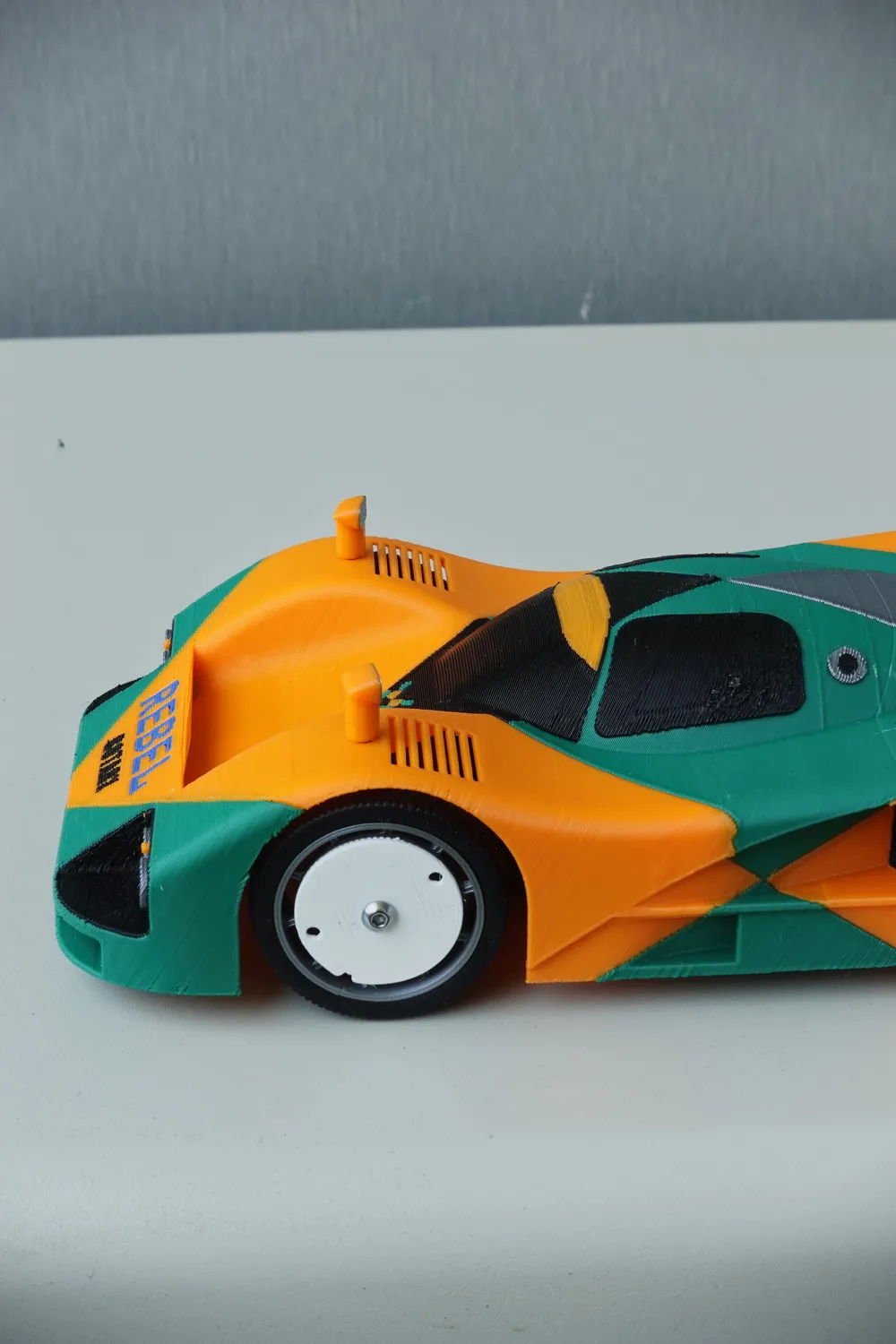

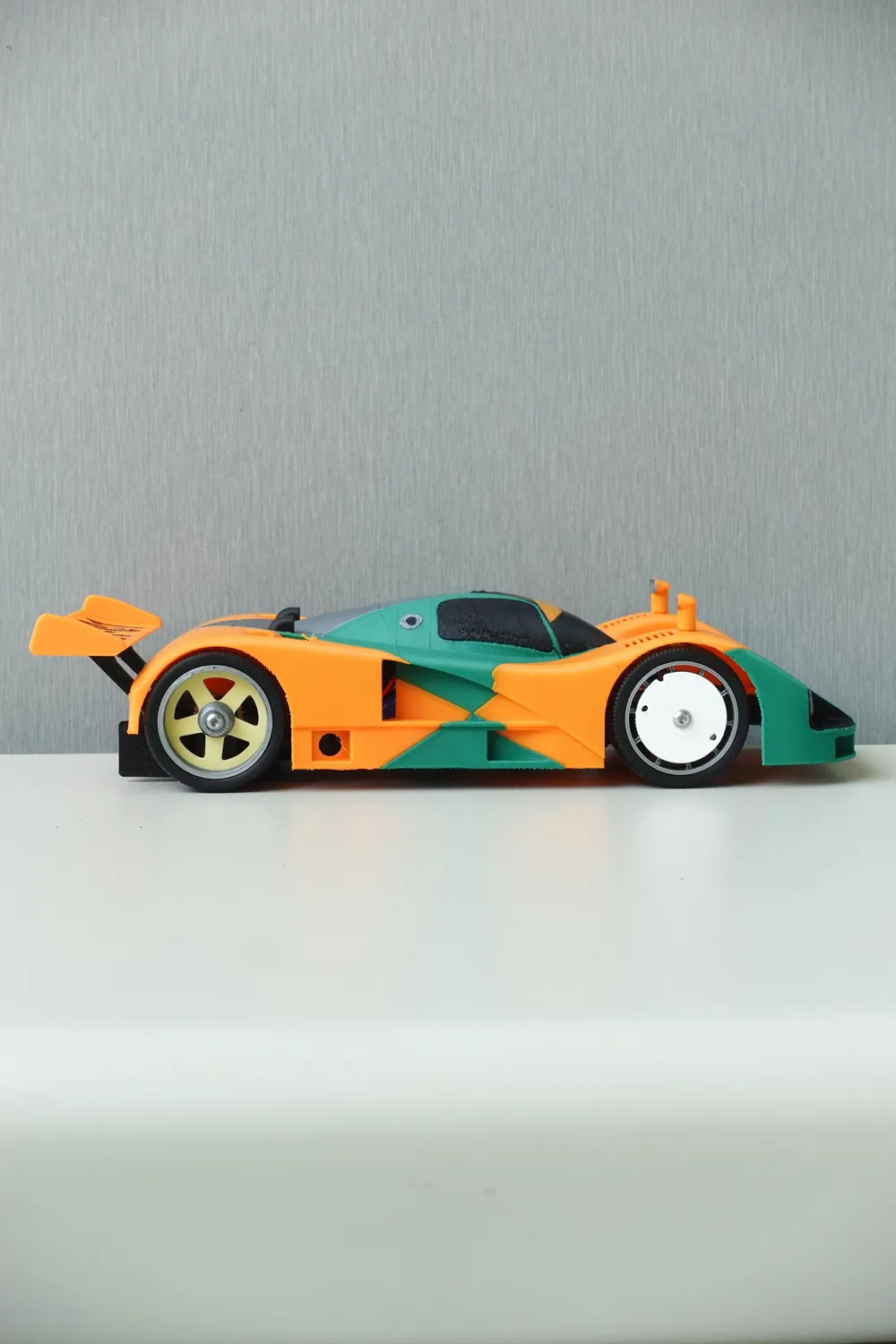

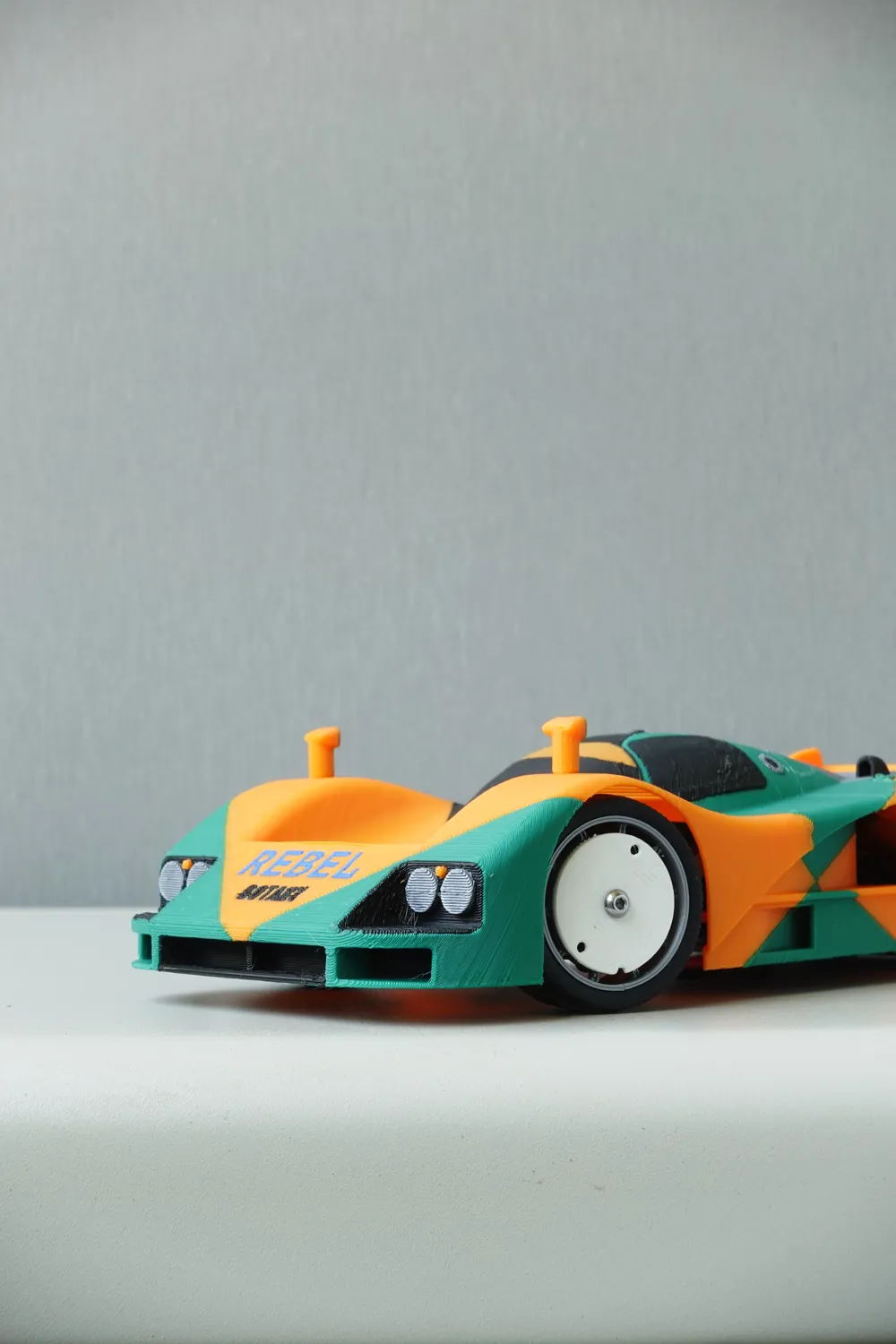

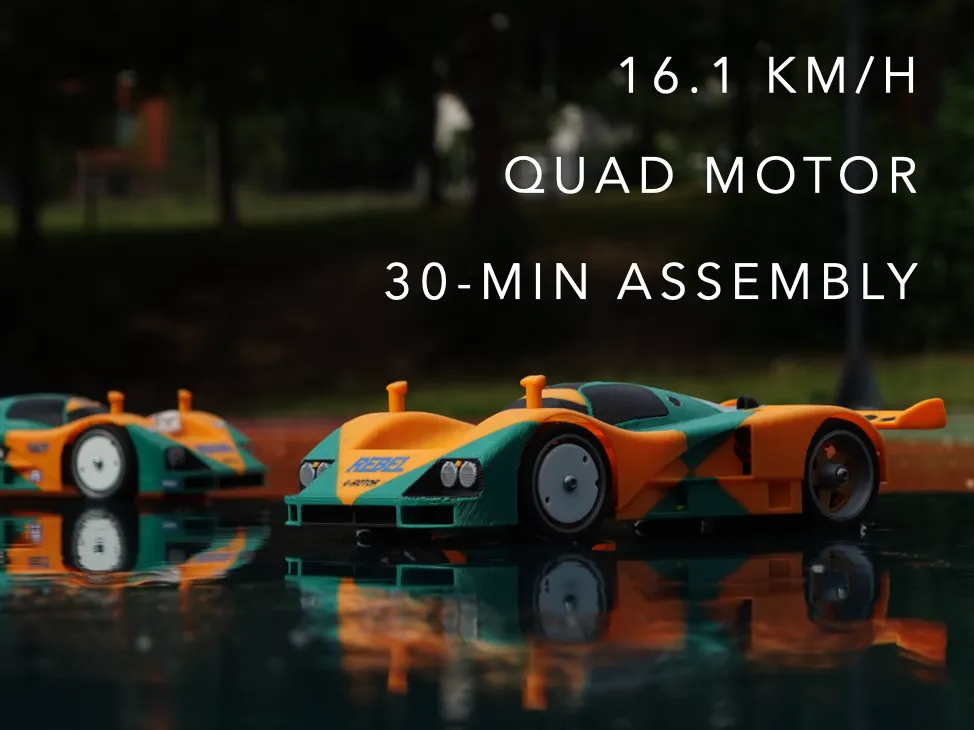

Rebel 787 C1 - 1:24 Quad-Motor Cyberbrick Racer

Four motors - 16.1 km/h.

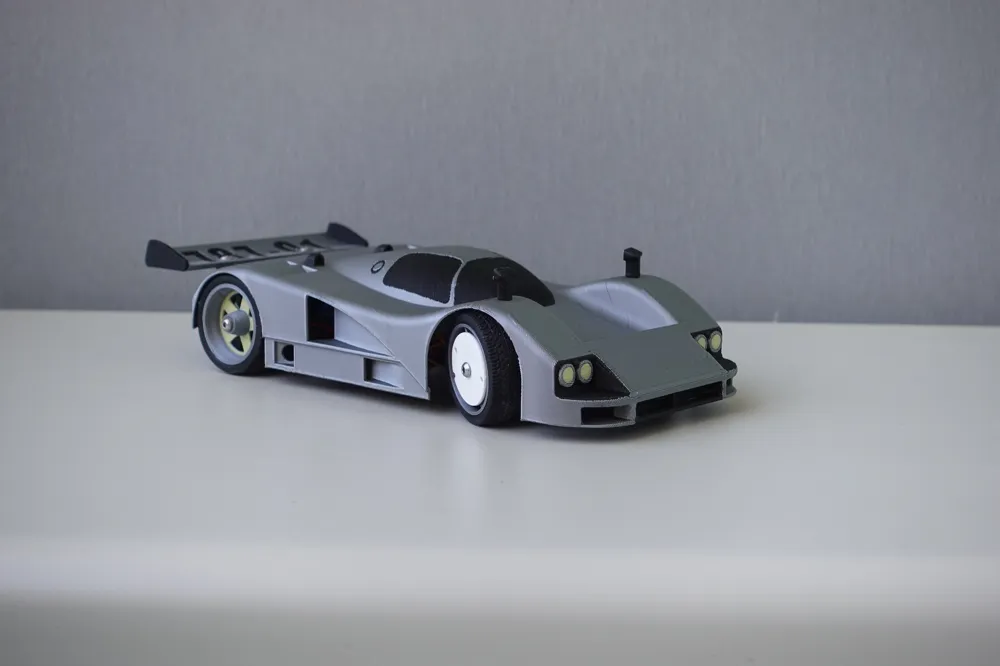

The Rebel 787-C1 is a high-performance 1:24 scale indoor/outdoor micro racer designed for builders who want uncompromising mechanical performance from a CyberBrick build.

Inspired by the legendary four-rotor endurance race cars of the 1990s, it translates that iconic engineering into a synchronized quad-motor powertrain.

----------------------------------------------------------

📋 Technical specifications:

Scale: 1:24
Drive: RWD
Motors: 4
Top speed: 16.1 km/h
Weight: 225 g (battery included)

Weight distribution: 47% front - 53% rear
Print time: ~7 hours (single color)
Assembly: <30 minutes

----------------------------------------------------------

🏁 Why print this

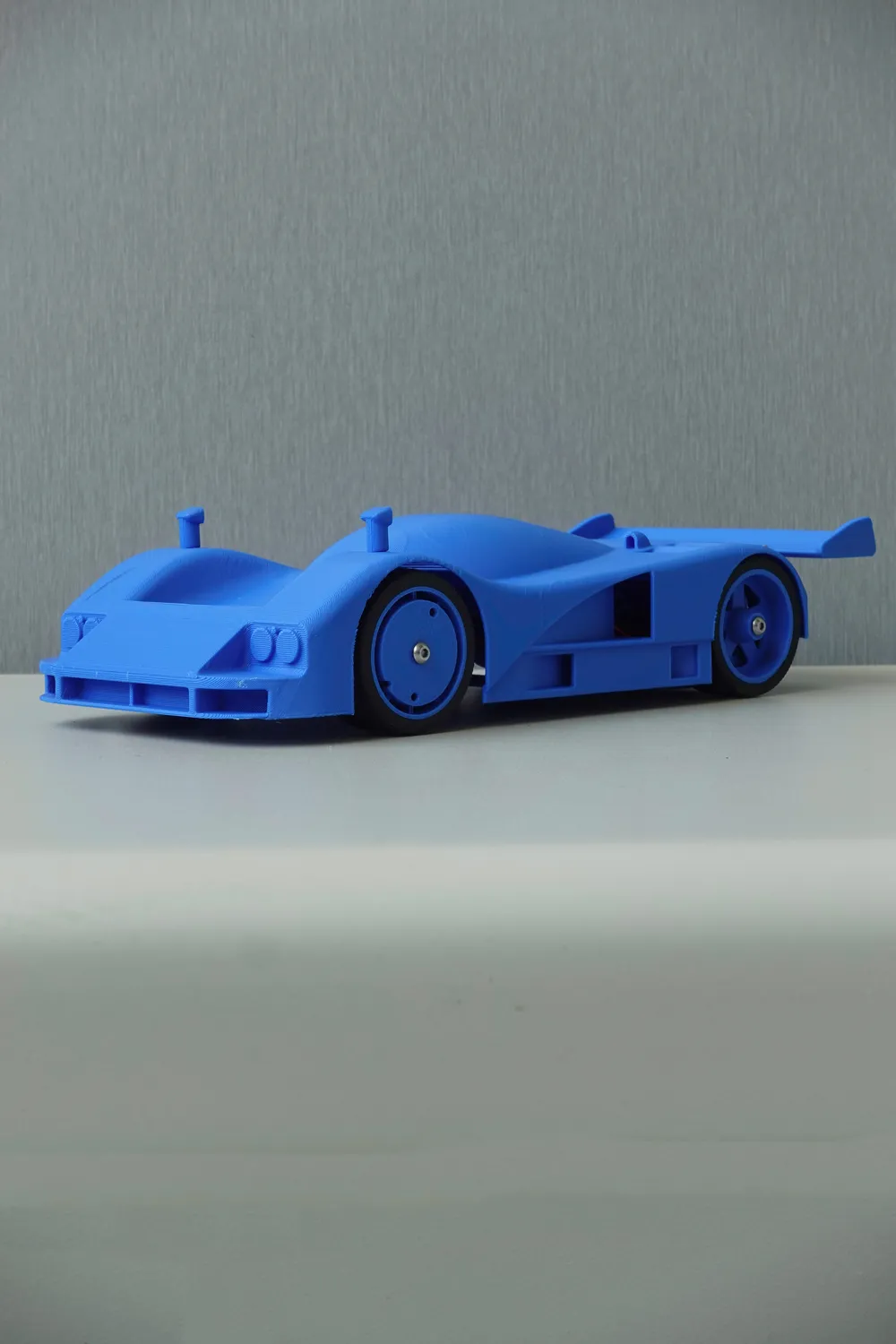

• Lightning-Fast Single Color Print: A complete single-color layout prints in just around 7 hours.
• A1 Mini Friendly: Everything fits comfortably on a single 180 × 180 mm build plate.

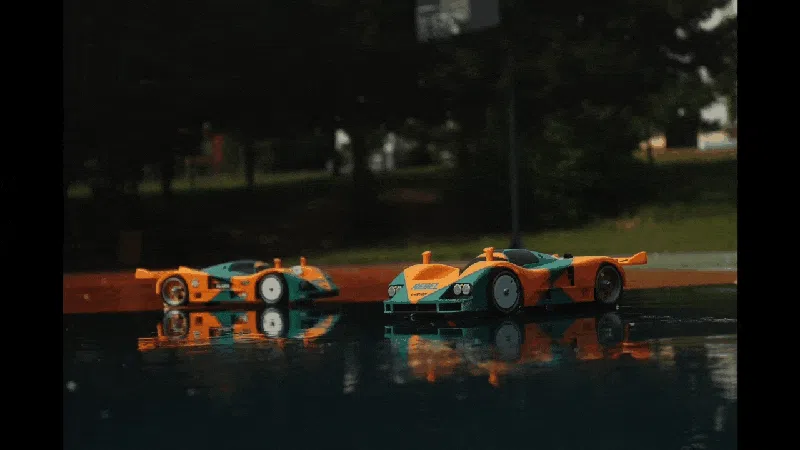

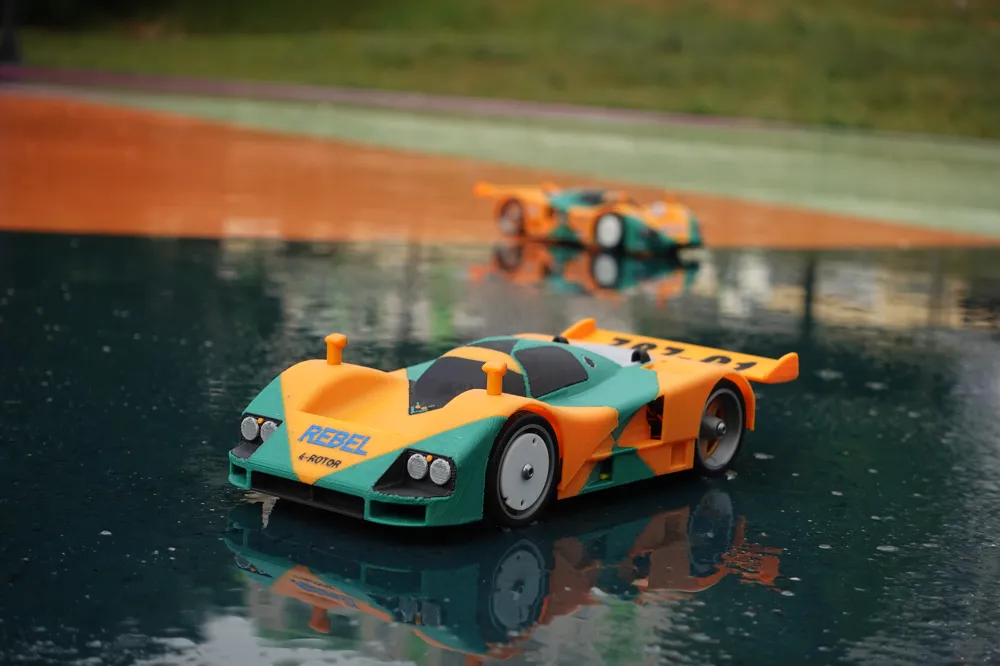

• Pure Living Room Performance: With a measured top speed of 16.1 km/h, this isn't just a display model—it handles beautifully and is genuinely fun to drive indoors or on smooth outdoor surfaces.
• An Accessible Tribute: One of the easiest and most accessible ways to own a fully functional RC version of this endurance racing legend.

----------------------------------------------------------

⏱️ Friction-Free Print, Quick Assembly (Under 30 Mins), video guided firmware flashing

Never set up RC electronics before? No stress. The step-by-step PDF guide holds your hand through the entire mechanical build, and the video tutorial walks you through step by step flashing the firmware and binding your controller. You'll comfortably go from a box of printed parts to a fully functional racer—zero guesswork required.

When you already assembled the car, just


CLICK HERE for the step by step video guide on how to flash the firmware


----------------------------------------------------------

🛒 Support This Project (At Zero Cost To You!)

If you're purchasing the required CyberBrick hardware or filament anyway, consider ordering through the Bill of Materials on this page. It doesn't cost you anything extra, and the small commission helps fund future projects. Thank you!

----------------------------------------------------------

🤓 The Nerd Zone (Engineering Highlights)

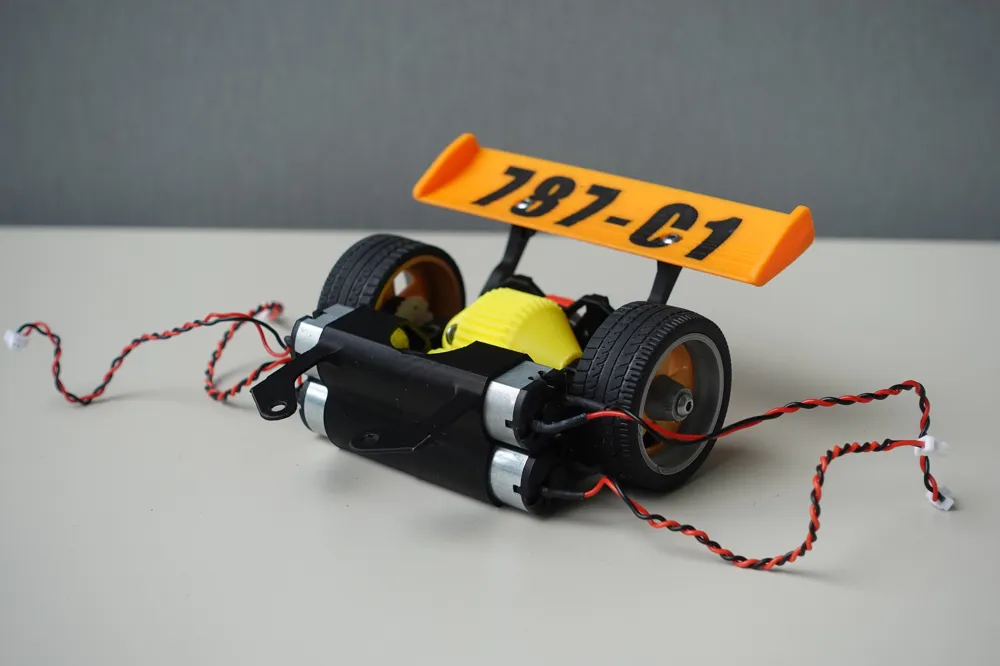

• Quad-Motor "4-Rotor" Power: Two synchronized core logic boards drive four independent rear motors, delivering explosive acceleration and a scale-speed experience worthy of its legendary inspiration.

• True Monocoque Design: The body is the chassis. By engineering structural screw points directly into the body lines, the car sheds 25 grams of dead weight, resulting in a featherweight 225g (including the battery).

• True Mechanical Differential & Low-Friction Drivetrain: A custom-designed open differential, paired with low-friction POM gears and precision steel pins, minimizes drivetrain losses for smooth, efficient power delivery.

• Pan-Car Style Rear Suspension: The rear motor pod is integrated into a flexible pan-car-style suspension that allows the drivetrain to articulate independently of the chassis. This helps all four tires stay planted over uneven surfaces, improving grip and stability at high speed.

------------------------------------------------------------------------------

Clean The Buildplate

Before print, clean the buildplate thoroughly by hot water and liquid soap (NOT IPA!!!) There are a lots of parts on a single buildplate in this model (especially the single color profile), and cleaning the plate can prevent possible print failures.
