Wheeled crane jib extension for all operating conditions including luffing jib and wind power jib
Print Profile(2)
Description

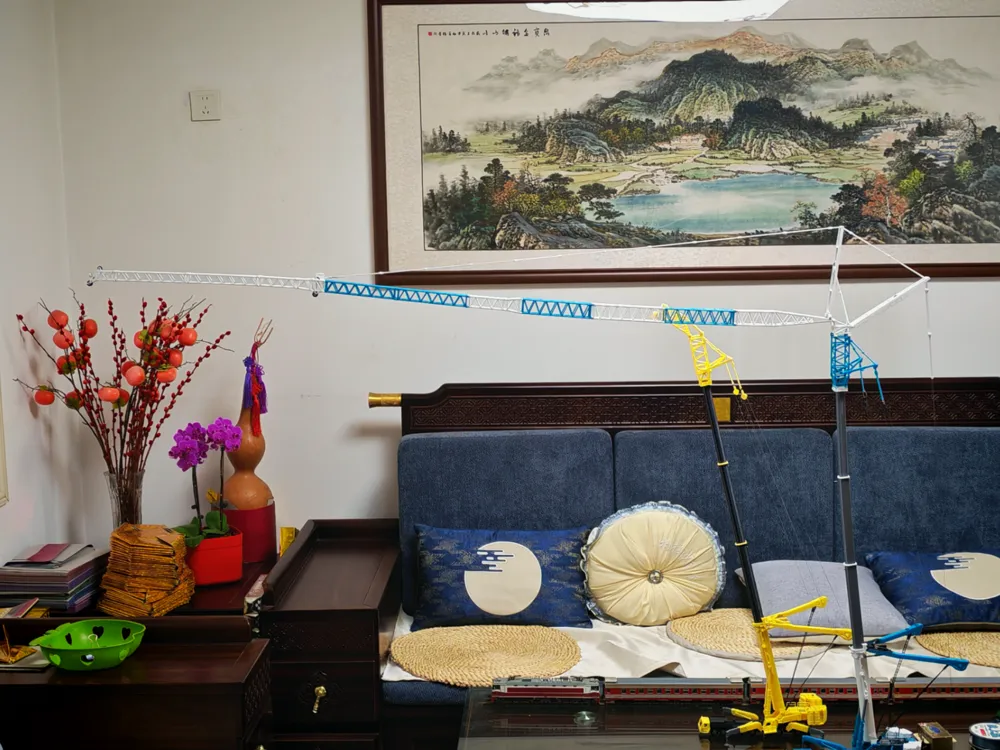

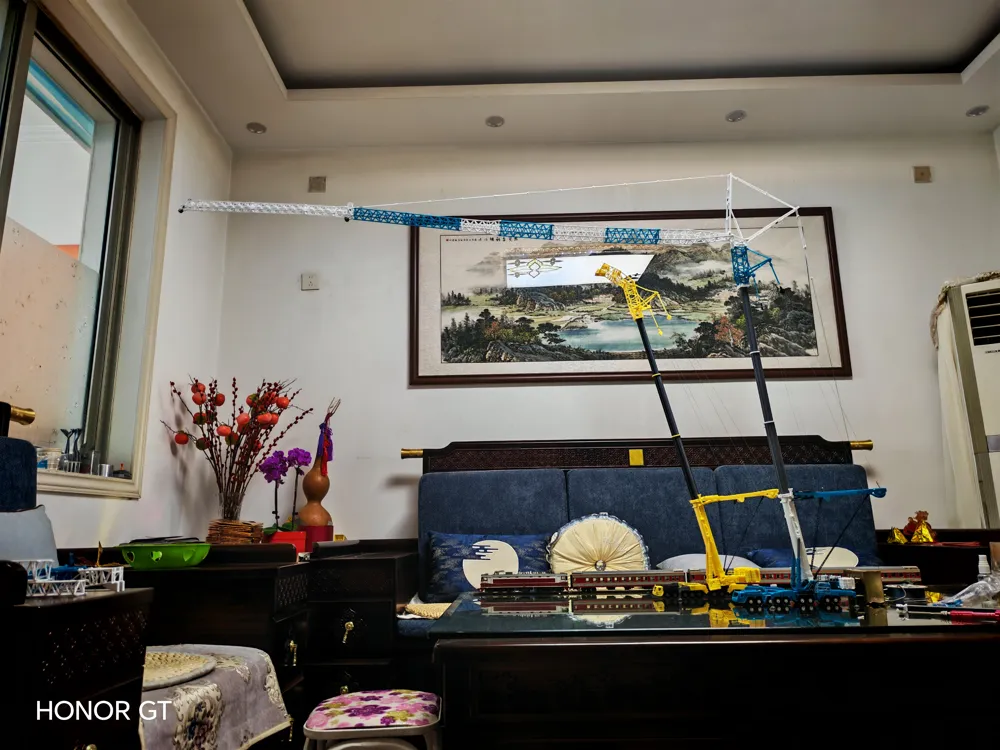

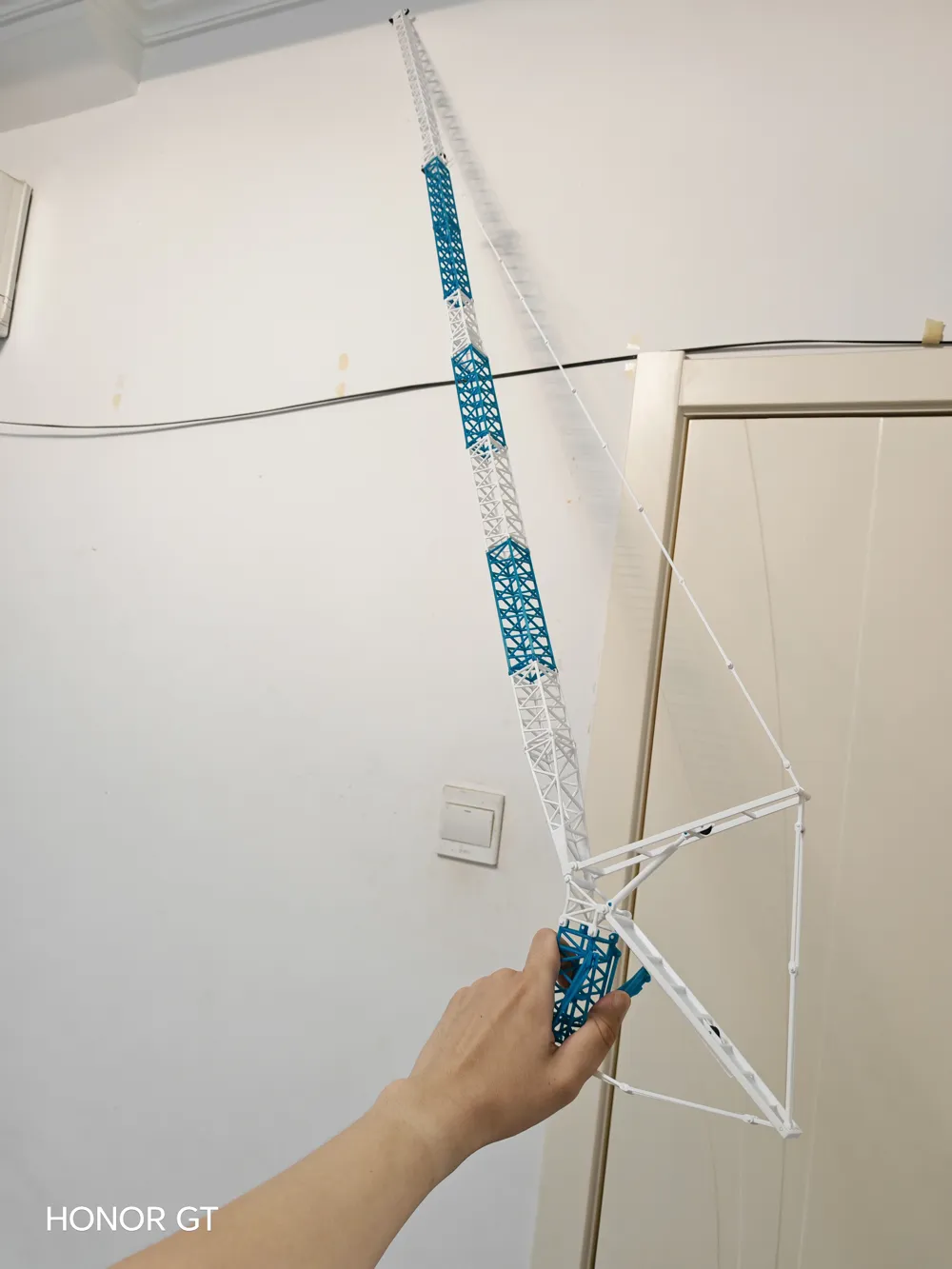

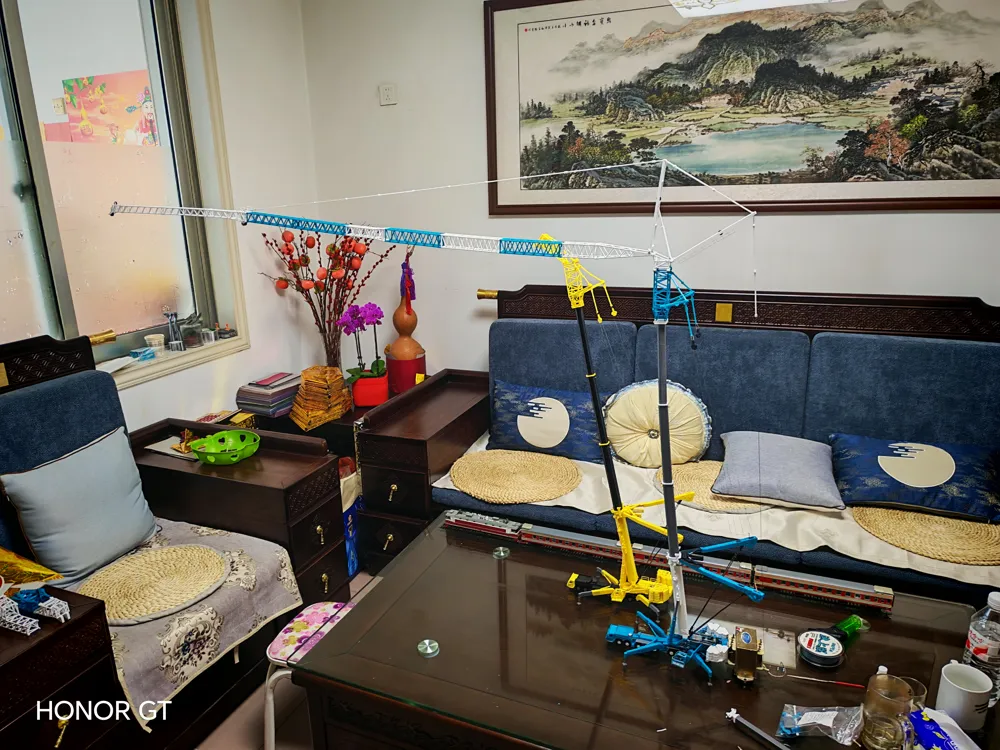

Lattice boom extension for Liebherr LTM11200
Applicable to the following models
https://makerworld.com.cn/zh/models/1543749-li-bo-hai-er-11200diao-che-1-64bi-li?from=search#profileId-1682360
https://makerworld.com.cn/zh/models/2750162-1-87-hobi-li-li-bo-hai-er-11200diao-che-mo-xing-a1#profileId-3194836
For other models, only the interface section needs to be remade
It took a week to design with AutoCAD. To ensure 3D printing strength, it was made a bit thicker and is generally heavy. This makes it difficult to balance on the 3D printed 11200 without additional fixing

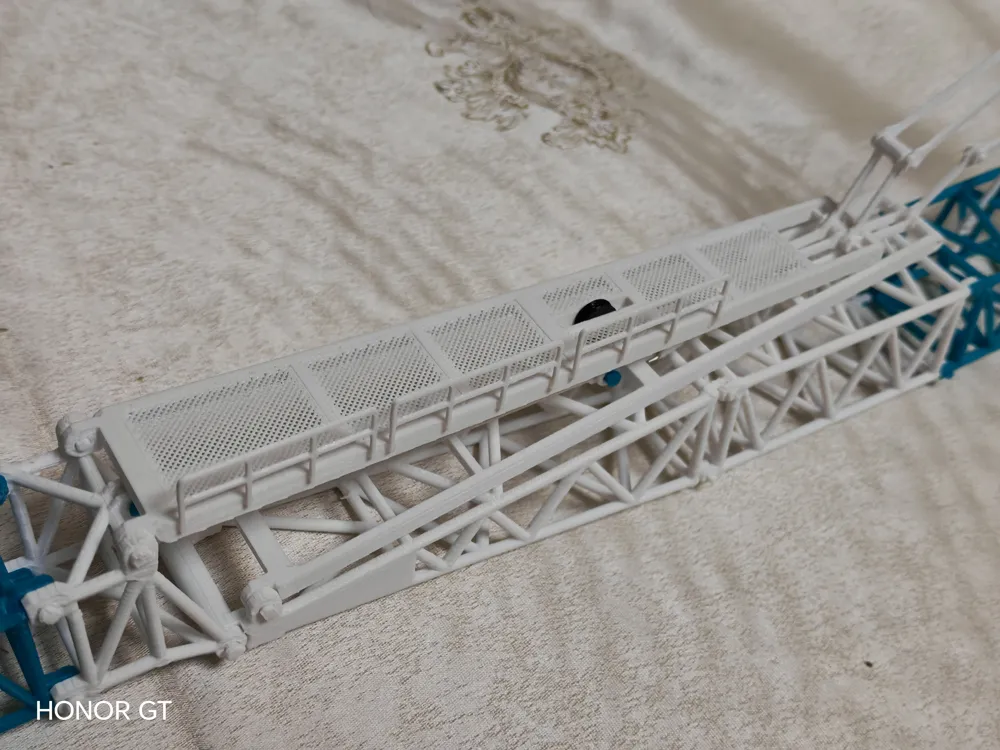

Plate 2 has pins for connecting and assembling the truss. Thin screws can also be used, but be careful to avoid splitting, and applying glue is recommended if necessary
There are no instructions, but it should not be difficult to assemble
Supports are recommended to prevent sagging and stringing! However! If supports are enabled to ensure print quality, you will find that the supports are heavier than the model, and removing them will be hellishly difficult

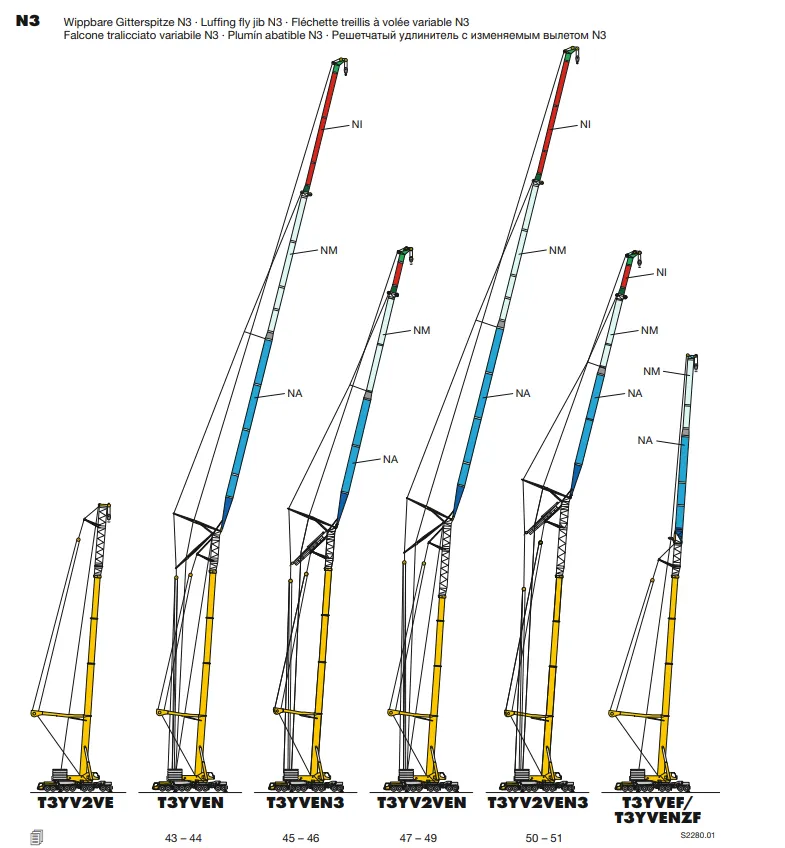

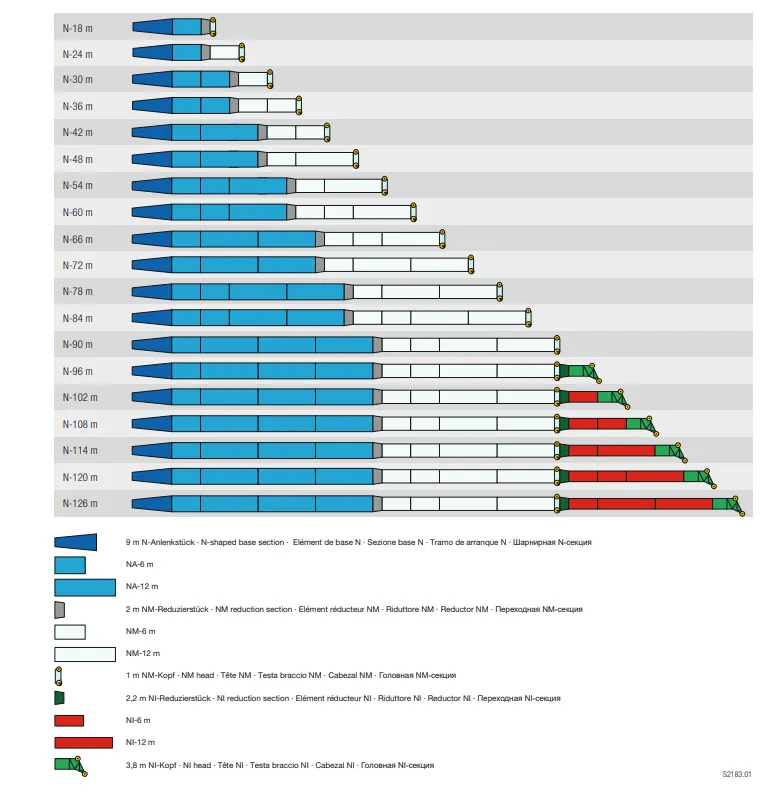

Attachment: Liebherr official documentation
