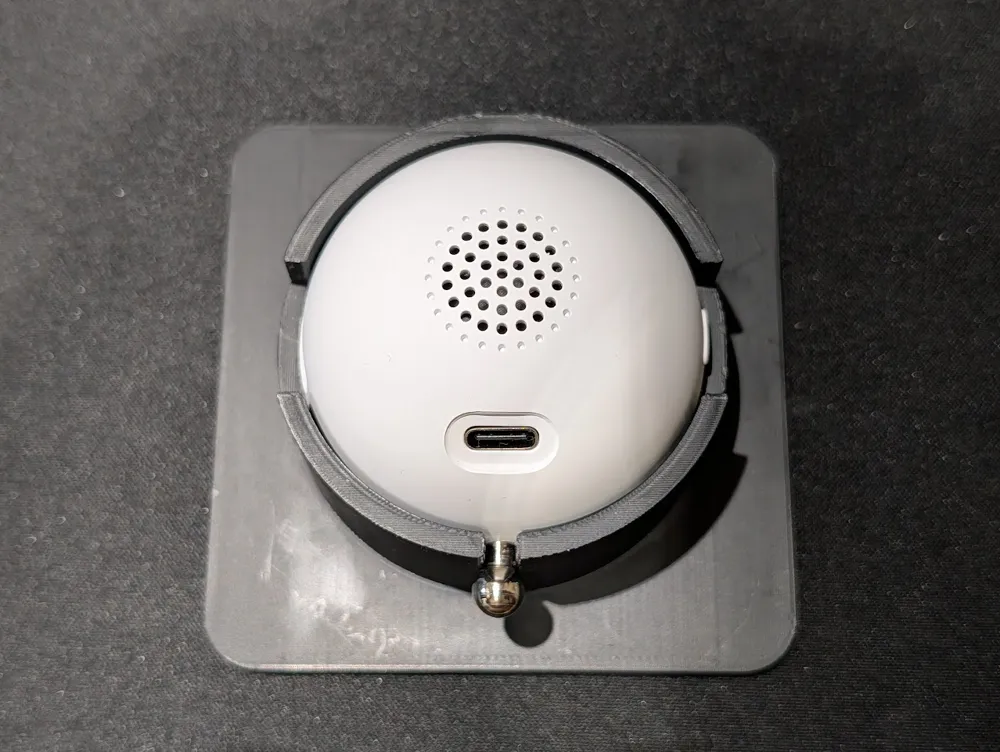

WUUK 4MP/2.5K Indoor Security Camera Window Mount

Window mount for the WUUK 4MP/2.5K Indoor Security Camera — lets you attach the camera directly to a window using double-sided tape instead of the stock stand.

Two versions are included for different double-sided tape thicknesses: 1.1mm and 2mm. Pick the STL that matches your tape.

Disassembling the stock stand:

1. Using a razor or a spudger, carefully remove the black faceplate off the camera. It's attached with double-sided adhesive tape and comes off easily to reveal a screw hole.
2. Use a thin Phillips head screwdriver (I used one with a 2mm diameter) to remove the hidden screw.
3. The base should now release. If it doesn't, try giving the camera a gentle squeeze.
4. Once the base is free, remove the 4 rubber pads to reveal 4 screws.
5. Remove the 4 screws and take off the base plate.
6. Remove the metal weights and magnet.
7. Push on the metal ball head and the plastic/rubber insert will pop out.
8. Put the metal ball head into the camera body, reinstall the screw, and reinstall the faceplate.

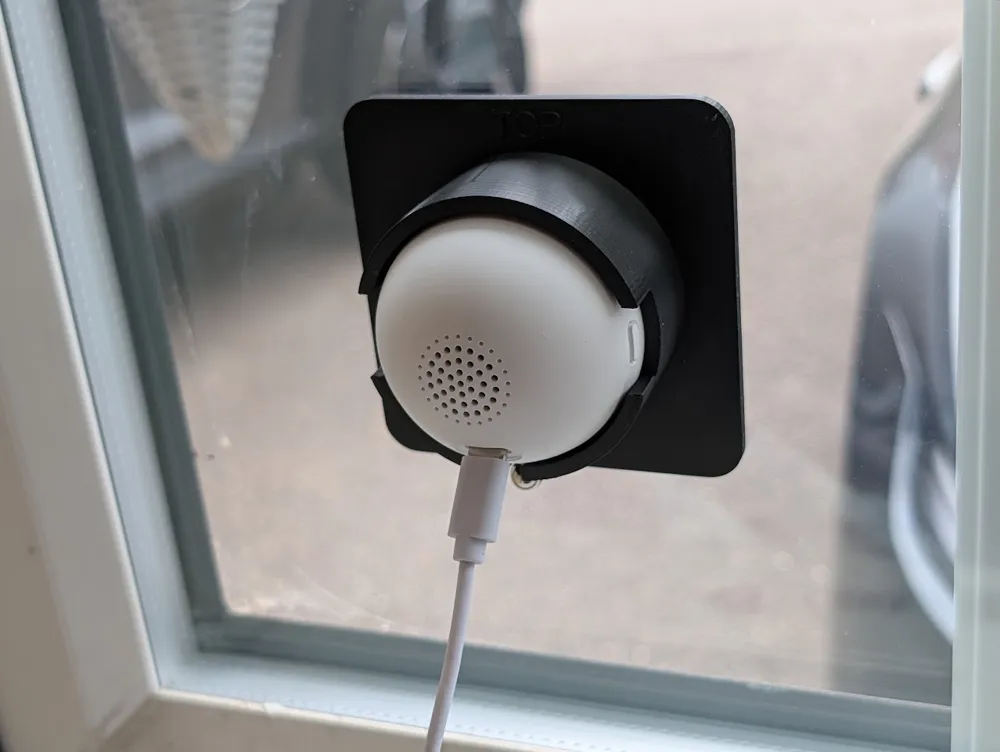

Mounting to your window:

1. Clean the window surface thoroughly with rubbing alcohol and let it dry.

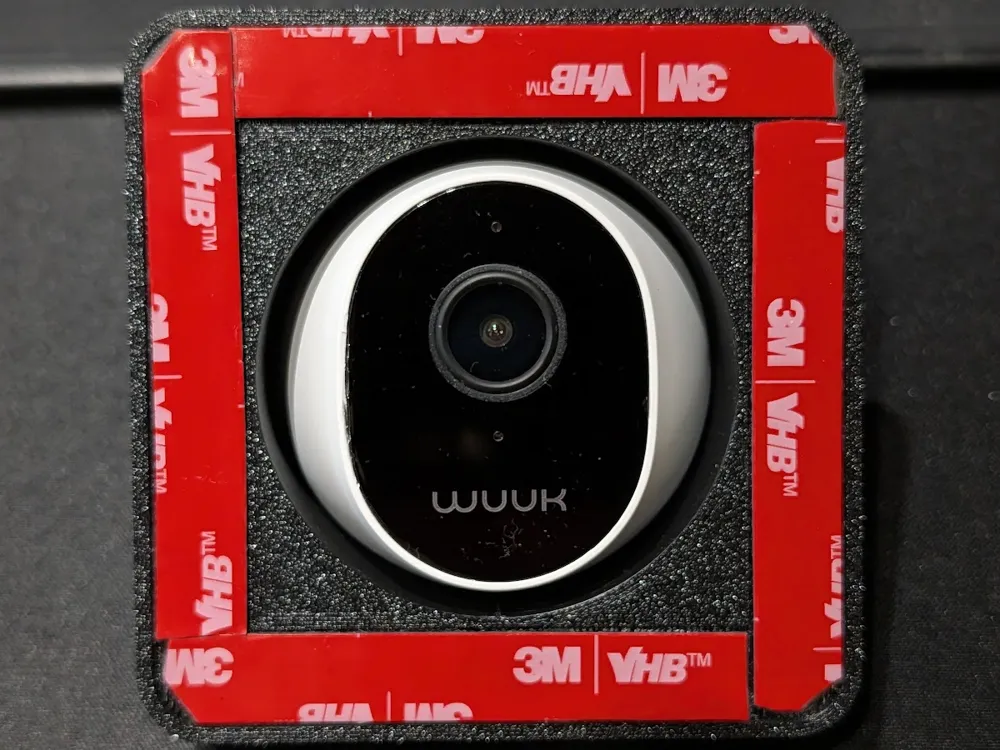

2. Apply the double-sided tape to the back of the printed mount, then press firmly onto the window for at least 30 seconds.
3. Wait for the adhesive to fully cure (check your tape's instructions — usually 24 hours) before attaching the camera.
4. Push the camera in from the rear until the camera is touching the window and the ball head is in its slot.
