Description

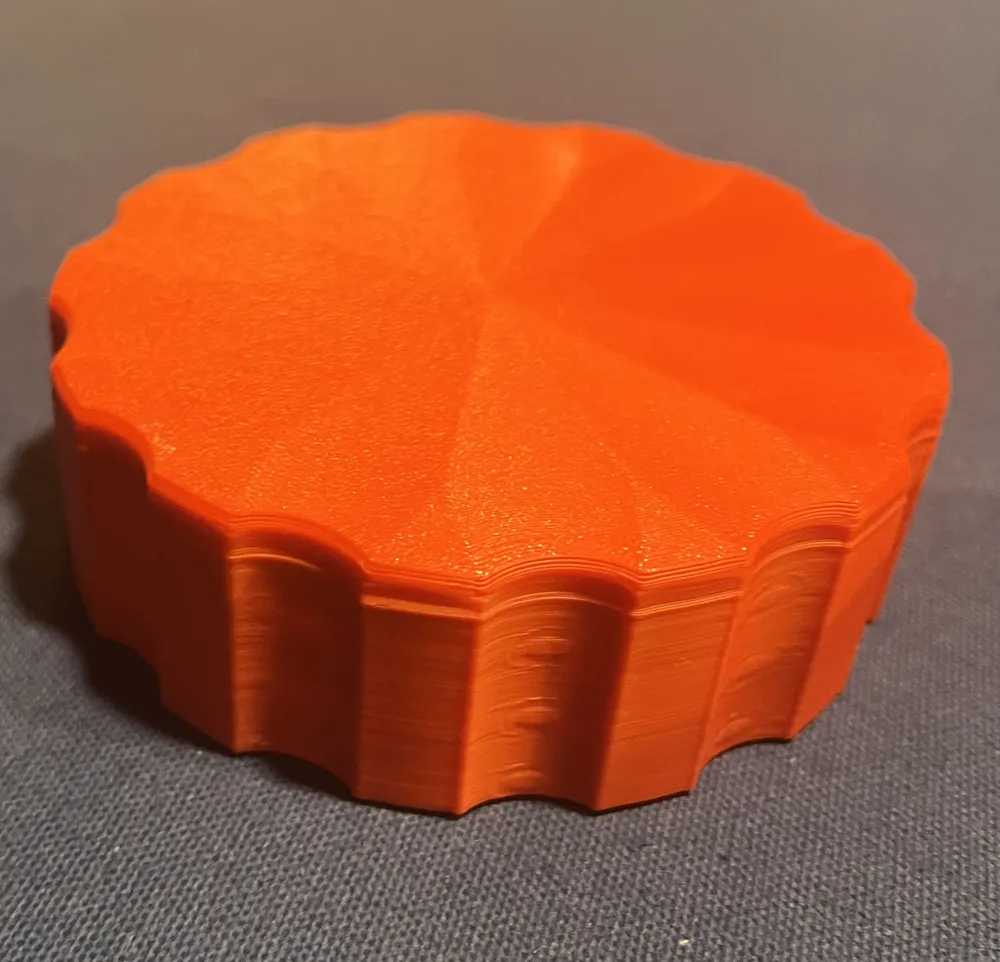

Modular tube system featuring threaded connections and a textured grip on the end cap and plug for easy handling.
There are addition models of the End Cap & Plug models that includes placeholder text on the bottom face for a custom label.

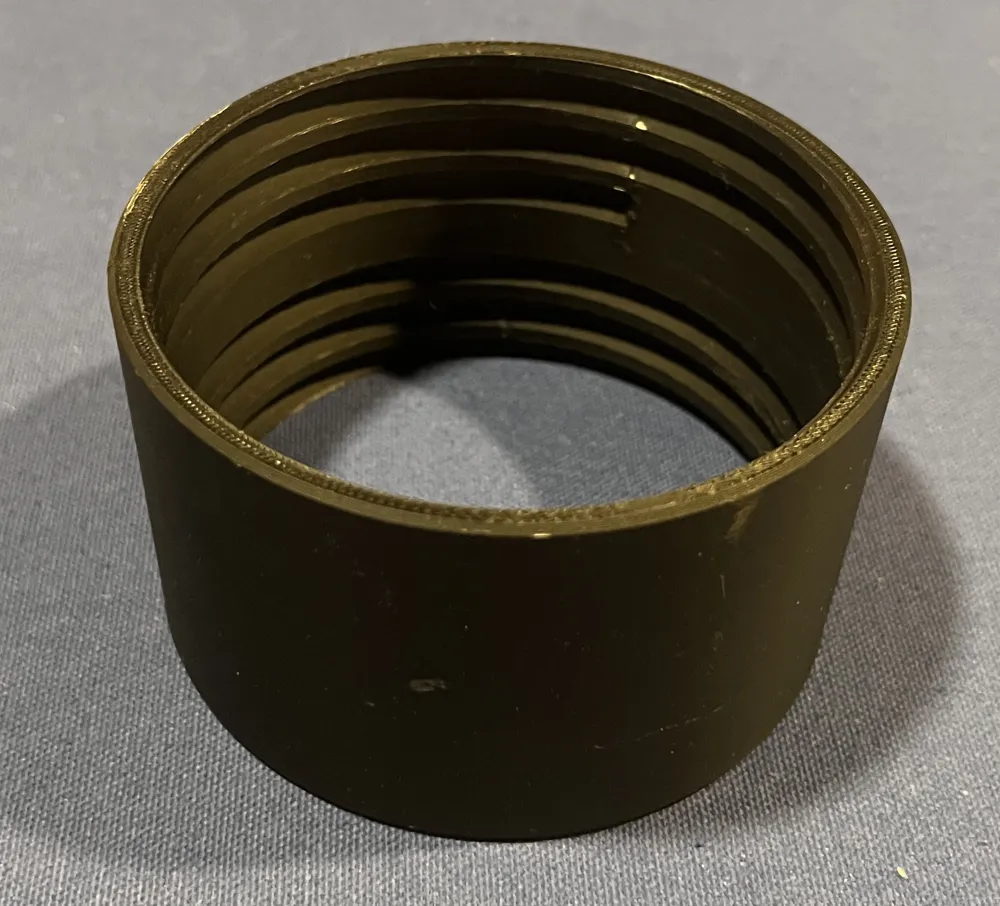

A separate external thread ring model is also included so if you wanted to use the external cap on each end.

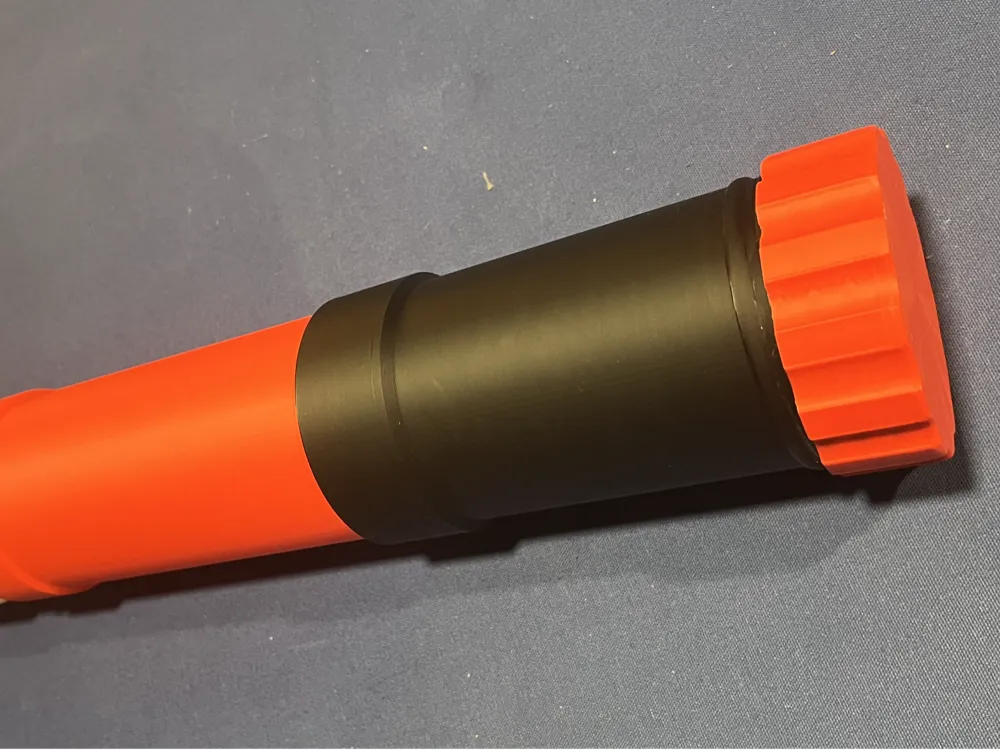

Originally designed to store and protect sports banners, this tube is versatile and suitable for storing any items that fit within the cylinder like posters, blueprints, art projects.
The threaded components are designed to fit smoothly straight off the printer, with no sanding or post-processing required.
Printed on a Bambu Lab A1 using multiple brands of PLA
Print Settings Tested:
• Material: PLA
• Layer height: 0.2 mm (standard)
• Also tested successfully at 0.24 mm standard settings

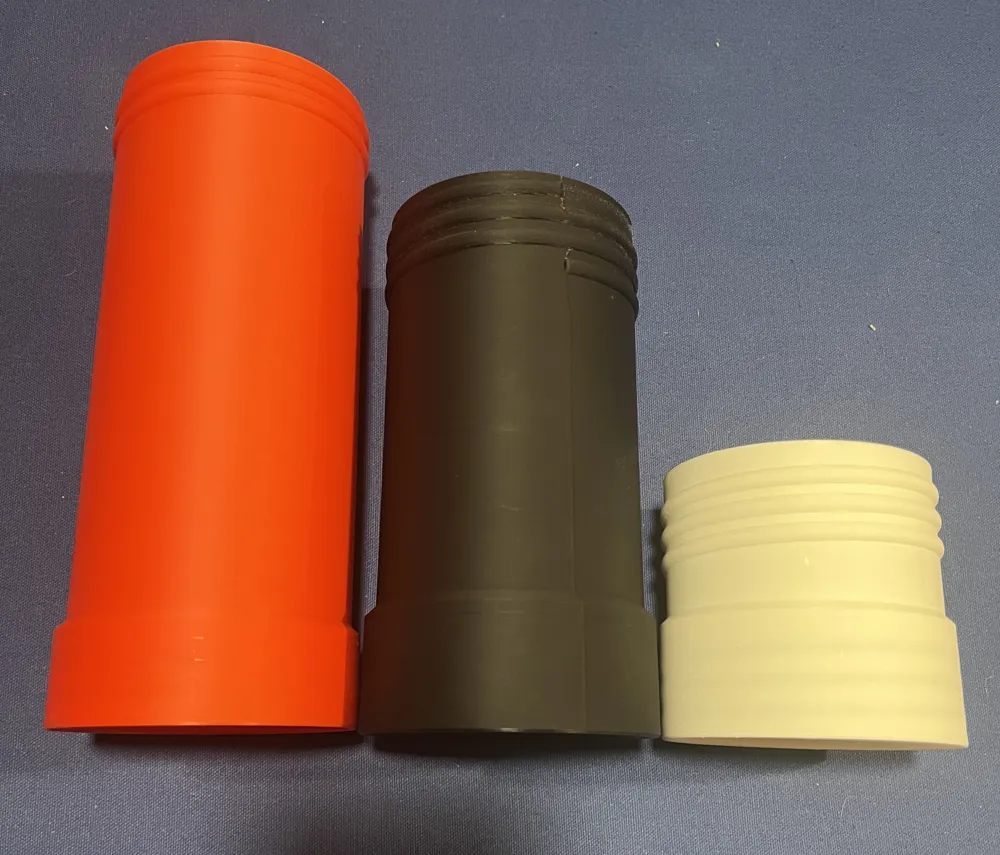

Models
98mm (3.85 inch) internal diameter, 100mm (3.94 inch) outer diameter.
100mm_100mm Tube - 74mm (2.92 inch) usable internal length.
100mm_175mm Tube - 149mm (5.86 inch) usable internal length.
100mm_200mm Tube - 164mm (6.85 inch) usable internal length.
100mm_250mm Tube - 224mm (8.82 inch) usable internal length.
100mm_290mm Tube - 264mm (10.39 inch) usable internal length.
