Description

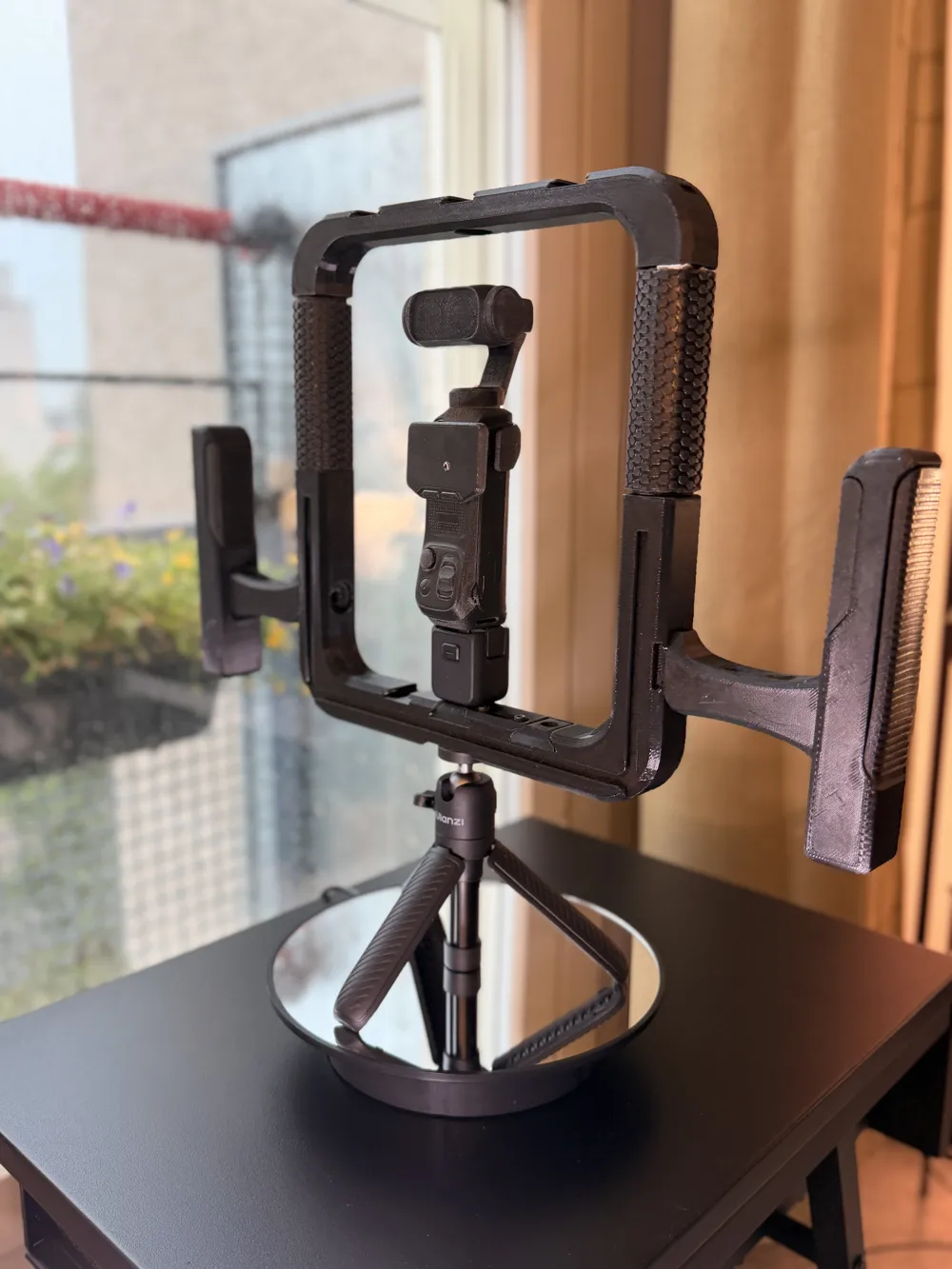

OmniMount Creator Rig (For Luna Ultra & Multi-Device Setup)
Take your content creation workflow to the next level with the OmniMount Creator Rig. Engineered specifically for the Luna Ultra, smartphones, and action cameras, this modular rig transforms your mobile setup into a full-production studio footprint.

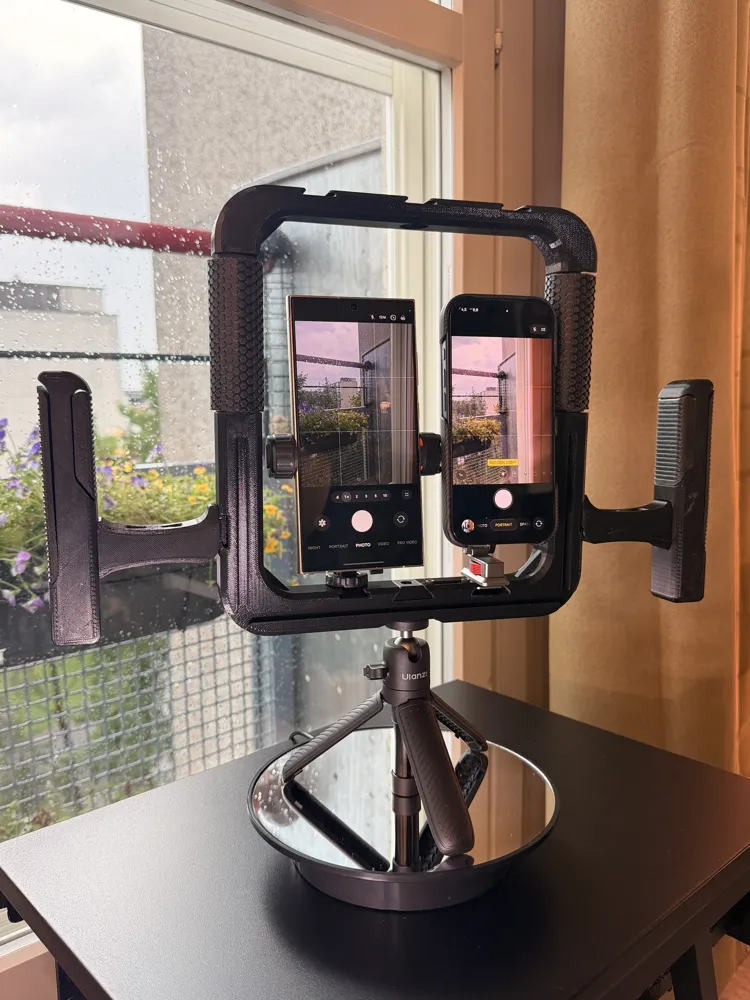

Whether you need a compact rig for run-and-gun shooting or a fully loaded multi-device setup complete with microphones, monitors, and external lights, the OmniMount adapts instantly to your creative demands.
Instagram Video: LINK
Key Features

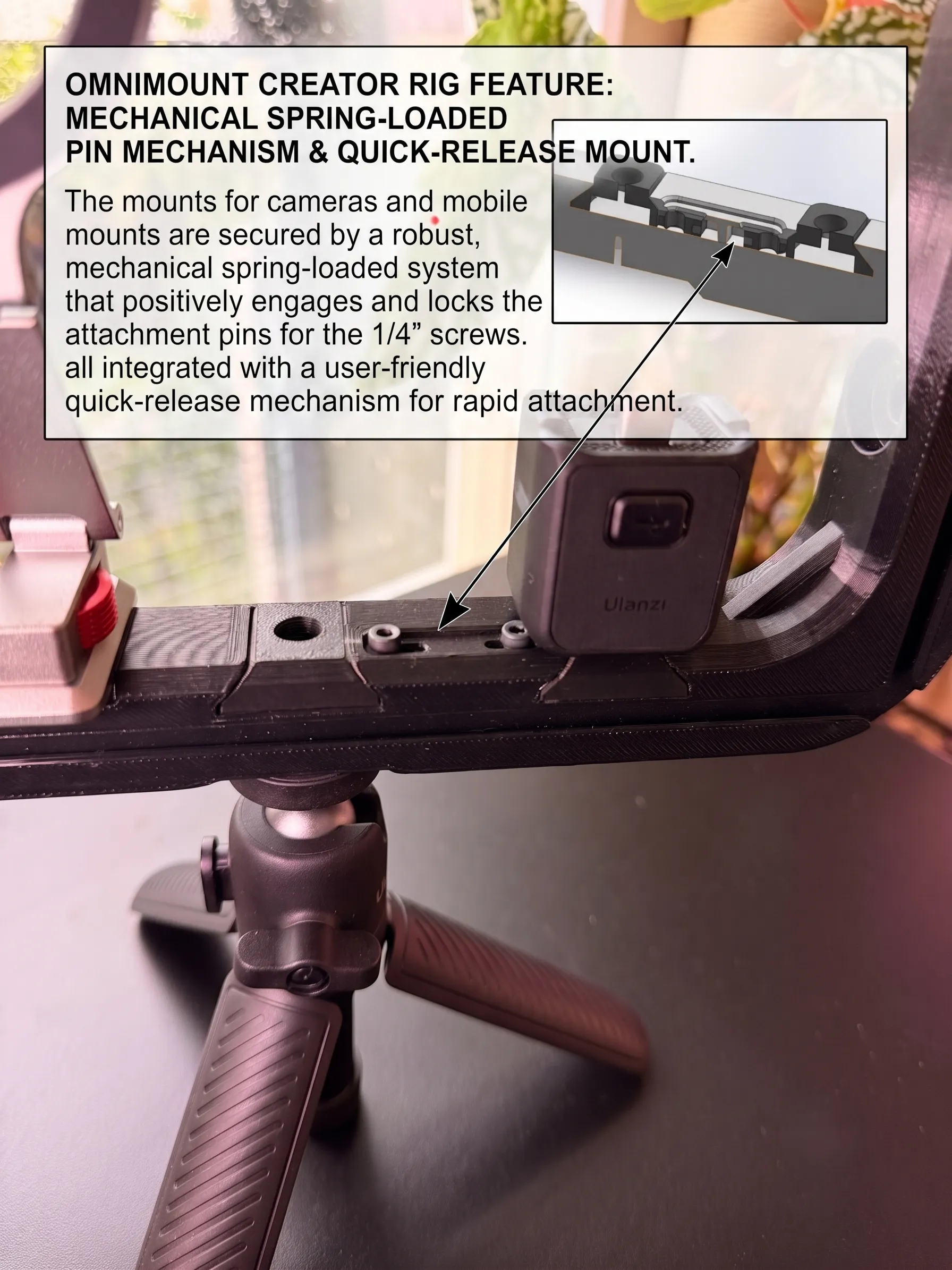

- Mechanical Spring-Loaded Pin Lock: Your cameras and mobile mounts are secured by a robust, integrated spring-loaded mechanism that positively engages and locks attachment pins for total peace of mind and lightning-fast quick-release functionality.

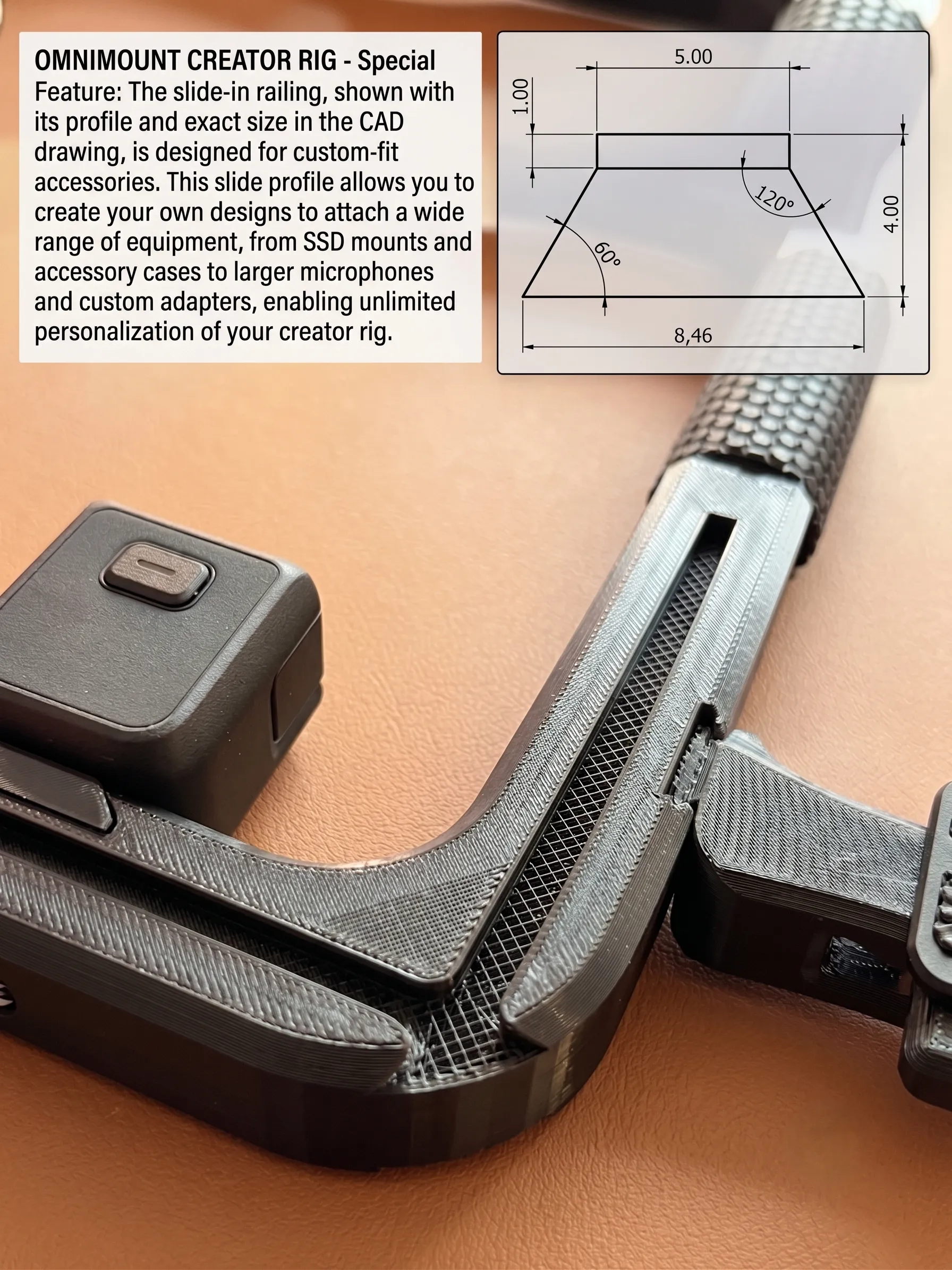

- Custom Accessory Railing System: Features a built-in slide-in rail profile (60° dovetail, 8.46mm base) allowing you to design and attach your own personalized gear—from custom SSD holders to microphone adapters.

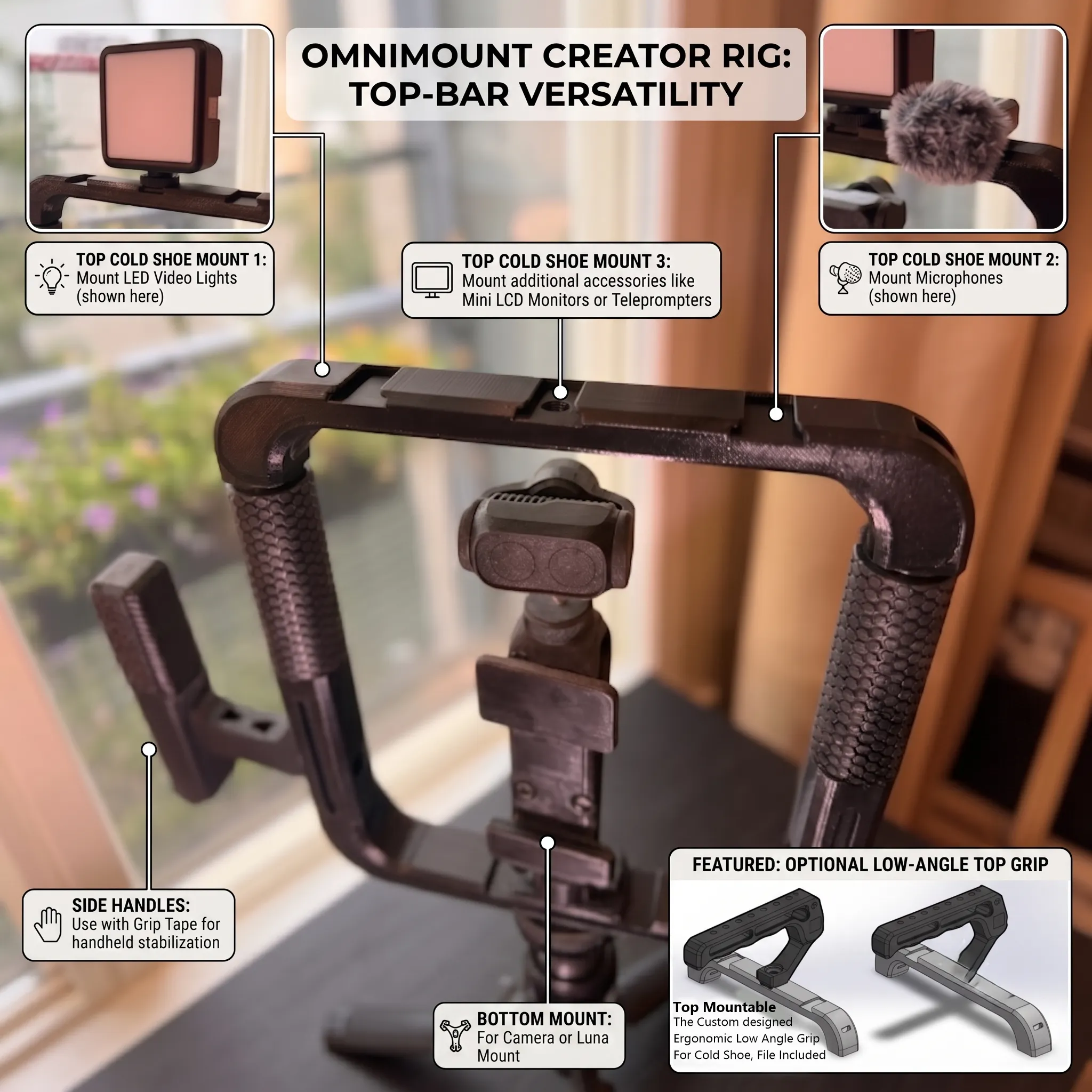

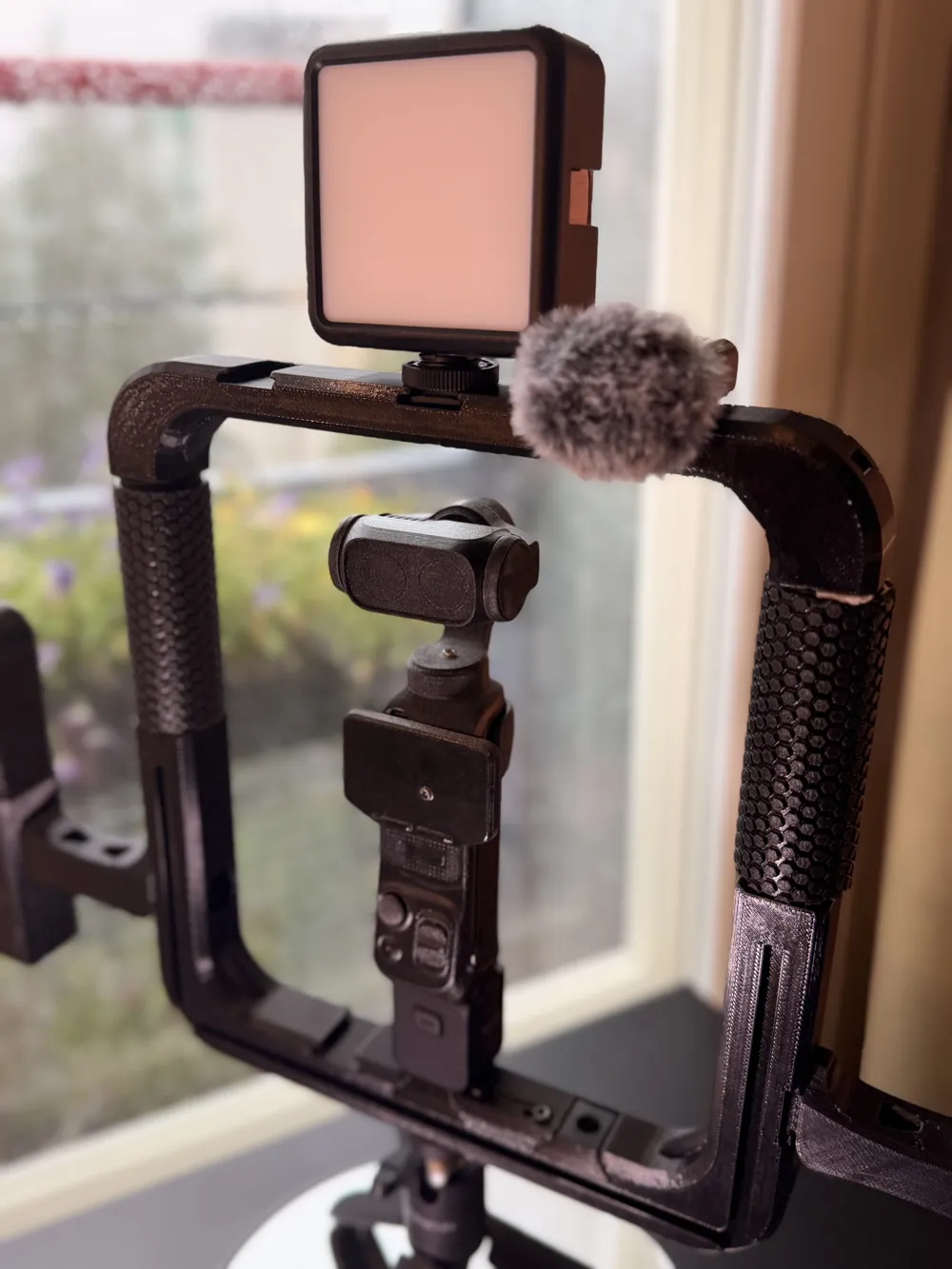

- Top-Bar Versatility: Built-in triple cold shoe array on the top bar to seamlessly house LED video lights, shotgun microphones, mini LCD monitors, or teleprompters.
- Modular Ergonomics: Swap between integrated, low-profile textured frame grips (includes 12 interchangeable surface designs) or heavy-duty external outrigger hand grips for maximum handheld panning stability.

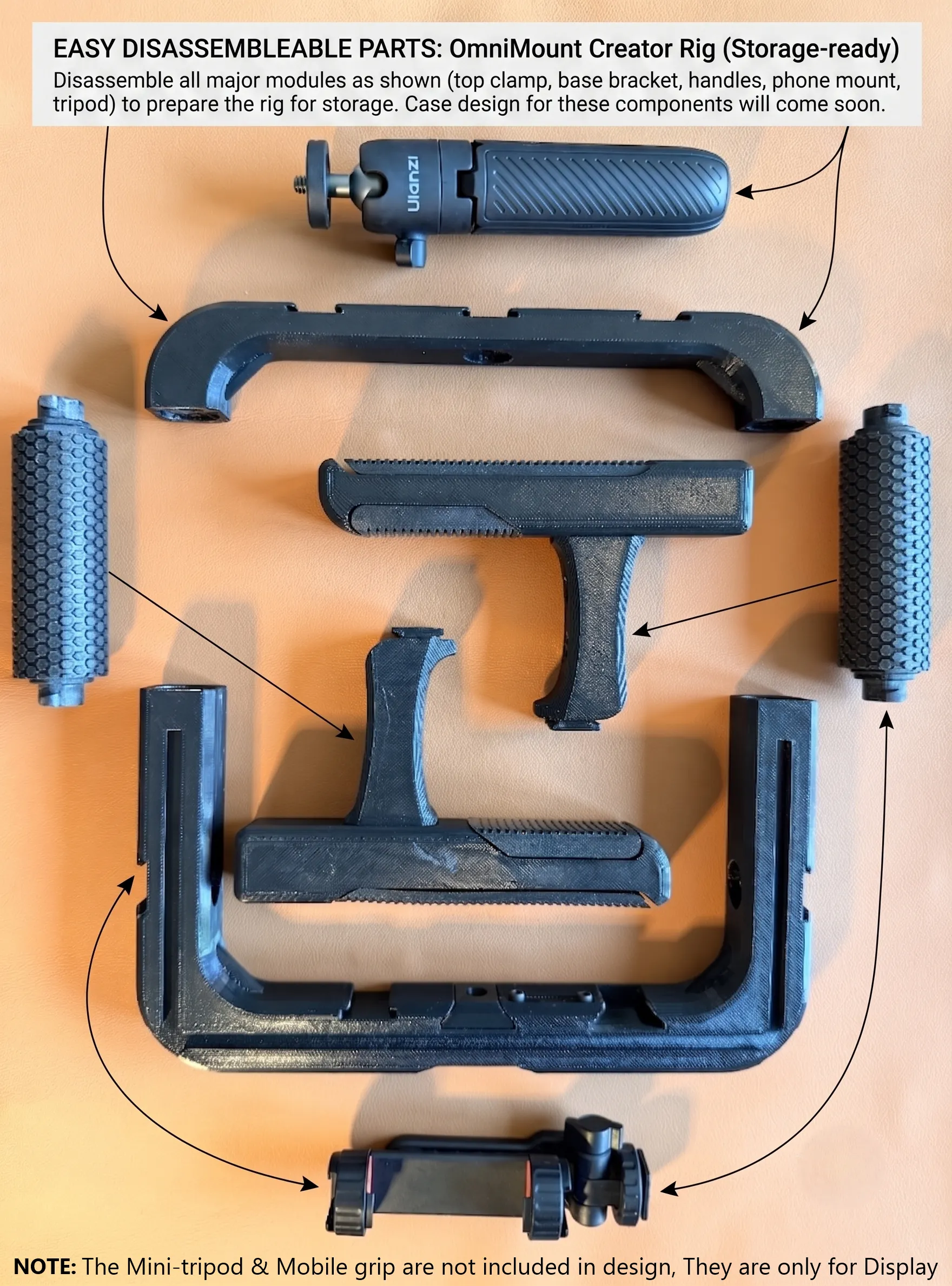

- Storage-Ready Modular Assembly: The easy-disassemble version allows the top clamp, base bracket, handles, and mounts to detach fully for flat-pack storage and easy travel.
Bill of Materials (BOM)
Depending on the configuration you choose to build (Fixed vs. Disassemble/Modular), you will need the following hardware components:
| Component | Purpose / Notes |
|---|---|
| 3D Printing Filament | PLA, PETG, or ABS/ASA (for rugged outdoor use) |

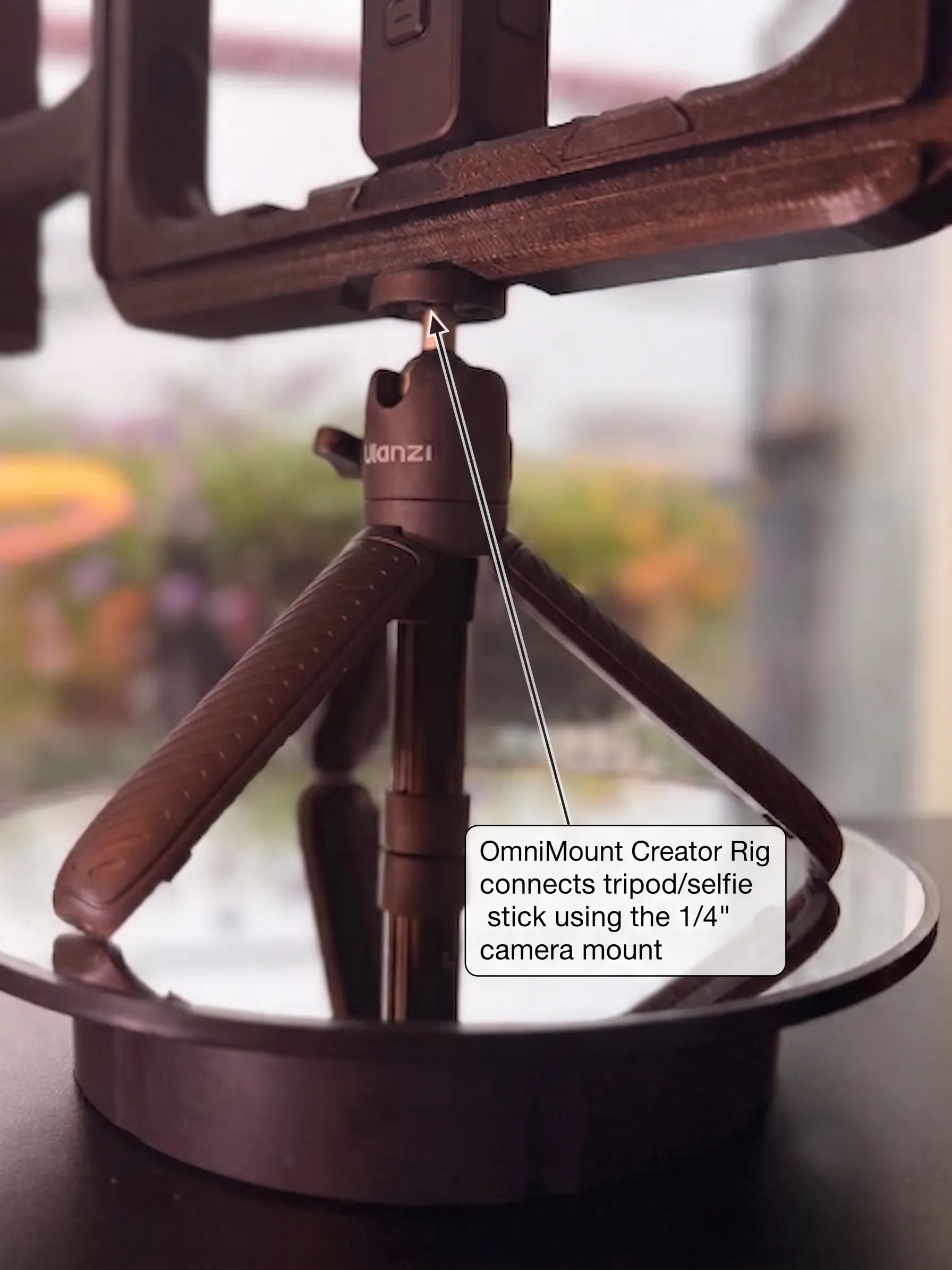

| 1/4" Brass Threaded Inserts | Heat-set into the base and sides for universal tripod and accessory attachment |
| 1/4" Camera Mount Screws | Standard D-ring or thumb screws (17-18mm length recommended for external hand grips) |
| M3 Screws | Required for securing the Fixed Version frame joints |
All kinds of Cold Shoe Accessories are compatible with Cold Shoe slots. Some Example gear is down below :
- Insta360 Luna Ultra: LINK
- Insta360 1/4" Thread Handle for Luna Series: LINK
- Insta360 2-in-1 Selfie Stick + Throwpod: LINK
- Insta360 Foldable 2-in-1 Selfie Stick (1/4" Mount): LINK
- Insta360 All-Purpose Tripod: LINK
- Insta360 2-in-1 Invisible Selfie Stick + Tripod: LINK
- Insta360 Mic Pro (Both Magnetically and Via C-Clip): LINK
- Insta360 Mic Pro Receiver: LINK
- Ulanzi VL49 Rechargeable Mini RGB Light: LINK
- Ulanzi MT88 ClipMate Tripod: LINK
- Ulanzi ST-06S Multi-Function Cold Shoe Smartphone Holder: LINK
- NEEWER BASICS SP-10 Phone Tripod Mount Holder with 1/4" Thread & Cold Shoe: LINK
- NEEWER CA163 Magnetic Tripod Phone Mount: LINK
- NEEWER F700 LED 7" Camera Touch Screen Monitor: LINK
Disclaimer: Not sponsored or affiliated with any brands shown. All external mounts and accessories are just items from my personal setup used for demonstration.
Configuration & Build Options
- Fixed Framework Version: Uses M3 screws to permanently lock the frame modules together for maximum structural rigidity during intensive operations.
- Easy-Disassemble Version: Storage-ready layout that lets you break down the frame, top clamp, and handles into individual compact modules without tools.

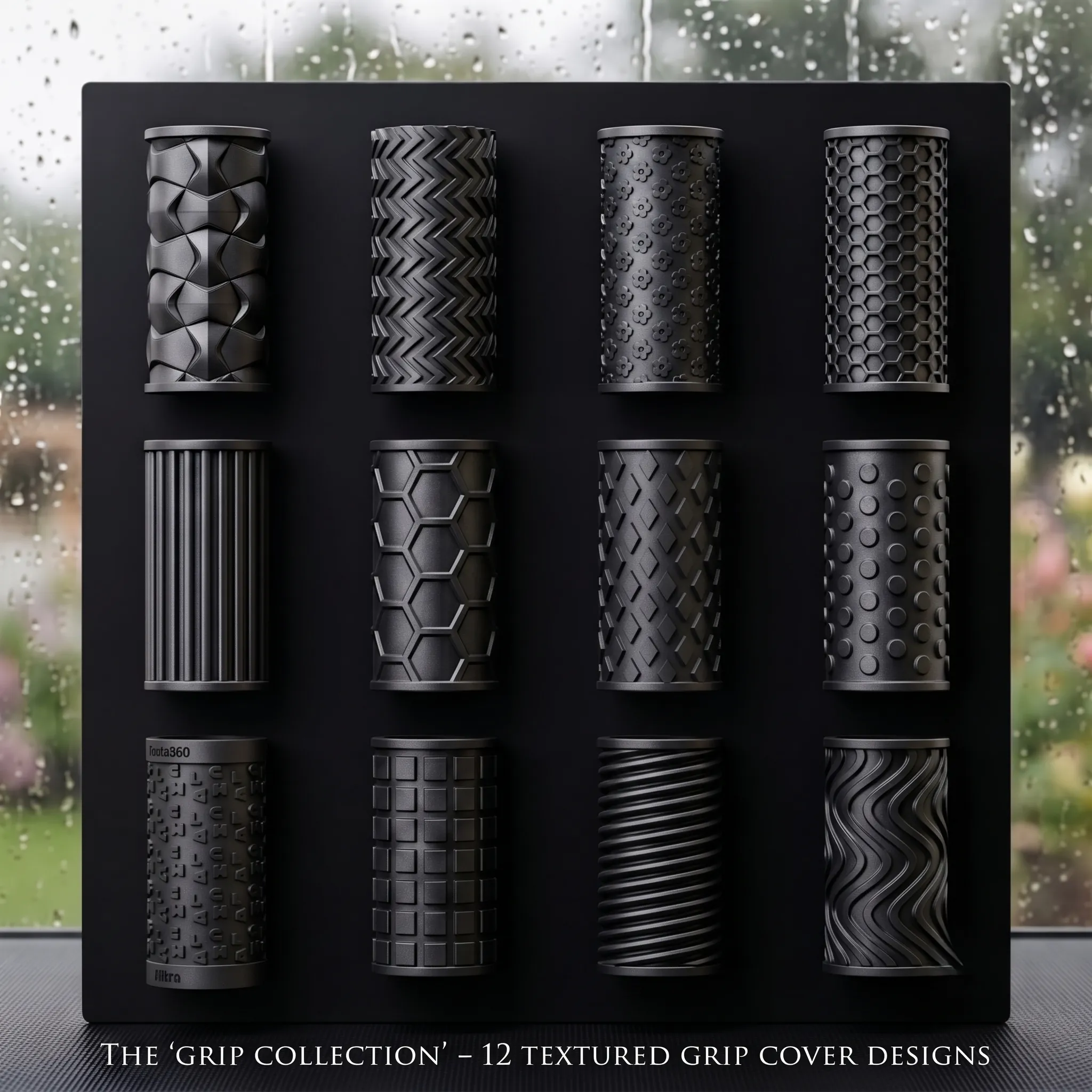

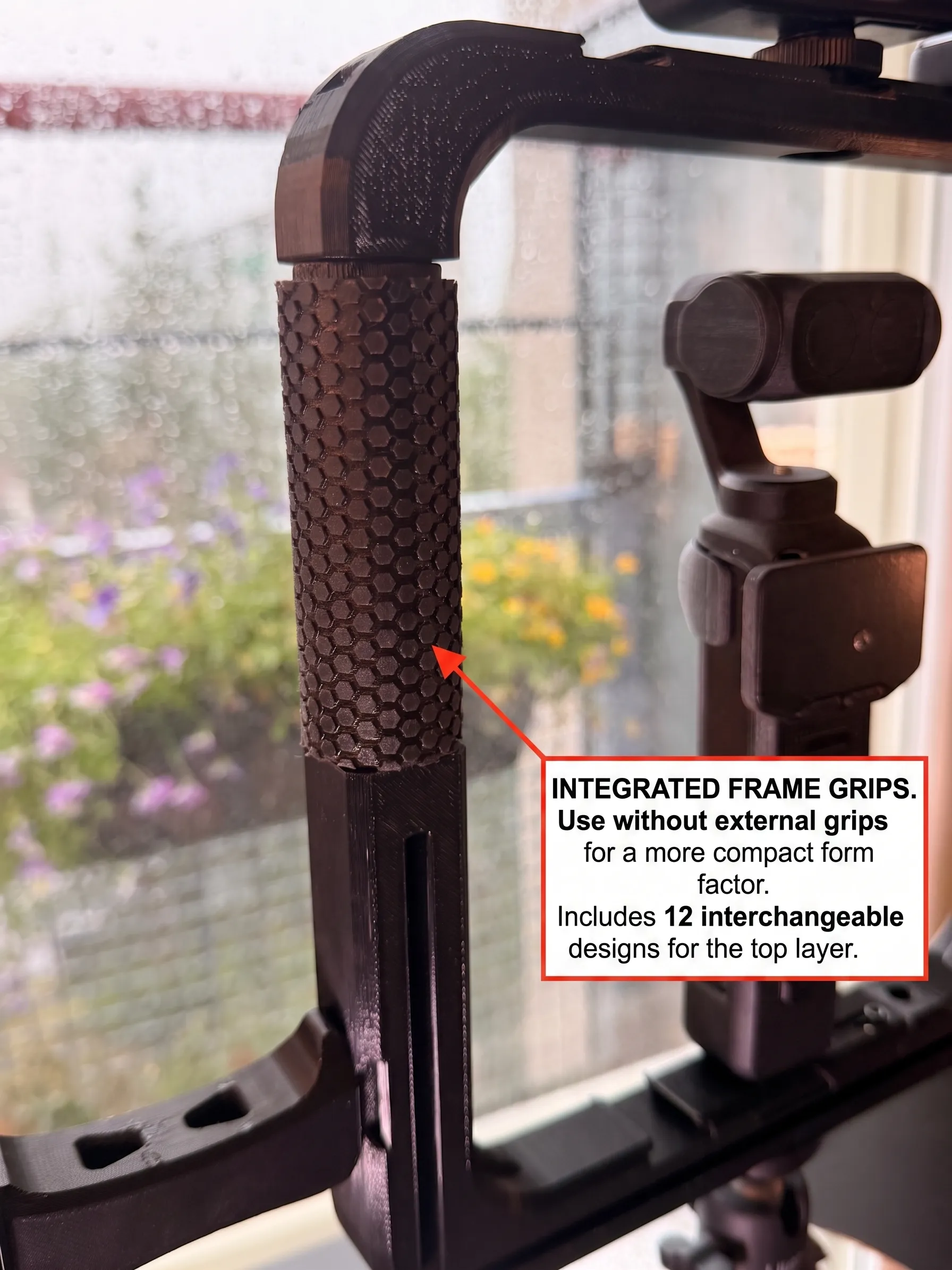

- Ultra-Compact Mode: Run the rig using the integrated textured frame sleeves (12 interchangeable geometric top layers included) to keep the footprint tight and lightweight.

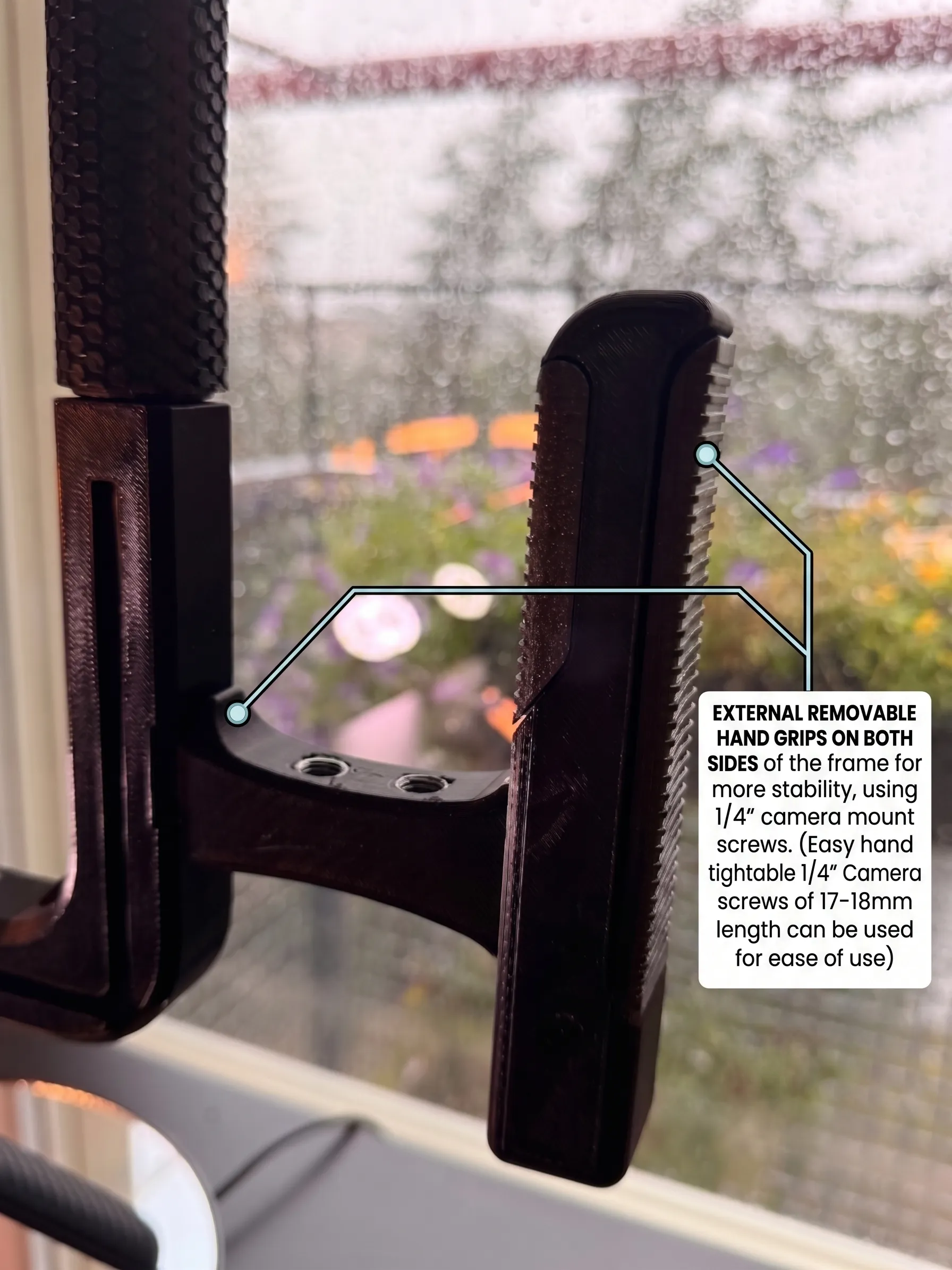

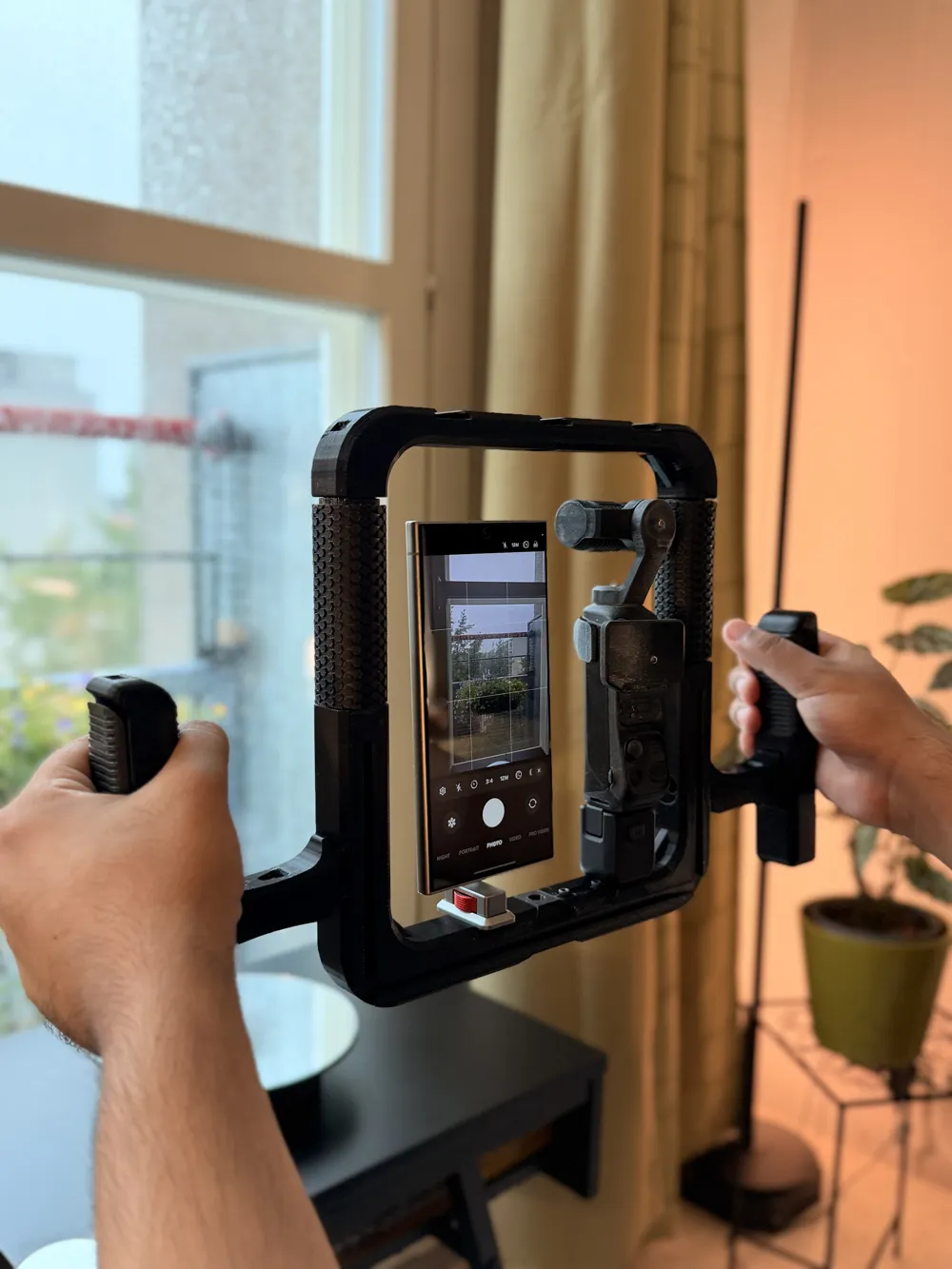

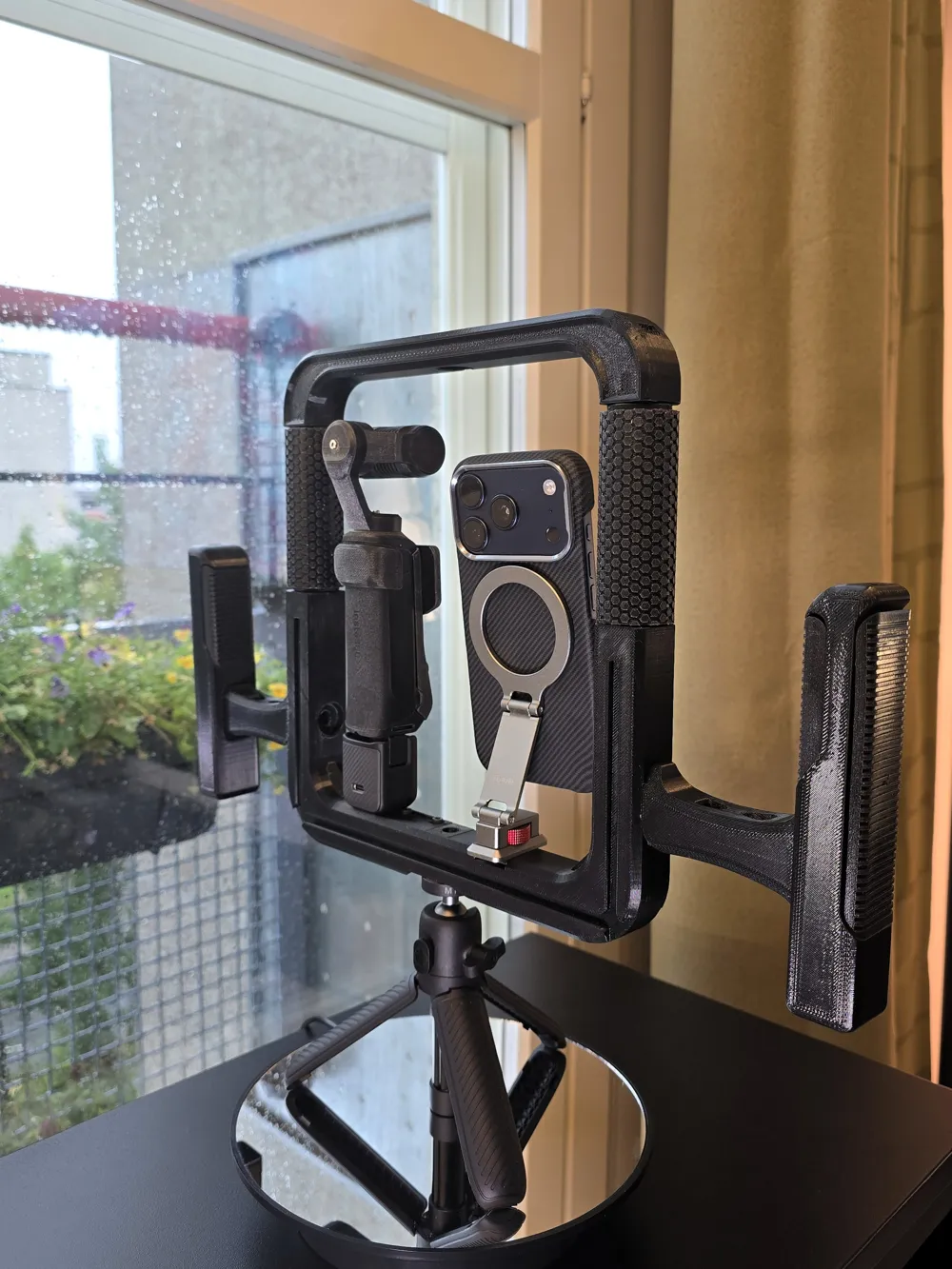

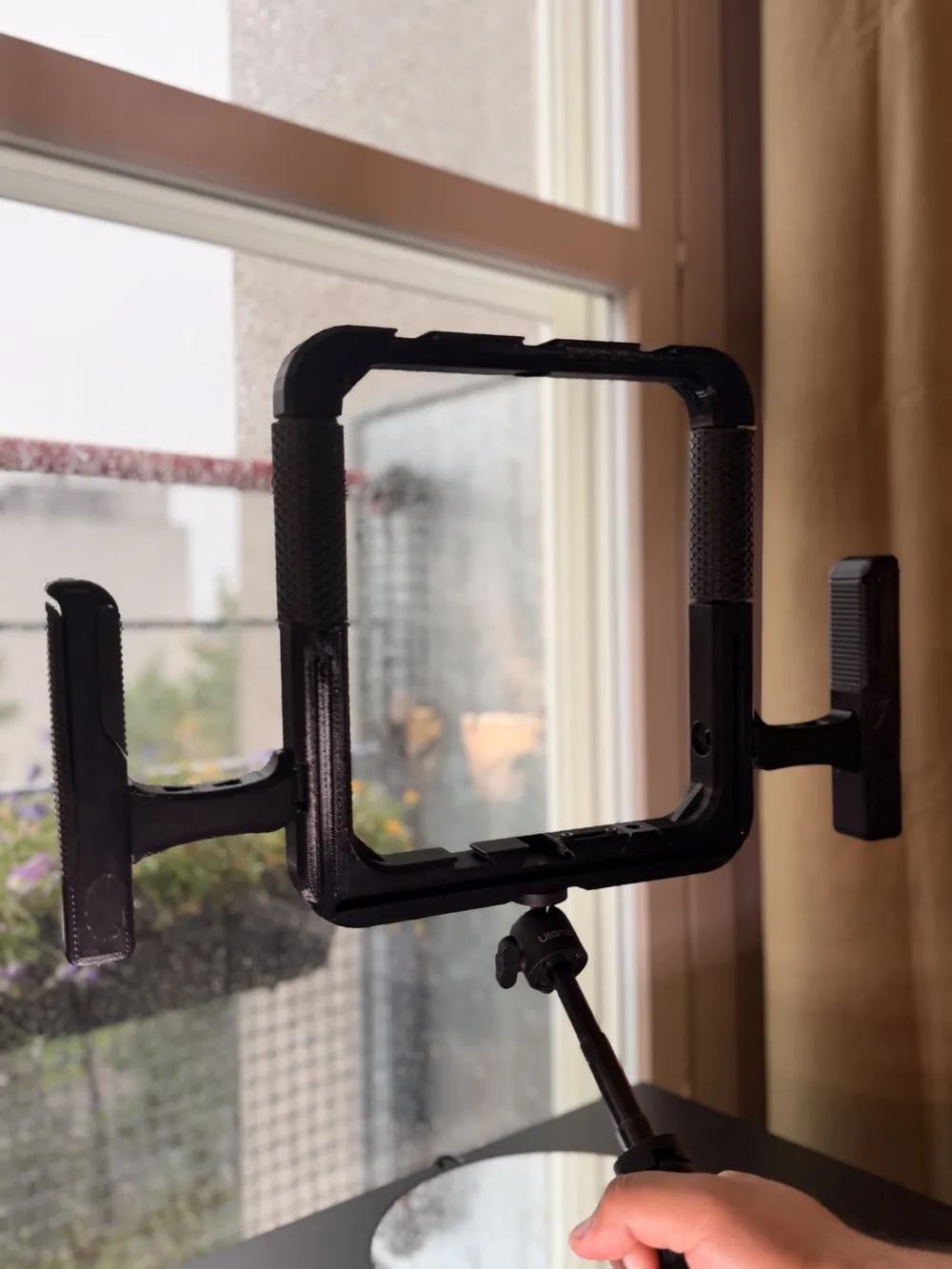

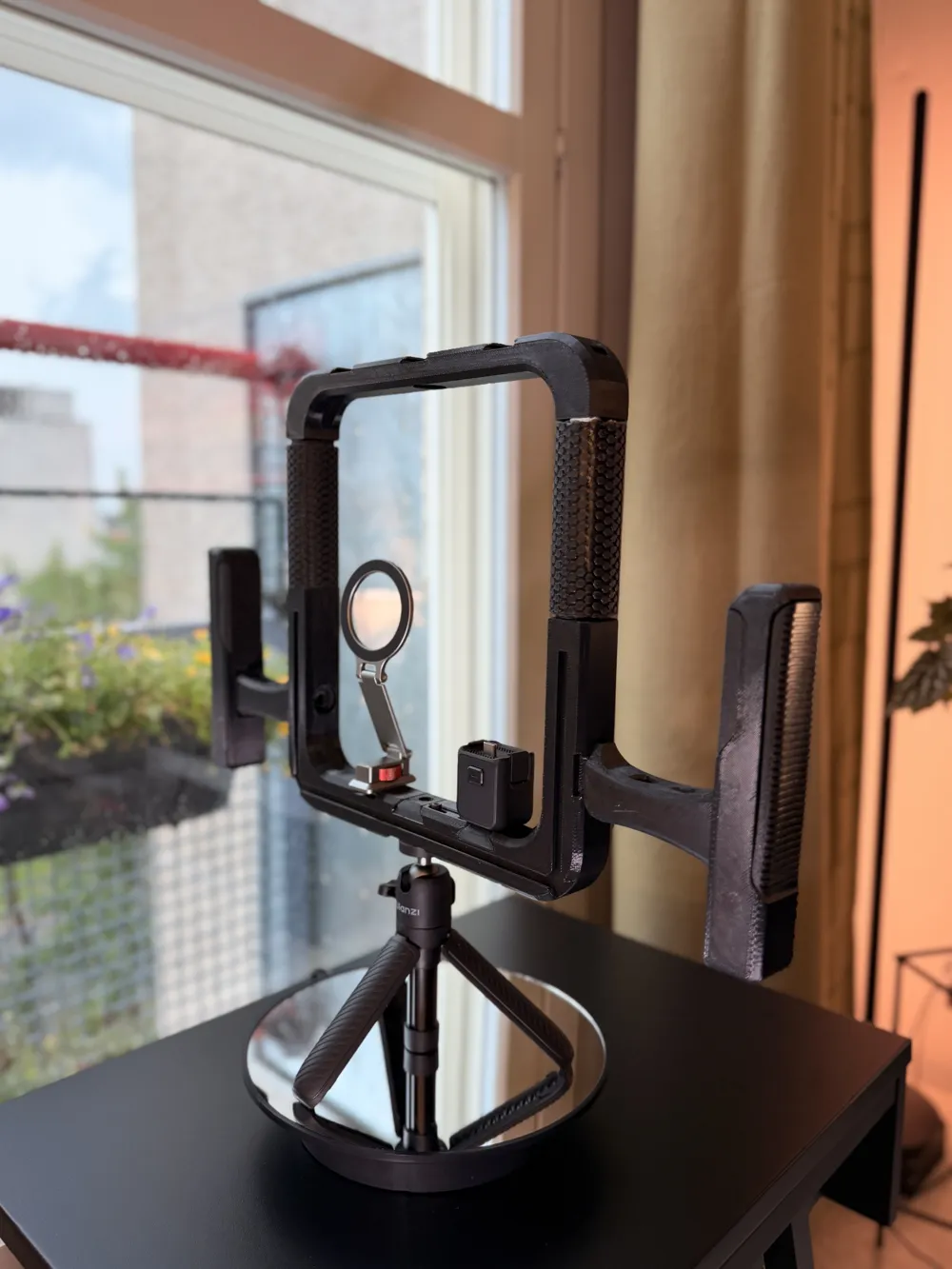

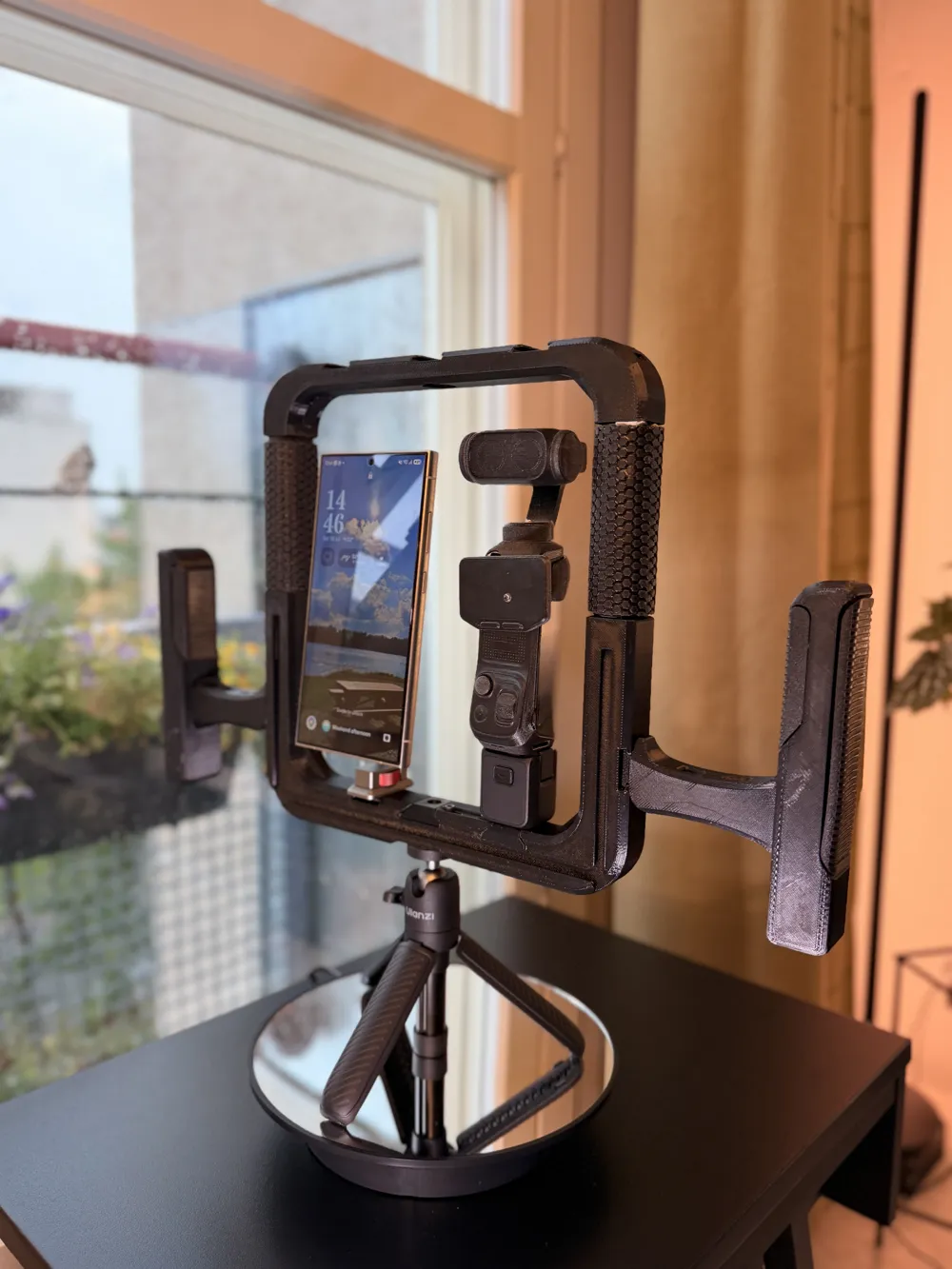

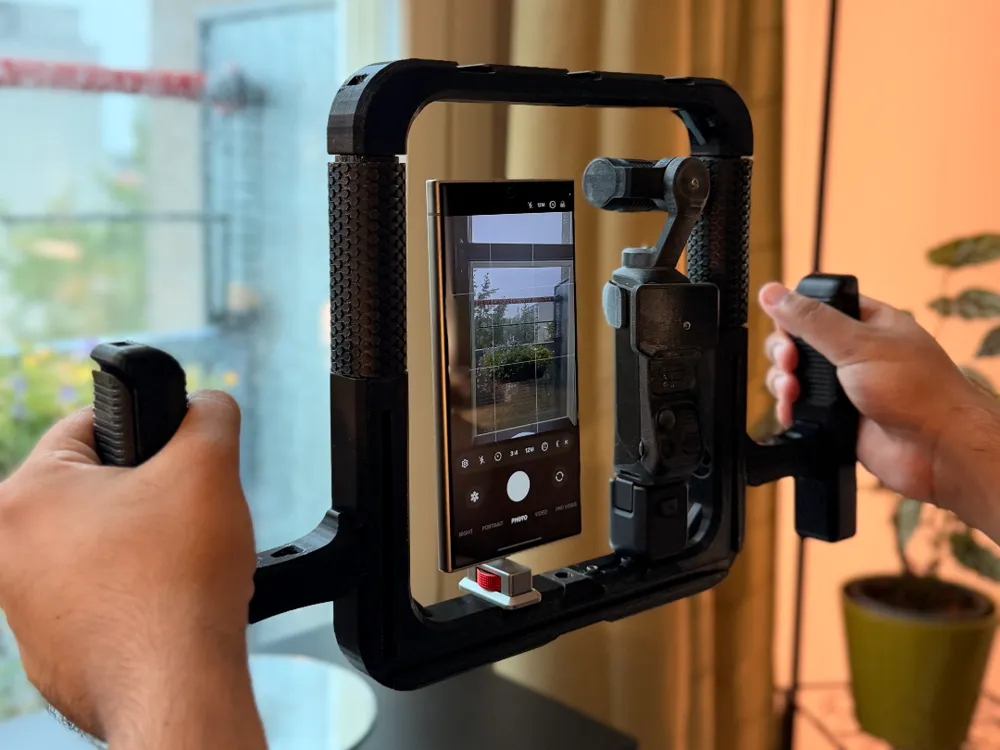

- Stable Handling Mode: Attach the dual-sided external hand grips using standard 1/4" thumb screws for smooth hand-held tracking shots and less fatigue.
- Low-Angle Top Handle: Includes files for a custom-designed, ergonomic cold-shoe mountable top handle for easy low-angle cinematic sweeps.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
