4-bay 2.5-inch drive enclosure
Print Profile(1)
Description

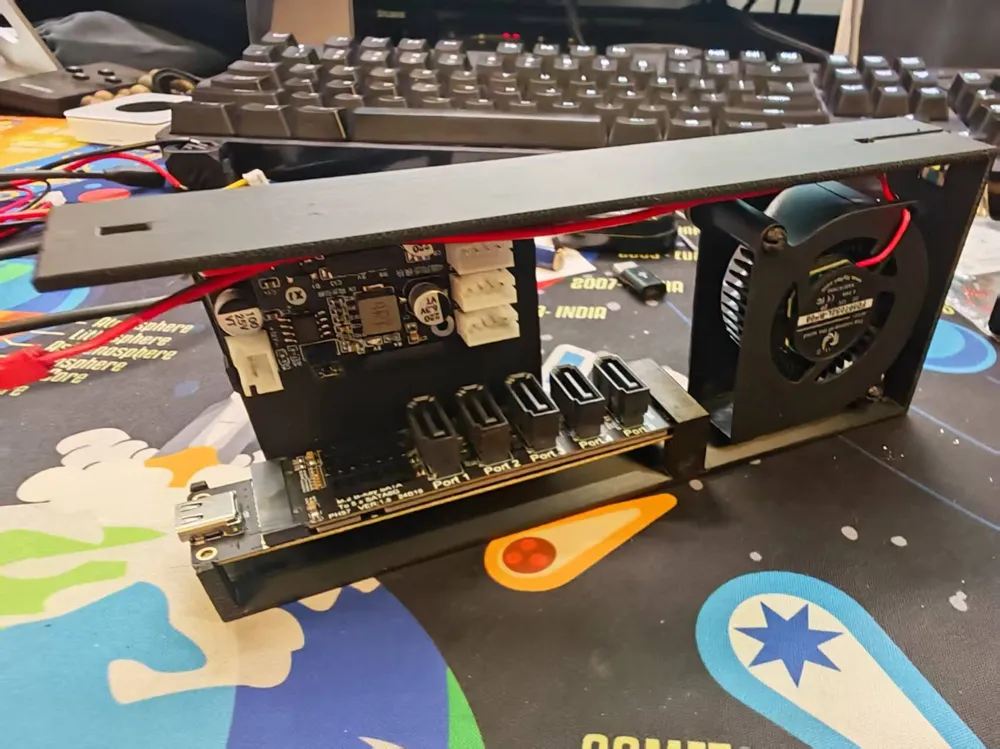

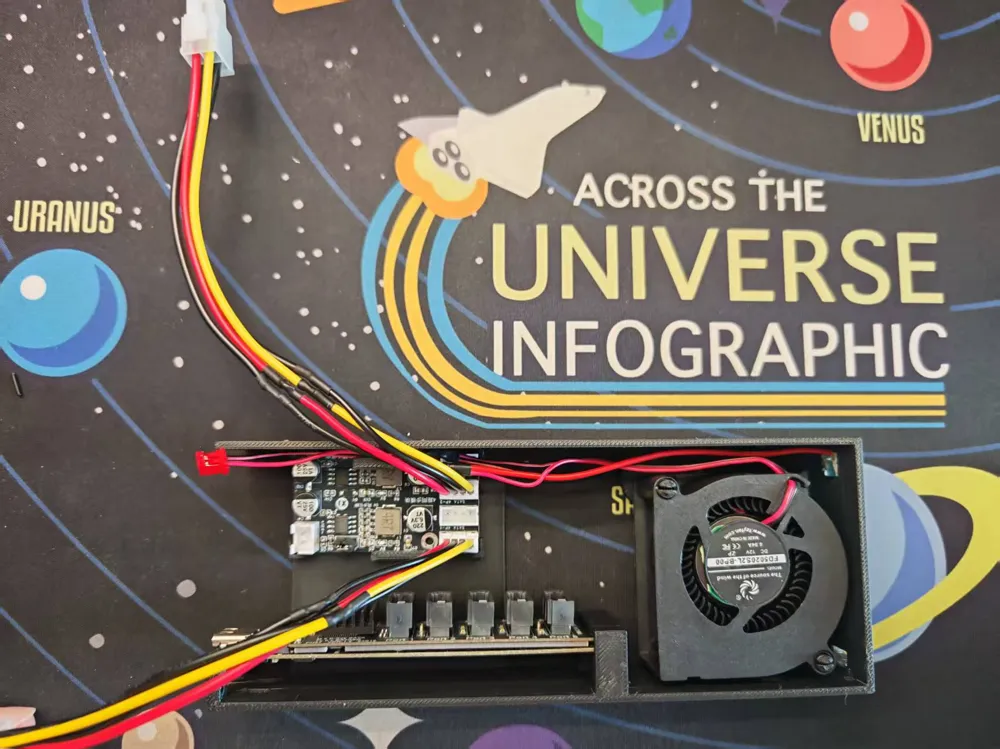

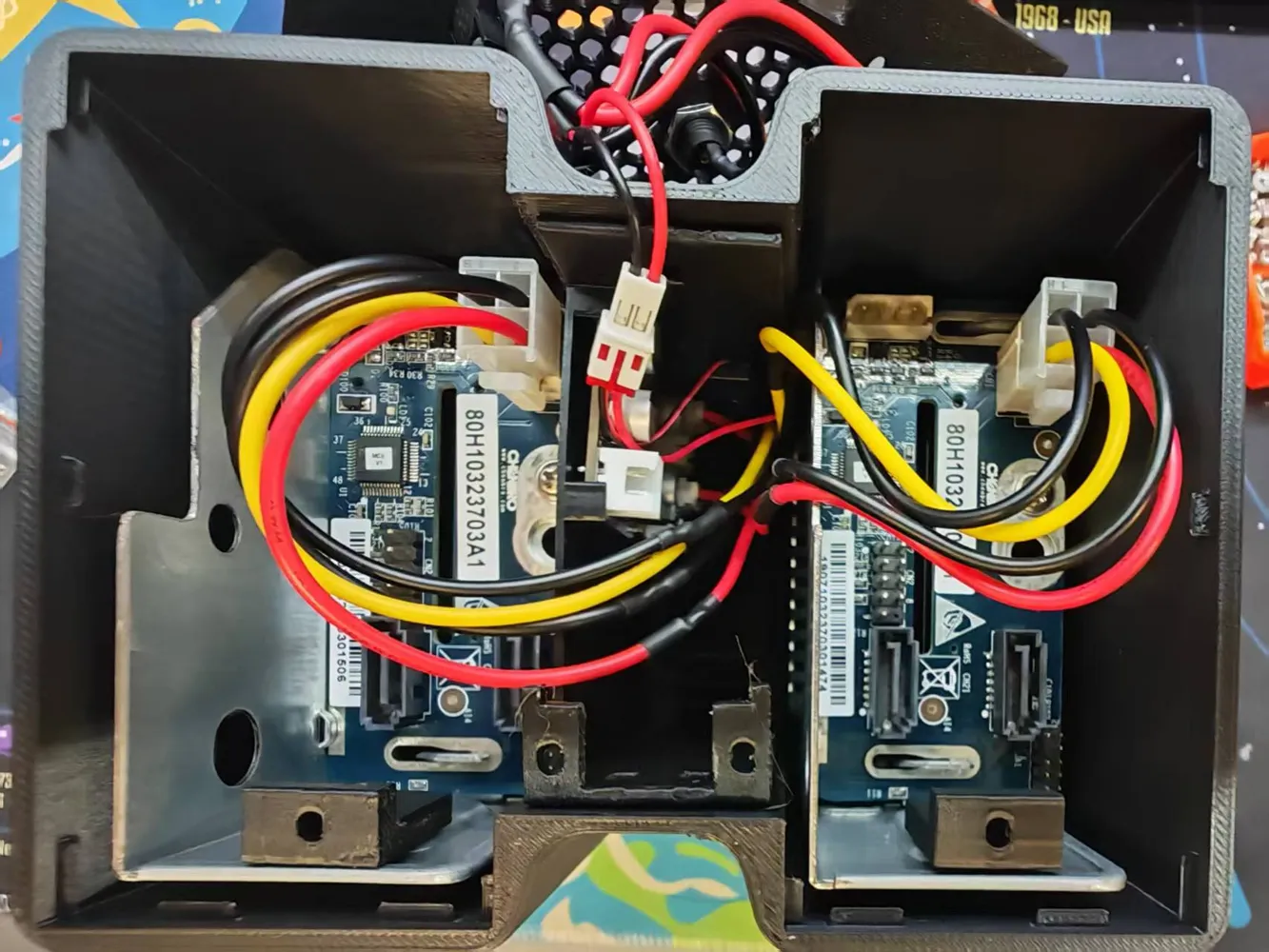

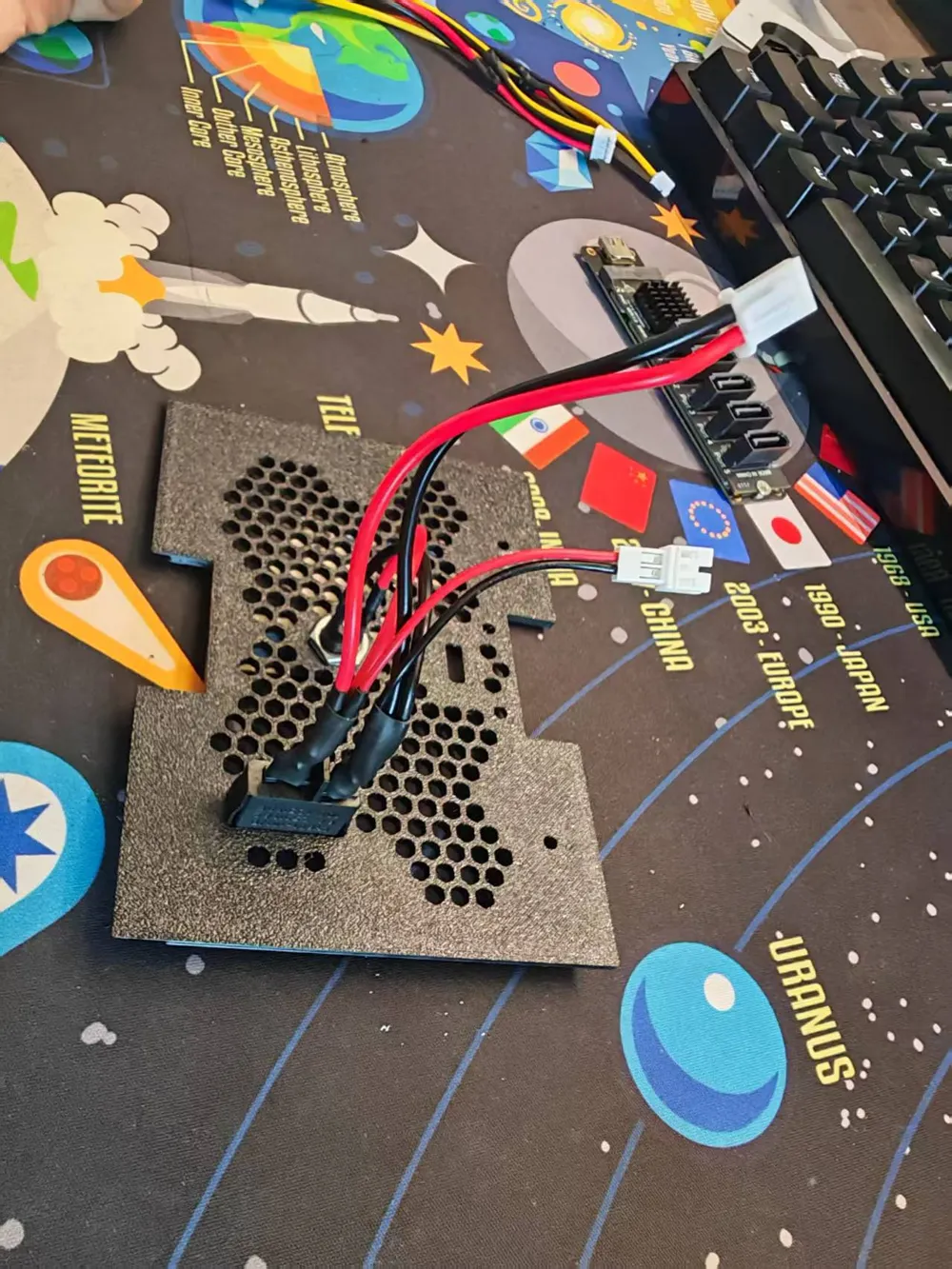

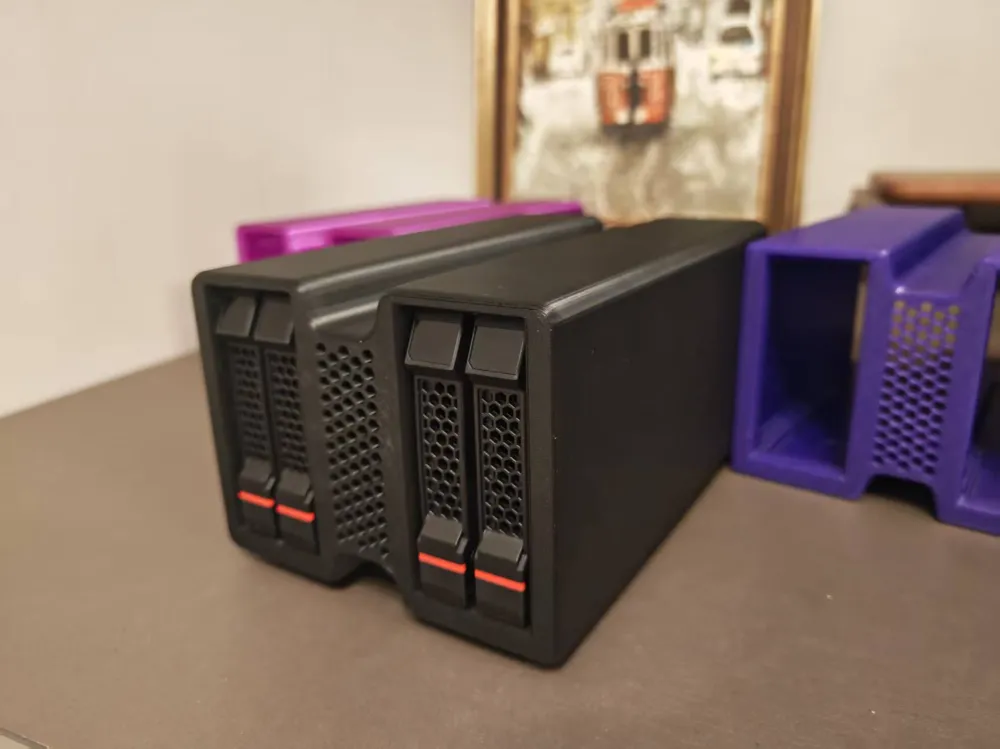

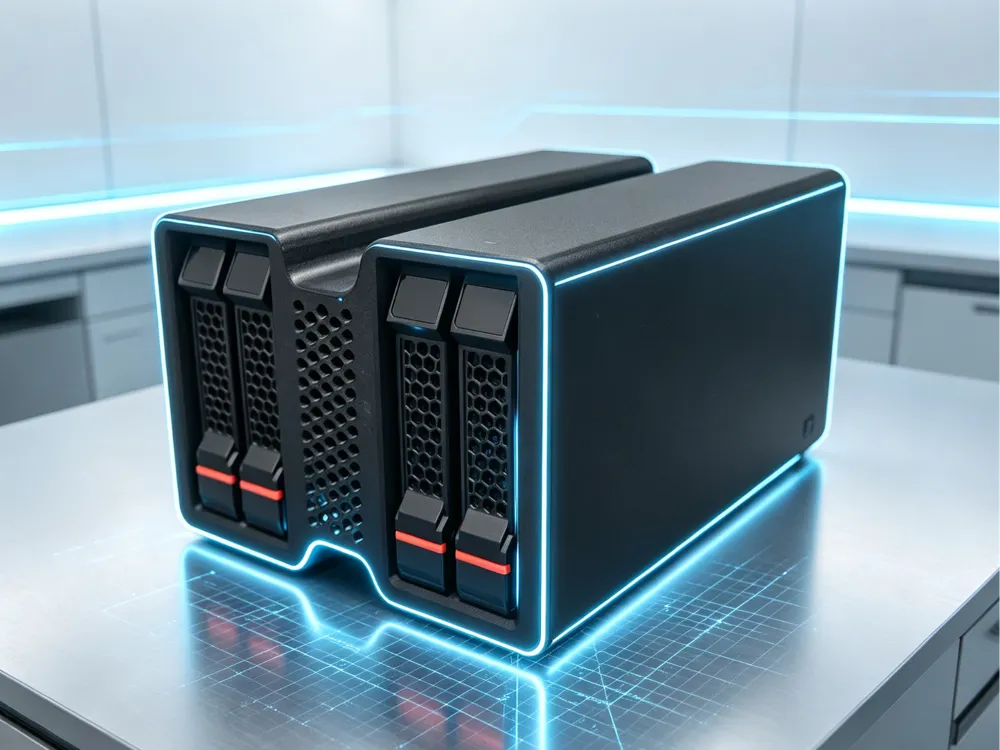

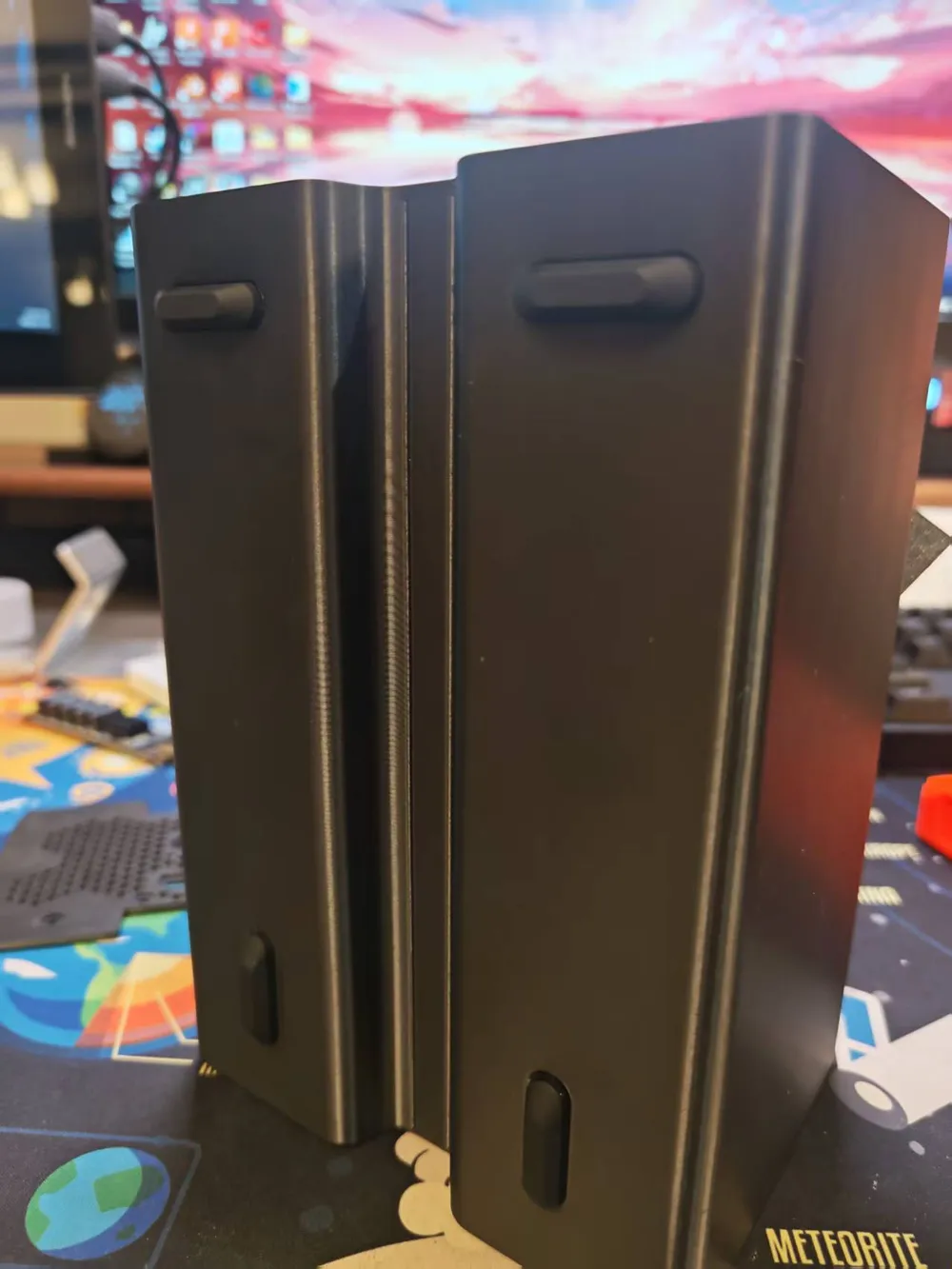

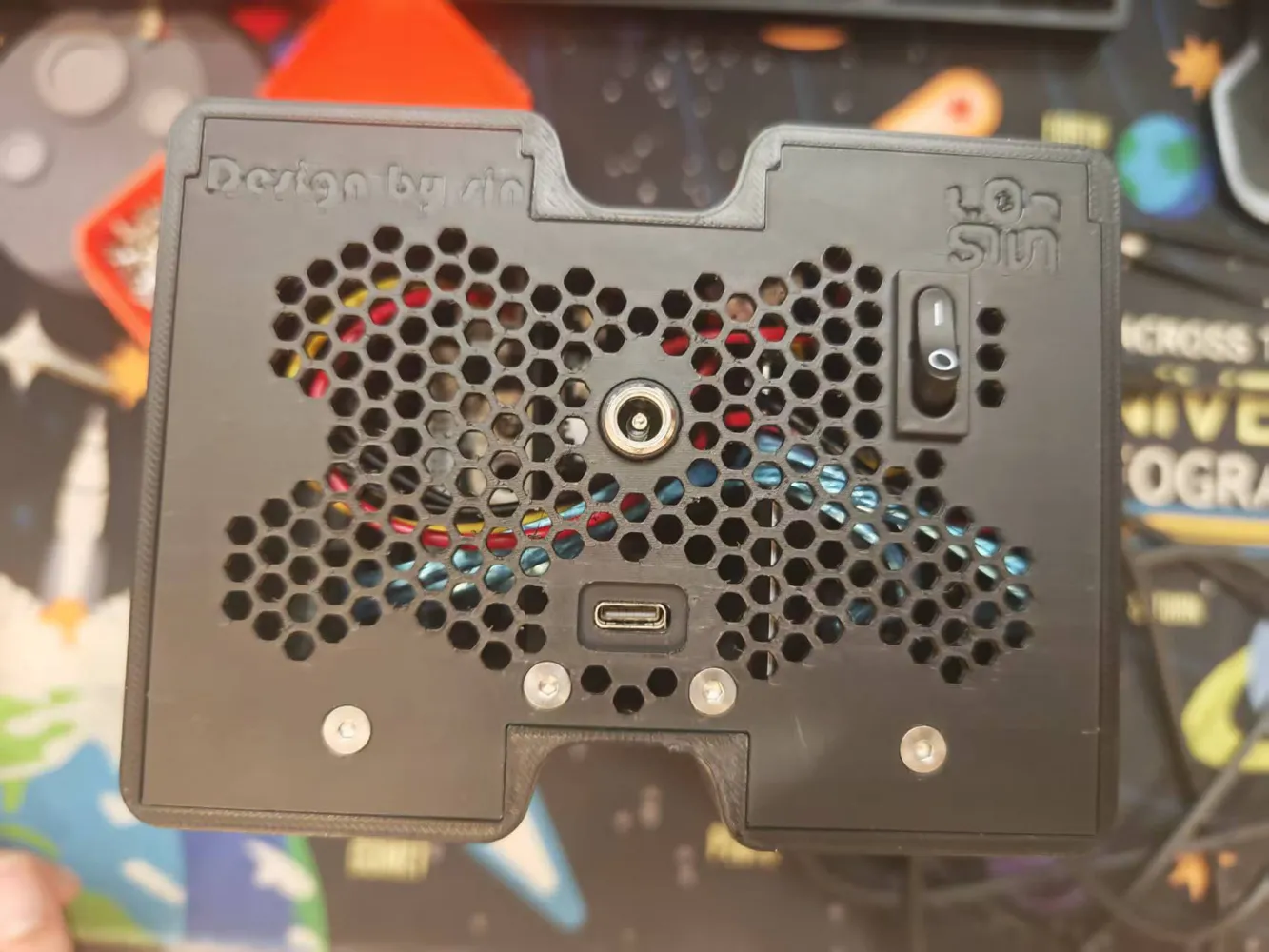

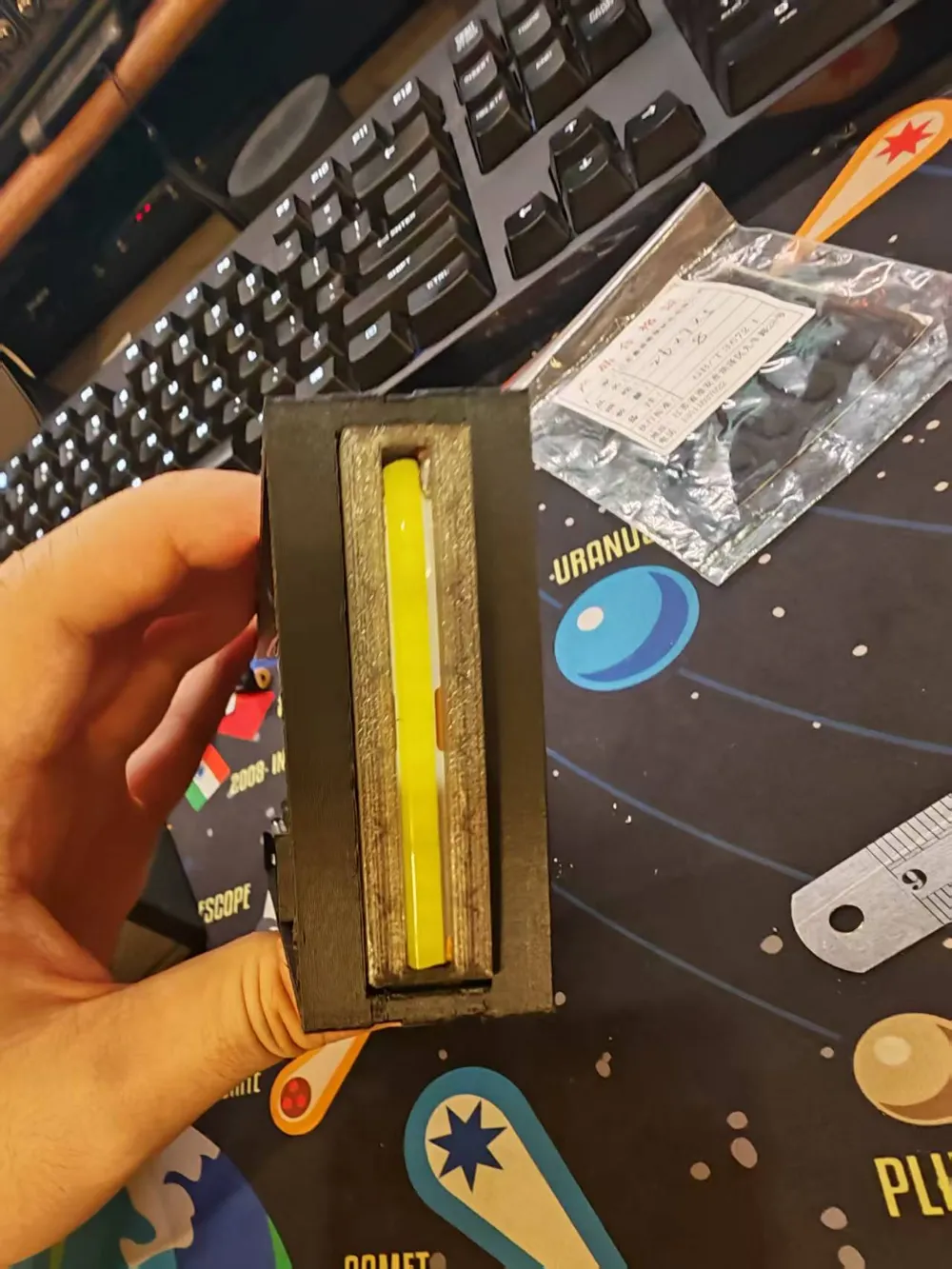

This is a 4-bay drive enclosure designed around a Qin Cheng 2.5-inch drive rack. It ensures efficient heat dissipation for both the motherboard and hard drives while handling the high current of a 4-bay setup, resulting in low noise and fast cooling. A light board indicates the power status of the drive enclosure (the light board and fan are optional and can be omitted). Please refer to the PDF for the specific materials required. If you have any questions, feel free to leave a comment below, and I will answer them one by one. The modification is straightforward but requires basic soldering skills and the ability to distinguish between the positive and negative terminals of the power supply. Designing this was not easy, so please show your support.
