🤖 Retro Robot Charging Dock (Insta360 Luna Ultra & Mic Pro)

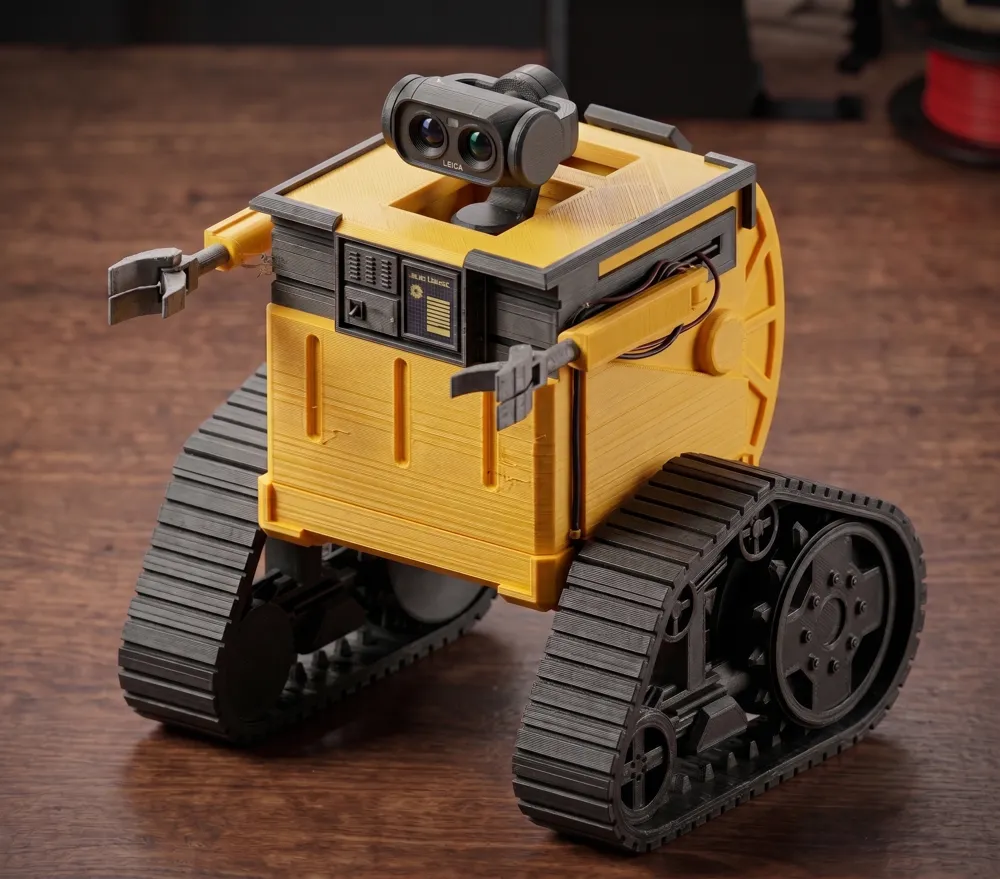

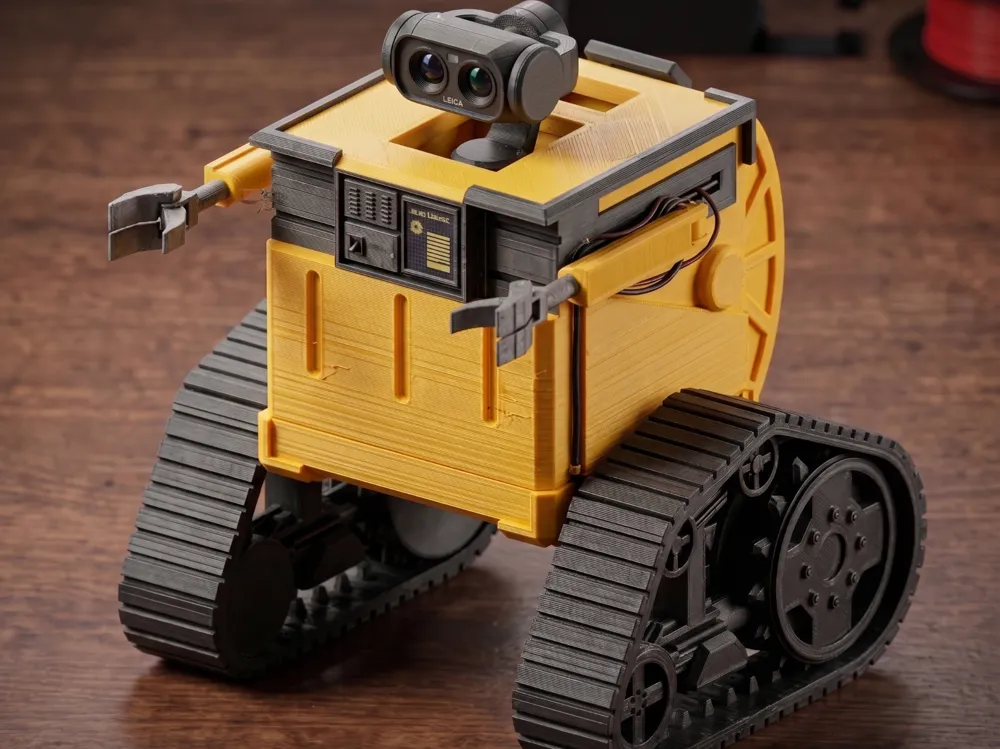

Turn your desktop into a functional sci-fi workspace! This design is a highly detailed, fully functional desktop charging station inspired by everyone's favorite cinematic scrap-metal robot. It features dedicated, form-fitting drop-in charging slots for the Insta360 Luna Ultra camera and the Insta360 Mic Pro transmitter.
With an entirely hidden internal cable routing system, snap-on magnetic panels, and highly posable arms, this is the ultimate mix of functional engineering and desk-toy aesthetics.
🛠️ Design & Assembly Features

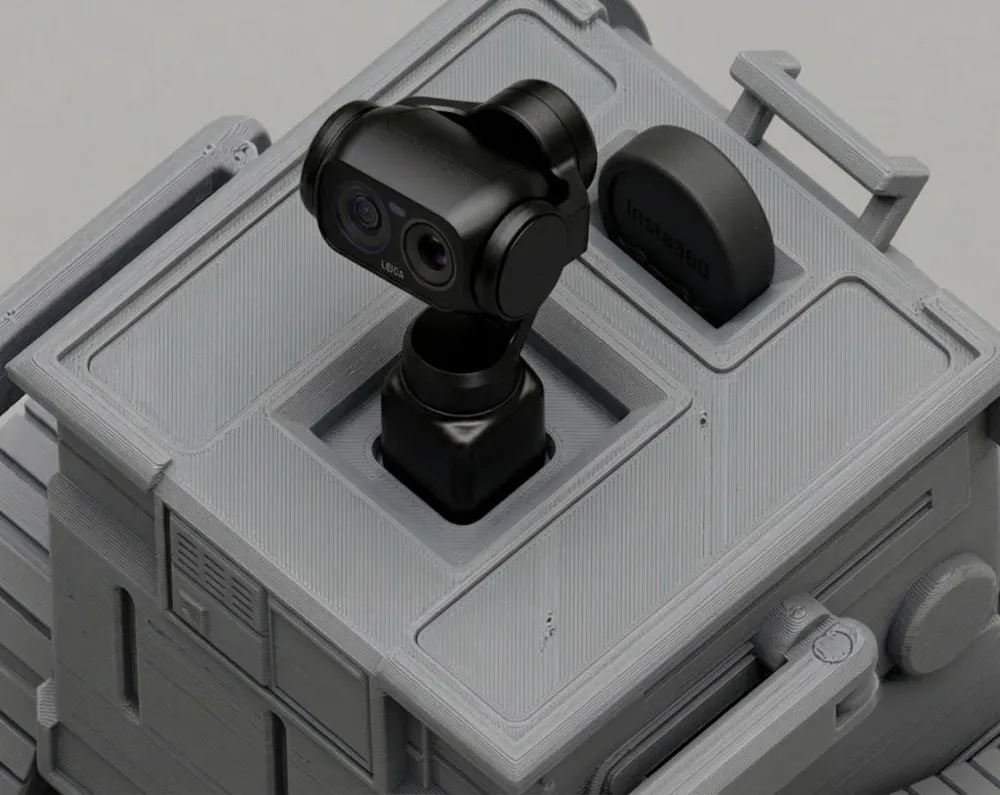

- Dual Device Top Dock: Features perfectly contoured receptacles with precision cutouts for standard flush-mount USB-C heads, turning a detailed display model into a practical charging hub.
- Hidden Cable Management: Designed around affordable off-the-shelf components. It routes an internal 3-in-1 USB-C splitter cable completely out of sight, consolidating all power into a single clean exit port out the back.

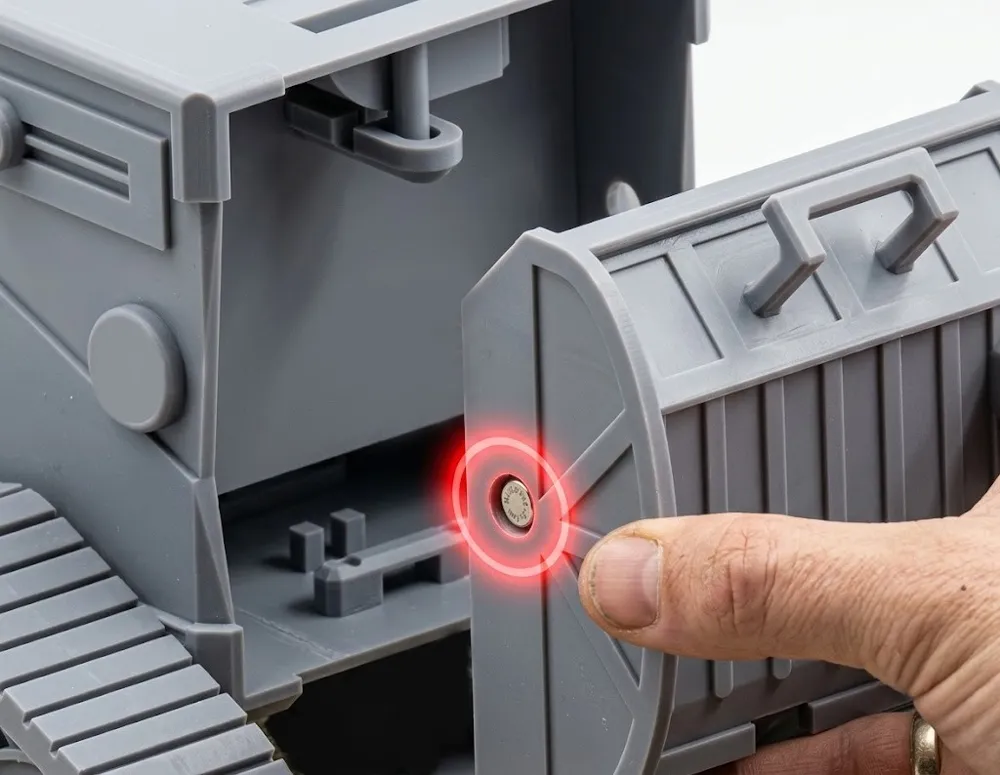

- Snap-Fit Magnetic Panels: Both the detailed front compactor hatch and the entire rear chassis panel attach via robust magnetic pairs. This gives you instant, toolless access to the internal wiring bay whenever you need it.

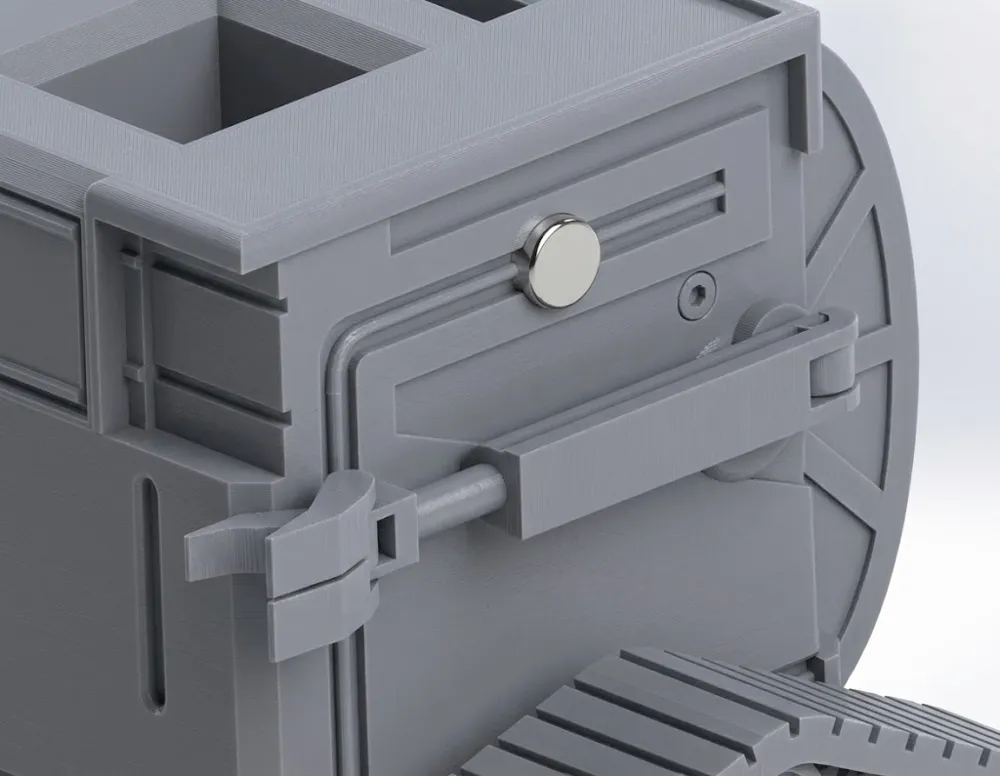

- Posable Expression Arms: The arms attach to the shoulders using strong magnetic sockets. You can easily rotate, detach, or re-pose them to change up the robot's look on your desk.

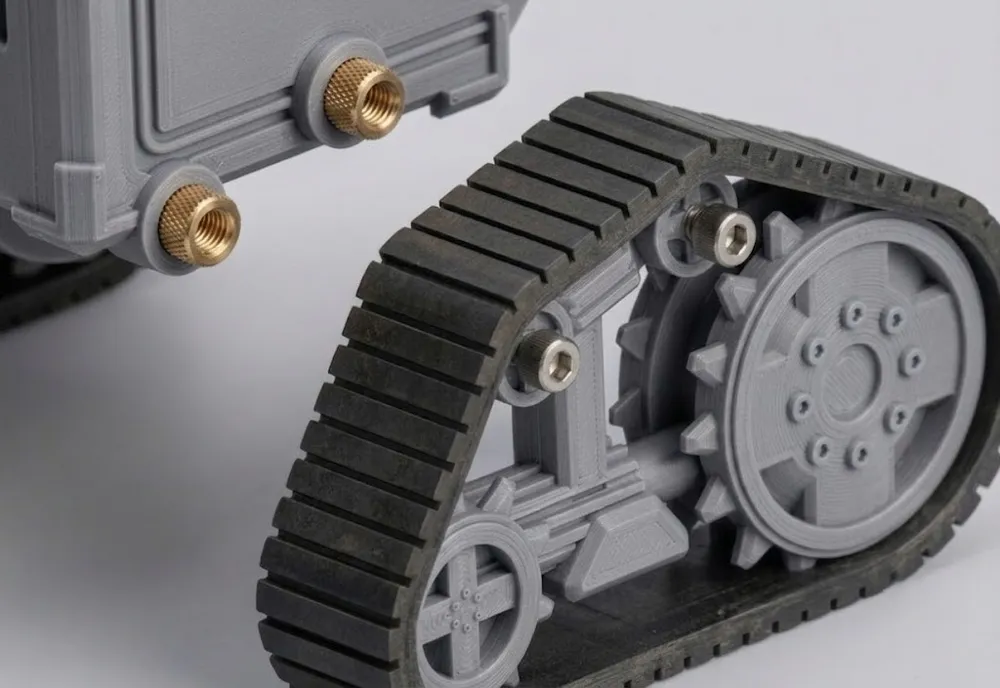

- Rugged Tread & Wheel Details: Features a beautifully modeled mechanical tread system. The side drive wheels and treads bolt together securely for an authentic, rugged industrial look.
🖨️ Print Settings & Tips
- Material Suggestions: PLA works perfectly for the main body and wheels. For an awesome authentic look, try a matte yellow or orange for the chassis, dark gray/black for the head accents and treads, and silver for the arm linkages.
- Supports: Minimal supports are needed. The internal cavities and the overhangs on the front panel print cleanly, but some support is recommended for the arm joints and deep wheel sockets.
- Orientation: All STL/3MF files are pre-oriented for optimal printing strength and surface finish.

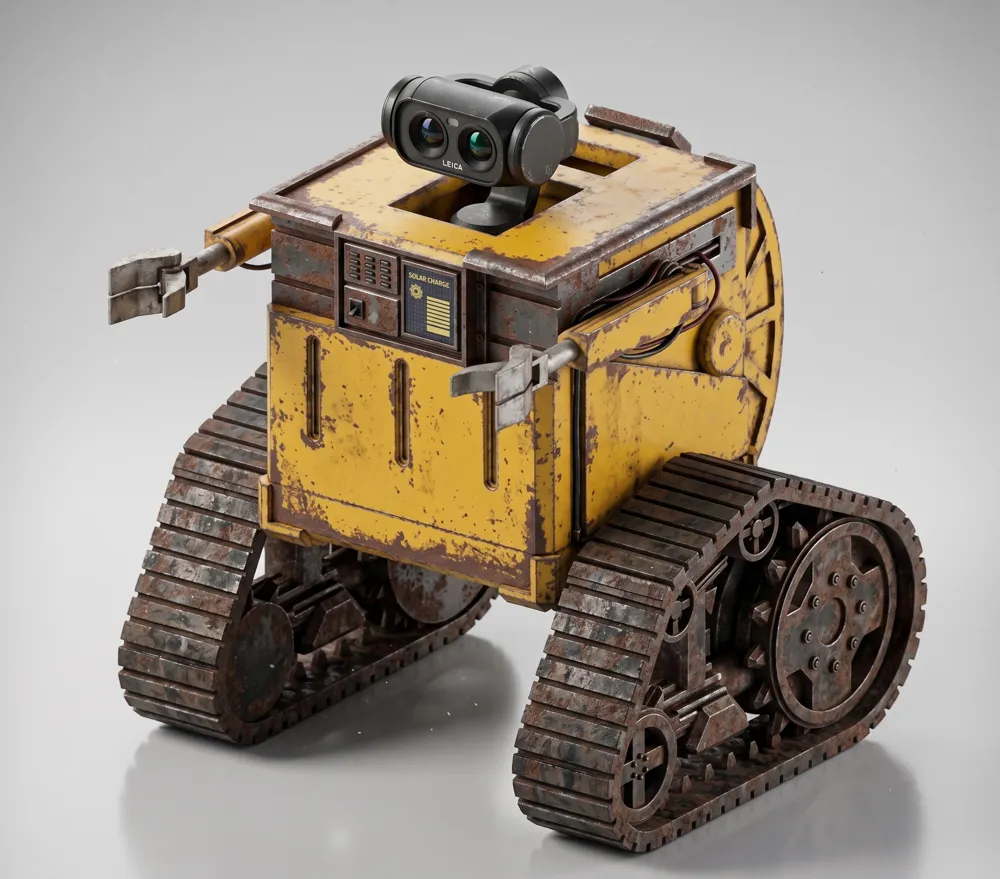

- Post-Processing: If you want to take it to the next level, the heavy panel lines and industrial detailing make this model incredibly fun to paint, dry-brush, and weather with faux rust effects!
If you love this model, please leave a ⭐⭐⭐⭐⭐ review and share your makes! I'd love to see your weathered paint jobs and desktop setups.
📦 Hardware & Bill of Materials (BOM)
To fully assemble the charging functionality and hardware connections, you will need the following non-printed components:
LINKS:

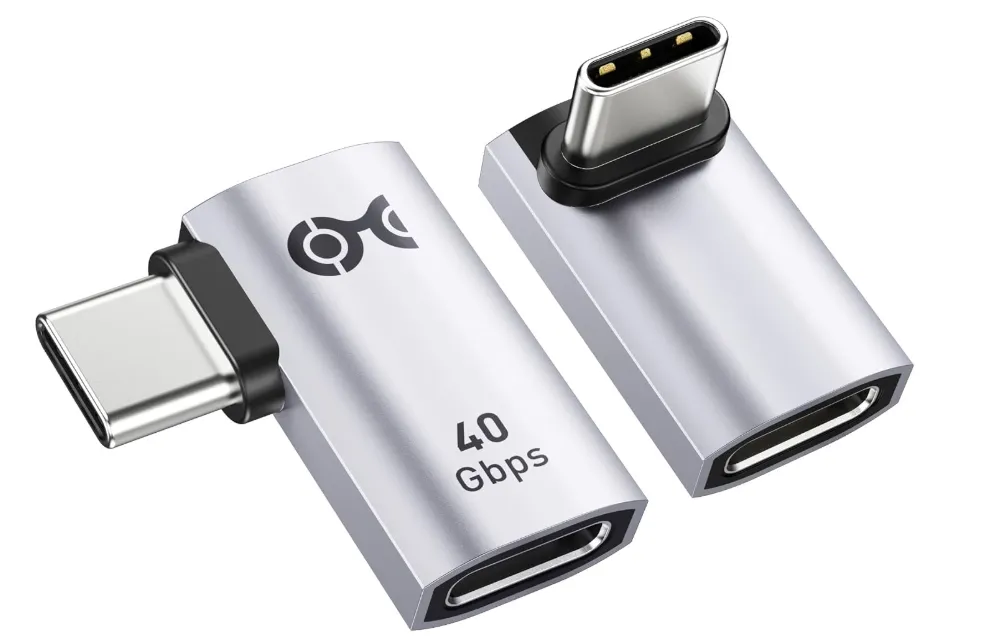

USB Type-C Ports: LINK

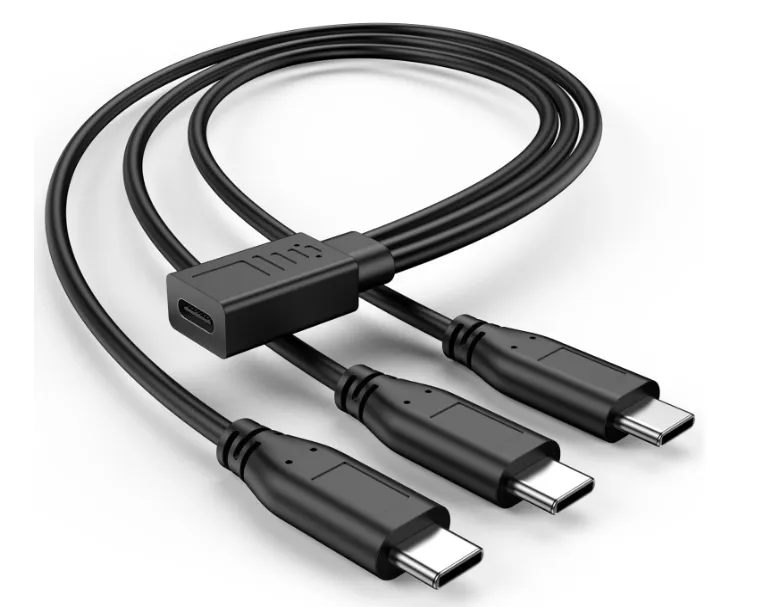

3 in 1 USB Type-C Splitter Charging Cable: LINK
Boost Me (for free)
| Component | Specifications / Details | Purpose |
|---|---|---|
| Magnets | 10mm Diameter x 2mm Depth (Round Neodymium) x 8 Total | Front hatch, rear panel, and arm articulation sockets |
| Screws | M3 Socket Head Screws (10x10mm, 2x16mm) | Attaching side wheel assemblies and structural accents |
| Inserts | M3 Brass Threaded Heat-Set Inserts x 12 Total | Embedded into the main chassis for secure wheel mounting |
| USB Ports | 2x Panel-mount style USB-C extensions/adapters (Link Attached) | Fixed into place at the charging bays and rear input |
| Cabling | 1x 3-in-1 USB-C Splitter Charging Cable (Link Attached) | Internal power distribution to both docks |
