10" Rack Modular PDU (1–6 Outlets in and out)

Follow the collection for new rack modules and updates

10" Rack Modular PDU (Multiple Configurations)

A customizable Power Distribution Unit (PDU) for standard 10-inch racks, designed to fit a wide variety of homelab, networking, and server setups.

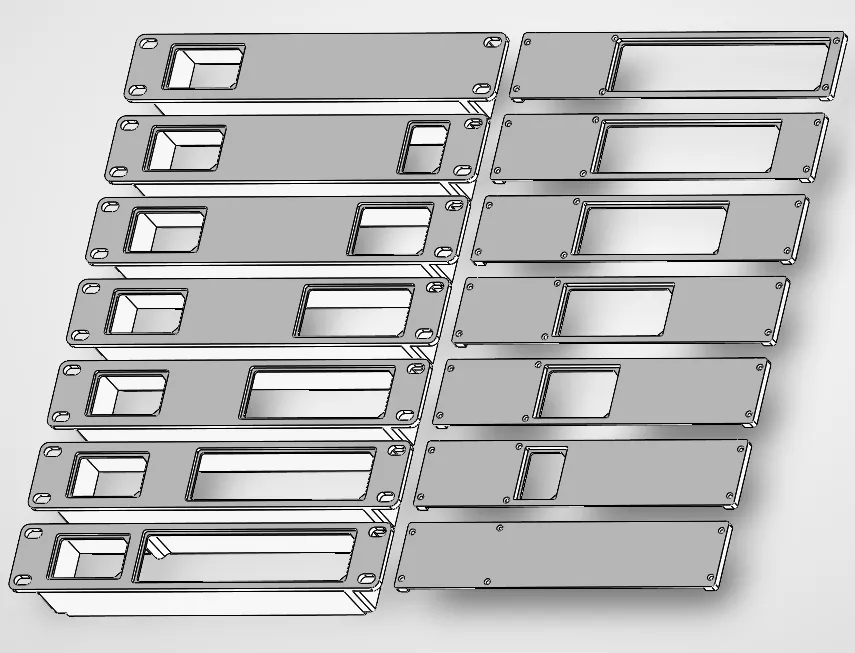

Instead of a single fixed design, this collection includes 14 different front panels and 7 backplates, allowing you to choose the configuration that best suits your installation.

Features

• Designed for standard 10-inch racks.

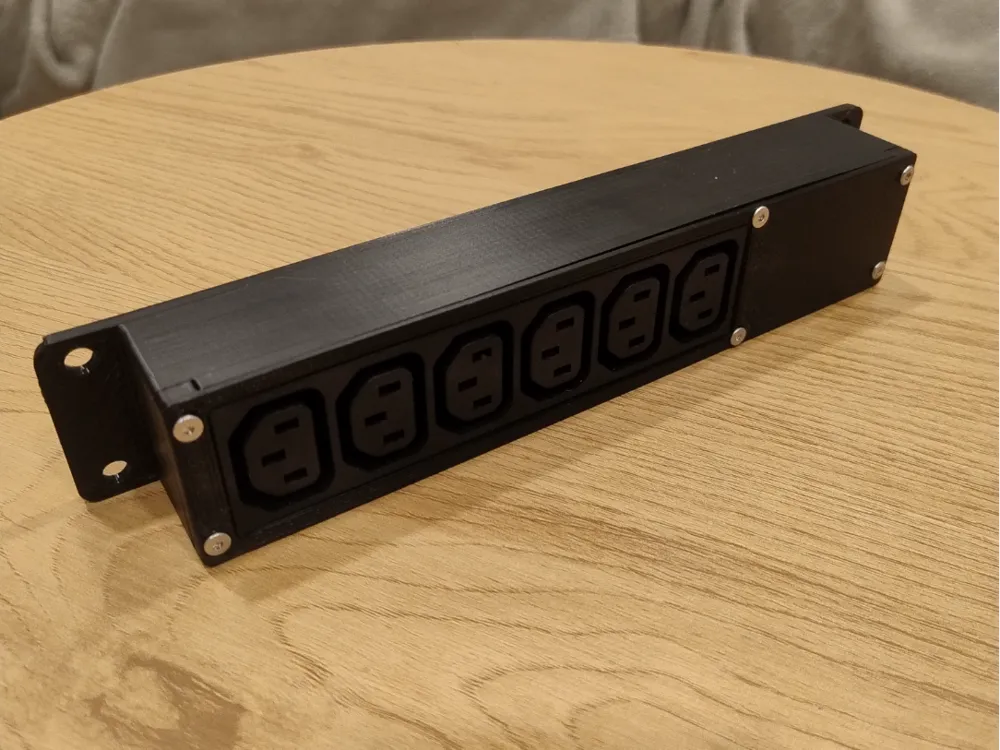

• Available with 1 to 6 power outlets.

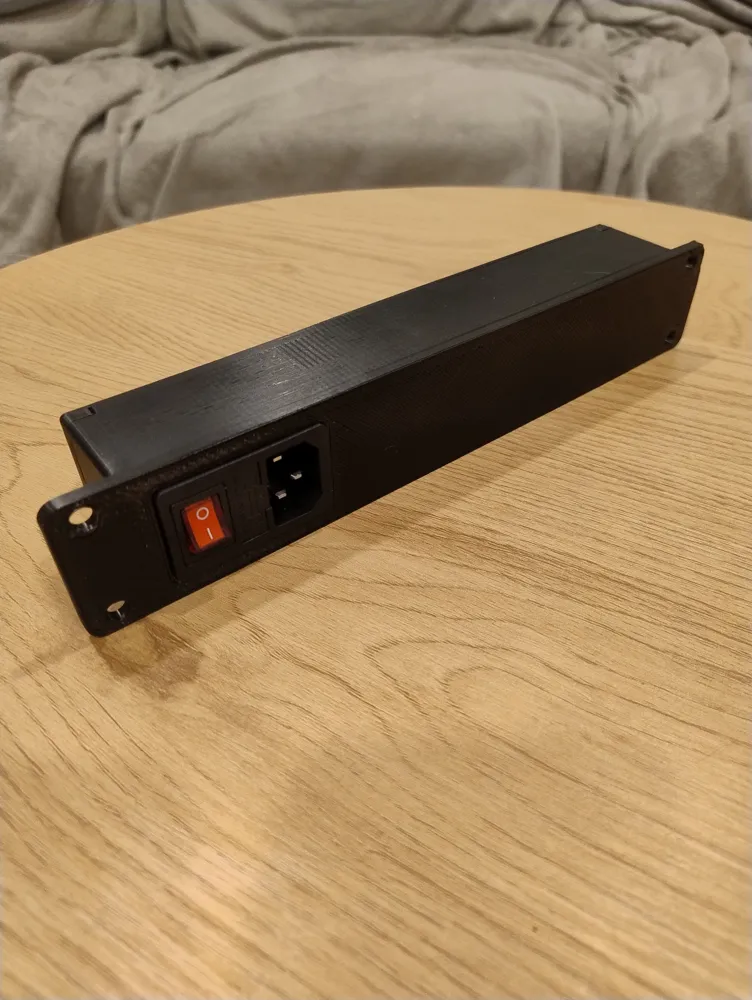

• Integrated IEC power inlet with power switch and fuse.
• Mix outlet directions to match your cable routing.

Examples include:

• 6 outward
• 6 inward
• 2 outward + 4 inward
• 3 outward + 3 inward
• Any other supported combination

Included Files

This collection contains 21 different panel configurations, covering the most useful combinations of:

• 1 to 6 power outlets.
• Inward-facing outlets.
• Outward-facing outlets.
• Mixed inward and outward outlet layouts.

This allows you to choose the exact panel you need without modifying or editing any models.

Perfect for homelabs, networking cabinets, compact servers, AV racks, and electronics projects.

If you find this model useful, please leave a like, rating, or share your build. Happy printing!

Assembly

The enclosure is assembled using six M3×20 mm screws (or similar lengths, depending on your hardware).

For maximum strength and durability, it is also recommended to glue the two enclosure halves together after assembly. This creates a much more rigid housing, especially if the PDU will be installed and removed frequently.

Once assembled, mount the PDU in any standard 10-inch rack.

The electrical connectors needed for this build can be found here, here and here
