2in1 RX/ESC/gyro combo - AM32+Receiver/Gyro 1:24
Print Profile(0)
Description

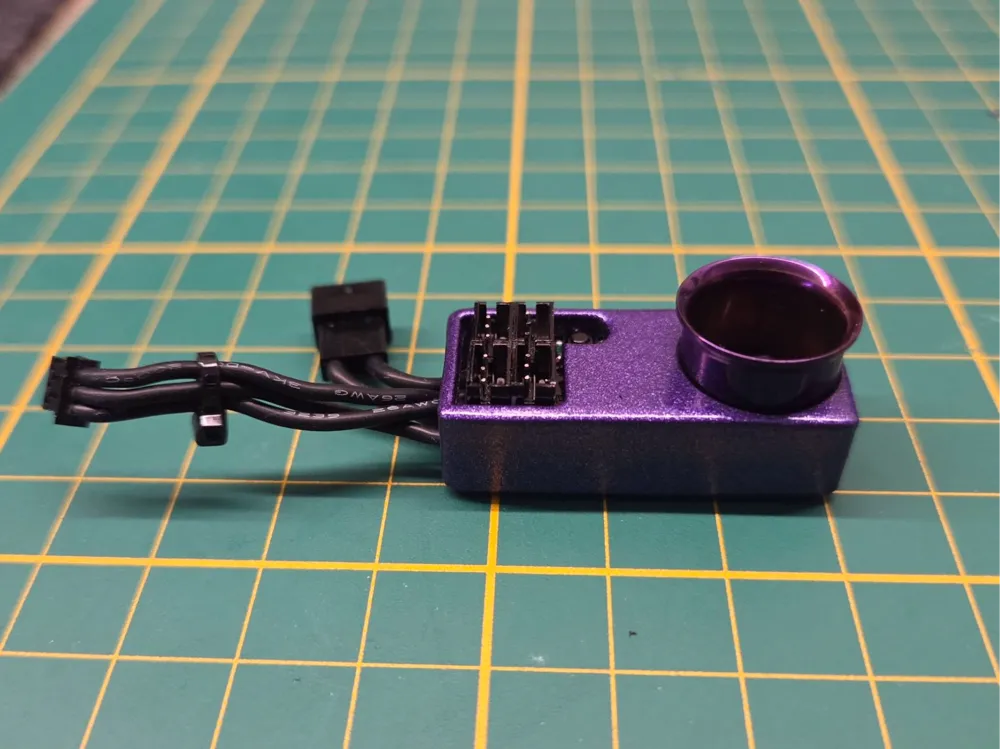

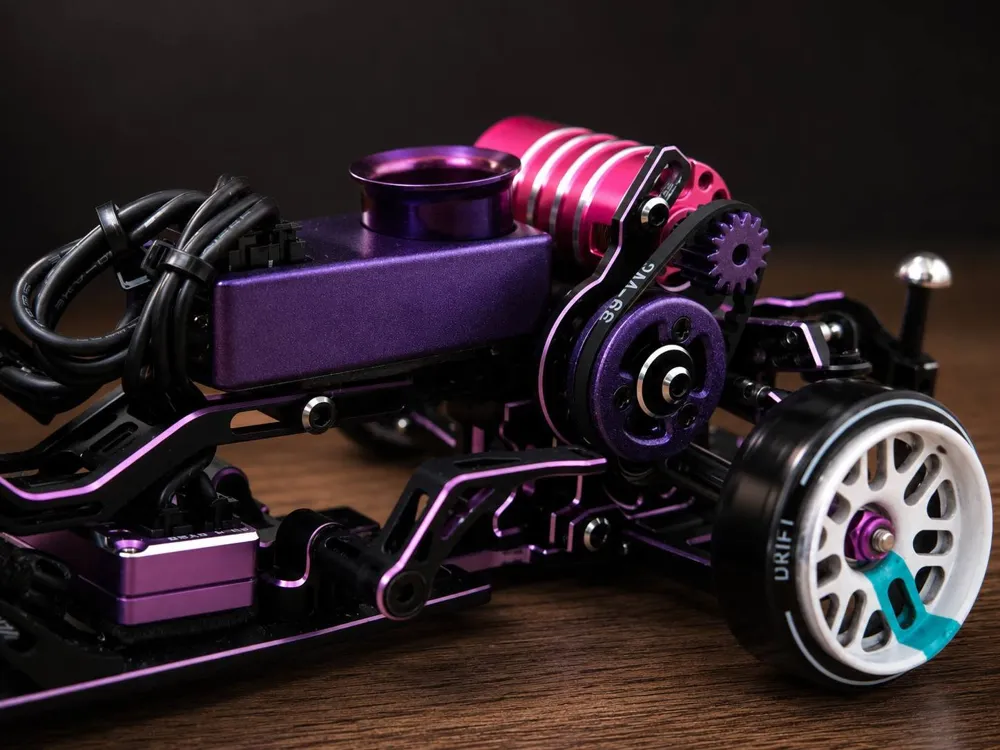

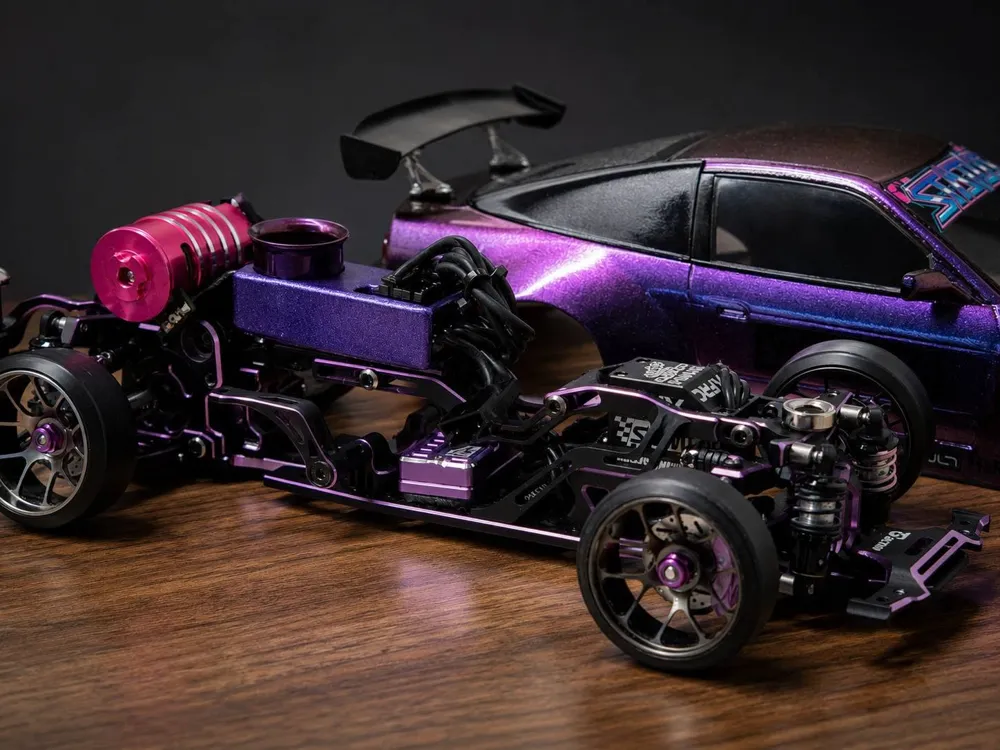

A compact and stylish 2-in-1 electronics housing designed for 1:24 and other small-scale RC drift cars.
The housing provides a clean and space-saving installation for an AM32 ESC together with one of the following receiver or gyro options:
• HotRC F04BT
• DumboRC P4FMG
• DasMikro V5 Gyro
It helps keep the electronics protected, organized and securely mounted while giving the chassis a much cleaner overall appearance.
The model is available as a free download for the small-scale RC drift community.
Designed by @Neubex90
Known from the Facebook Small Scale Drifters community and TikTok @DriftWorks24rc
Required Parts
- 1× printed housing in Resin, PLA or PETG ( the cut out for the setting button is not included as varies depends which component used (hotrc,dumborc or dasmikro gyro). For this case. The cut out for the setting button will be done by file indifudually after print.

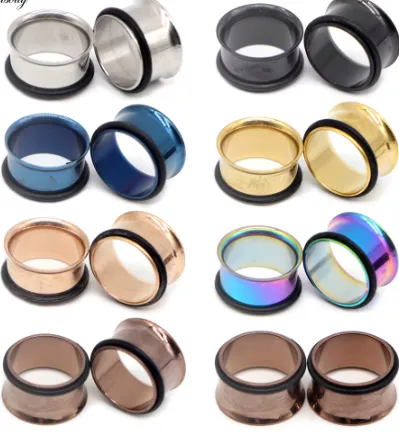

- 1× 14 mm single-flare stainless-steel ear tunnel with O-ring
- 1× compatible AM32 ESC (See pictures) + cables and plugs
- 1× HotRC F04BT, DumboRC P4FMG receiver or DasMikro V5 gyro
- install the RX or the gyro first. Protect the bottom of the PCB with some isolation tape to prevent any shortcut to the ESC that will installed now underneath. Now slide the AM32 on bottom side in the housing till it fits nicely.
- Double-sided tape or a suitable mounting method to fix the 2in1 combo on the chassis
- Optional: Paint housing in your favourite colour
