Description
⚙️ Build satisfying click-stop rotary mechanisms with ease!

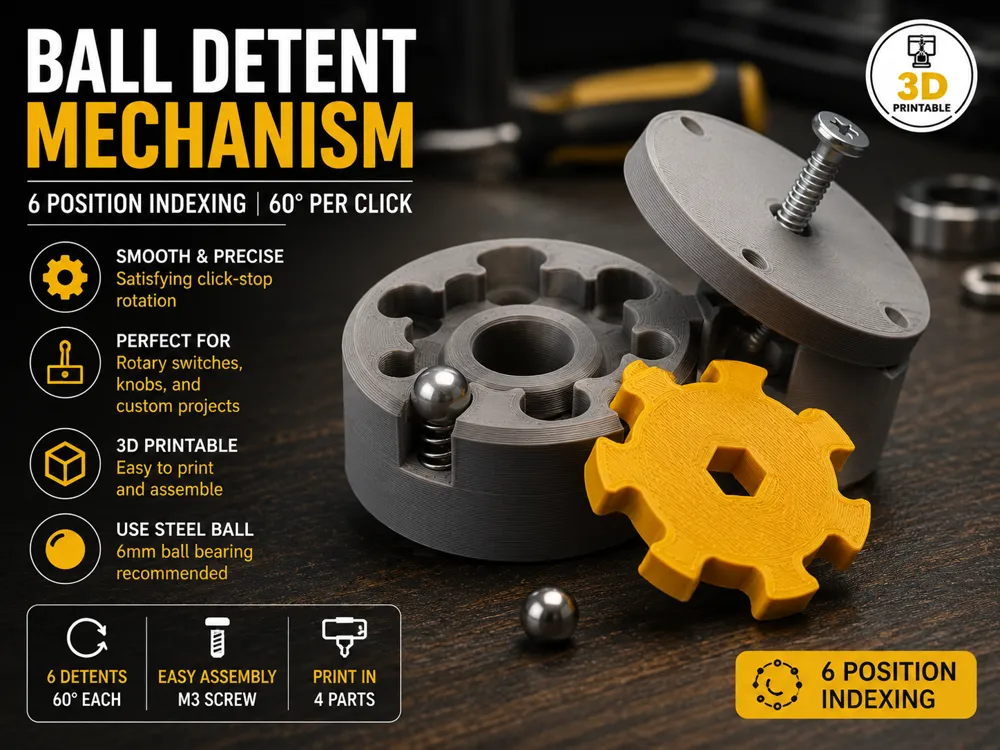

This 3D printable Ball Detent Mechanism creates smooth and reliable indexed rotation, making it perfect for projects that require tactile click positions.
The design features 6 equally spaced detents (60° indexing), providing consistent positioning and a satisfying mechanical feel.
Whether you're designing a custom rotary selector, a control knob or a DIY engineering project, this mechanism offers a compact and easy-to-print solution.
Ideal for
- 🎛 Rotary selector switches
- 🎚 Control knobs
- ⚙ Mechanical indexing systems
- 🤖 Robotics projects
- 🔬 Engineering prototypes
- 🧰 DIY mechanisms
- 🎮 Custom controllers
- 🛠 Educational demonstrations
Features
✔ 6-position indexing (60° per click)
✔ Smooth and repeatable detent action
✔ Compact design
✔ Easy assembly
✔ Uses a standard steel ball bearing or a printable ball
✔ Fast and reliable print
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
