TP-Link TL-WR841N V14 Custom Sleek Case

## Minimalist Ventilated Enclosure for TP-Link TL-WR841N V14 PCB

A sleek, modern, and highly functional replacement case designed specifically for the **TP-Link TL-WR841N V14** router motherboard. Perfect for those who use this router for DIY projects, custom OpenWrt setups, smart home hubs, or hardware hacking!

This case is designed to be as compact as possible while improving thermal performance compared to the bulky original plastic shell.

### 🌟 Key Features
* **Perfect Fit:** Precision-engineered screw bosses and port cutouts tailored exactly for the V14 PCB.

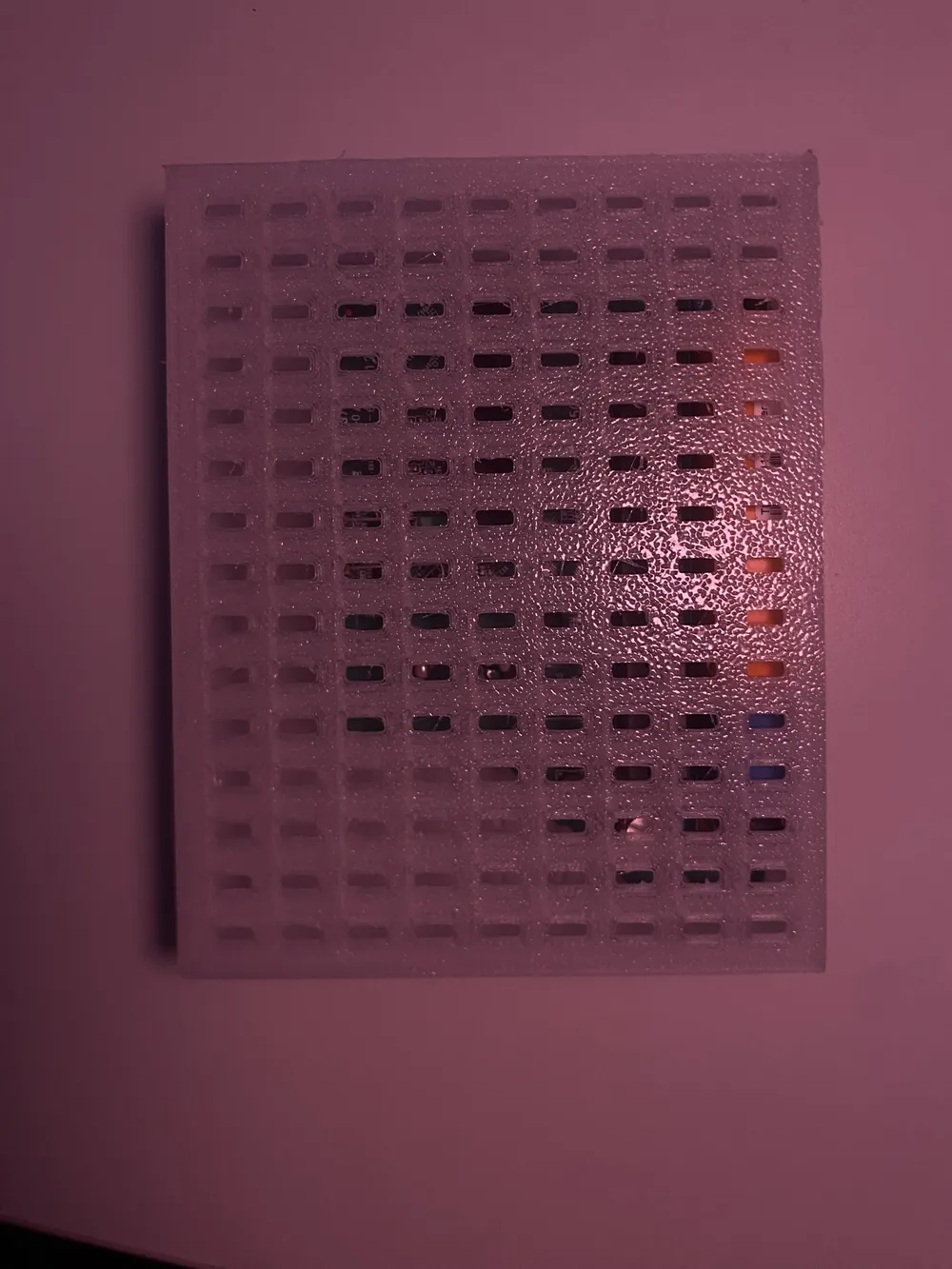

* **Enhanced Ventilation:** The snap-on lid features a clean grid pattern to ensure excellent passive cooling, preventing thermal throttling during heavy network loads.
* **Compact & Minimalist:** Sleek aesthetic that fits perfectly on a desk, rack, or shelf.
* **No Screws Required:** Easy slide-in PCB placement with a secure snap-fit top cover.

---

### 🖨️ Recommended Print Settings
To get the best finish and ease of assembly, use these settings:

* **Material:** PLA (PETG or ABS recommended if used in hot environments/attics).
* **Layer Height:** 0.2mm (or 0.16mm for extra crisp grill details).
* **Infill:** 15% - 20% (Gyroid recommended).
* **Supports:** No supports needed! The bridges on the ventilated lid print perfectly clean on calibrated printers.
* **Walls/Perimeters:** 3 walls for maximum durability.

---

### 🔧 Assembly Instructions

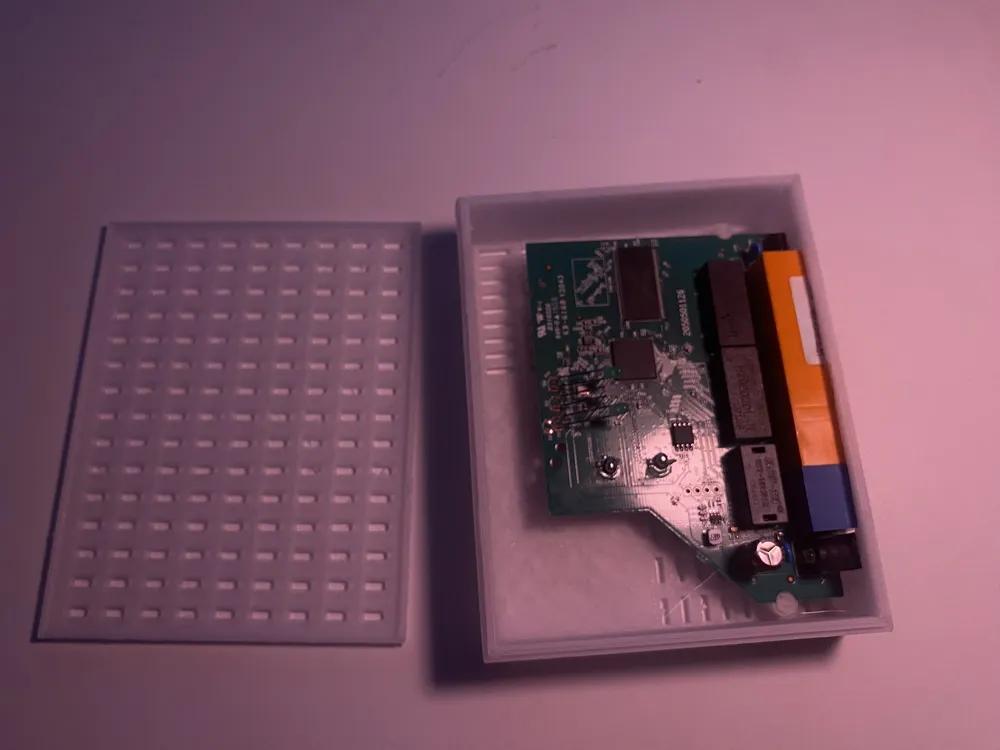

1. Carefully slide the TP-Link TL-WR841N V14 PCB into the lower housing, aligning the ports (Ethernet, WAN, power jack) with their respective cutouts.
2. Ensure the board is laying flat.
3. Align the ventilated lid and gently snap it into place from top to bottom.
