Acuter40 Prominence Scope Diagonal Dust Cap

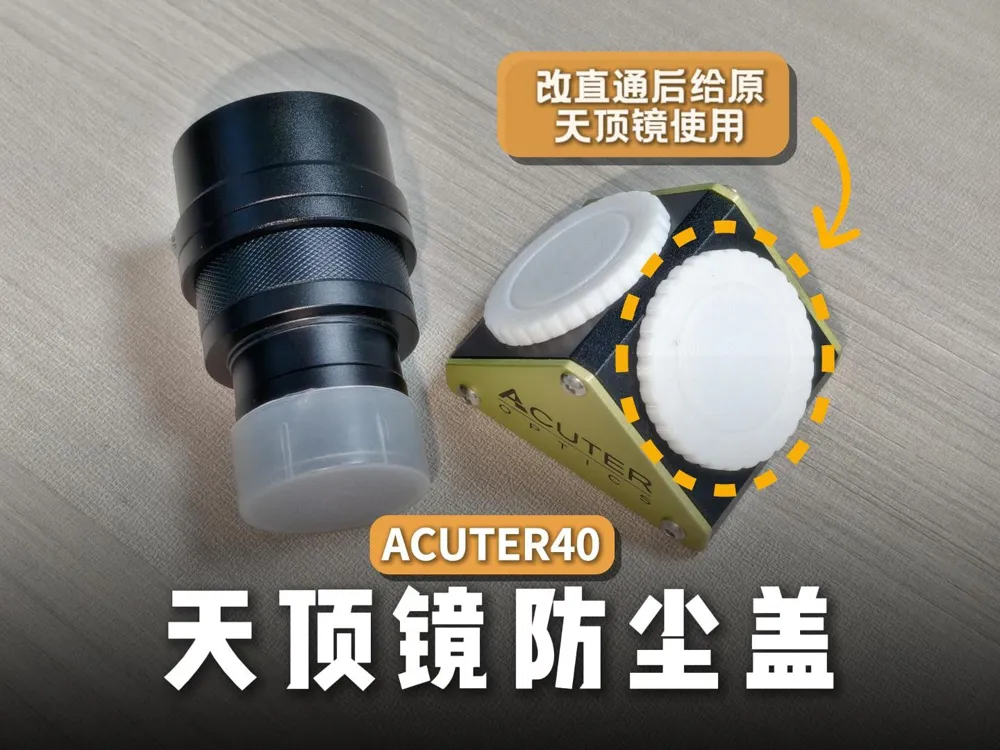

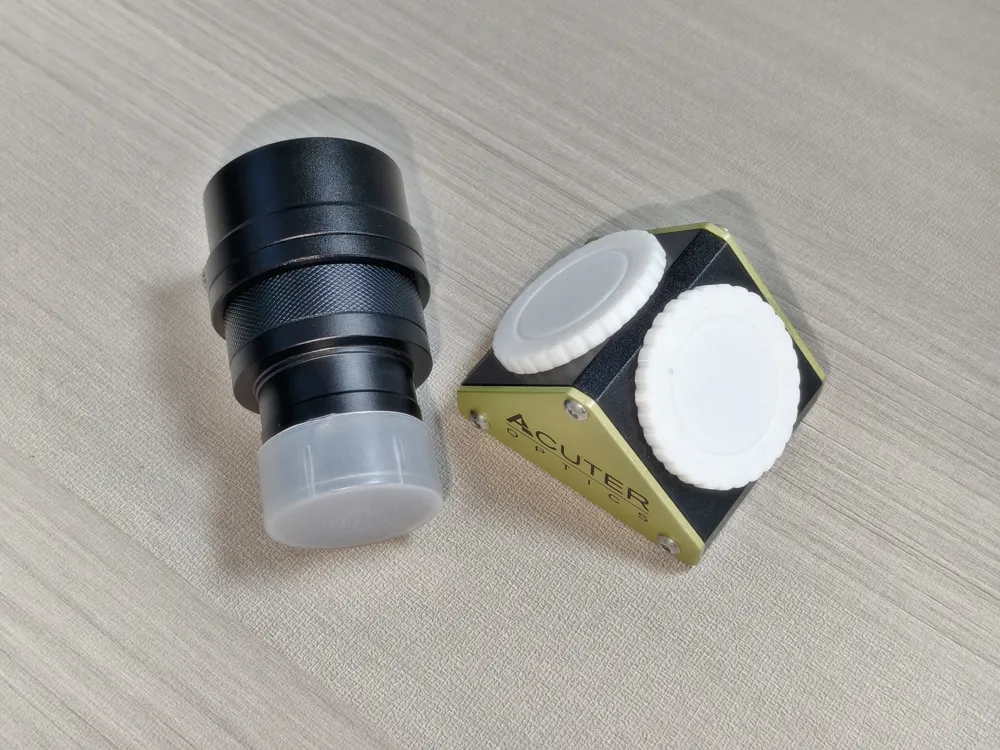

After modifying the ACUTER40 prominence scope's blocking filter to direct-through, the original diagonal mirror lost its protection and is prone to collecting dust. The internal gold reflective mirror is expensive and still needs protection. For this purpose, I designed this protective cap to protect the reflective mirror when using the direct-through mode.

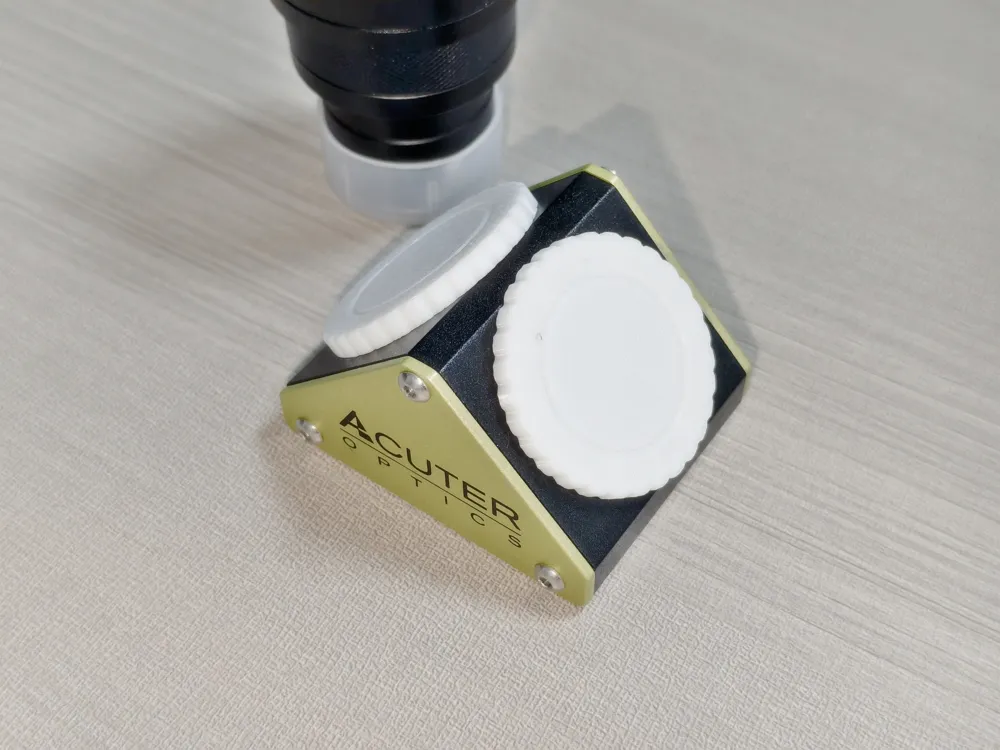

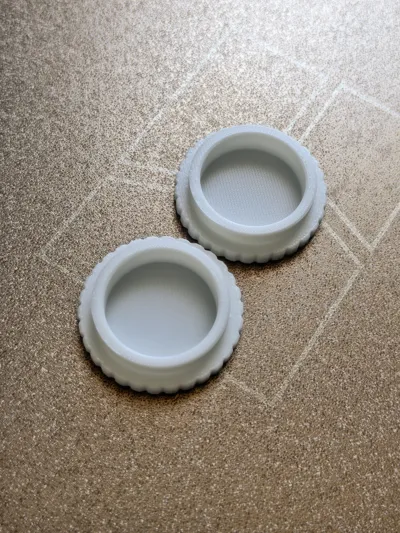

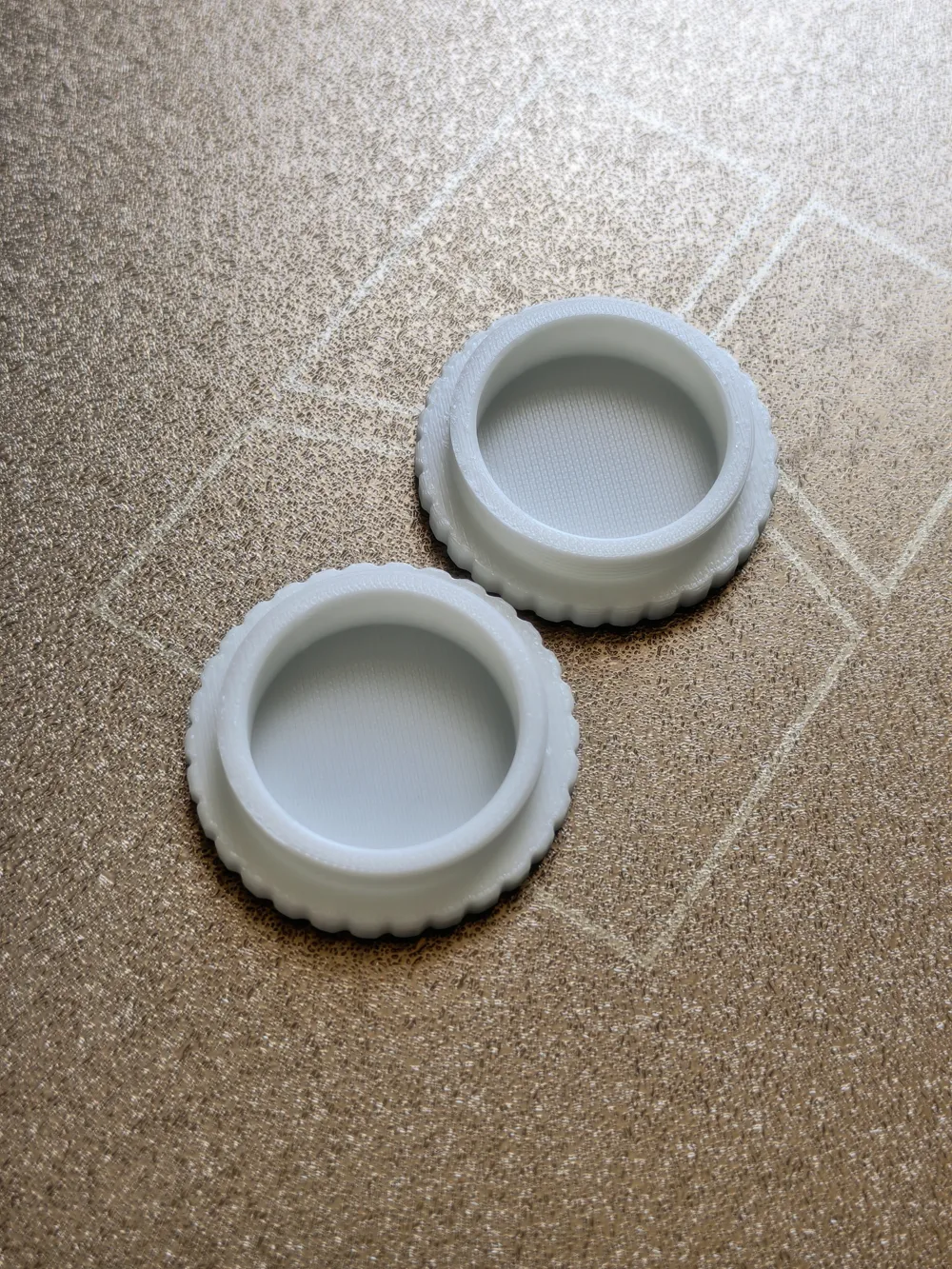

The thread specification is M33×0.75 with a height of 5mm. You need to print two and screw them on to block both ends of the diagonal mirror.

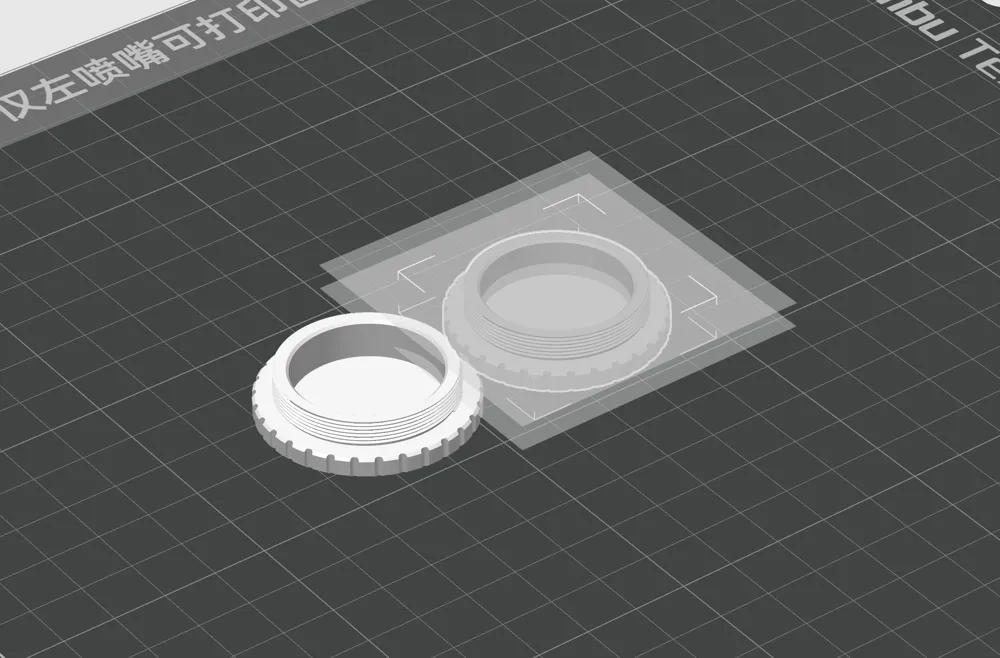

Before printing, please calibrate the dimensional parameters according to your printer and filament. For heights below 4mm, you can use a 0.2mm layer height to increase print speed; for thread sections above 4mm, please use a 0.1mm layer height, otherwise, printing will fail. The height range modifier has already been set during model export; please check if the modifier is still present when you download, if not, please manually set it according to the layer height guide above.
