Picoscope 4425 case and mount

PicoScope 4425 Protective Case & Mount

This is a rugged, functional protective case and mounting solution designed specifically for the PicoScope 4425 4-channel automotive oscilloscope.

Whether you are looking to mount your scope directly to a diagnostic tablet, integrated tool setup, or workshop cart, this design keeps your high-end diagnostic hardware safe, secure, and accessible without cluttering your workspace.

🛠️ Features

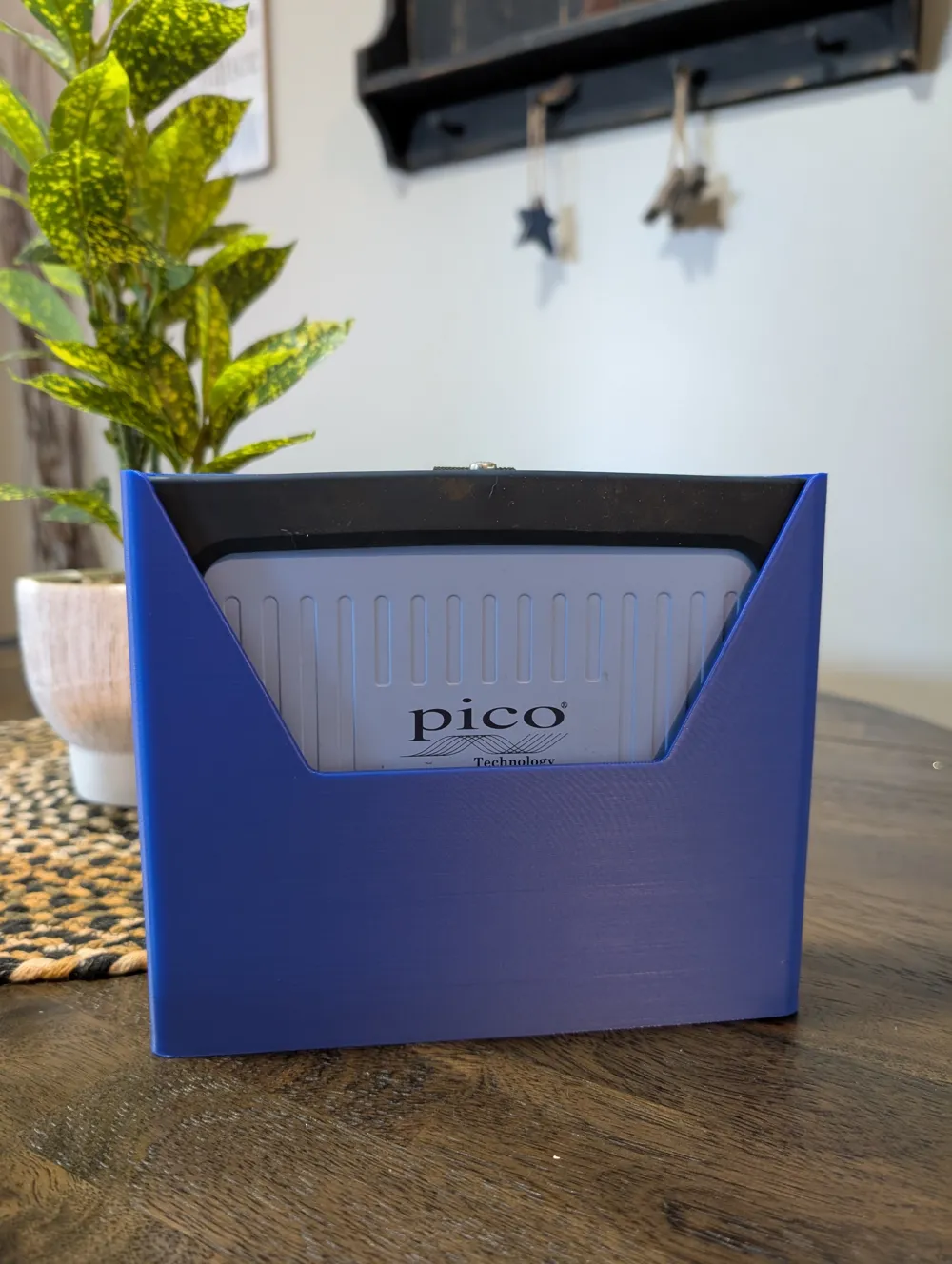

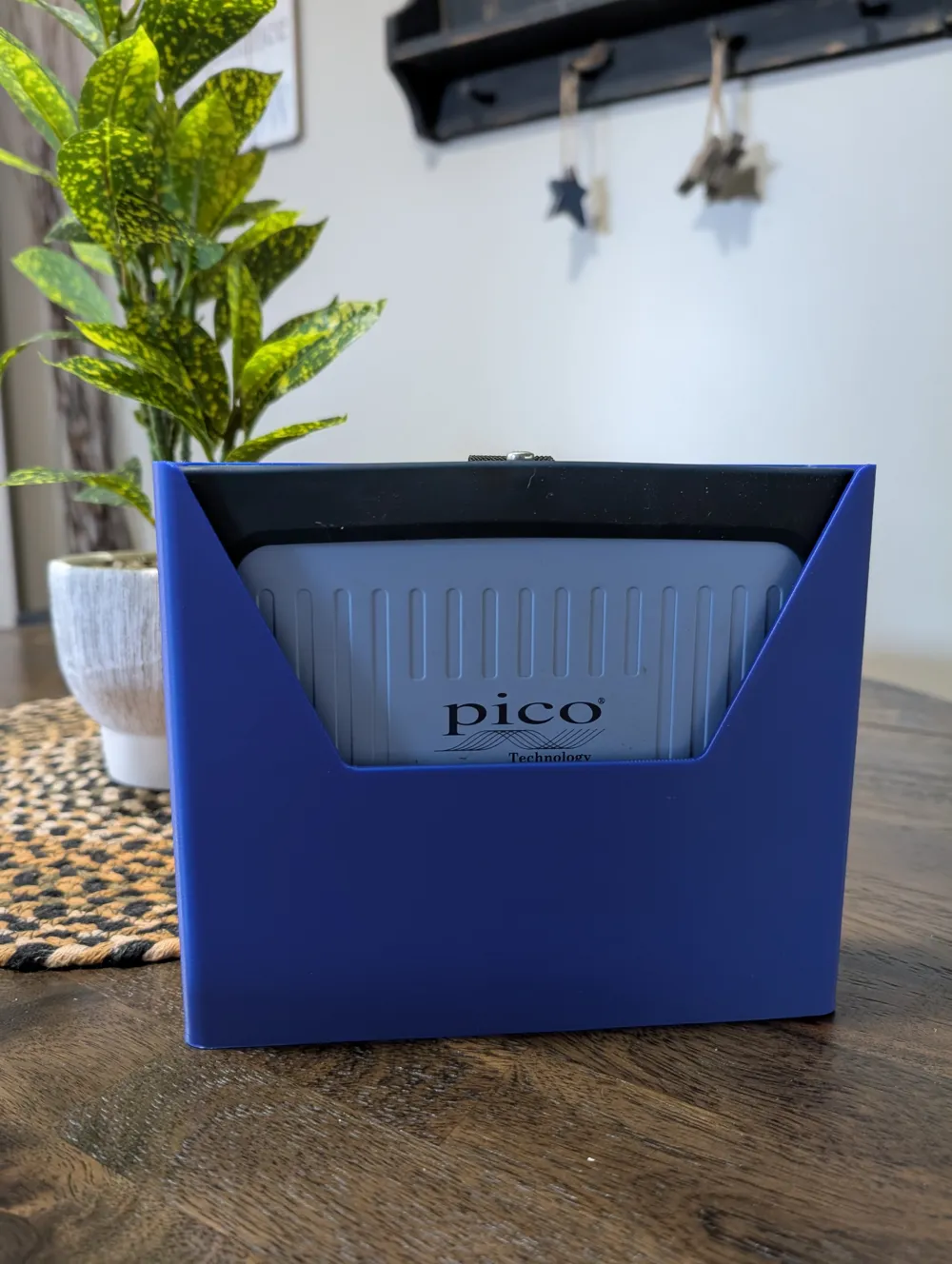

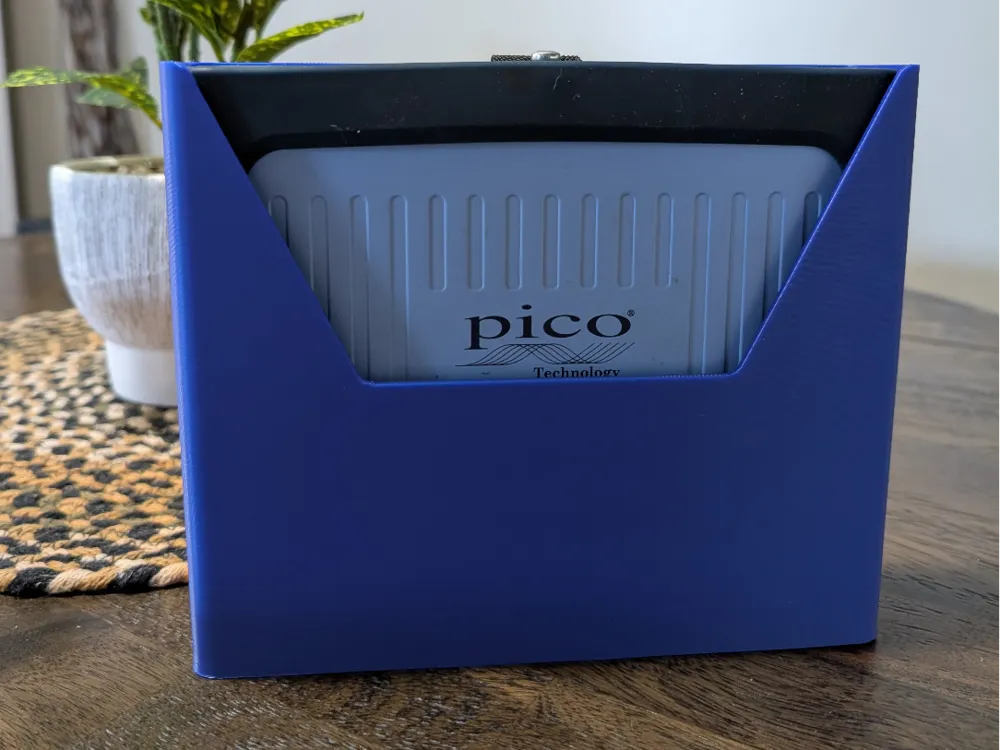

• Perfect Friction Fit: Precision-engineered to hug the contours of the PicoScope 4425 without blocking necessary ventilation or status LEDs.

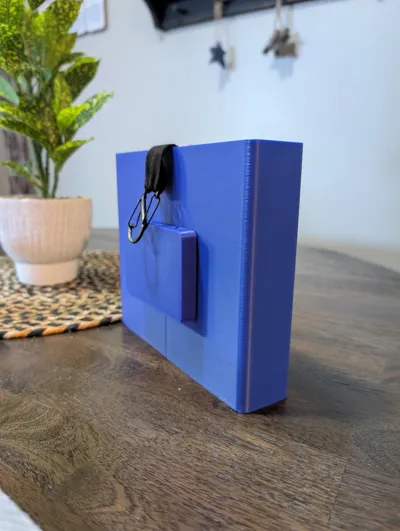

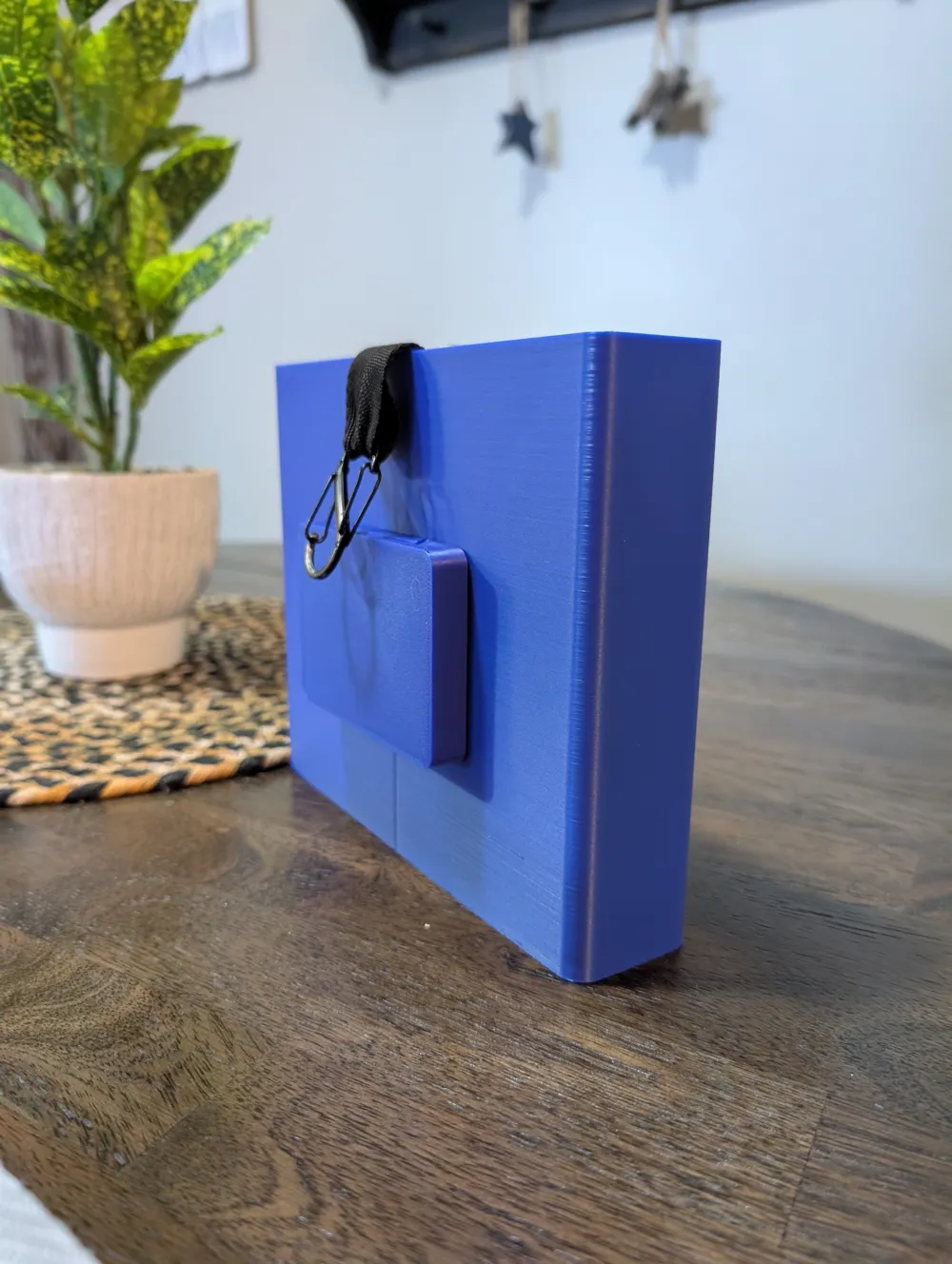

• Integrated Mount: Built-in mounting brackets on the back/base, making it easy to adapt to toolboxes, diagnostic rigs, or custom setups.

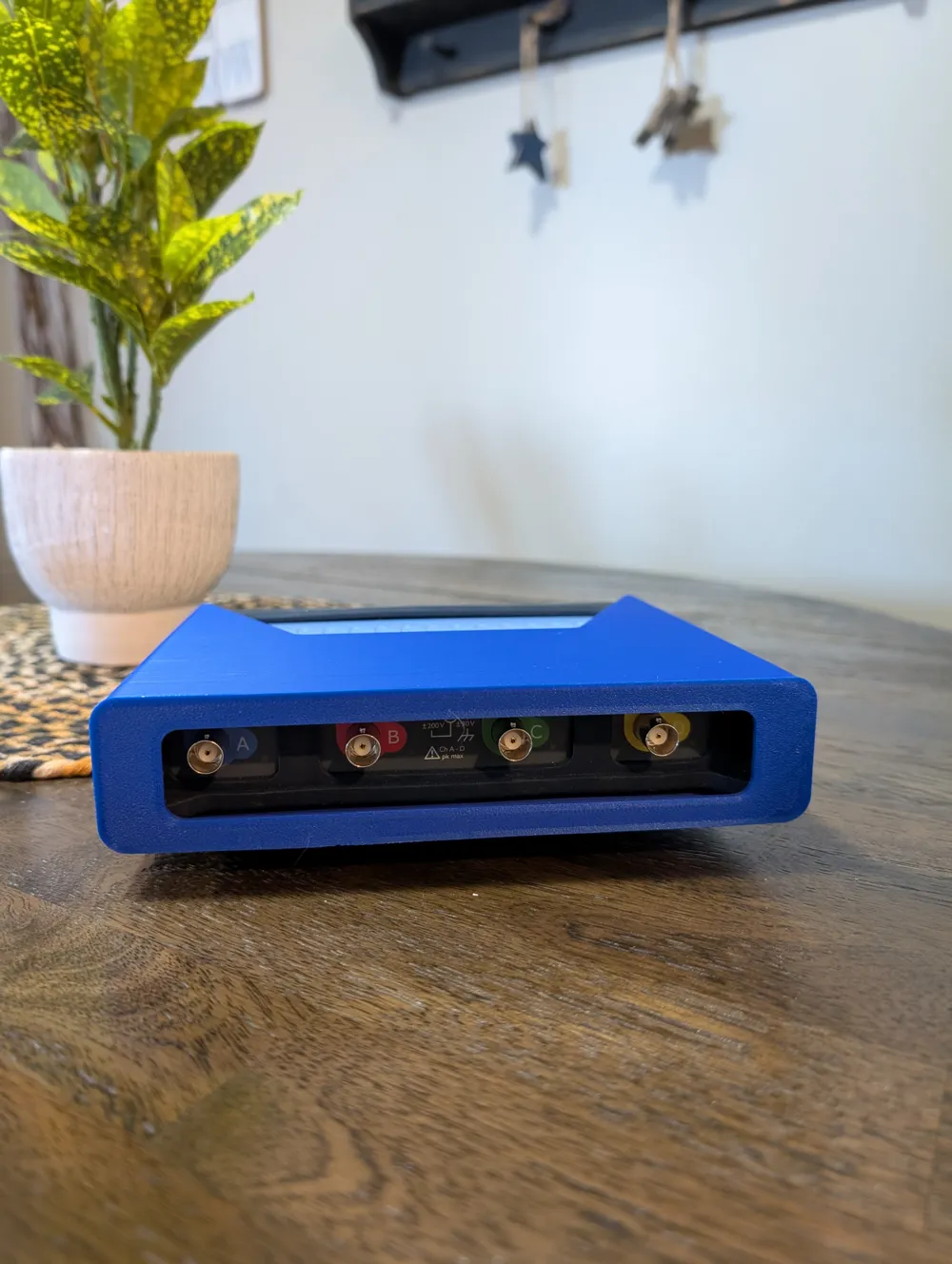

• Strain Relief & Accessibility: Openings are perfectly aligned to allow easy access to all BNC leads, USB connections, and the ground post while providing structural support around the ports.

🖨️ Recommended Print Settings

To ensure the case handles the demands of a workshop environment, the following print settings are highly recommended:

• Material: PETG, ASA, or ABS (Highly recommended for automotive shop environments for superior chemical resistance to oils/solvents and excellent impact durability).
• Supports: Yes, partial. Supports are required only for the integrated mounting section. The main body and port cutouts are optimized to print cleanly, but the overhang for the mount needs a little local support. (Tree supports work beautifully here for easy cleanup).
• Wall Loops: 3–4 lines (For structural rigidity around the mounting points and corners).
• Infill: 20% – 25% (Gyroid or Grid for uniform strength).
• Layer Height: 0.2mm.
