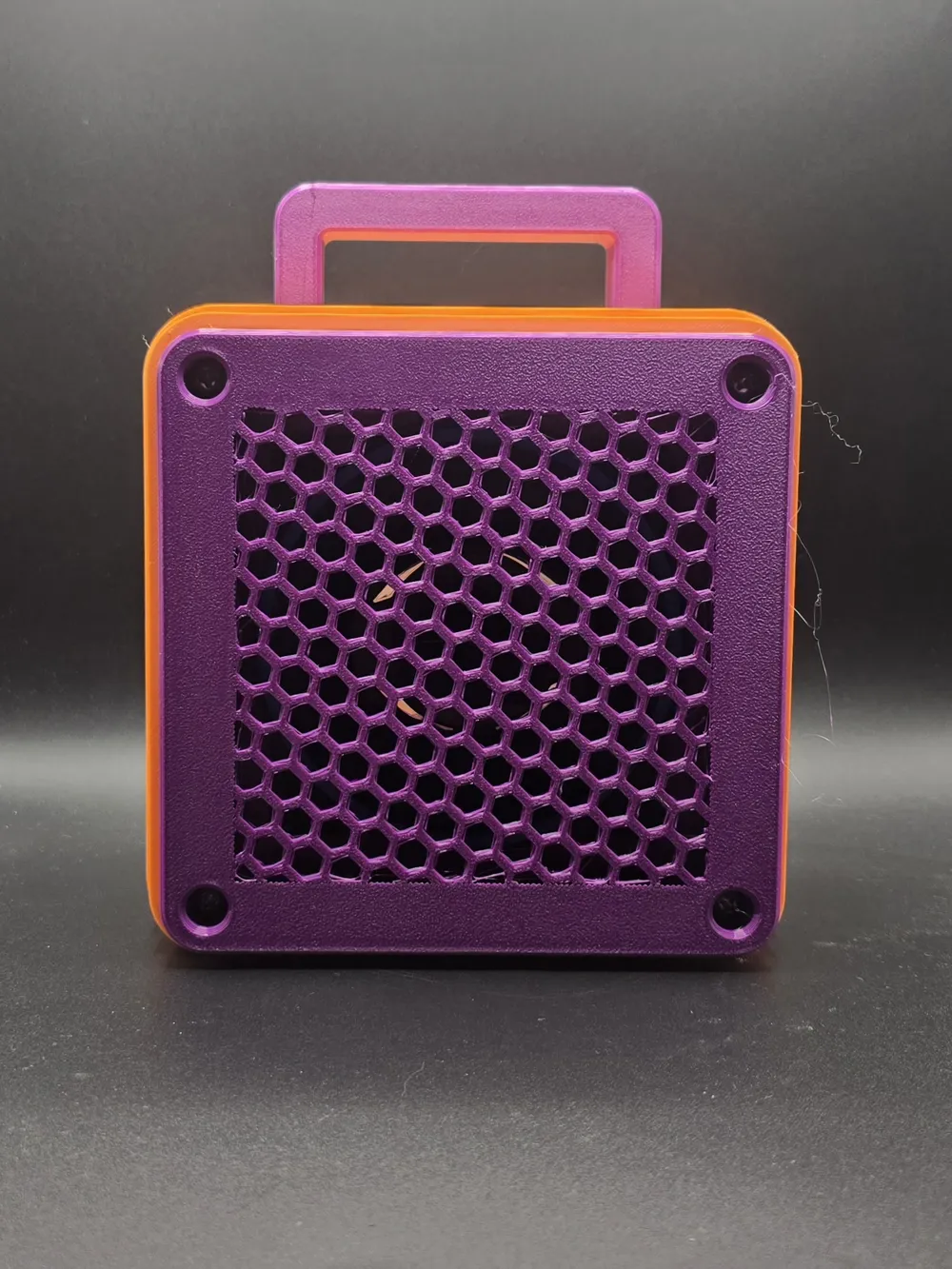

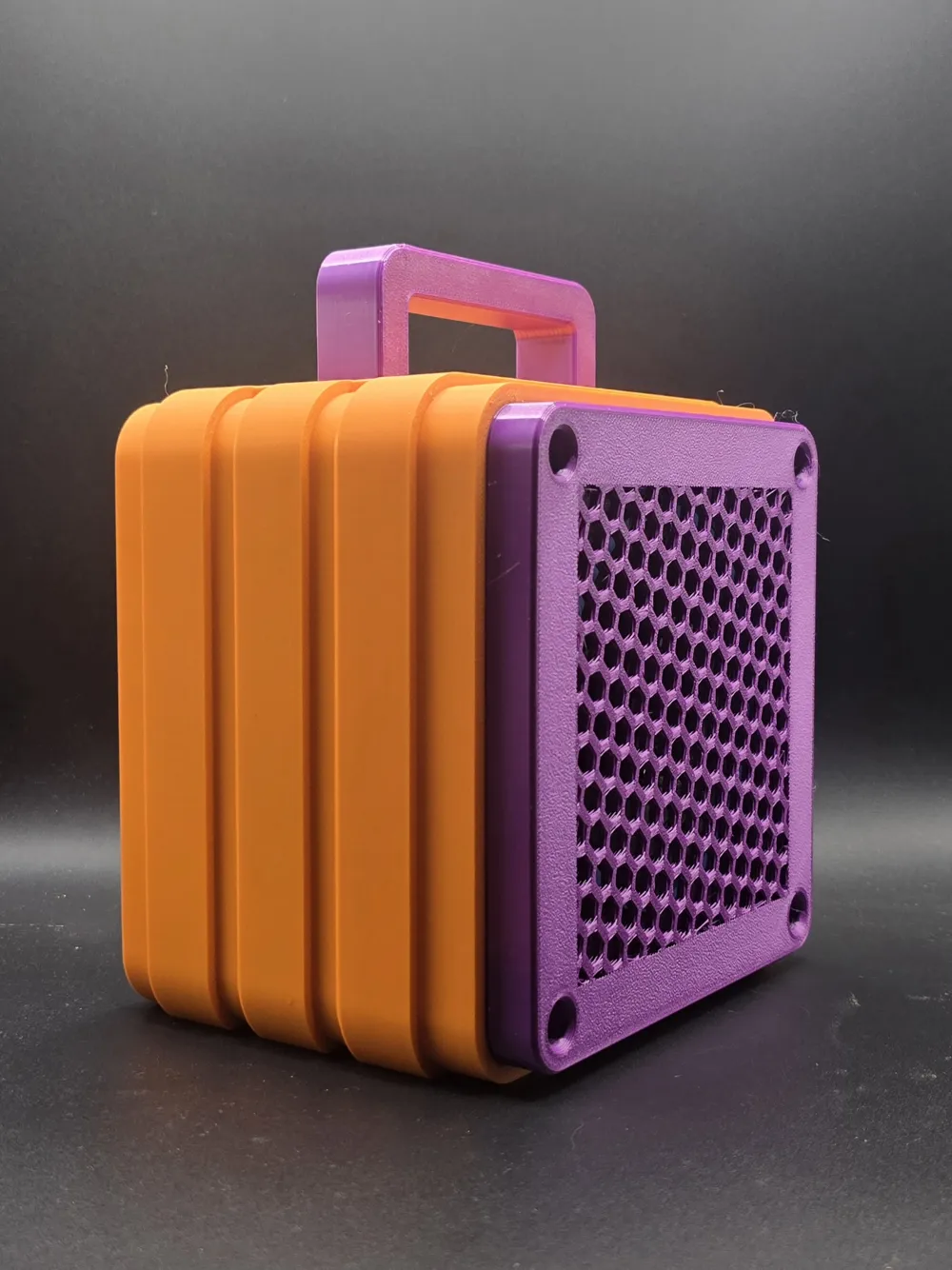

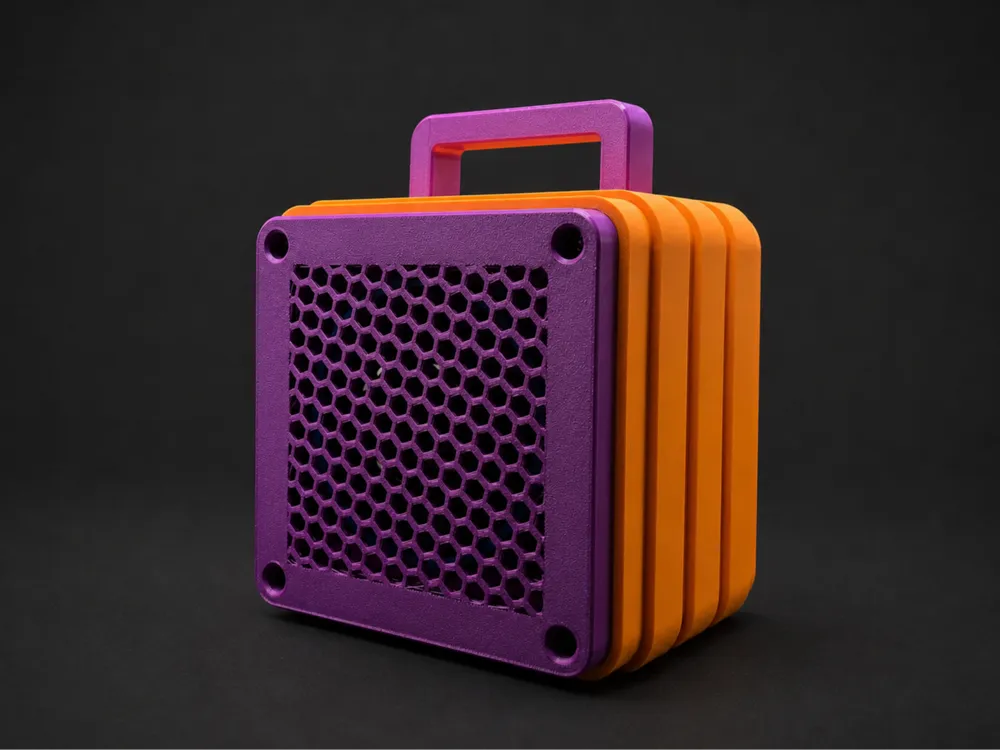

Introducing Wake Box, a compact portable boombox inspired by the clean, rugged design language of Dock Box. Built around a single 4-inch speaker, Wake Box delivers impressive sound in a smaller, easy-to-print package that's perfect for desktops, workshops, garages, or taking on the go.
Like Dock Box, Wake Box uses the reliable TW100U amplifier and a 12V battery, making it easy to reuse components if you've already built one.
Features
- Fits a single 4-inch speaker
- Uses the TW100U Bluetooth amplifier
- Compatible with a 12V battery
- Simple assembly with common hardware
- Clean, modern design with interchangeable grille options
Compact and portable without sacrificing style
-Face Plate is avalible in stl with no screw holes to drill for any 4in speaker
Electronics Used
Recoil 4in Speakers :
Speakers(KNIGHTATV KS14):
https://knightatv.com/products/ks23-4-waterproof-speakers?_pos=1&_sid=f2175d711&_ss=r
Power Button(16mm)
Single: APIELE
Double: Gebildet
Battery:
24V
Amplifier:
1 Amp
2 Pack
https://amzn.to/3SF1bc1
Wiring Componets(Optional)
20pcs Lever Connectors
Filament Used:

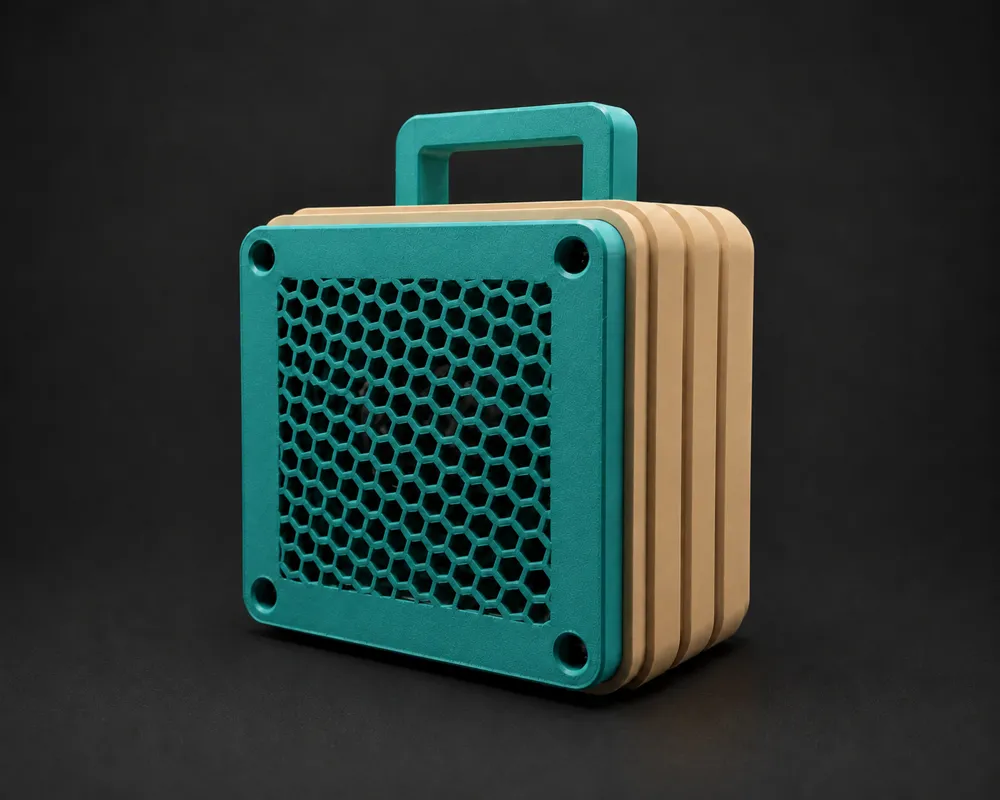

Teal PETG
Tan PETG
• Charging port Press Fits In the port
• Battery is placed inside the housing mounted with 2 sided tape

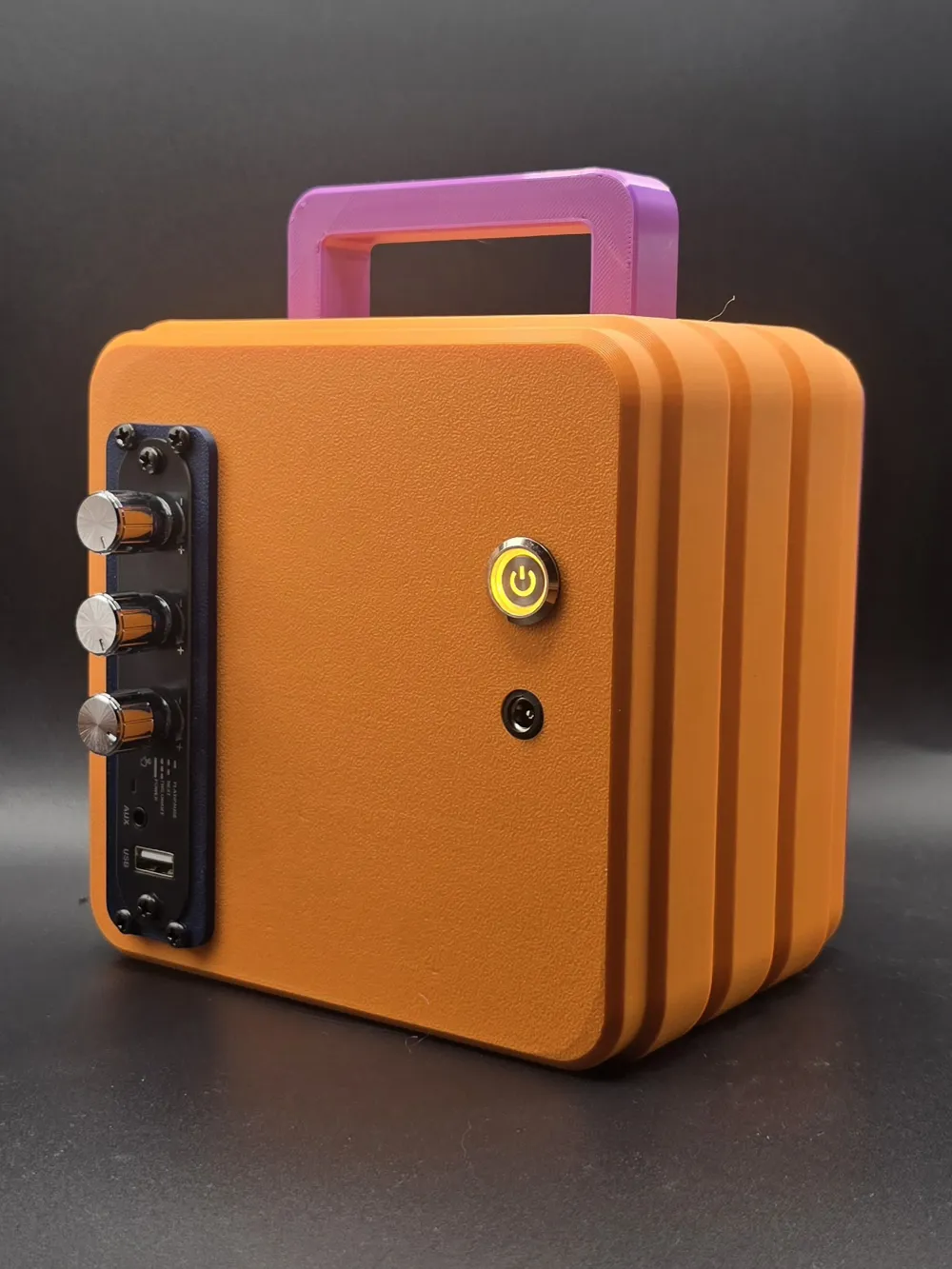

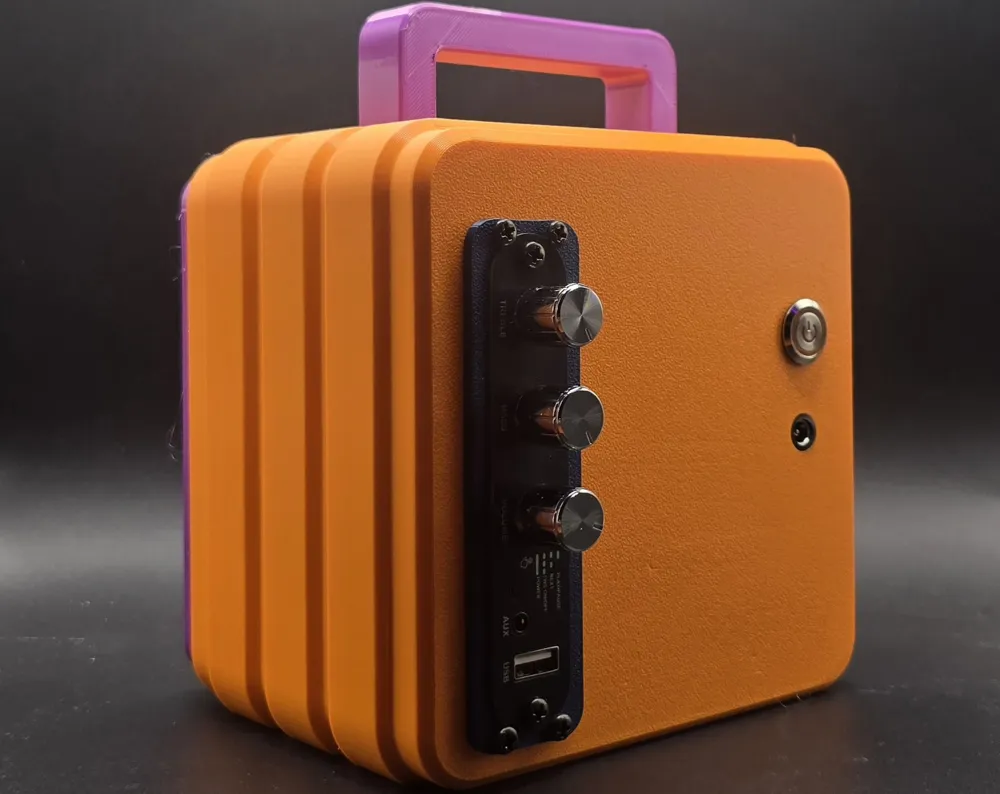

• Amplifier is screwed into the rear of housing
____________________________________________________________________________________________________________
Designed for real-world use and reliable printing.
If you run into issues or have improvement ideas, leave a comment.
