AirTag enclosure (V2) snowboard / motorcycle / etc
IP Report
Print Profile(1)
V2 with support and V1 on separate plate
Designer
2.7 h
2 plates
Open in Bambu Studio
Boost
149
473
49
18
557
353
Released
Description

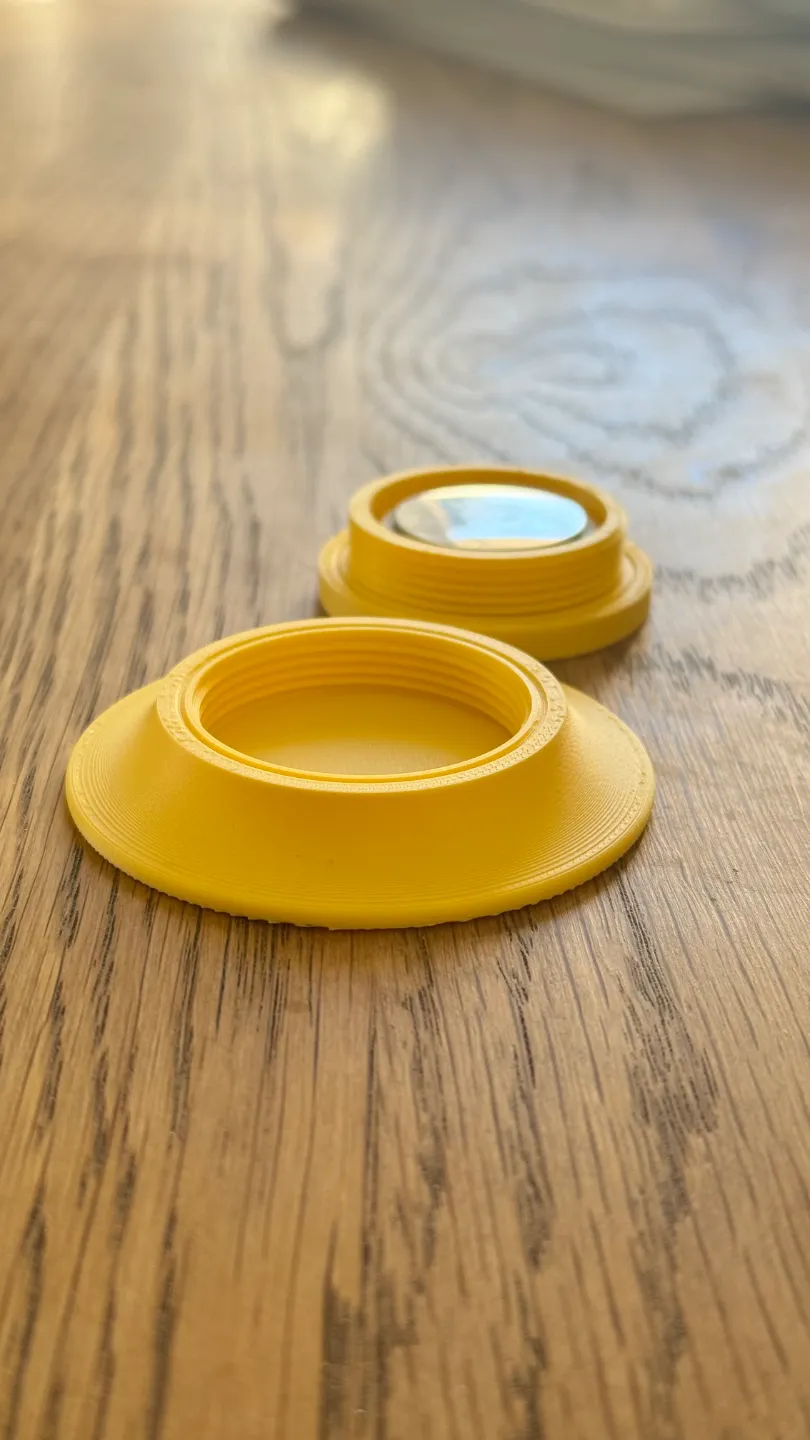

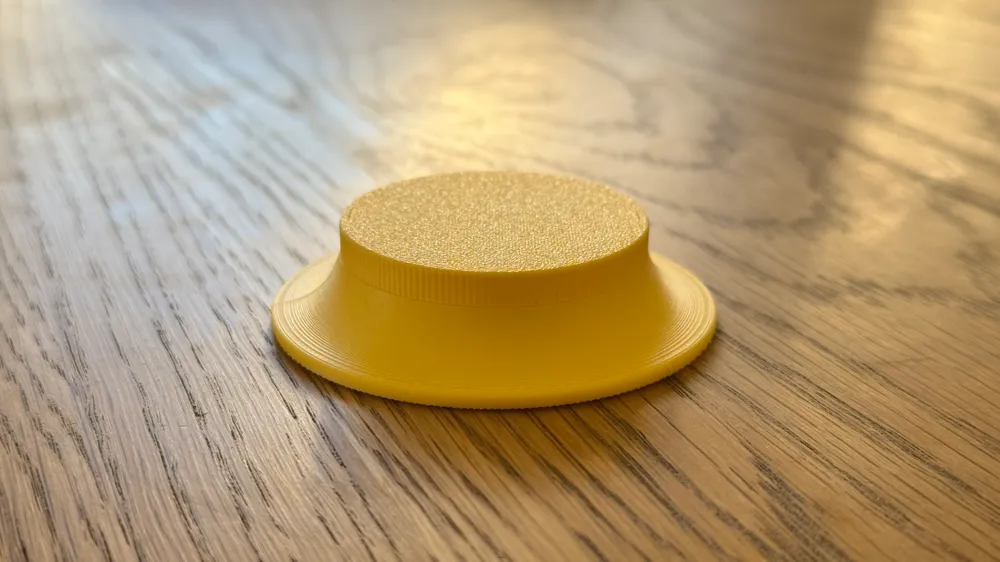

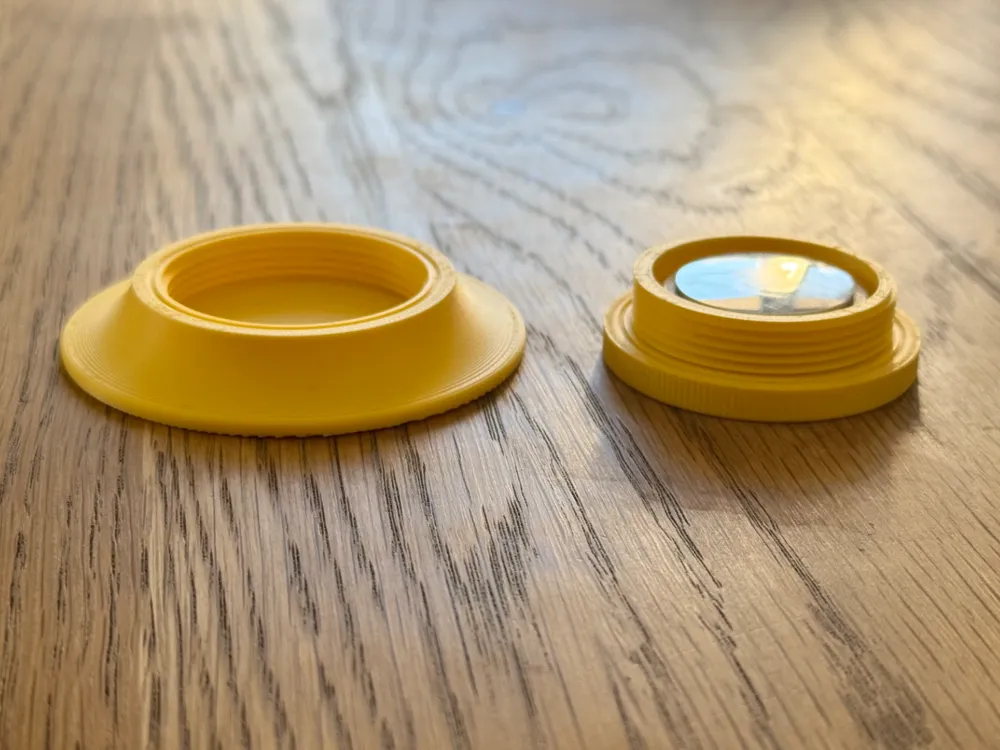

(Now V2!) The model is designed to house an apple AirTag, with a screw in top (cap) and an o-ring for some water tightness.
I'm also including the fusion 360 file for anyone to make an easy remix there.
Boost Me (for free)
Boost me if you like the model
Printing recommendations
- Printing the base and top (cap) on any regular PLA should be enough.
- O-ring should be printed on TPU or any other elastic material.
- slow speeds.
- low layer height so that the screwing pattern prints nicely.

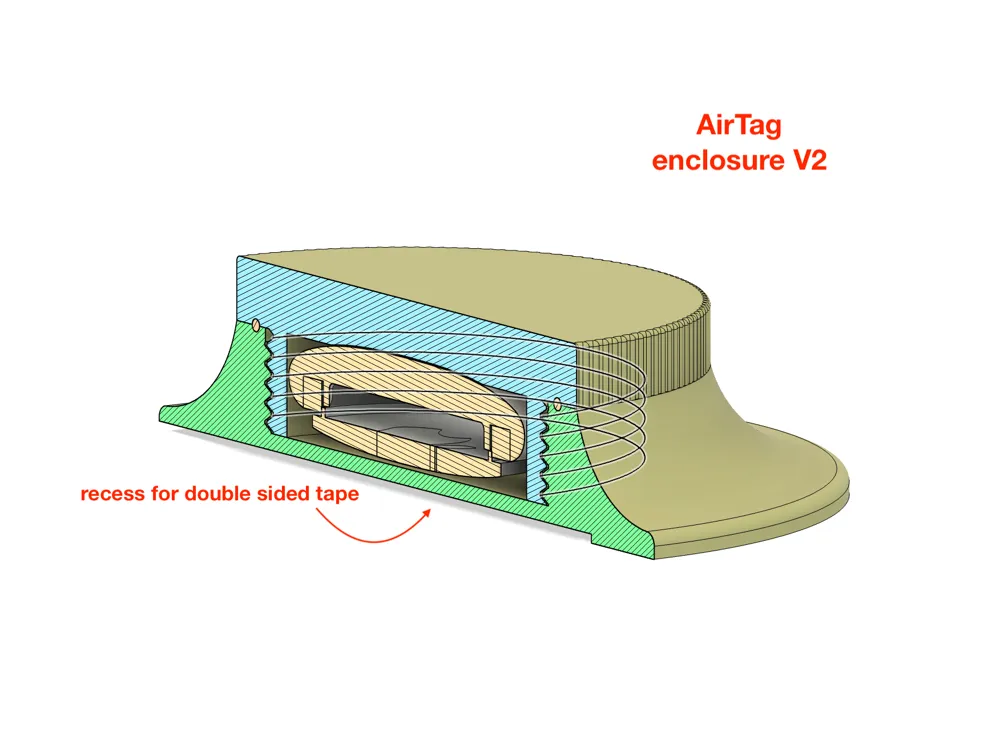

- Support needed for the base offset where the double sided tape goes.
Other instructions
- Double sided tape: Use 1mm double sided tape at the base offset to stick it to any surface. I recommend making the tape a little longer (coming out of the base and visible) in the opening so that you can pull it out when you want to remove the enclosure.
- O-RING: If you're using a non 3D printed o-ring, make sure it's approximately 40mm in diameter. Something like this on aliexpress could work (untested).

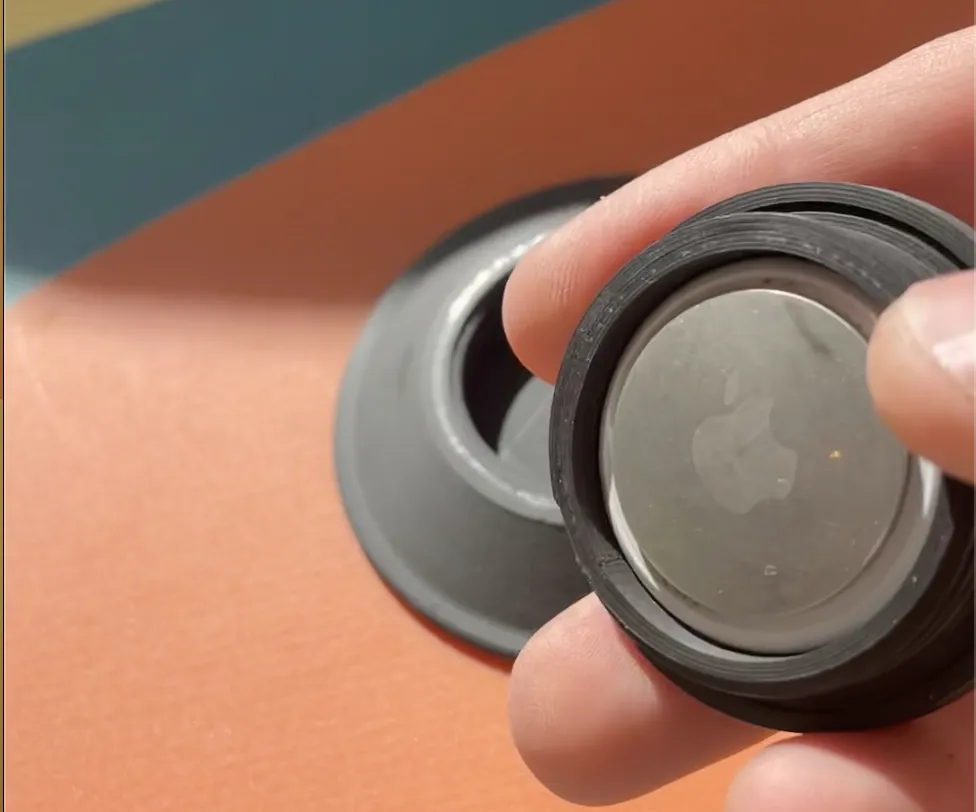

- How to insert the Air-tag (IMPORTANT): when inserting the AirTag do it on the top (cap) with the metal part facing outward. This way you can easily remove it whenever you need.
- If you use this on a snowboard: Don't stick it to the top or bottom parts of a snowboard as it may get detached when putting your board in a gondola side carrier. Its better to stick it on the inside middle section right next to either of the bindings.
Changelog:
- 14/01-2025: V2 comes with several improvements. Improved grip on cap, better tolerance on threads and a smaller diameter on the base (now at 67mm vs 72mm on V1).
