Air Conditioner Line Cover Wall Pass-through
Print Profile(1)
Description

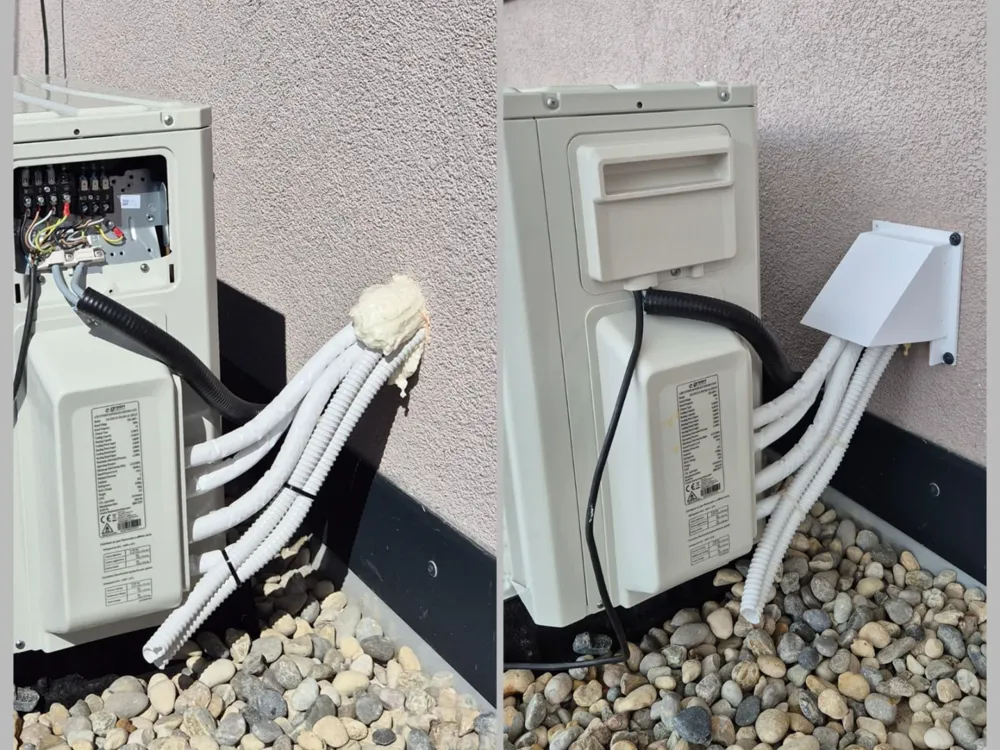

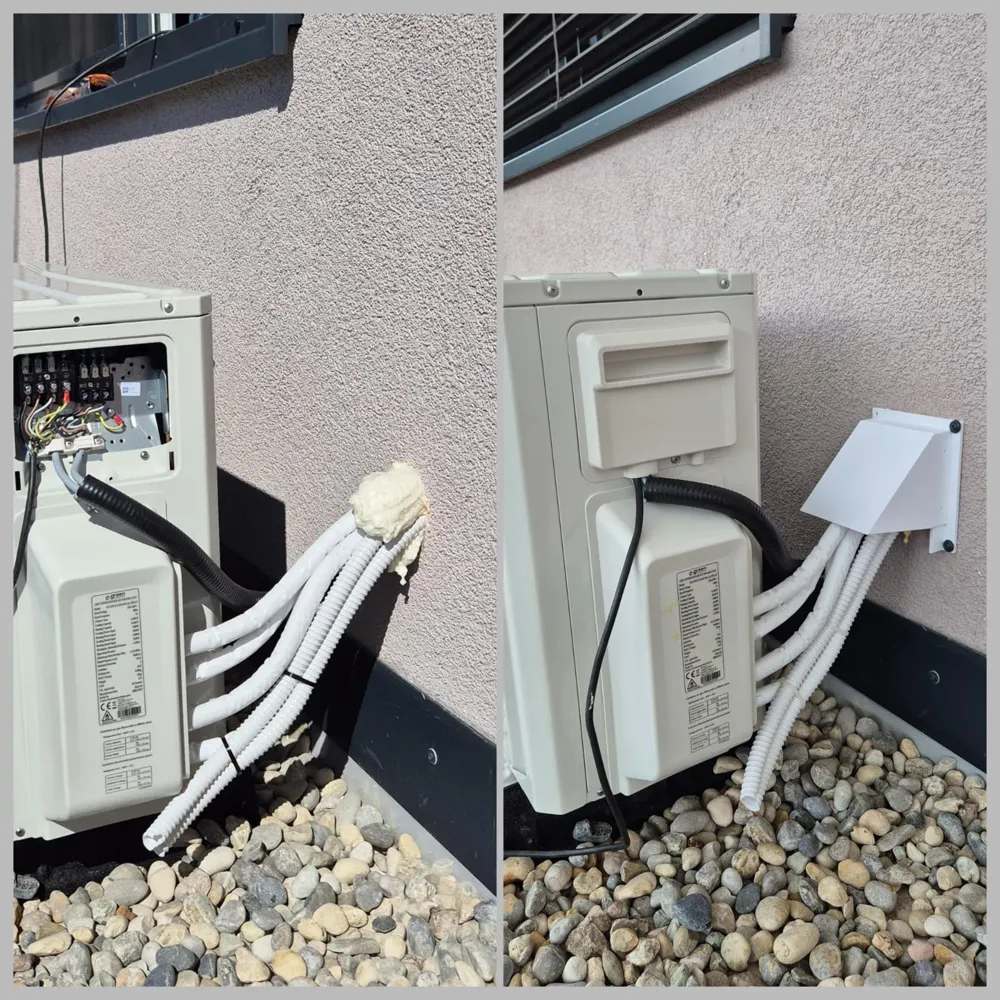

This cover was designed to neatly and weatherproofly cover the line pass-through for a split air conditioner.
Features
- ✅ Print without supports
- ✅ Fast and easy printing
- ✅ Clean look for AC lines
- ✅ Suitable for outdoor use (when printed in PETG)
- ✅ Easy assembly
- ✅ two mounting frames of different lengths
Printed with
- Material: PETG
- Supports: Not required
- Recommended layer height: 0.20 mm
Assembly
The frame and cover are glued together after printing. I recommend the following:
- Superglue (cyanoacrylate)
- PETG adhesive or 2K epoxy adhesive for maximum stability
- Construction adhesive

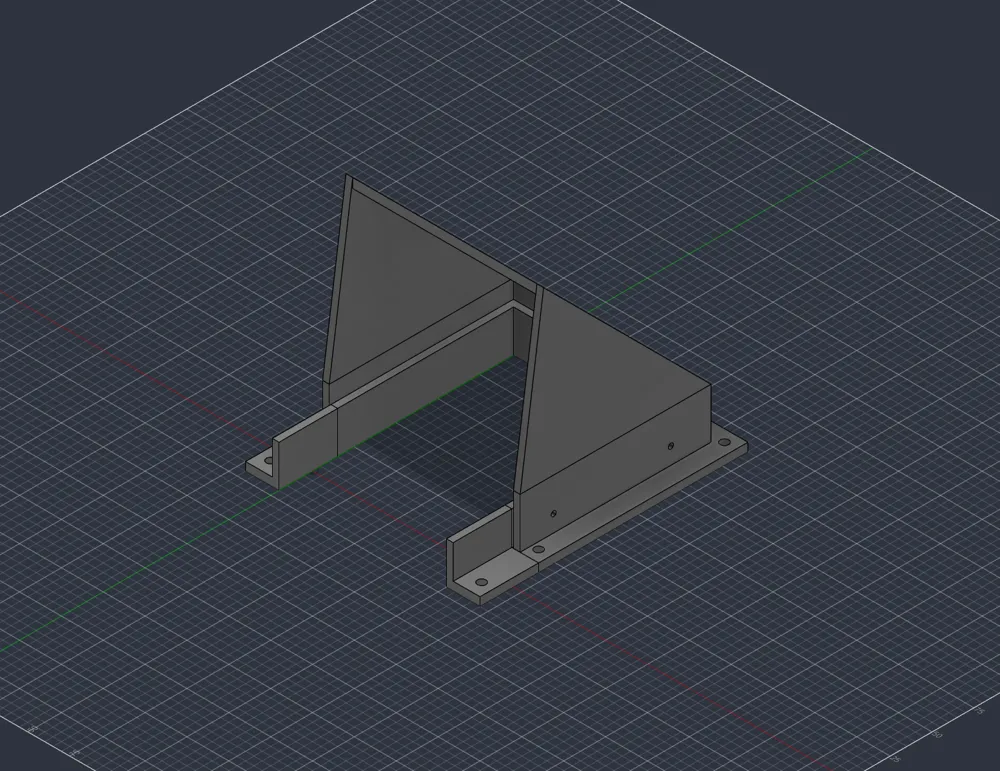

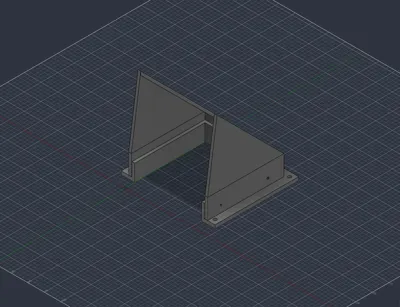

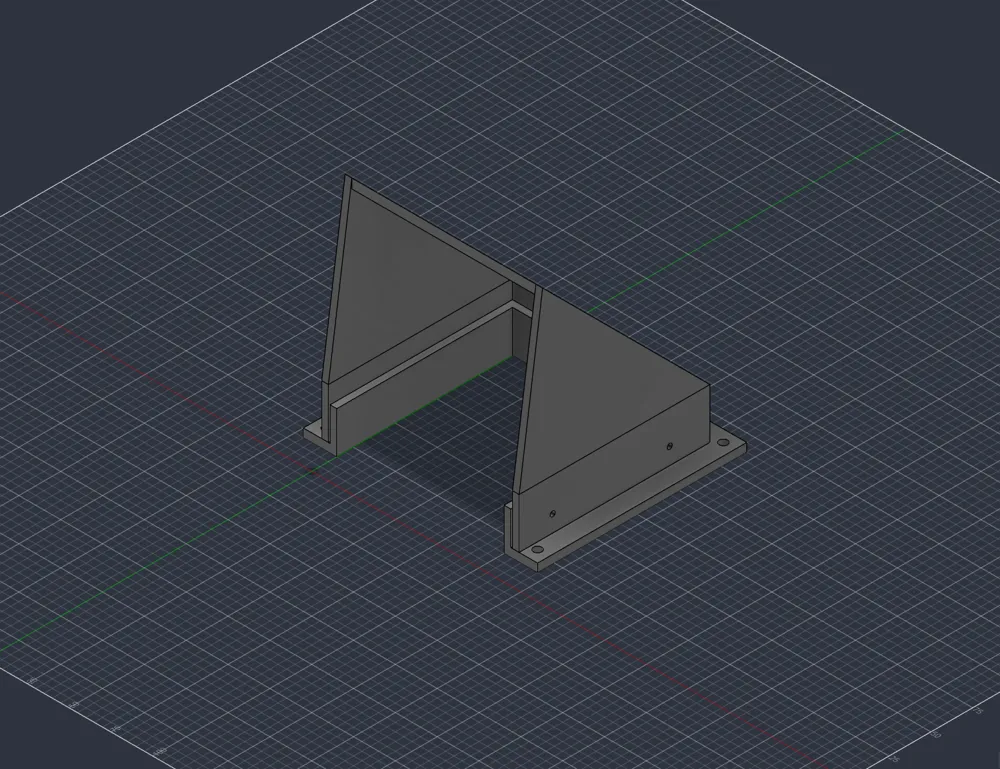

The two-part construction enables a print-friendly design without support material.
If adjustments to the dimensions are needed, the model can be easily scaled or adapted.
