Taxi, split-plate dual color (no supports, no hardware required)

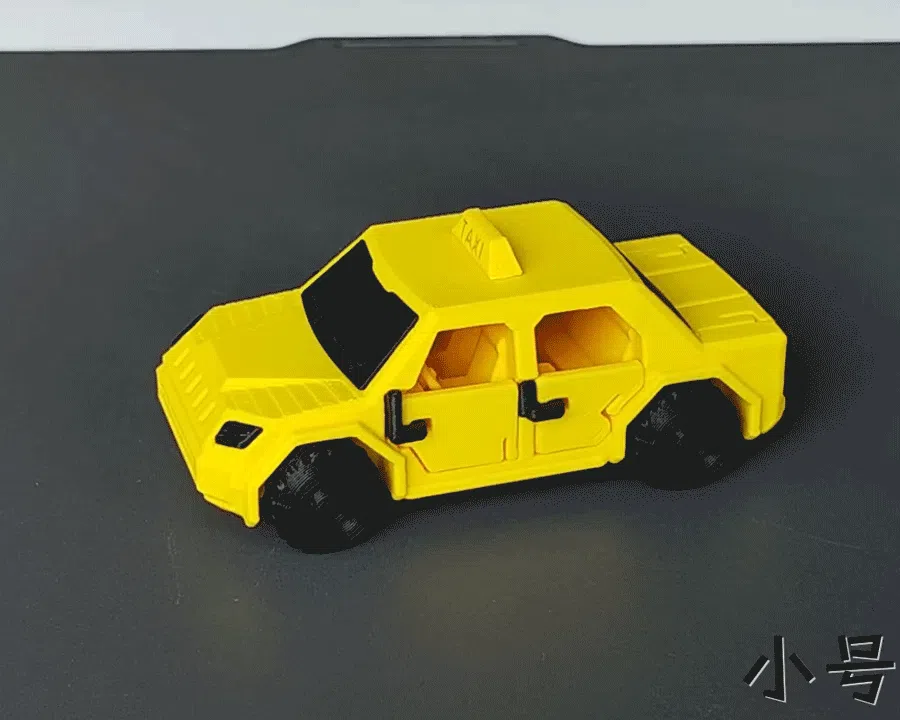

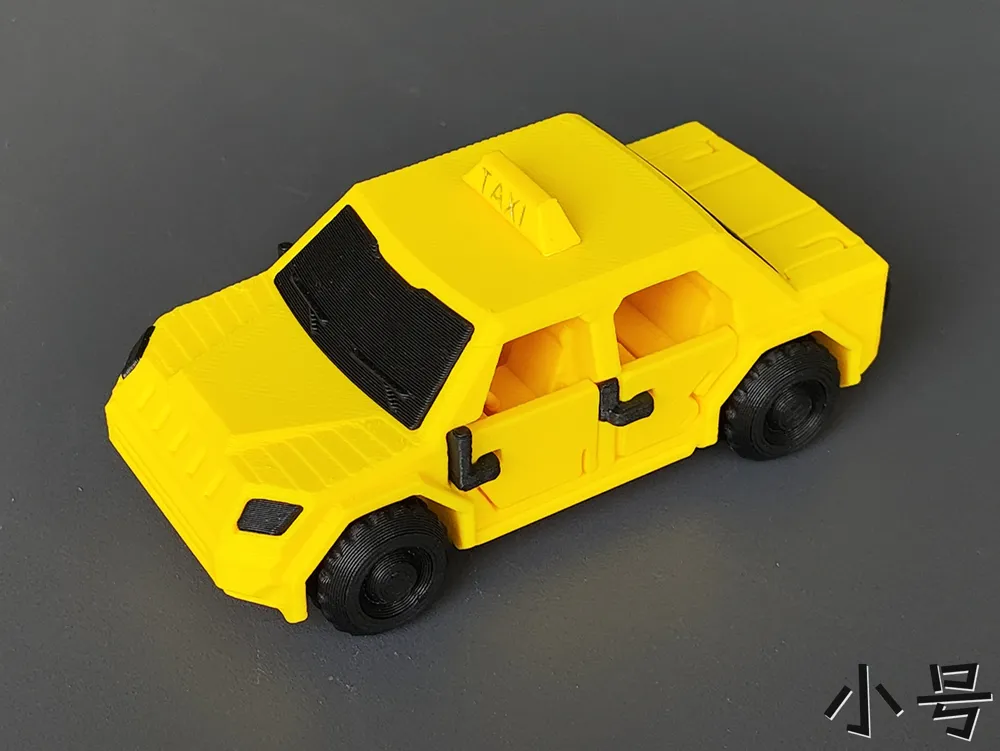

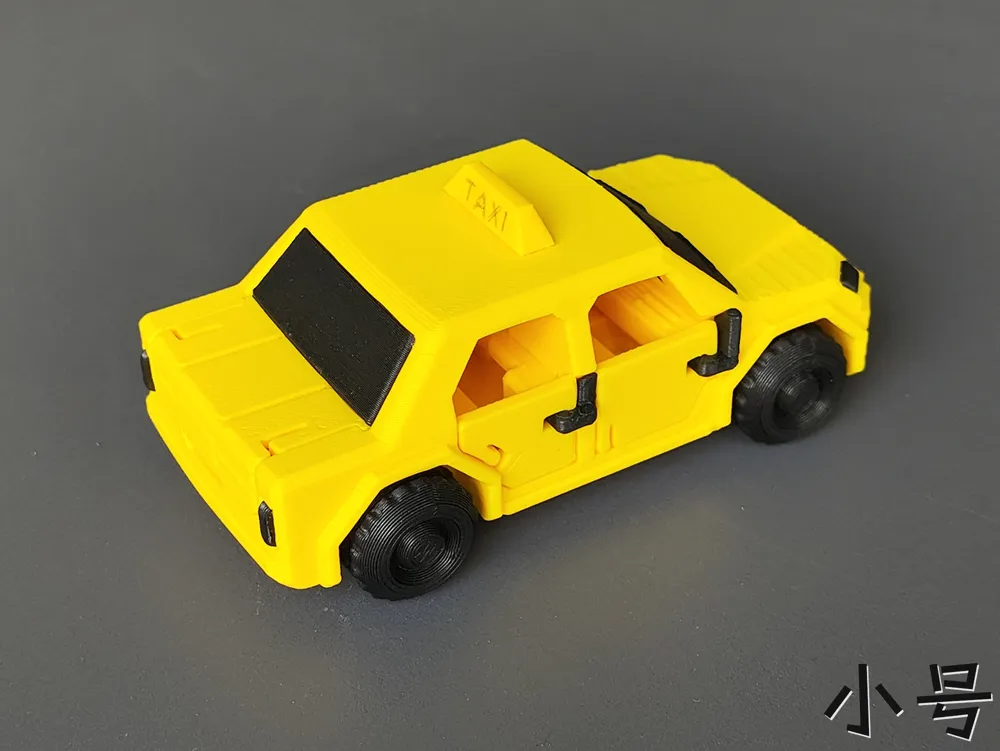

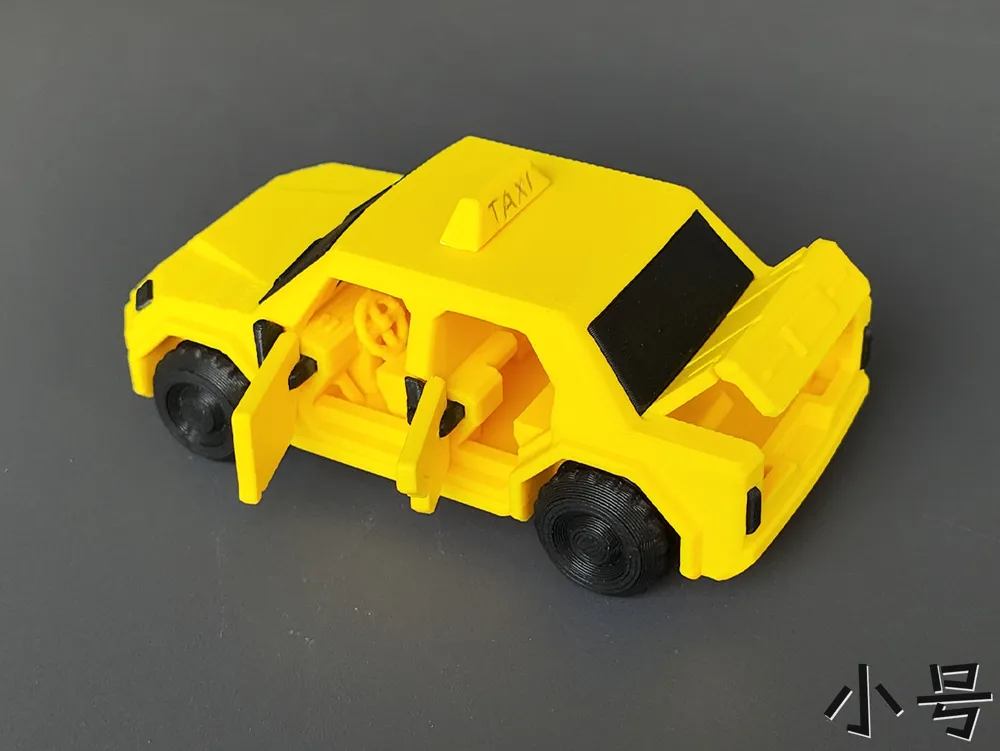

This taxi was requested by a friend no hardware needed using the 3rd generation optimized printed wheel axle and 2nd generation wheels The cab seats are not made to a true scale because too large of an overhang distance (maximum 10.6mm for the small size) at the top would increase the risk of print failure and result in unsightly overhangs so it was not made to a true scale This model is not planned for a simplified version because the trunk door hinge is not easy to remove which should not significantly affect children playing with it (Small size Length Width Height approx: 86.4*45.6*36.3mm)

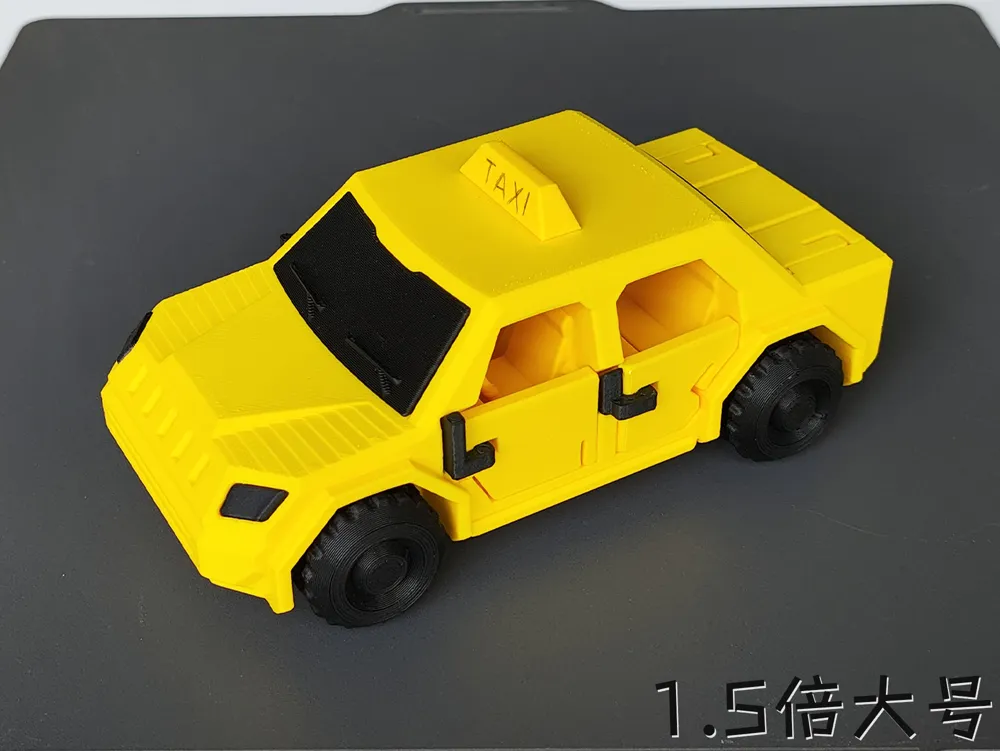

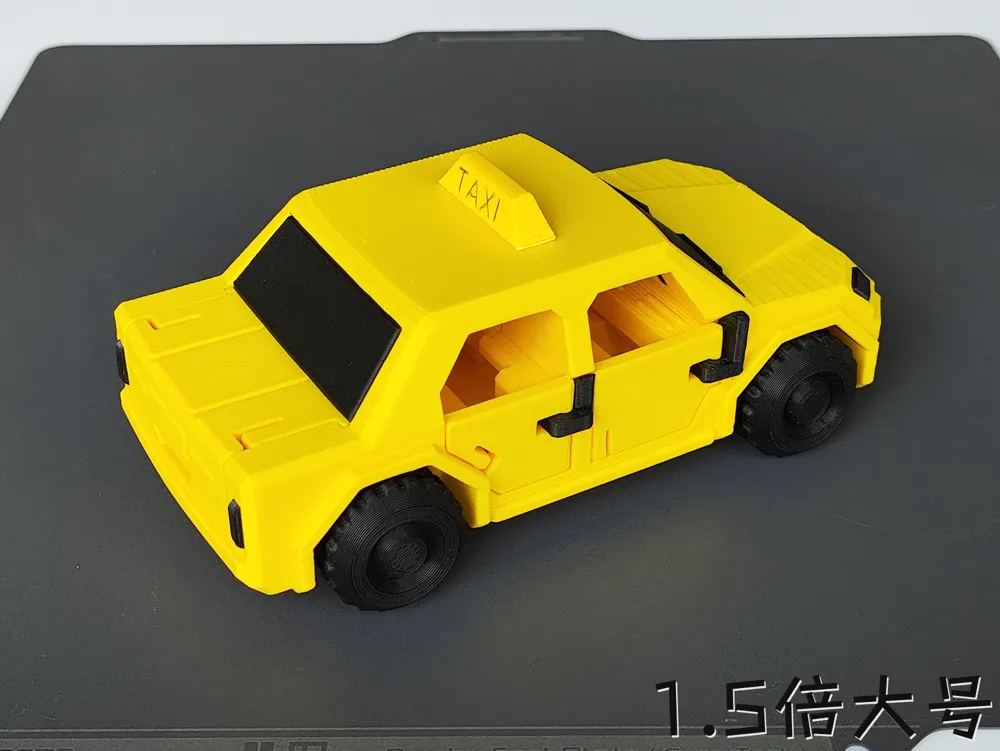

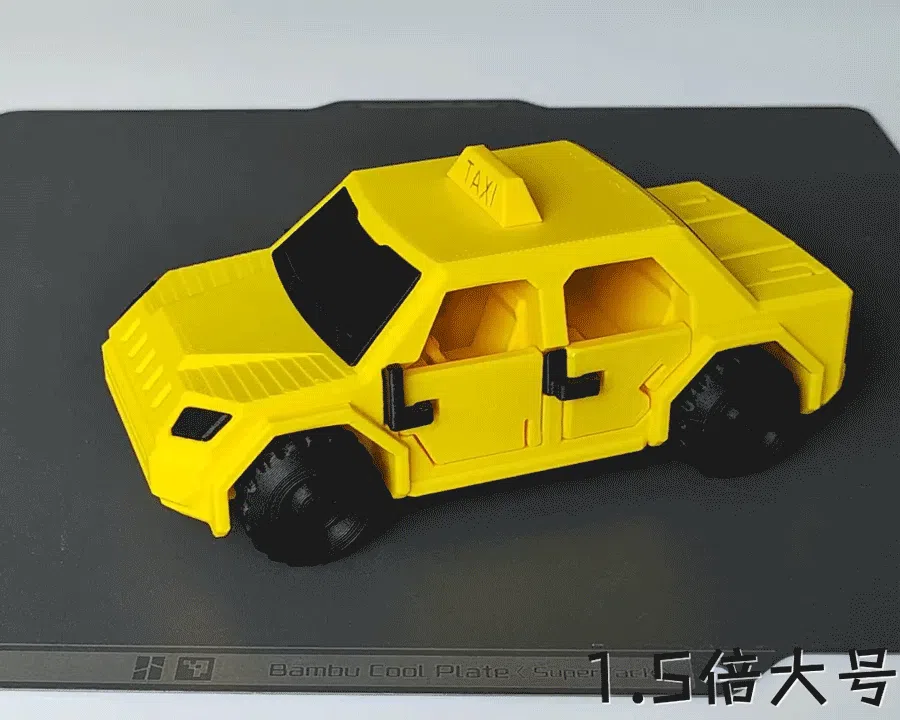

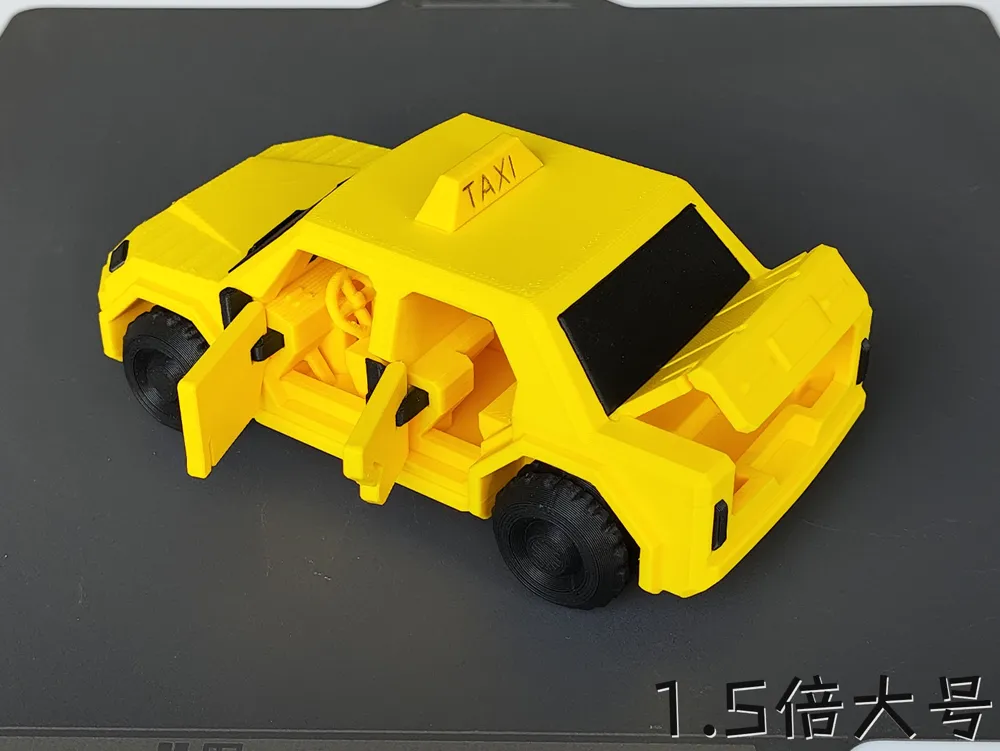

1.5x large size, update coming soon

1.5x large size, update coming soon

Notes:

1 For the small size some parts are quite small making installation more difficult direct hand pressing is not recommended use a hard object to push them in

2 If there is first layer overflow it will affect the difficulty of installation if present please sand or scrape it off yourself

3 The TAXI font needs to be colored by yourself

4 The function of the groove in the middle of the 2nd generation wheel click the link for instructions on how to use ithttps://makerworld.com.cn/zh/models/2652847-di-2dai-lun-wu-zhi-cheng-wu-xu-wu-jin-jian#profileId-3065450

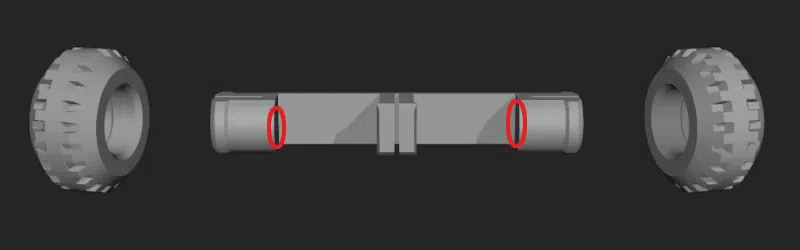

The GIF below shows the wheel assembly diagram:

Tilt the wheel and place it onto one side of the axle buckle then press the red circle with your thumb and apply force to the side of the wheel with your index finger to push it in (using leverage) The installation method for the other side wheel is the same

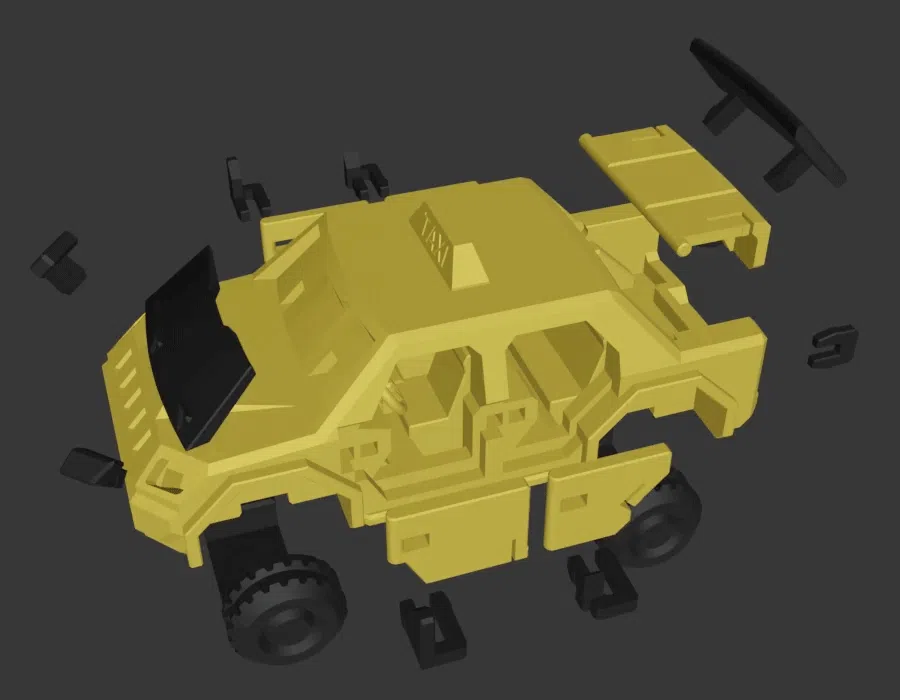

The GIF below shows the monochromatic body assembly diagram:

1 The door buckles are installed for left right front and back push them in with a hard object do not press them incorrectly or the slot will break

2 Install the trunk door first then install the rear windshield Otherwise the trunk door cannot be installed

3 Install other components

4 The TAXI font needs to be colored by yourself a pencil is recommended and mistakes can be erased

Note: 1. Both PLA and PETG can be printed. It's best to understand the characteristics of these two materials before printing to avoid printing failures!! For example, PLA can become brittle if left for a long time or at low temperatures, while PETG has good toughness. Please choose the filament that suits you!!

        2. If it's for younger children, and the parts are small and easy to disassemble, it's better to glue them firmly with 502 or other adhesives to prevent them from being swallowed!!

        3. If there are no special requirements, please do not use your own advanced process settings for printing~ to avoid printing failures!!

If your printd part has local spaghetti, or the filament doesn't stick to the build plate, please recall if you touched that area (hands secrete sweat and oil, touching it has a very high chance of causing spaghetti)  or if the build plate is dirty. The solution is to search online for how to clean a 3D print plate!! If other problems occur, please describe it in the comments section and add pictures, so it's easier for us to solve it~  Otherwise, I can't imagine the situation = =!!
